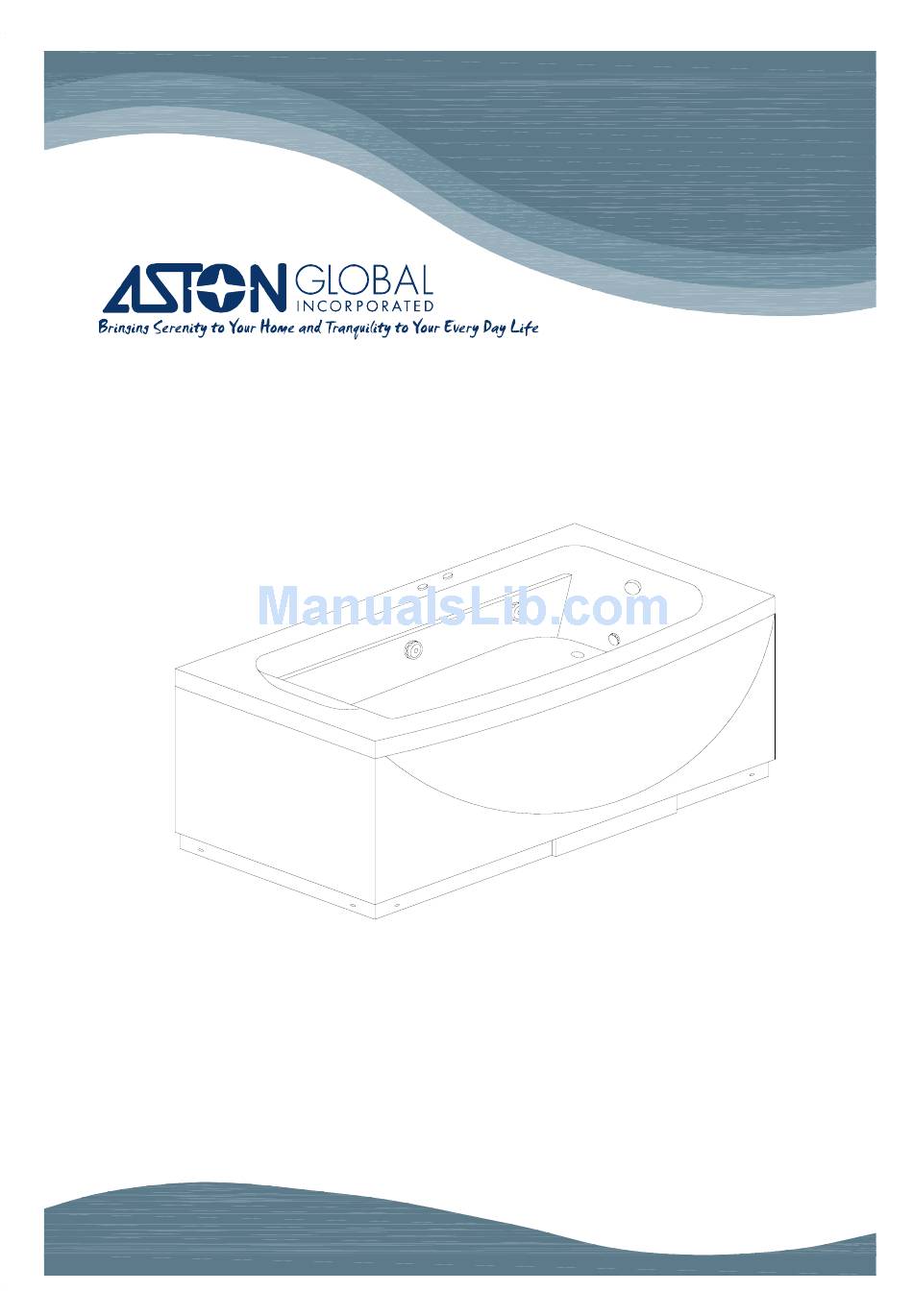

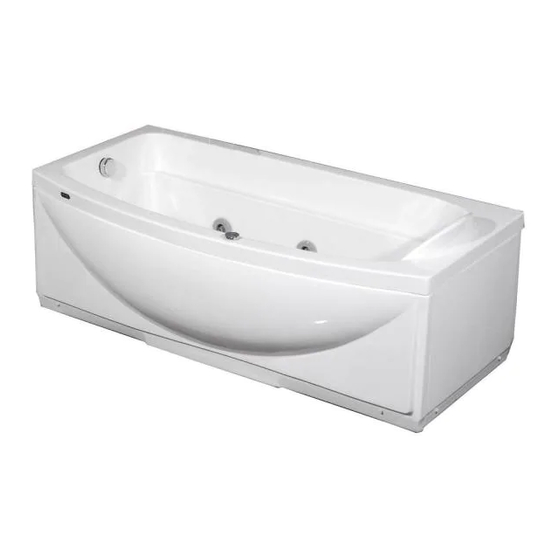

- Page 1 INSTALLATION AND OWNER'S MANUAL Whirlpool Bathtub Model Number: MT601-R Please carefully read these instructions before you begin to install the products. 07/11 Rev A P/N:100056-02...
-
Page 2: Before You Start
Before you start Thank you for purchasing your Aston whirlpool bathtub. We hope that it will provide you with years of satisfying use and enjoyment. Please read this manual carefully because it contains information and instructions about the proper installation of the unit. If you do not follow certain conditions of installation and maintenance, your warranty may be affected. -
Page 3: Important Safety Instruction
Important Safety Instruction WARNING: To reduce the risk of drowning, electrical shock, or injury, read the following important precautions before using the unit. If you do not fully understand the meaning of any of the precautions and warnings please consult your dealer or the manufacturer for a full explanation. - Page 4 10. WARNING: To avoid the risk of accidental injury or drowning children should not use the hydro massage bathtub without adult supervision. 11. WARNING: To avoid injury, take care when entering or exiting the hydro-massage bathtub. 12. WARNING: To avoid unconsciousness and possible drowning, do not take drugs or drink alcohol before or during the use of a hydro massage bathtub equipped with a heater.
- Page 5 Installation Guide Please read and follow the installation instructions and guidelines in this section. Failure to follow the recommended instructions and installation techniques may lead to possible damage to the unit or the surrounding area and can affect warranty claims. ATTENTION: This unit requires assembly.
- Page 6 Phillips head screw driver Bathroom rated silicone sealant Electrical Requirements Installation by a Licensed Electrician 15 Amp service, 110-120 VAC @ 60Hz GFCI breaker required Before starting the installation, please ensure that you have inspected all components of the unit and check for broken or damaged sections. If you find damage, please contact your dealer or the manufacturer.
- Page 7 Remove the whirlpool tub skirt for access Using a Phillips screw driver to remove the screws holding the skirt onto the whirlpool tub To remove the skirt but pulling down on the skirt carefully...
- Page 8 Level the whirlpool bath for proper drainage The whirlpool bath is constructed with several leveling feet. Each foot has a locking nut. Use an adjustable wrench and level to complete this next step. 1. Loosen all of the locking nuts so that the leveling feet are free and easy to move.
- Page 9 WARNING: Failure to apply proper pitch or grade for drainage can cause leaking and/or flooding of the area surrounding the unit. 5. After making all the leveling adjustments ensure that all leveling feet (including center foot) are in contact with the floor. To ensure the unit is supported, stand in the whirlpool bath in several places looking for any movement and adjust as needed.
- Page 10 Optional drain connections The Whirlpool tub comes equipped with a factory installed drain and overflow an optional flexible drain hose is also provided to avoid having to move the floor drain. Please see the Drain diagram for the optional drain hose. Flex drain hose Use the following instructions for the standard straight drain: 1.
-
Page 11: Electrical Connection
Electrical Connection With the skirt removed make the final electrical connections. The unit MUST be connected to a GFCI protected circuit. Slide the skirt into place and fasten with screws provided... - Page 12 Operation of the whirlpool tub WARNING: Never operate the whirlpool pump with out water above the suction cover this will damage the pump and void the warranty. Use the following steps to operate the whirlpool tub: 1. Fill the tub with water until the whirlpool jets are covered 2.
-
Page 13: Troubleshooting
Troubleshooting Symptoms Possible Causes Solutions No power to unit 1. Loose power 1. Verify and check all connections power connections 2. GFCI Breaker tripped 2. Reset GFCI, if GFCI keeps tripping replace pump Whirlpool jets not 1. No power to pump 1. -
Page 14: Warranty
The determination as to whether Product shall be replaced, or in the alternative, repaired, shall be made solely by Aston Global. If a Product is determined to be covered by the above Warranty, Aston Global will ship the replacement part(s) to Customer by either ground shipping or US postal service. - Page 15 2. Product installed outdoors or any other non-standard bathroom location. 3. Component parts not manufactured by Aston Global. 4. Workmanship of any installer of Aston Global Product. This warranty does not assume any liability of any nature for unsatisfactory performance caused...
- Page 16 Aston Global and it representatives shall not be liable for any injury, loss, cost or other damages, whether incidental or consequential, arising out of any defect...
- Page 17 Customer Service 877-424-9699 Aston Global Inc 1501 10th St Suite 150 PLANO, TX 75074 If further assistance is needed, or you have a question, please visit our web site at: www.astonglobalinc.com...
