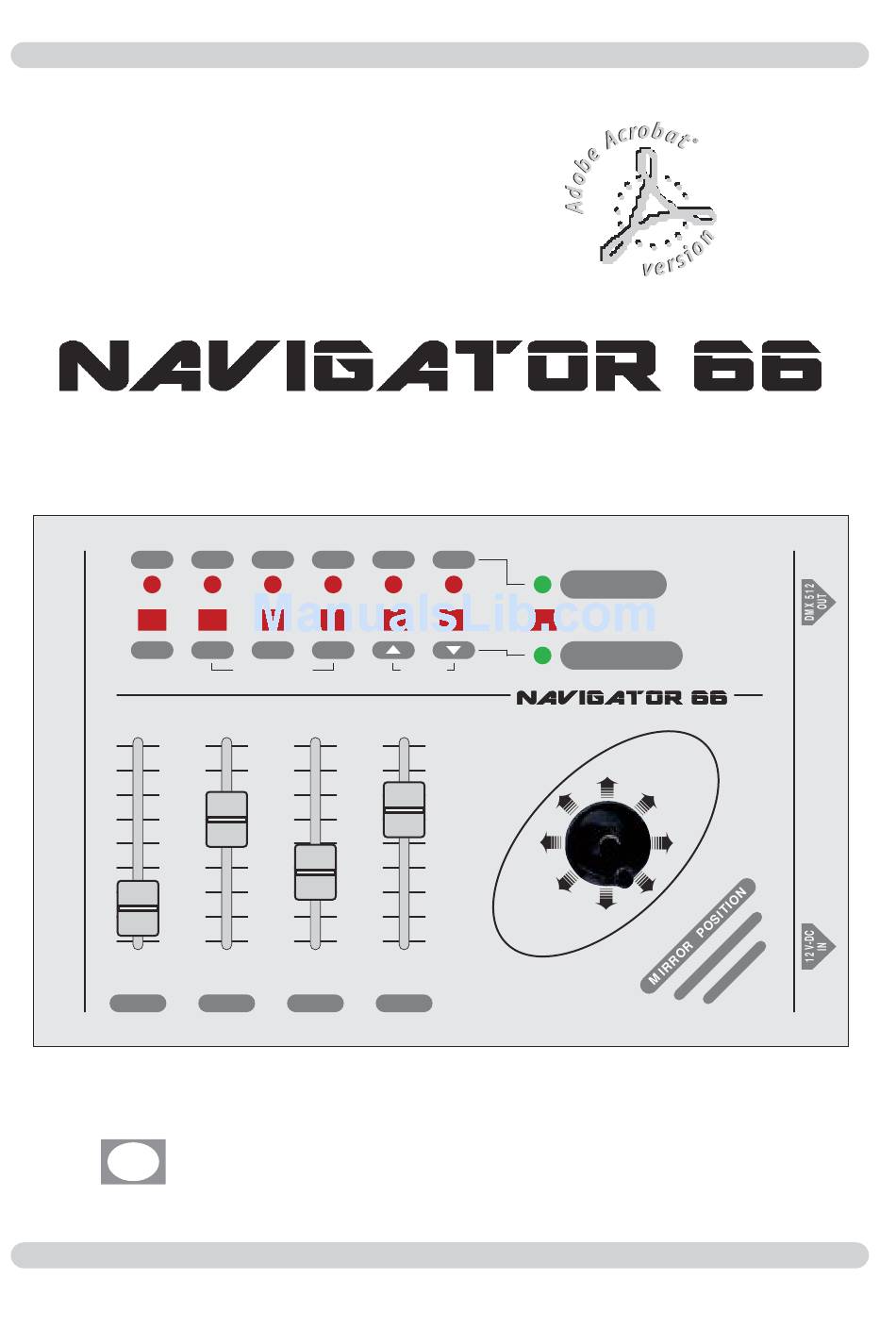

- Page 1 MANUAL AUTO PROGRAM PROGRAM SPEED IRIS COLOUR GOBO SHUTTER USER’S MANUAL...
- Page 2 INDEX We congratulate you on your purchase this product. Before proceeding of the use of this product it should be necessary to read carefully the following user’s manual to install it correctly and to make the most of its potentialities. Sets of the equipment 1.1 Unpacking of the equipment 1.2 Acessories issued with the equipment and relative documentation...
- Page 3 1.1 UNPACKING OF THE EQUIPMENT Open the box; take the ballast and the documentation out. Take the equipment out of the box as shown in the picture below. ACCESSORIES ISSUED WITH THE EQUIPMENT AND RELATIVE DOCUMENTATION Verify the contents of the packing. If one of the following parts of the packing is missing or damaged, please, contact your dealer immediately.
- Page 4 DESCRIPTION OF THE SIDE PANEL DMX 512 OUTPUT 1 = COMMON 2 = DATA - 3 = DATA + 4 = n.c. 5 = n.c. Fig. 1 INPUT CONNECTION FOR POWER SUPPLY Plug the connector of the ballast completly in the power input To disconnect it, extract gently.
- Page 5 3.1 Activation of PROGRAM mode This function allows to activate the programs stored in internal memory. P r e s s i n g M A N U A L / P R O G R A M k e y ( F i g . 2 ) t h e PROGRAM mode is activated.
- Page 6 3.5 PROGRAM / AUTO function This function allows to activate AUTOMATIC SELECTION of all the 6 programs, repeating 4 times each one. Pressing AUTO key the PROGRAM / AUTO function is activated (Fig.6). The red leds on the 1/6 keys will light up sequentially to indicate the activation of this function.
- Page 7 4.1 Activation of MANUAL mode This function allows to activate manually one or more scanners P r e s s i n g M A N U A L / P R O G R A M k e y ( F i g . 9 ) t h e MANUAL mode is activated.
- Page 8 TECHNICAL FEATURES Technical features: Number of scanners controlled separately: 6 Number of channels for each scanner: 6 (4 ch. + X + Y) Number of stored programs: 6 Number of scenes for each program: 12 Total number of scenes: 72 (6 programs x 12 scenes) Kind of output signal: DMX512/ 1990 Output connector: 5-pin cannon connector Max number of scanners connected to the DMX output: 32...
