Sound Excellence ENG-44A Operation Manual

4 input stereo mixer for field production
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

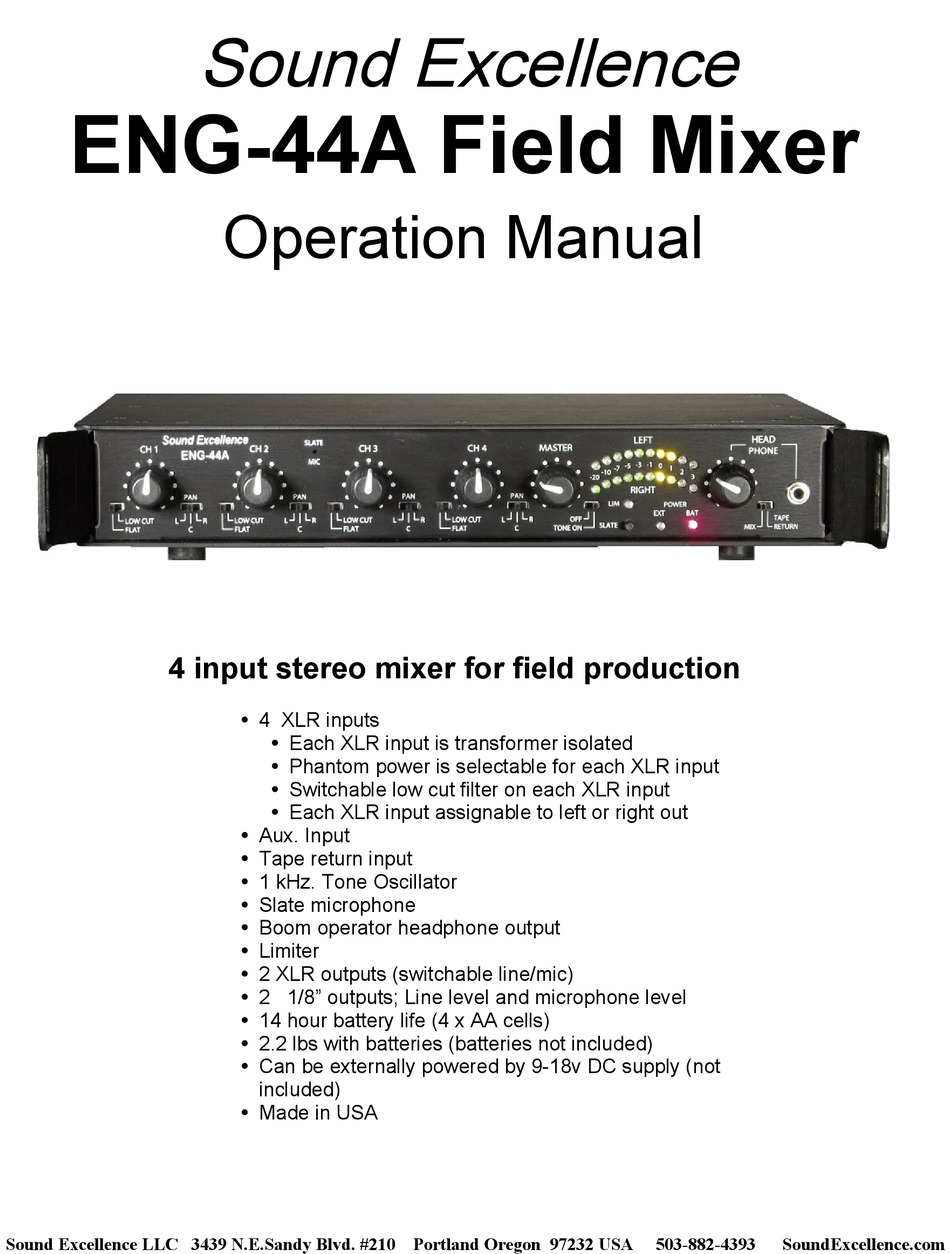

ENG-44A Field Mixer
4 input stereo mixer for field production
Sound Excellence LLC 3439 N.E.Sandy Blvd. #210 Portland Oregon 97232 USA
Sound Excellence
Operation Manual
Ÿ 4 XLR inputs
Ÿ Each XLR input is transformer isolated
Ÿ Phantom power is selectable for each XLR input
Ÿ Switchable low cut filter on each XLR input
Ÿ Each XLR input assignable to left or right out
Ÿ Aux. Input
Ÿ Tape return input
Ÿ 1 kHz. Tone Oscillator
Ÿ Slate microphone
Ÿ Boom operator headphone output
Ÿ Limiter
Ÿ 2 XLR outputs (switchable line/mic)
Ÿ 2 1/8" outputs; Line level and microphone level
Ÿ 14 hour battery life (4 x AA cells)
Ÿ 2.2 lbs with batteries (batteries not included)
Ÿ Can be externally powered by 9-18v DC supply (not
included)
Ÿ Made in USA
503-882-4393
SoundExcellence.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENG-44A and is the answer not in the manual?

Questions and answers

Summary of Contents for Sound Excellence ENG-44A

  • Page 1 Ÿ 14 hour battery life (4 x AA cells) Ÿ 2.2 lbs with batteries (batteries not included) Ÿ Can be externally powered by 9-18v DC supply (not included) Ÿ Made in USA Sound Excellence LLC 3439 N.E.Sandy Blvd. #210 Portland Oregon 97232 USA 503-882-4393 SoundExcellence.com...

  • Page 2: Safety Warning

    Sound Excellence LLC or a repair facility authorized by Sound Excellence LLC Sound Excellence LLC shall not be liable for any loss of use, or incidental or consequential damages resulting from the use of this product or the failure or inoperability of this product in any respect, including from any cause whatsoever, or from breach of any express or implied warranty.

  • Page 3: Front Panel

    Front Panel 1. CH 1 - CH 4 Gain Controls Individual gain controls for each of the four input audio channels, marked 1-4. Gain controls are also known as faders or level controls . 2. Master Gain Control Controls overall gain. 3.

  • Page 4: Left Panel

    Left Panel MIC/LINE XLR Inputs Channel 1 through 4 XLR transformer balanced audio inputs. Use individual selector switches located on the underside panel of the unit to choose mic/line level for each input and to activate/ deactivate +48 volt phantom power for each input.

  • Page 5: Right Panel

    Right Panel 1. Boom Headphone Out XLR audio output for boom operator head phone monitoring. XLR output allows use of cable with XLR connectors rather than one with ¼” connectors. Use a ¼” adapter to connect to head phones. This way your spare XLR cable also serves as your spare boom operator cable, and you only need carry a small spare ¼”...
  • Page 6 Underside Panel 1. Mic/Line Input Switches Individual switches for each input channel select between mic and line level in. 2. Phantom Power Switches Individual switches for each input channel activate/deactivate +48 Volt phantom power. Some microphones require phantom power to operate. However, do not apply phantom power except for microphones that are equipped to operate on phantom power.

  • Page 7: Rear Panel

    Ÿ The ENG-44A is protected against reverse polarity. Ÿ The negative (-) side of the EXT POWER is connected to audio ground.
  • Page 8 ENG-44A Specifications Country of Manufacture: Input Impedance: 2K, transformer balanced Output Impedance : 600 Ohms (both balanced and unbalanced line level outputs) Frequency Response: 20Hz to 20kHz +/- 1.5dB Distortion: <.1% (1kHz @ 0dBu output) Noise: -126dBu EIN Overall Gain:...
