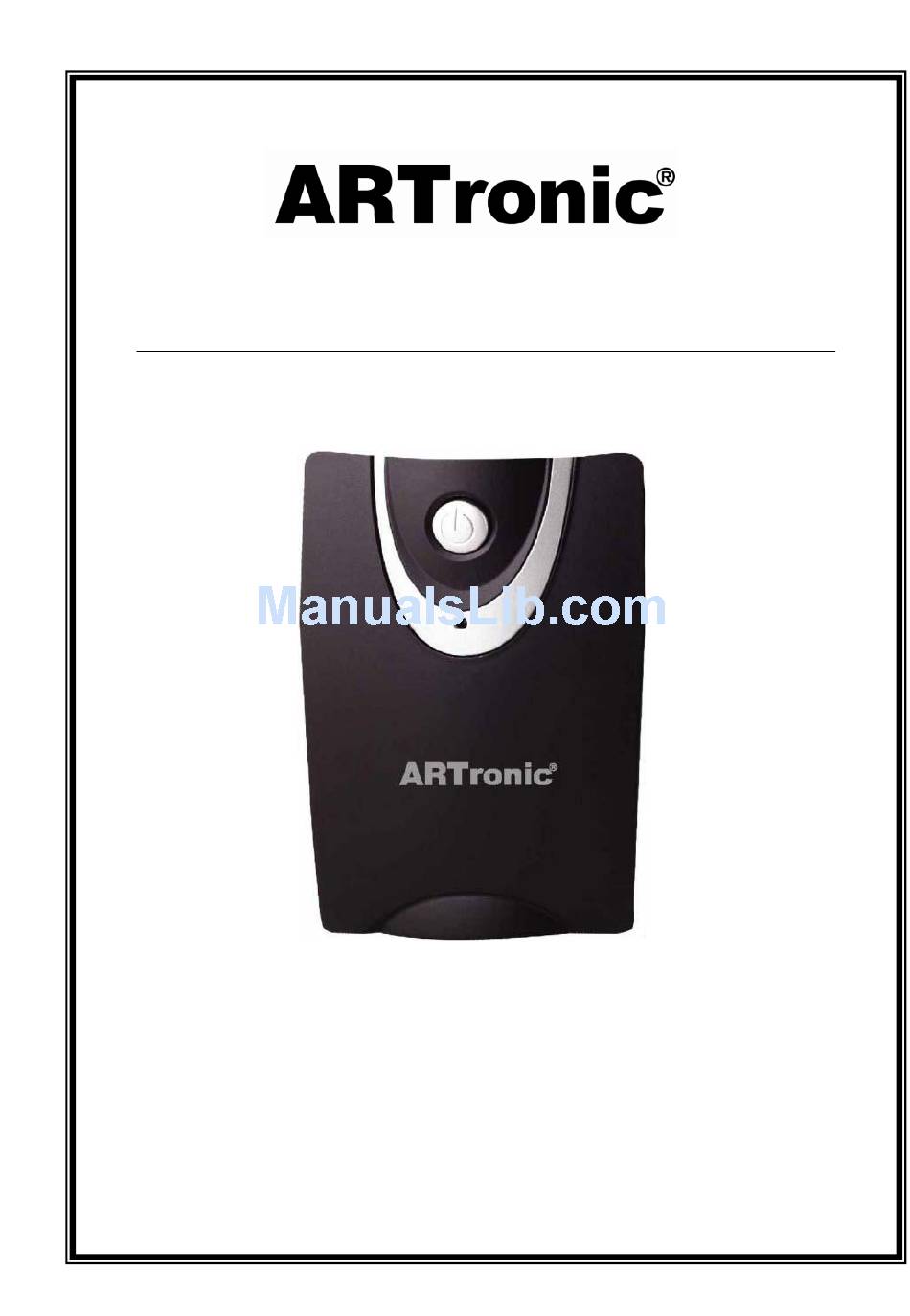

- Page 1 ART 600VA LINE INTERACTIVE UPS USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Safety Caution 3. System description 4. Specification 5. Installation and operation 6. Battery 7. Trouble Shooting... -
Page 3: Introduction
400/600/800 VA UPS User’s Manual To insure safe installation and assure the best possible benefit from the product, please read this manual before installing and using your UPS. 1. Introduction This UPS is specially designed for Personal Computer with multi- functions. -
Page 4: Safety Caution
2. Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. Connection to any other type of receptacle other than a two-pole, three- wire grounding receptacle may result in shock hazard as well as violate local electrical codes. - Page 5 ★ Wichtige Sicherheitshinweise Bitte lesen Sie diese Hinweis sorgfaltig durch. Vor jedem rcinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie Keine Flüssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. Das Gerät ist vor Feuchtigkeit zu schützen. ...
-
Page 6: System Description
3. System Description Front Panel Power Switch LED Indicators – AC Mode: Green lighting Battery Mode: Green flashing Back Panel— 1. Output receptacles 2. AC input with AC fuse 3. Modem/Phoneline Surge Protection 4. Communication Port 5. Circuit Breaker... -
Page 7: Specification
Specification Specificatio 400 VA 600 VA 800 VA nMODEL CAPACITY VA/W 400VA/240W 600VA/360W 800VA/480W VOLTAGE 220VAC VOLTAGE 165-260VAC + 5% INPUT RANGE FREQUENCY 47-63 Hz (Auto Sensing) VOLTAGE 220VAC VOLTAGE REGULATION +/-10% (Batt. Mode) FREQUENCY 50Hz or 60Hz OUTPUT FREQUENCY REGULATION +/-1 Hz (Batt. -
Page 8: Installation And Operation
5. Installation and Operation 1. Inspection Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. Charging This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. - Page 9 Connection Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the back of the UPS. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.
-
Page 10: Battery
6. Battery UPS has a battery that expected trickle life 3-5 years. The battery is stored without charging 3 Months and temperature above 40°C trickle life is shorter than expected. Store the battery after fully charging it otherwise its life may be shorted. -
Page 11: Trouble Shooting
7. Trouble Shooting Symptom Possible Cause Remedy No LED display 1. Missing battery. 1. Charge battery up to 8 hours. on the front 2. Battery defect. 2. Replace with the same type of panel. battery. 3. Power switch is not 3. - Page 12 ARTronic Elektronik San. Müm. Tic. Ltd. Şti : İMES Sanayi Sitesi, D Kapısı Karşısı, Adres Kuru Sk. No:26 Y.Dudullu – İstanbul : + 90 216 365 82 21 (pbx) Faks : + 90 216 420 97 70 www.artronic.com.tr E-posta : artronic@artronic.com.tr...
