Summary of Contents for Traitel Telecommunications TT32L

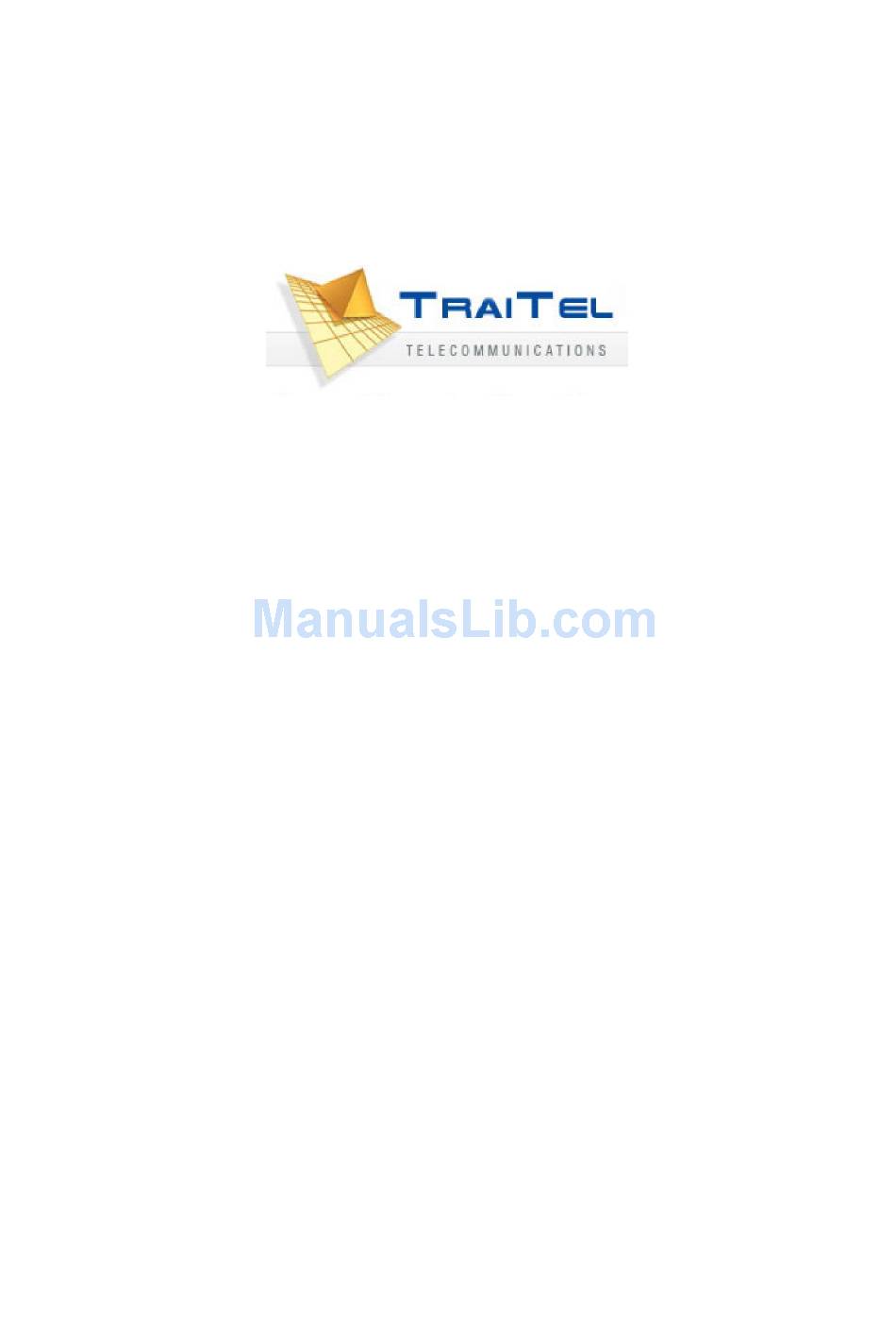

- Page 1 TT32L / TT32U User Manual V1.04...
-
Page 2: Table Of Contents
Table Content Introduction .............................. 5 Safety Declaration ............................ 5 1. Getting Started ............................5 1.1 Package contents ......................... 5 1.2 Phone Specification ........................6 1.3 Phone Description ........................7 1.4 Key Pad define & Text entry ....................... 8 2. Connecting IP Phone..........................9 3. - Page 3 4.3 Speed Dialing..........................19 4.4 Answering a Phone Call ......................19 4.5 Switching to another Line ......................19 4.6 Mute ............................19 4.7 Call Transfer ..........................19 4.8 Redial ............................19 4.8.1 Last Dialed Number ....................... 20 4.8.2 Through Call History ...................... 20 4.9 On Hold ............................
- Page 4 6.25 Auto Provision ........................38 6.26 Restart System ........................39 7. Trouble Shooting ..........................40 Appendix A: Wall Mount Installation ...................... 42...
-
Page 5: Introduction
Voice over IP (also known as Internet Telephony) is a technology that allows anyone to make a telephone call over the internet environment. This is an operation manual for TraiTel s TT32 IP Phone. It is intended to help you configure the telephone. -
Page 6: Phone Specification
Direct IP call without SIP Auto/Manual provisioning system Unconditional) registration Power Caller ID Display Dial number via SIP server TT32L Anonymous Call Dial URI from phone book / speed Adapter Anonymous Call Blocking dial Input AC 220-240V In band DTMF / Out-of-band... -
Page 7: Phone Description
1.3 Phone Description (12) (13) (14) (15) (17) (16) (10) (11) Function 2 x 16 Characters LCD Display Displays menu, time, clock, name, phone number, call status LED Indicator Indicates that phone is currently in use or ringing Cycle through the phone menu, adjust volume 3-Way Conference Enable 3-way conference OK / Right... -
Page 8: Key Pad Define & Text Entry
1.4 Key Pad define & Text entry You use alphanumeric characters to enter details into the Phone Book, to create text and e-mail messages. The table below shows the characters that you can enter in the different text modes. Text Mode Text Mode Normal (ABC) Numeric (0-9) -
Page 9: Connecting Ip Phone
2. Connecting IP Phone Connect the IP Phone as the following diagram:... -
Page 10: Setting Up
3. Setting up 3.1 IP Phone Setup Map Press the MENU key Display Name: Your name Enable Disable ADSL DIALUP: ENABLE/DISABLE ADSL DIALUP: ADSL DIALUP: DISABLE ENABLE ADSL ID: mike_2004 ADSL Password: ******** Enable Disable DHCP: ENABLE/DISABLE IP Address: IP Address: AUTO 010.010.001.010 Subnet Mask:... - Page 11 SNTP Cycle: Do Not Disturb: ENABLE/DISABLE CF Unconditional: ENABLE/DISABLE CF User Busy: ENABLE/DISABLE CF No Answer: ENABLE/DISABLE Anonymous Call: ENABLE/DISABLE Anony Call Rej: ENABLE/DISABLE Ringing 1~8 Ring Type: 1~4: Tone Ringing1/2/3/4/5~8 5~8 : Melody WAN MAC Address: 00D0E90137DB LAN MAC Address: 00D0E90137DC Version: V: 02.11...
-
Page 12: Display Name
NOTE 1: If you made any modifications, you may quit setup at any time by pressing MENU to save and exit or MENU CANCEL to quit without saving. The phone will automatically exit from the menu screen if there are no inputs from the user. -
Page 13: Disable Adsl Dialup
3.3.4 Disable ADSL Dialup l Press ADSL DIALUP: l Use to select Disable DISABLE 3.4 DHCP (Dynamic Host Configuration Protocol) DHCP allows the network administrator to distribute IP addresses when a computer is plugged into a different place in the network. If your ISP provides static IP address, you must disable DHCP and enter the IP address provided. 3.4.1 Enable DHCP l Press DHCP:... -
Page 14: Dns Server Ip
l Use to set DHCP Disable DHCP: DISABLE l Press IP Address: l Enter the IP address 192.168.001.161 l Press l Enter the subnet mask Subnet Mask: 255.255.255.000 l Press Router IP: l Enter the router IP address 192.168.001.001 3.5 DNS Server IP The domain name system (DNS) is the way that Internet domain names are located and translated into Internet Protocol addresses. -
Page 15: Do Not Disturb
3.7 Do Not Disturb This setting allows the user to reject all incoming phone calls. l Press Do Not Disturb: l Use to select Enable or Disable ENABLE /DISABLE 3.8 CF (call forward) Unconditional Enable CF Unconditional to forward all the incoming calls to another number. Otherwise set to disable. You will need to use a web-browser to input the forwarded phone number. -
Page 16: Anonymous Call
3.11 Anonymous Call Enables the caller (user) to hide the name and phone number from the receiver. Press o select Enable or Disable Anonymous Call: ENABLE / DISABLE 3.12 Anony Call Rej. (Anonymous Call Rejection) Reject any anonymous incoming calls. Press Anony Call Rej: to select Enable or Disable... -
Page 17: Mac Address
3.14 MAC Address This menu displays the MAC address. User cannot modify MAC address. Press WAN MAC Address: LAN MAC Address: MAC address is displayed on the screen 000FC9017D4A 000FC9017D4B 3.15 Version Version menu displays the firmware version. You cannot modify the version number. Press Firmware version is displayed on screen Version:... -
Page 18: Speaker Volume
3.18.2 Speaker Volume While the handset is in place, Speaker Press Press to increase the speaker volume and to decrease the speaker volume 3.18.3 Handset Volume Pick up the handset and press to increase the volume or press to decrease the volume 4. -
Page 19: Speed Dialing
4.3 Speed Dialing Speaker Lift handset or press SPEAKER button Dial Speed Dial number. For example: dialing speed dial number 08, 4.4 Answering a Phone Call Note: The CANCEL key may be used to reject a call. When phone rings: Speaker Lift handset or press SPEAKER button... -
Page 20: Last Dialed Number
4.8.1 Last Dialed Number Speaker Lift handset or press SPEAKER button Redial Press Redial to dial the last dialed number. 4.8.2 Through Call History Redial Press Redial . Does not lift the handset when you press Redial. Redial Press Redial again to cycle through the dialed, missed and received calls. -
Page 21: Using The Phone Book
Press Conference key to begin 3-way conference. Person A Person B 5. Using the phone book 5.1 Dialing from the Phonebook Press the PHONE BOOK key to access the phone book. Press to scroll down the list until the name is displayed on the screen. Press OK to dial. -
Page 22: Deleting A Number
Select Edit and press OK to edit. Enter a new name and press OK Enter the new phone number and press OK Press OK to save and override the previous name and phone number. 5.4 Deleting a Number Press the PHONE BOOK key to access the phonebook. -
Page 23: Using The Web Configuration
6 Using the web configuration The configuration web can be accessed using a web browser. 6.1 Accessing Configuration Menu Open the web browser (ie. Internet Explorer, Netscape ) Type in the IP Address of the phone followed by :9999 IP address is provided by your Internet Service Provider (ISP). If your ISP supports DHCP, you may obtain the IP address from you phone. -
Page 24: Management Setting Restore Factory Setting
Password Configuration menu login password. NTP Server IP Network Time Protocol (NTP) is a protocol used to help match your system clock with an accurate time source (e.g. atomic clock, time server). It is good practice to have all your networked computers synchronized with one server. Select your time zone. -
Page 25: Network Setting Pppoe
6.5 Network Setting PPPoE Choose PPPoE if your ISP uses PPPoE. Most DSL users use PPPoE. PPPoE ID PPPoE ID/username provided by your ISP. PPPoE Password PPPoE password. DNS Server 1-2 DNS address provided by your ISP. 6.6 Network Setting Static IP Choose Static IP network setting if all Wide Area Network IP is provided to you by your ISP. -
Page 26: Qos Setting
IP Address IP address assigned to you by your ISP. Router IP Router IP address. Subnet mask. Subnet Mask DNS Server 1-2 DNS server address provided by your ISP. NOTE: RESTART the system for new settings to take effect after you modify the IP address. 6.7 QoS Setting Sets the type of service for this Internet datagram. -
Page 27: Sip Setting Sip Phone Setting, Registrar And Outbound Proxy Server
6.8 SIP Setting SIP Phone Setting, Registrar and Outbound Proxy Server Session Initiation Protocol (SIP) is the most popular Voice over IP standard. It enables two or more people to make phone calls, share multimedia and make multimedia conference over the internet. Please have an administrator setup these settings for you or obtain this information from your SIP service provider. -
Page 28: Message Server
6.9 Message Server Message server domain name or IP address. MWI Message Server Domain Name/ IP Address MWI Message Server Port Number Message server listening port. The time after which the subscription expires. It is MWI Message Subscribe Expire Time included in SIP SUBSCRIBE and is used to negotiate with Message server. -
Page 29: Sip Setting Others
6.11 SIP Setting Others This section is for network administrators. The time interval in which the phone periodically refresh SIP sessions Session Timer by sending repeated INVITE requests. These INVITE requests allow the user agent or proxies to determine the status of the SIP session. Media Port Real-time Transport Protocol port number. -
Page 30: Sip Account Settings
6.12 SIP Account Settings You may have up to 4 accounts. i.e., the IP phone can receive up to four different phone numbers. Default Account When you dial a number, the default account is used to dial. User Name of default account is displayed on the receiver s IP phone. Account Active Enable or disable this account. -
Page 31: Nat Traversal Settings Manual Config External Ip/Port
The challenge is to provide secure connection to subscribers behind NAT (Network Address Translation) devices and Firewalls. Overcoming this traversal problem will lead to widespread deployment of profitable voice over IP service to any subscriber with a broadband connection. Therefore, this IP Phone implements NAT traversal function for solving the Firewall and NAT traversal problems. -
Page 32: Nat Traversal Settings Upnp Setting
External media port External Media Port NOTE: It has to be complied with the settings of virtual server of the NAT devices if IP Phone enables the configuration manually. 6.15 NAT Traversal Settings UPnP Setting Enable or disable universal plug and play. Some NAT supports UPnP so UPnP STUN is not required and must be disabled. -
Page 33: Phone Setting
Voice Compression Algorithm priority settings. Select from the most used Codec (Priority 1 ~ 3) codec to the least used codec. RTP Packet Length The payload size for each RTP packet. Support VAD for silence suppression. When Enable is selected, it also supports SID frame for CNG. -
Page 34: Phone Setting Timer
Anonymous when the user makes a phone call. It may display Anonymous or nothing on the receiver s phone. Note: This function is disabled when the phone is used within TraiTel s network. Anonymous Call Reject Select Enable to reject anonymous calls. - Page 35 receiver fails to answer the phone during this time interval, the caller s Timer phone will automatically disconnect. Incoming No Answer Timer The time interval that the receiver s phone will ring. If the receiver fails to answer the phone during this time interval, the phone will automatically disconnect.
-
Page 36: Call Tracing Log
6.20 Call Tracing Log Call Tracing Log keeps a record of all the phone activities. This log is used by our engineers to troubleshoot hardware problems. 6.21 Phone Book Phonebook menu allows the user to add, modify and delete phone numbers. To add, type in the name and number then click NEW to add. -
Page 37: Speed Dial
6.22 Speed Dial Speed dial numbers can be accessed from the IP phone. Number 0x Speed dials phone number. 0x is the speed dial number. 6.23 Line Key Settings Type Four types to the programmable keys can be selected. Default is Line Park Number The phone number of the parking area that is corresponding to Park . -
Page 38: Nat
6.24 NAT Select NAT mode to ROUTE Mode or Bridge Mode. 6.25 Auto Provision Support FTP and HTTP for downloading firmware and configuration Protocol automatically. Default is NO to disable the function. The IP address of HTTP server. HTTP IP The port number of HTTP server. -
Page 39: Restart System
The port number of FTP server. Default is TCP:21. FTP Port Username The username required by the auto provision system for authorization. Password The password required by the auto provision system for authorization. Refresh Interval (hr) The time interval to connect with the auto provision system for checking the update. -
Page 40: Trouble Shooting
7. Trouble Shooting The following troubleshooting information can be used to help solve most common problems. QUESTION RECOMMENDED ACTION There is no DIAL tone 1. Check if there are any loose connections. Nothing is displayed on the LCD 1. Check if power cord is connected properly. screen 2. - Page 41 2. Check if FTP address is correct. 3. Check with your supplier if firmware filename is correct. I accidentally set DSL to enable 1. Unplug the power cord from the IP phone. Wait 2 seconds and plug the and now the phone does not boot power cord back in the IP phone.
-
Page 42: Appendix A: Wall Mount Installation
Appendix A: Wall Mount Installation This appendix herein illustrates the installation step by step if you would like to mount the TT32L/TT32U on the wall. Please print this page (Figure A1) before the installation 1. Put the template (Figure A1), which you have printed before the installation on the wall. The template shows the two keyholes with plus sign indicating the center where the screw must be located. - Page 43 3. Place the mount on the wall as Figure A3 and the keyholes of the mount are above the mounting screws. 4. Slide down the mount until it stops against the top of the keyhole 5. Place the entity of TT32L/TT32U on the wall mount as Figure A4. Figure A3...
