machine is in a comfortable working position when it
hangs from the harness.

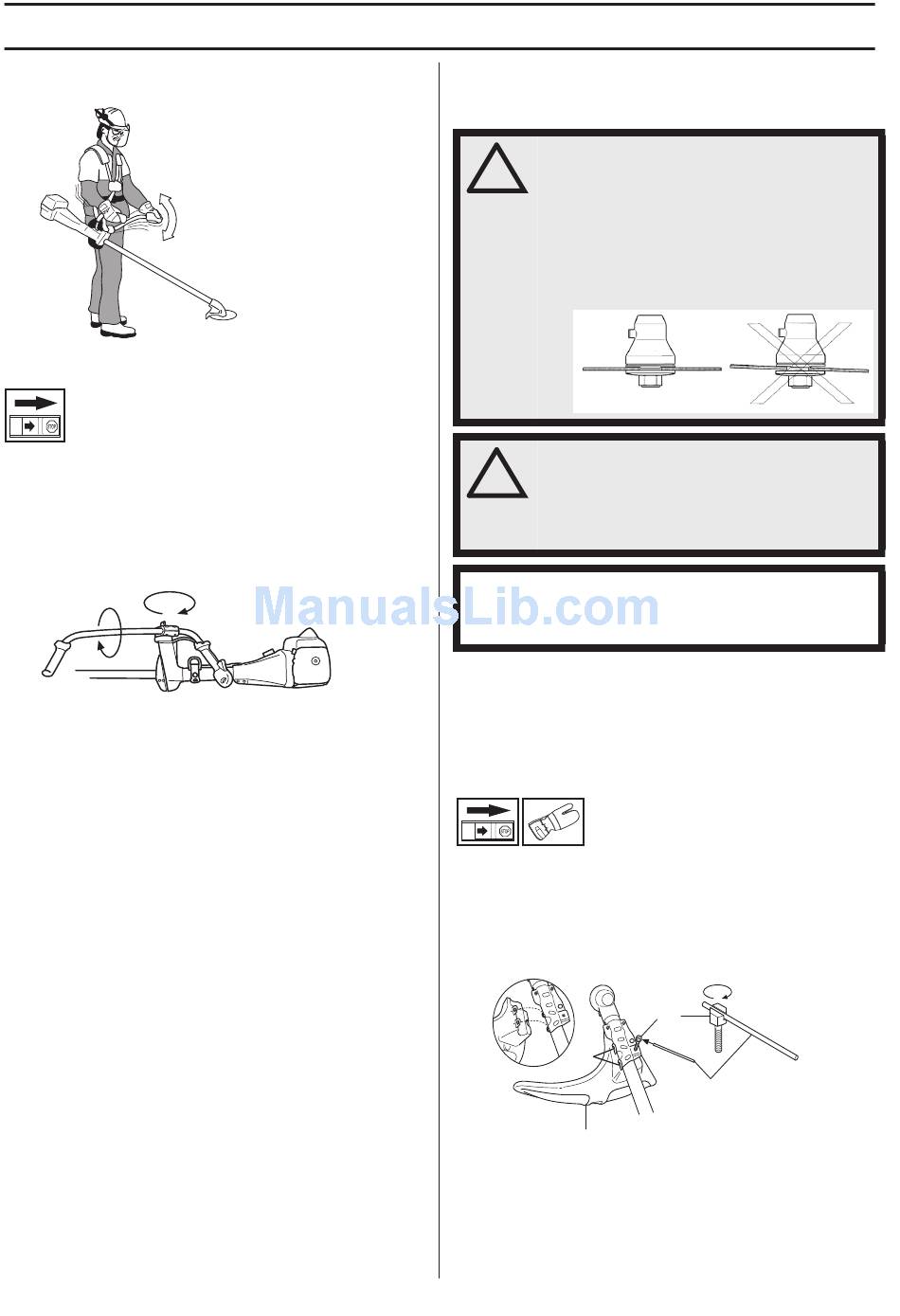

Transport position, handlebar
•
The handlebar can easily be turned to fit along the
shaft for easier transportation and storage.
•
Loosen the knob. Turn the handlebar clockwise so that
the throttle handle rests against the engine.
•
Now twist the handlebar around the shaft. Tighten the
knob.
•
Fit the transport guard to the cutting attachment.
16 – English
ASSEMBLY
Assembling the cutting
equipment
!
!
IMPORTANT! If a saw blade or grass blade are to be
used the machine must be equipped with the correct
handlebar, blade guard and harness.
Fitting the blade guard/
combination guard, grass blade
and ball-bearing-mounted
support cup
•
Hang the trimmer guard/combination guard (A) on the
two hooks on the plate holder (M). Bend the guard
around the shaft and tighten it with the bolt (L) on the
opposite side of the shaft. Use the locking pin (C).
Place the locking pin in the groove on the screw head
and tighten. See diagram.
CAUTION! Always use the recommended guard for the
cutting attachment you are using. See chapter on
Technical data.
•
Fit the drive disc (B) on the angle gear's output shaft.
WARNING! When fitting the cutting
attachment it is extremely important that
the raised section on the drive disc/
support flange engages correctly in the
centre hole of the cutting attachment. If
the cutting attachment is fitted
incorrectly it can result in serious and/or
fatal personal injury.
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
L
M
C
A
