Summary of Contents for PCE Health and Fitness VISTA-650E

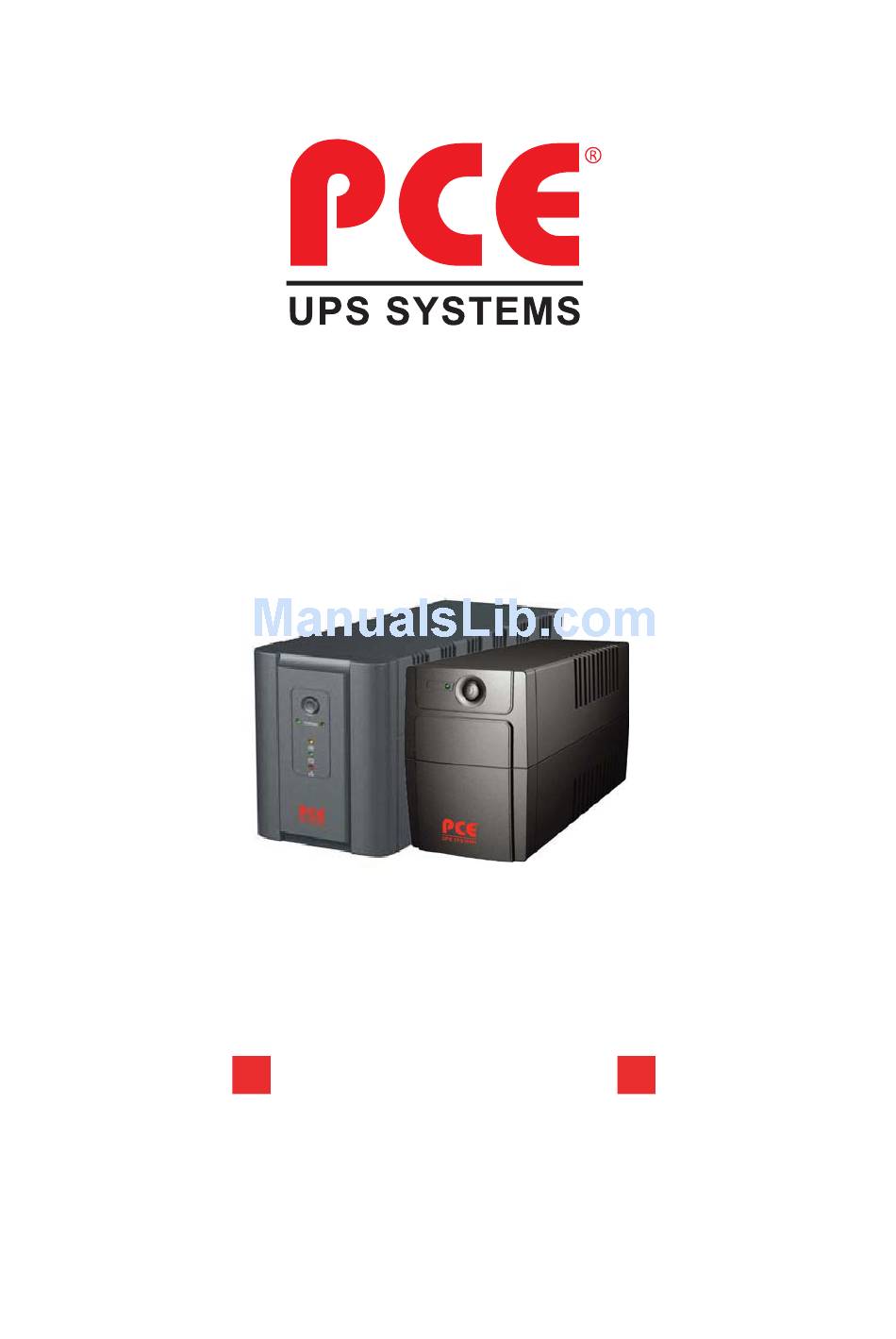

- Page 1 VISTA-650E/ VISTA-850E/ VISTA-1200E Line Interactive UPS USER’S MANUAL...
-
Page 2: Table Of Contents
Table Of Contents 1. Safety - Caution..........................1 2. System Introduction ........................2 3. Installation and Operation.........................3 4. Trouble Shooting Guide ........................5 5. Technical Specifications .......................6 Thank you for purchasing this UPS system product. For utilizing its features and benefits, please read the following instructions on its installation, usage and safety cautions thoroughly. -
Page 3: Safety - Caution
• Internal battery voltage is 24VDC sealed lead-acid, 6 cells battery two pcs for Vista-1200E and 12VDC sealed lead-acid, 6 cells one pc for vista-650E/ vista-850E. • Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle may result in shock hazard as well as it may violate local electrical codes. -
Page 4: System Introduction
• Green Power Function for energy saving. • DC Start Function. • Auto restart while AC recovery . • Compact size, Light Weight. • Provides AC Overload protection. VISTA-1200E VISTA-650E/ VISTA-850E Front Panel Back Panel Front Panel Back Panel f. Output outlets 3. -
Page 5: Installation And Operation
3. Installation and Operation Inspection Remove the UPS from its packaging and inspect it for damage that may occur during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. Placement Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust,... - Page 6 Connection Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the back of the UPS. Turn On/Off UPS To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.
-
Page 7: Trouble Shooting Guide
4. Trouble Shooting Guide If any abnormal situations occur other than the listed below, please call service people immediately. The UPS fails to turn on and No LED display on the front panel Possible Cause Solut Battery weak. Charge battery up to 8 hours. Battery defect. -
Page 8: Technical Specifications
5. T echnical Specifications Model Vista Series Output power 220V/230V/240V Voltage Input 165~280VAC Voltage Range Voltage (on battery) 220V/230V/240V +/-10% 50 or 60Hz +/- 1 Hz Frequency (on battery) Output Modified Sinewave Output waveform 4 to 8 milliseconds, including detection time Transfer Time Protection Discharge, overcharge and overload protection... - Page 9 UMVISTA6512ENQ109...
