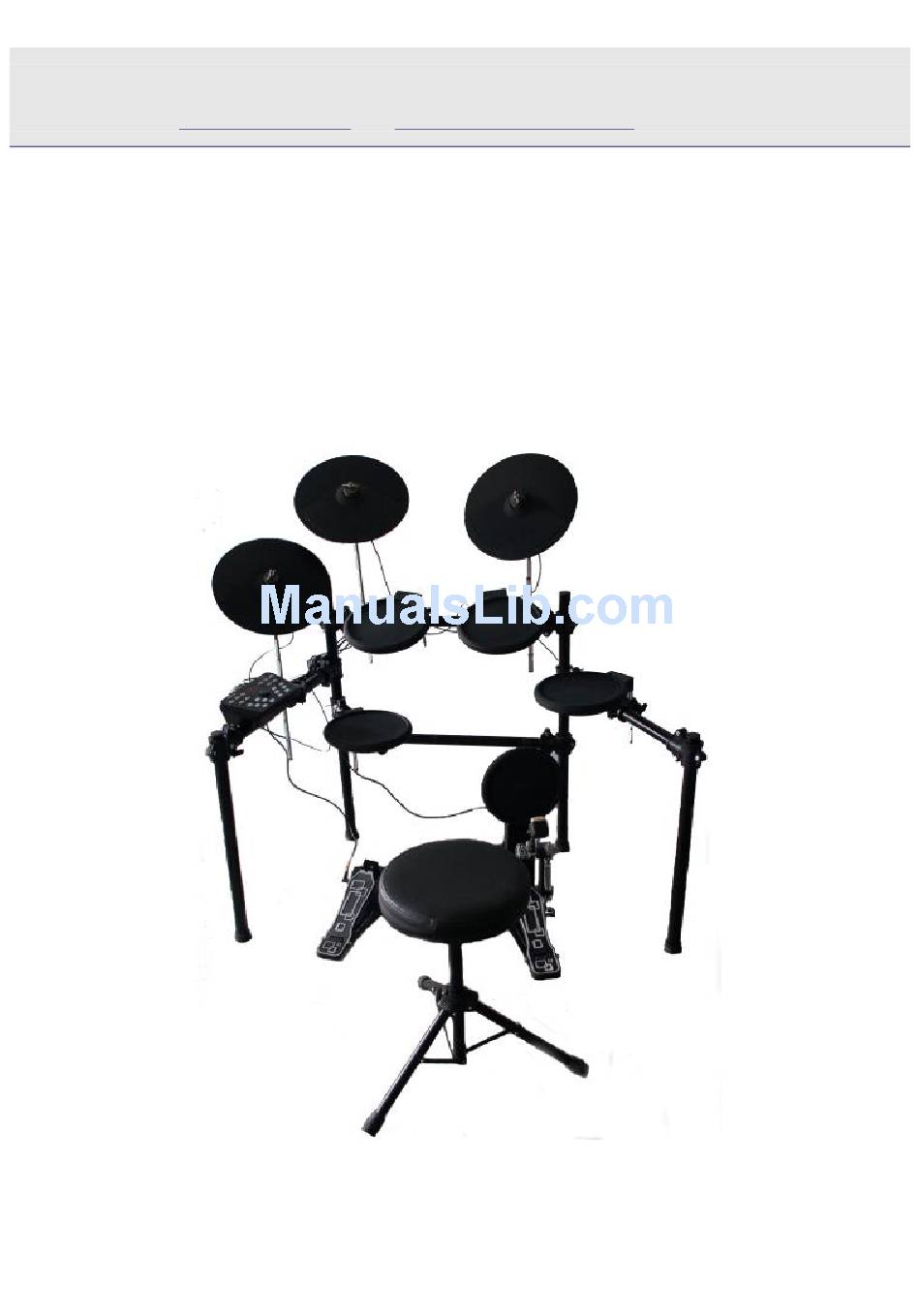

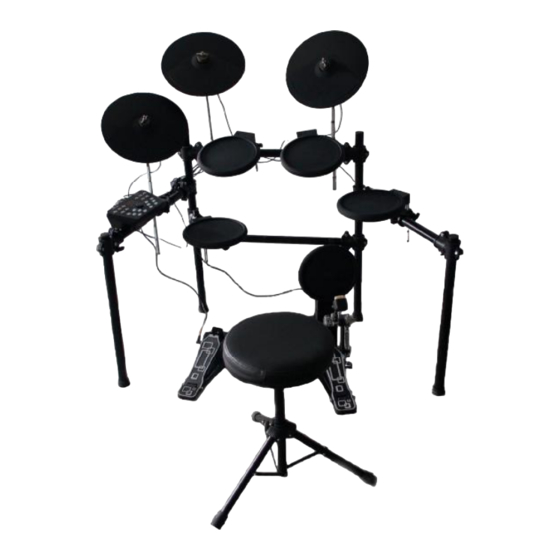

- Page 1 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 WORLDE ELECTRONIC DRUM D-M70/80/90 User manual V1.00...
-
Page 2: Table Of Contents
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Contents Introduction......................................3 Features ........................................4 Panel Control ......................................5 Front panel ......................................5 Rear panel .......................................7 Setting up the whole system...................................9 Setting up the Kick..................................10 Connecting the pads, the cymbals, the hi-hat pedal,and the kick.................... -
Page 3: Introduction
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Introduction Thank you for purchasing the Worlde Electronic Drum model.To help you get the most out of your new instrument, please read this manual carefully. -
Page 4: Features
WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Features ● Drum :4 drum pads（D-M70/80:1 snare with rim,D-M90:1 snare with rim,3 tom with rim）, 3 cymbal pads(D-M80: 2 cymbal with rim),1hi-hat control pedal,1 kick trigger ● Voices: 260 voices(D-M70),280 voices(D-M80) ● Drum kits:20 preset kits,10 user kits(D-M70), 20 user kits(D-M80/D-M90) ●... -
Page 5: Panel Control
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Panel Control Front panel ① ⑤ ④ ③ ⑥ ⑦ ⑧ ⑩ ⑨ ② ○ ○ ○ ○ Display the information about the current menu ○... - Page 6 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ○ Enter the demo practice menu ○ Setup the parameters of the current pad ○ Adjust the parameters of current menu ○ Tempo increase/decrease ○...
-
Page 7: Rear Panel
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Rear panel ○ ○ ○ ○ ○ ○ ○ ○ Power switch Switch turns the power on/off ○ DC adapter jack 9V DC ( ○... - Page 8 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ○ LINE IN Connect this to the external sound source ○ OUTPUT Jacks (L, MONO, R) Connect these to your amp or audio system.
-
Page 9: Setting Up The Whole System
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Setting up the whole system... -
Page 10: Setting Up The Kick
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Setting up the Kick... -
Page 11: Connecting The Pads, The Cymbals, The Hi-Hat Pedal,And The Kick
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Connecting the pads, the cymbals, the hi-hat pedal,and the kick... -
Page 12: Connecting The Adapter, The Headphone,The Amps,And Others
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Connecting the adapter, the headphone,the Amps,and others... -
Page 13: Function
1.1 KIT Press the KIT button to enter the kit menu. There are 20 preset kits and 10 user kits(D-M70)/ 20 user kits(D-M80), Use the +/- button to choose the desired kit. The LED will display the current kit number. -
Page 14: Drum Sound
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Press the DEMO PRACTISE button again to enter the DEMO VOLUME page. You can use the +/- button to change the DEMO volume. -
Page 15: Setup
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 The three pages are in turn by pressing the DRUM SOUND button. 1.4 SETUP There are four menu pages in SETUP button, the first is the PAD SENSITIVITY page,you can adjust the pad sensitivity value by using the +/- button in this page. -
Page 16: Memory
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 1.5 MEMORY It has 10 memory to store user kit,the +\- button be used to choose the memory area. 1.6 CLICK Press the CLICK button to turn on or turn off the metronome. -
Page 17: Tempo
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 1.7 TEMPO Press the TEMPO+ to increase tempo of the DEMO or metronome, Press the TEMOP- to decrease the tempo of the DEMO or metronome 1.8 DEMO MUTE... -
Page 18: Pad Head Shots And Rim Shots
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 1.10 PAD HEAD SHOTS AND RIM SHOTS Head Shot for all pads Head shot Rim Shot only for snare/tom1/tom2/tom3(tom rim shot only for D-M90) -
Page 19: Cymbal Bow Shots And Edge Shots
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Rim shot 1.11CYMBAL BOW SHOTS AND EDGE SHOTS Bow shot for all cymbals Bow shot Edge shot only for crash(D-M80/90),ride(D-M80/90) -
Page 20: Cymbal Choke
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Edge shot 1.12 CYMBAL CHOKE Squeezing the rim after striking the cymbal,the sound can be muted. - Page 21 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848...
-
Page 22: Midi Implementation Chart
HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 MIDI Implementation Chart Function Transmitted Recognized Remarks × Basic Default 10ch × × Channel : Changed × Default MODE 3 × × Mode :... -
Page 23: General Midi Drums-Note Assignments
High Tom High Agogo Ride Cymbal 1 Low Agogo Sales Head Office: Hangzhou Worlde Digital Piano Co., Ltd Hangzhou Worlde Music Electronic Co., Ltd Add:5 Houshan Rd, Wuchang Industrial Park, Yuhang District, Hangzhou, 310023,P.R.China Tel:0086 571 88730848 Fax:0086 571 88730748 Email:sales@worlde.com.cn...
