ClearCom WF-105 User Manual

Fixed wireless terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

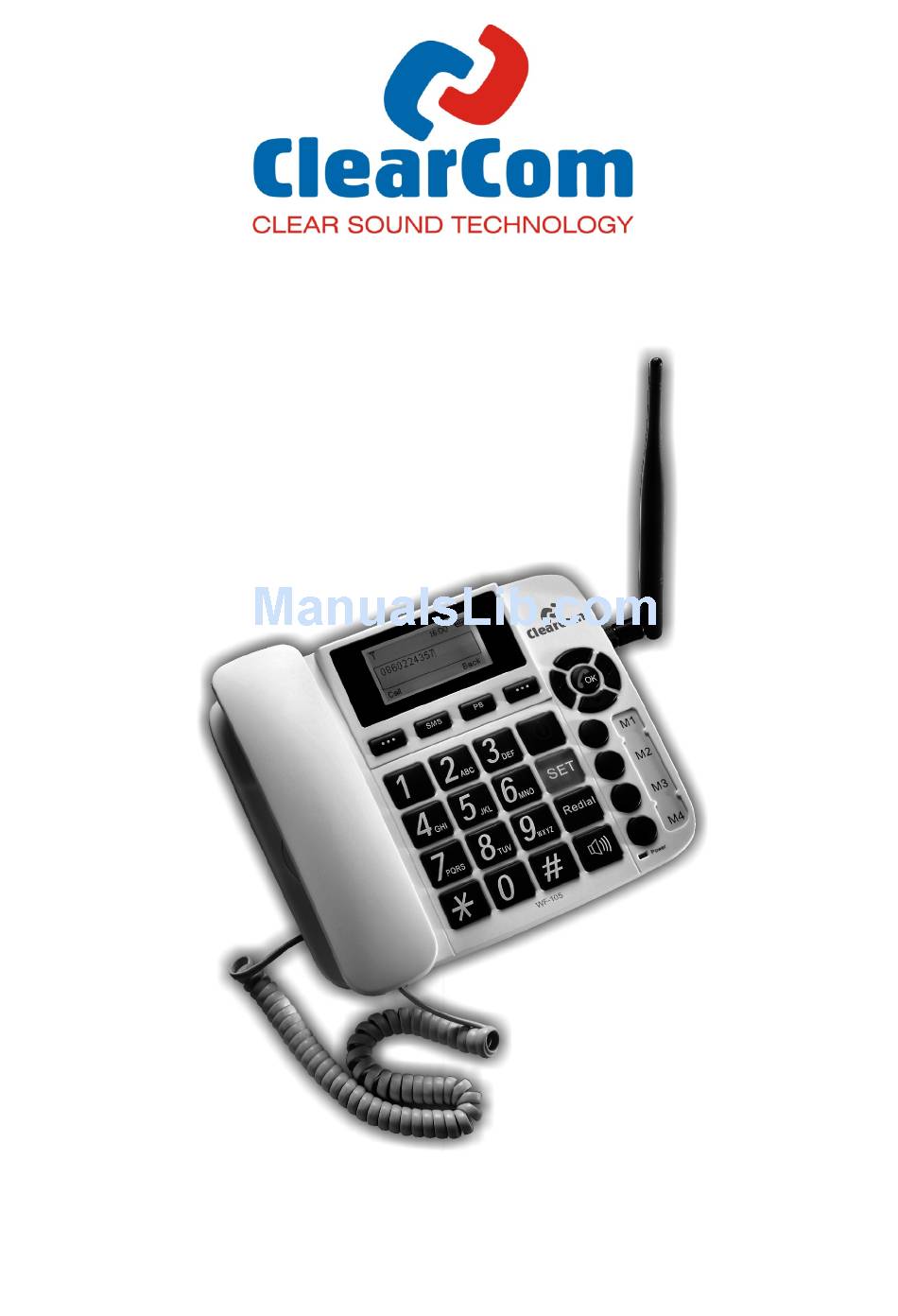

Fixed Wireless Terminal
Model : WF-105

User Guide

Important Safety Instructions: Read carefully and keep for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF-105 and is the answer not in the manual?

Questions and answers

Summary of Contents for ClearCom WF-105

  • Page 1: User Guide

    Fixed Wireless Terminal Model : WF-105 User Guide Important Safety Instructions: Read carefully and keep for future reference...

  • Page 2: Table Of Contents

    Contents Introduction.................... 3 Safety instructions..............3 Cleaning and Maintenance ............ 4 Technical parameters and Service conditions ....... 4 Contents of package .............. 5 Installation ................5 Getting to know your phone ..............8 Functions of Keys.................. 9 Basic Functions ................... 11 On/Off...................
  • Page 3 Messages................16 6.4.1 New ................16 6.4.2 Inbox................17 6.4.3 Outbox ................17 6.4.4 Sentbox ................ 17 6.4.5 Draftbox ................ 18 6.4.6 Templates ..............18 6.4.7 Cell broadcast............... 18 6.4.8 Voice mail ..............18 6.4.9 Settings................. 18 6.4.10 Memory status ............18 Settings ................

  • Page 4: Introduction

    1. Introduction Thank you for using the GSM Fixed Wireless Terminal (FWT). To guarantee that your phone is always in its best condition, please read this manual carefully. Since the pictures, symbols and contents in this manual are just for your reference, they might not be completely identical with your phone.

  • Page 5: Cleaning And Maintenance

    Please use original or authorized accessories only. Using any unauthorized accessories may affect your FWT’s performance and damage your phone. As your FWT can produce electromagnetic field, do not place it near magnetic items such as computer disks. Do not expose your FWT to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices.

  • Page 6: Contents Of Package

    Phone: DC 5V 1000mA Battery: 3.6V 800mAH rechargeable Ni-MH battery Note: Your telephone is guaranteed for a period of 12 calendar months from the date of purchase as indicated on your till slip. Keep your till slip in a safe place as it will be required for guarantee repairs.
  • Page 7 Important Warning: If an outdoor antenna is used, a suitable lightning protection device must be fitted. Adapter Insert the plug of the power supply cord into the socket marked DC 5.0V on the side of the telephone and plug the power supply into a properly installed mains socket.
  • Page 8 Installing battery Insert the BNC connector of the battery into the corresponding socket in the battery compartment, and then close the battery cover.

  • Page 9: Getting To Know Your Phone

    2. Getting to know your phone External Data port power port...

  • Page 10: Functions Of Keys

    3. Functions of Keys The left soft key By pressing this key: In standby mode, enter the main menu. After entering a number, select Save number, Send message or Voice call. At the menu state, enter sub-menu. At the submenu state, select the function shown above it on the bottom left of the screen.
  • Page 11 During a call, you can press the◄ / ► key to adjust the volume. In standby mode, press the ▲ / ▼ key to enter the call log. In standby mode, press this key to enter the message menu. In standby mode, press this key to enter the M1/M2/M3/M4 settings menu. Redial Press to redial the last dialed number.

  • Page 12: Basic Functions

    4. Basic Functions 4.1 On/Off Firstly, please ensure the battery and SIM card has been inserted properly into the telephone. Press the On/Off key to power the phone, and then wait until the name of the network provider appears on the display before use. If the phone is powered without a SIM card, the phone will display a message to insert a USIM card.

  • Page 13: M1/M2/M3/M4 Function

    Mute on: It does not send local voice. (On/Off) End call: End the current call. New call: Dialed a new call. New message: Enter write message interface. Send DTMF: Send DTMF. Contacts: Enter contacts list. Volume: Change volume. 4.6 M1/M2/M3/M4 function You can store up to 4 numbers in your phone’s direct memory for quick and easy dialing.

  • Page 14: Text Input

    5. Text Input 5.1 Input Mode At the input state, press the # key to alter the input mode. The right soft key can be used to delete the character in front of the cursor. Press and hold the right soft key to delete all characters in front of the cursor.

  • Page 15: Write With Text Input "Preabc

    5.1.6 Write with text input "PreABC " Press # until the “ ABC” appears in the right corner of the phone screen. Press each key carrying the desired letter once. The predictive text function will present the available word automatically. The UP / DOWN arrows can be used to change the character if needed.

  • Page 16: Function Menu

    6. Function Menu In standby mode, press the left soft key to enter the main menu. The ▲ and ▼ keys can be used to scroll through the menu. Press the left soft key to enter this menu or press the right soft key to return to the previous menu level. 6.1 Call log This function allows you to view a list of the last 20 missed calls or incoming calls and the last 20 outgoing calls.

  • Page 17: Usim

    Birthday: Save the contact birthday. Ringtone: Set ring tone. Notes: Edit note. 6.2.2 USIM You can view a contact that is stored on the USIM card. Select a contact and then press the left soft key to: Call: Dial the contact number. Send message: Send a message to the contact.

  • Page 18: Inbox

    The phone is preset with 10 commonly used phrases that can be used on SMS. To add a stored phrase, press the left soft key to select options “Insert→SMS templates”, you can then select a stored message template. Press the left soft key to confirm the message.

  • Page 19: Draftbox

    Delete all: Delete all short messages Call: Dial the receiver’s number View mode: Select to sort by date or subject Details: View the message details 6.4.5 Draftbox Scroll to the desired message and press the OK key to read it. One of the following options could be selected with the left soft key: Send: can send this message Delete: Delete the short message...

  • Page 20: Settings

    6.5 Settings This menu offers you a convenient setting to your preference. Press the left soft key to obtain the submenu as below: 6.5.1 Sounds In this submenu, you can set the tone. Voice call ring: You can set the voice call ring tone Volume: You can adjust the ring volume Message alert: Set the sound for message alerts Key tone: You can enable or disable the keypad tone...

  • Page 21: Network Settings

    Answer mode Selection can be made to answer an incoming call with “Any key” or “Send” key. When “Any key” is selected, the call is answered by pressing any key (except for the right soft key or the On/Off key). By selecting the “Send” key, calls can be answered by the OK key, the left soft key or the hands-free key.

  • Page 22: Security Settings

    6.5.6 Security settings Your phone is equipped with a versatile security system to prevent unauthorized use of the phone or the SIM card. (Need local network support) Automatic keylock You can set the automatic keylock On/Off. Phone lock Phone lock can prevent your phone from illegal use. Select On/Off to enable or disable handset lock protection.

  • Page 23: Gprs/Umts/Hsdpa Installation

    7. GPRS/UMTS/HSDPA installation This section explains how to use the WF105 Phone to access the internet from a PC. PC Requirement: The USB Modem software is supported by all versions of Win XP, Win Vista and Win 7. Insert the data-enabled SIM in the compartment underneath the battery compartment in the bottom of the phone.
  • Page 24 Follow the installation instructions and restart the PC when prompted. Restart the phone. (And enter the SIM card’s PIN on the phone if requested) Use the “USB Modem” shortcut on the desktop (Or the “Showmodem” popup) to open the application.
  • Page 25 View the bar at the bottom of the application to ensure that the network was discovered and ready for connection. Use the “Connect” button to initiate the connection.

  • Page 26: Troubleshooting

    8. Troubleshooting Possible Correction Problem Cause No power Connect battery power Unable to turn on adapter. Poor signal See “Poor Signal” solutions below. Unable to connect to the network Try to adjust the antenna direction and Poor signal phone location. Poor signal Poor connection Try to tweak the antenna contra rotate...
  • Page 27 Troubleshooting specific to internet access problems Conflicting driver or Download the “USB Modem” application application on the and drivers from the website (www.telkomphones.co.za), and then try Blue screen or to install the application and drivers error messages manually. Contact the helpdesk for received when support if needed.
  • Page 28 Troubleshooting: Default profile. If any connection problems (Dial-up failures) are experienced, ensure that the correct settings are used in the default connection: • Click on the Settings (Gear) button, and select connection profile. • Select the default connection (named Internet) •...
  • Page 29 Checking the available Data limit: • If a Telkom or 8ta SIM card is used, Dial *188# OK on the phone Keypad. An SMS will be returned from Telkom to show the amount of available data. • If another service provider’s SIM is used, contact their service center to confirm the data limit available.
