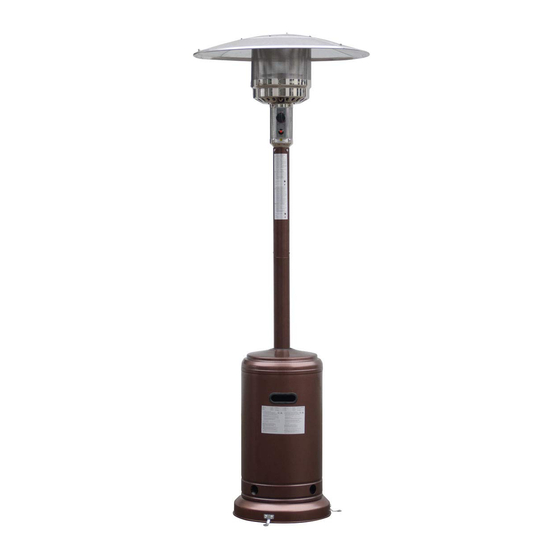

- Page 1 Owner’s Manual GS4400SS GS4400GN GS4400BK GS4400CP GS4400GD GS4400WH IMPORTANT Read this manual carefully before assembling, using or servcing this heater keep this manual for future reference. CSA International Requirement NO.5.90.US (5th Edition)
-
Page 2: Table Of Contents
Contents DANGER General Safety Information........1 DANGER indicates an imminently hazardous situation o i t which, if not avoided, will result in death or serious injury. Components & Hardware........3 Additional Requirements ........WARNING t a l Step1 - Attach Wheel Assembly to Base....WARNING indicates an imminently hazardous situation Step 2 –... - Page 3 DANGER DANGER • EXPLOSION - FIRE HAZARD • Keep solid combustibles, such as building materials, • CARBON MONOXIDE HAZARD paper or cardboard, a safe distance away from the heater • This heater is a combustion appliance. All combustion as recommended by the instructions. appliances produce carbon monoxide (CO) during the •...
-
Page 4: Components & Hardware
Assembly Instructions WARNING • This product is fueled by propane gas. Propane gas is Components invisible, odorless, and flammable. An odorant is normally Remove all components from package. added to help detect leaks and can be described as a “rotten egg” smell. The odorant can fade over time so leaking gas is not always detectable by smell alone. -
Page 5: Additional Requirements
Hardware Installation process (GS4400-P4) Used in Picture Description Step(s) (For models without Wheels , skip to Step 2) Step 1 – Attach Wheel Assembly to Base Large Bolt Line up holes in Wheel Bracket with corresponding Medium Bolt 1 & 3 holes in Base, Insert 2 Medium Bolts through holes, finger tighten 2 Large Flange Nuts. -
Page 6: Step 3 -Attach Support Brackets To Base
Step 5 – Load Cylinder Housing onto Post Lay Bucket inside of Base and screw on large nut. Tighten with Philips screwdriver. Load Cylinder Housing onto Post. Slide Cylinder Housing down. For improve the stability , please fill the bucket with Sand. -
Page 7: Step 8 - Install Reflector
Load Head Assembly by inserting hose into post. Insert Head Assembly into post. Control knob should be above decal on post. 9 Req’d Small Screw s 9 Req’d Cap Nuts 9 Req’d Small Flat Washers Slide one Small Flat Washer over threaded end of screw and screw on Cap Nut loosely. -
Page 8: Step 9 - Attach Reflector Assembly To Studs
Step 9 – Attach Reflector Assembly to Studs The pressure regulator and hose assembly supplied Support Heater. with the appliance must be used. Slide 3 Large Flat Washers over threaded end of The installation must conform with local codes, or in Studs. -
Page 9: Leak Check
Leak Check Operation WARNING DANGER • Perform all leak tests outdoors. • Extinguish all open flames. • CARBON MONOXIDE HAZARD • NEVER leak test when smoking. • For outdoor use only. Never use inside house, or other • Do not use the heater until all connections have been leak unventilated or enclosed areas. - Page 10 Push and release the Igniter button until pilot flame Your heater was designed and approved for outdoor is visible through Viewing Hole. use only. Do NOT use it inside a building, garage, or Release Control Knob after 30-60 seconds. Pilot any other enclosed area.
- Page 11 Shut Down: experience ignition problem please consult “Troubleshooting” on page 11. Turn Control Knob clockwise to Pilot. (Normally, burner will make a slight popping sound when extinguished.) Burner will extinguish but Pilot will Caution: Avoid inhaling fumes emitted from the heater’s first use.
-
Page 12: O P R E T A O I N C H C E L K Troubleshooting
Troubleshooting If the problem is: And this condition exists: Then do this Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing control Pilot won’t light Air in gas line knob in) for not more than 1 - 2 minutes or until you smell gas... -
Page 13: Storage
Store heater upright in an area sheltered from direct Gas odor with extreme yellow tipping of flame. contact with inclement weather (such as rain, sleet, Heater does NOT reach the desired temperature. hail, snow, dust and debris). Heater glow is excessively uneven. If desired, cover heater to protect exterior surfaces Heater makes popping noises.
