Summary of Contents for Extech Instruments BRD10

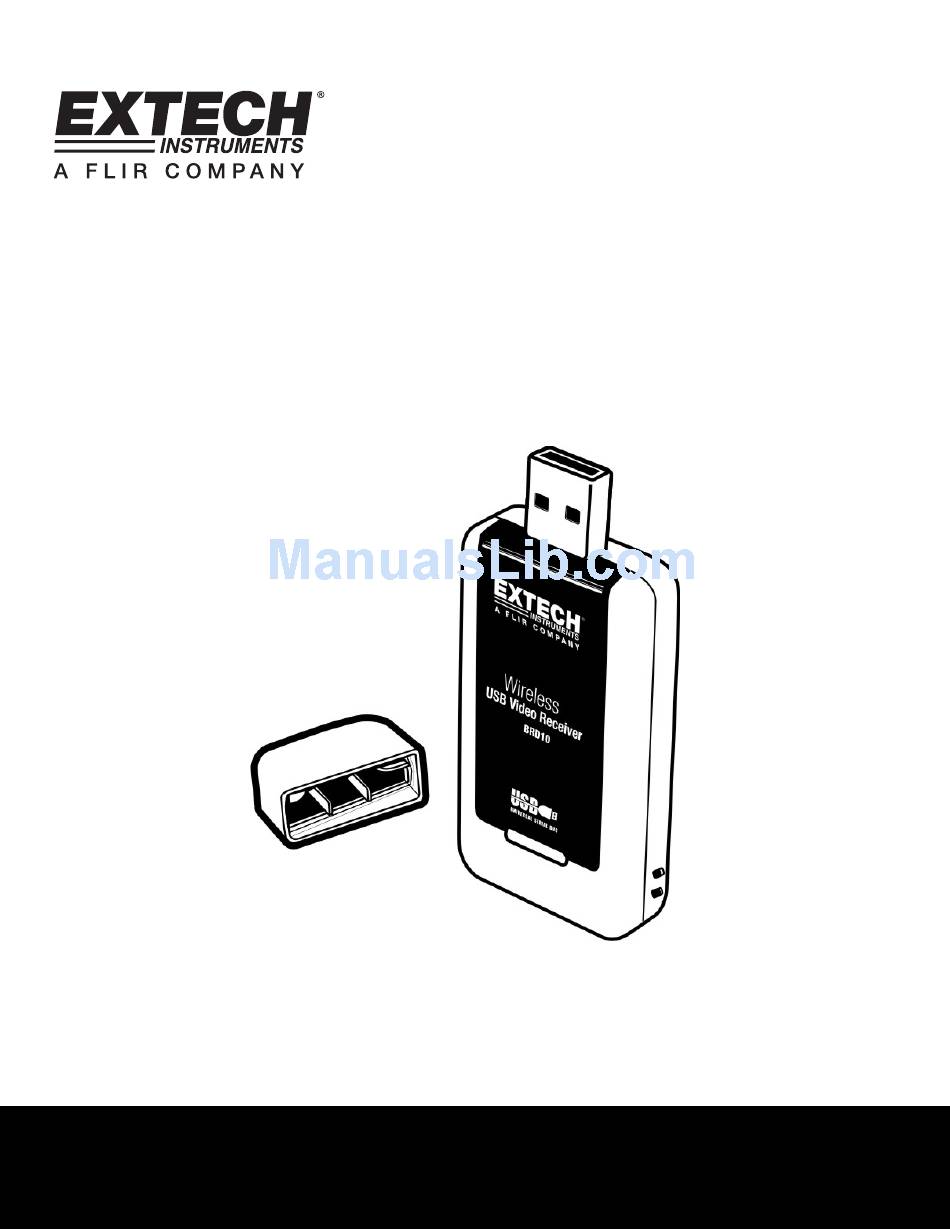

- Page 1 User Guide Wireless USB Video Receiver Model BRD10 Please visit our website for more information www.alpine-components.co.uk...
- Page 2 Begin taking video footage with the Extech Borescope in order to test the wireless video capturing capability of the BRD10. Ensure that the Borescope is set to transmit on channel 4, at a frequency of 2468MHz (this is the fixed receive channel and frequency for the BRD10).
- Page 3 When the Borescope, USB dongle (BRD10), and software are communicating successfully the Borescope image will appear at the center of the main software window as shown. Note: The Borescope’s monitor must be detached from the camera in order for the BRD10 to receive images.
- Page 4 Windows XP, VISTA, 7 Receive Frequency 2468MHz Receiving Sensitivity -85dBm Effective Range 10m (30 ft) unobstructed Power Consumption 355mA (max.) Dimensions 75 x 34 x 13 mm (3.0 x 1.3 x 0.5”m) Weight 21g. (0.7 oz) Operating Temperature -10°C~+50°C (+4°F~+122°F) BRD10-EN-V1.2 -2/11...
- Page 5 SAFETY INFORMATION • Do not allow water or other liquids to come in contact with the BRD10 • Turn off the Camera/Monitor when not in use FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1.
