Summary of Contents for Shenzhen Proolin VoIP Tech Media Phone

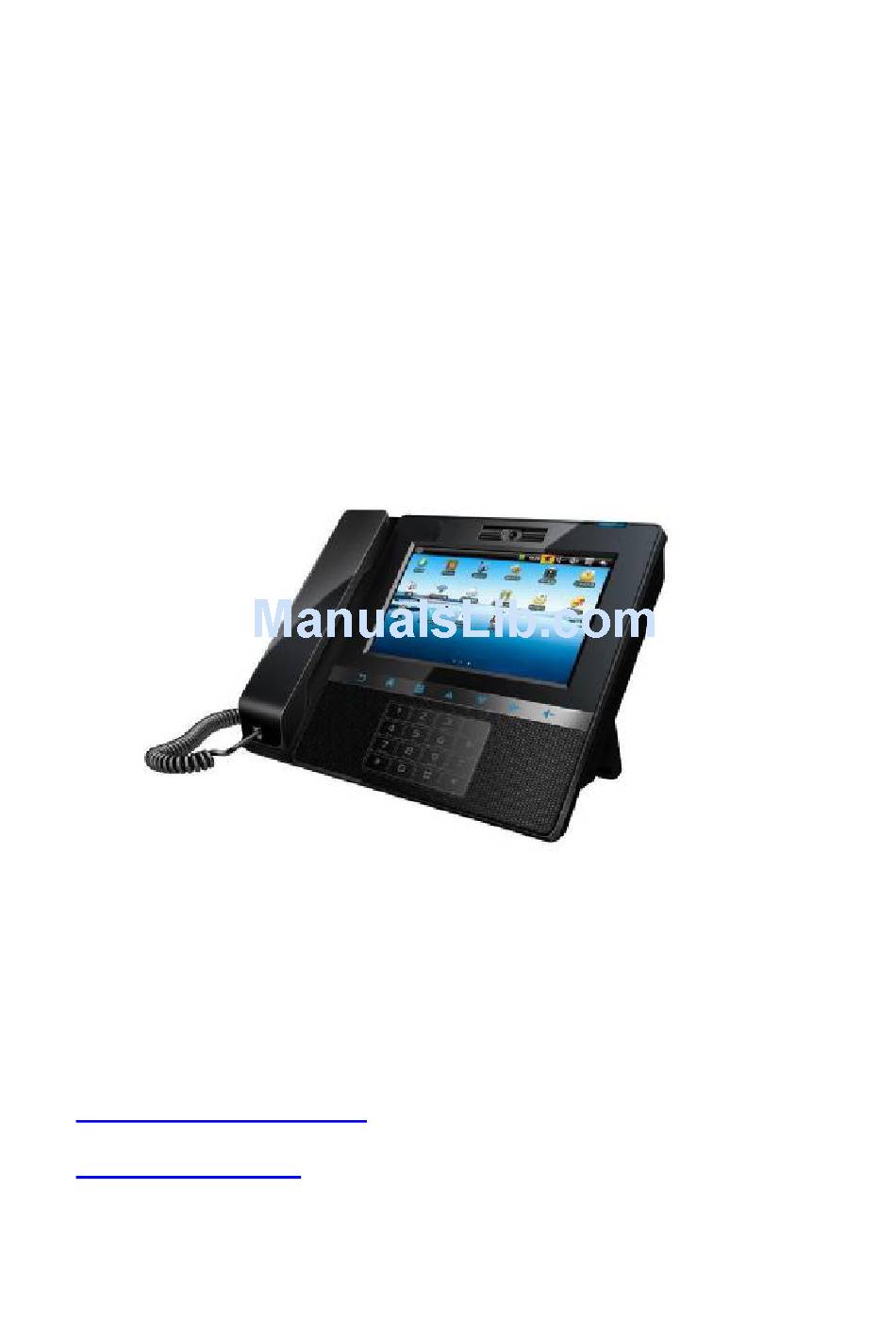

- Page 1 Media Phone Quick User Guide Shenzhen Proolin VoIP Tech.Ltd. http://www.proolin.com info@proolin.com...
-
Page 2: Table Of Contents
CONTENTS PRODUCT OVERVIEW........................1 CONNECTING CABLES........................4 CONNECTING TO A WIFI NETWORK (OPTION) ................4 SETTING NETWORK.......................... 5 CALL SETTING ........................... 5 MAKING A CALL ..........................7 ANSWERING A CALL.......................... 8 CREATING A CONTACT ........................9 EXPORTING AND IMPORTING A PHONEBOOK ................10 IMPORTING FILES FROME USB DEVICE OR SD CARD .............. -
Page 3: Product Overview
Media Phone Quick User Guide http://www.proolin.com Product Overview Front View Item Description Camera. You can rotate the camera to adjust the angle. Power LED. Microphone input jack Menu key. Press to show the menu list. Handset Interface. Home key. Press to display the home screen. - Page 4 LAN interface used to connect to a network access device. PC interface used to connect to a computer. When a computer is connected to the media phone through this interface, the media phone functions as a hub in the network.
- Page 5 Media Phone Quick User Guide http://www.proolin.com Side View Item Description Handset Jack Card slot for a microSD Card or an MMC. USB ports used to connect USB devices. USB ports used to connect PC. Microphone port Enables you to connect an external microphone.
-
Page 6: Connecting Cables
Step 1 Connect the handset to the phone with the handset cord. Step 2 Connect the LAN interface on the media phone to an external network interface (such as the network interface on the rear panel of the home gateway) with the network cable. -
Page 7: Setting Network
Media Phone Quick User Guide http://www.proolin.com Step 3 Input “user name”, “password” and click “OK”. After accessing the WiFi network, you will see an icon indicating the WiFi signal strength in the status bar on the top of the touch screen. - Page 8 Media Phone Quick User Guide http://www.proolin.com Steps： Step 1 Click “Setting” on the desktop and choose “Call Settings”. Step 2 Enter the password such as “000000”, and click “OK”. Note: The default password of “call settings” is “000000”. Step 3 Set the sip user register parameters according to your network.
-
Page 9: Making A Call
Media Phone Quick User Guide http://www.proolin.com Making a Call Making a Call by Dialing To make a call , please following the bellow steps： Step 1 Check the network status of P6 and make sure the status of icon on the up left of desktop is normal. -
Page 10: Answering A Call
Answering a Call The media phone rings when a call is received. If you have subscribed to the calling number identification service, the calling number appears on the screen. (If the calling number is saved to the phonebook, the name and the number of the calling party appear on the screen.) -
Page 11: Creating A Contact
Media Phone Quick User Guide http://www.proolin.com Answering an Audio Call Step 1 To answer an audio call, tap Accept on the touchscreen or pick up the handset. Step 2 To reject an incoming call, tap Reject on thetouchscreen. Note: If you want to make or answer a PSTN call, you must make sure the Line port connect to a PSTN port correctly and the sip must not be registered. -
Page 12: Exporting And Importing A Phonebook
To import files in USB device or SD card to the local memory, do as follows: Step 1 Connect the usb device or SD card to the media phone. Step 2 In the window that displayed click “Outside USB” or “Outside SD card”... -
Page 13: Setting Time And Date
Step 3 In the window that displayed you can set the time and date by hands or click Sync Date. Installing Third party Applications You can install the third party applications from usb device or SD card on the media phone. Step 1 Connect the usb device or SD card to the media phone. -
Page 14: Uninstalling Third Party Applications
Media Phone Quick User Guide http://www.proolin.com Step 2 In the window that displayed click “Outside USB” or “Outside SD card” Step 3 In the files management window select an application install file that you want, click and install it following the tips. -
Page 15: Specifications
Working voltage: 110/220V AC, 12 V and 2 A DC Adapter Working frequency: 50 Hz to 60 Hz Power Entire-device power consumption <15W Operating temperature 0ºC~40ºC Humidity 10%~80% Environmental parameters Minimum illumination 10lux Recommended illumination >300lux Packaging Detail Media phone, Power Adapter, RJ11, RJ45, Manual Colour Black...
