Summary of Contents for Airfonix AFX-19AR050
-

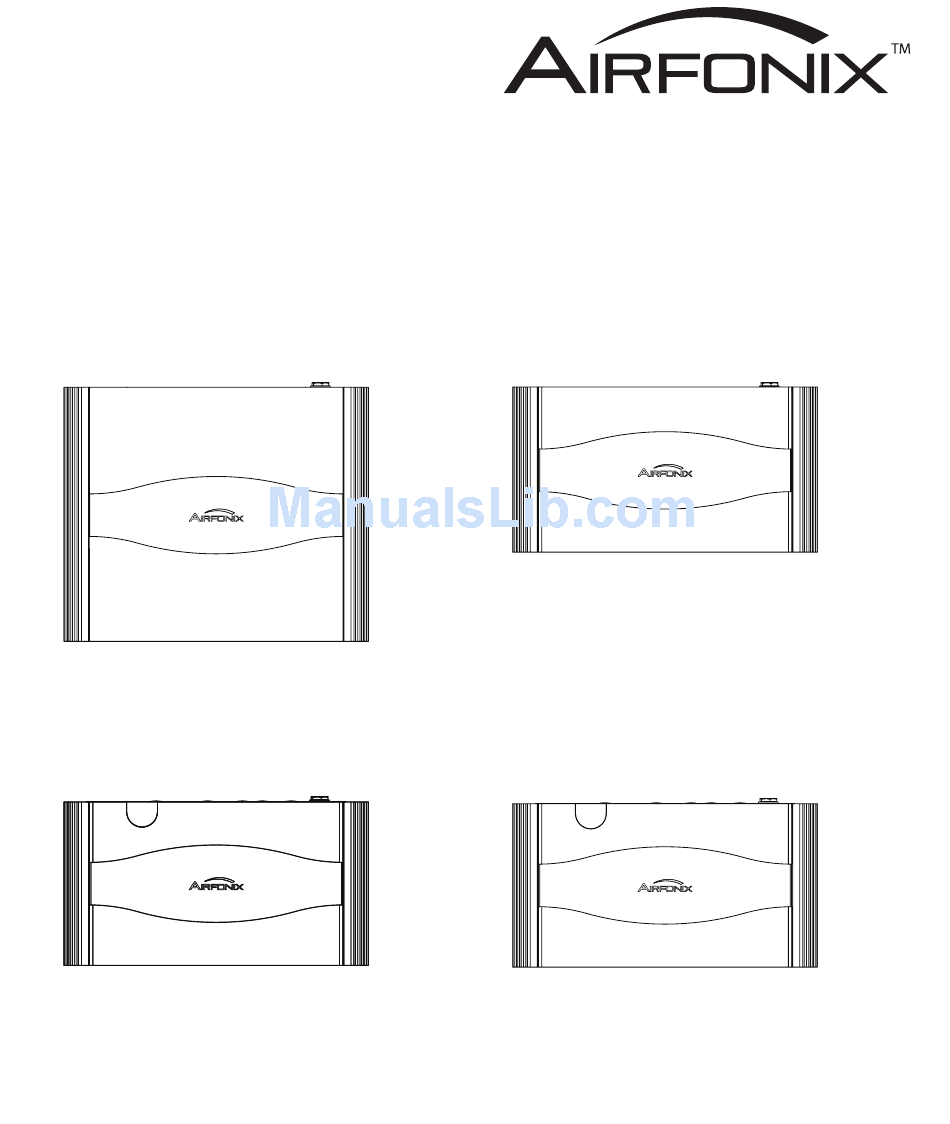

Page 1: User Manual
User Manual Airfonix R Series Wireless Receiver Models: AFX-19AR050 AFX-19PR001 Airfonix T Series Wireless Transmitter Models: AFX-19PT002 AFX-19PT102... -
Page 2: Important Safety Instructions
Do not attempt to service the unit yourself. If water or any metal objects such as paper clips, wire or staples accidentally fall inside, disconnect the unit from the power source immediately and consult an authorized service center. SAVE THESE INSTRUCTIONS www.airfonix.com... -
Page 3: About Airfonix Wireless
The Airfonix R Series receivers are designed to retrofit any active or passive speaker, bringing the freedom of wireless capability to any wired audio system. If your venue is large, with the speakers placed far apart, dock a receiver to each speaker. -
Page 4: Table Of Contents
............. . Scenario 1: Connect One AFX-19AR050 Active Receiver to 4 ohm, 25W One Zone, Stereo . -
Page 5: Unpacking
Nylon Anchor 24V Power Adapter (AFX-19AR050) x 1 IMPORTANT: If you suspect transit damage or if anything is missing please contact Customer Service at (888) 778-2446 or www.airfonix.com immediately. Keep the shipping cartons and materials. Tools Necessary Phillips Screwdriver Pencil... -
Page 6: Overview Afx-19Ar050 Receiver
Overview AFX-19AR050 Receiver R Series model AFX-19AR050 Bottom DC IN Setting LINK ANTENNA: Included external antenna attaches into this SMA jack. PWR LED: Lights green when linked and red in standby mode. Lights orange in pairing mode (see page 13). -
Page 7: Overview Afx-19Pr001 Receiver
DC IN 9V: Used to connect supplied 9V AC adapter to an AC power source. IMPORTANT: To prevent signals mixing together, do not connect source to both the AUX L and R RCA jacks and the BALANCE IN sockets simultaneously. www.airfonix.com... -
Page 8: Overview Afx-19Pt002 Transmitter
To prevent signals mixing together, do not connect source to both the AUX L and R RCA jacks and the BALANCE IN sockets simultaneously. • When connecting an audio source using the SPDIF input, it must use either 44.1KHz or 48KHz sampling rates. Check the owner’s manual for your audio source if you are unsure. www.airfonix.com... -
Page 9: Overview Afx-19Pt102 Transmitter
To prevent signals mixing together, do not connect source to both the AUX L and R RCA jacks and the HI-LEVEL IN sockets simultaneously. • When connecting an audio source using the SPDIF input, it must use either 44.1KHz or 48KHz sampling rates. Check the owner’s manual for your audio source if you are unsure. www.airfonix.com... -
Page 10: Planning Your Installation
Planning Your Installation The following examples will illustrate the versatility of the Airfonix wireless system. These illustrations are designed to demonstrate some of the many installations possible. Since all receivers are lightweight, compact and designed with a rugged, weatherized industrial chassis for outdoor use, you can easily move the components from indoor to outdoor sites and reconfigure them for different venues or situations. -
Page 11: Scenario 3: One Transmitter With Two Afx-19Ar050 Passive Receivers, Two Zones Stereo
Planning Your Installation Scenario 3: One Transmitter with Two AFX-19AR050 Passive Receivers, Two Zones Stereo T Series Remote Control Connected using analog (AUX) input Connected using digital (SPDIF) input HDTV Audio Source 2 Indoor wireless range is Room 1 Room 2 between 100 to 150 feet. -
Page 12: Scenario 5: One Transmitter With Two Afx-19Pr001 Active Receivers, Two Zones Mono
• You may pair a maximum of two receivers to each transmitter and use three sets of transmitters within a 150 foot range without conflict. • Rain shield covers are included with each receiver for protection in outdoor installations. www.airfonix.com... -
Page 13: Before You Begin
AFTER you have set the zone codes For transmitter: For all receivers: Push the third dip switch to OFF and all units are powered ON again. All dip switches must be in OFF position to exit pairing mode. position. www.airfonix.com... -
Page 14: Setting Zone Codes For Your Installation
Setting Zone Codes for Your Installation The Airfonix R and T Series are highly versatile. The six scenarios illustrated on pages 10 through 12 require corresponding zone codes that you will now set. If you have any questions please contact Customer Service at at (888) 778-2446 or www.airfonix.com. -
Page 15: Placement And Mounting Options
The unit sits vertically on a flat surface. NOTE: The stands are identical. One fits into the slots on the bottom left side of the unit and the other fits into the bottom right side. www.airfonix.com... -
Page 16: Preparing Components For Use
Before connecting your speakers, turn the receiver upside down and fit the rain cover into the inside slots on each side. Slide it into place. NOTE: The rain covers may also be used in indoor installations to conceal connections and create a cleaner look. www.airfonix.com... -
Page 17: Connecting The Receivers
Connecting the Receivers You may use up to two Airfonix R Series wireless receivers with each T Series transmitter. This is useful when the speakers are spaced far apart. Follow the installation diagrams for the six scenarios. Make sure to set the correct zone codes for your installation. -
Page 18: Scenario 2: Connect Two Afx-19Ar050 Active Receivers To 8 Ohm, 36W One Zone, Mono
Connecting the Receivers Scenario 2: Connect Two AFX-19AR050 Active Receivers to 8 ohm, 36W One Zone, Mono DC IN DC IN SW OFF SW OFF speaker cable s speaker cables LEFT RIGHT Zone Code: Zone Code: Setting Setting Scenario 3:... -
Page 19: Scenario 4: Connect One Afx-19Pr001 Passive Receiver To Active Speakers, One Zone, Stereo
Zone Code: Zone Code: Setting Setting IMPORTANT: Your system will not work properly unless the dip switches on each unit are set to the correct positions for your installation. See Setting Zone Codes on page 14 for more information. www.airfonix.com... -
Page 20: Using Xlr Cables
See Setting Zone Codes on page 14 for more information. Connecting the Transmitter Airfonix T Series wireless transmitters may be connected to any audio product with a speaker output connection such as stereo receivers, digital TVs, DVD players, CD players, professional mixing consoles, gaming products, computers, iPods or MP3 players. -
Page 21: Connecting Transmitter To One Source
You may also use the remote control to power on and switch sources. See page 22. IMPORTANT: Your system will not work properly unless the dip switches on each unit are set to the correct positions for your installation. See Setting Zone Codes on page 14 for more information. www.airfonix.com... -
Page 22: Operation
IR sensor so it is in direct line of sight. The T Series remote will control volume levels and mute of your T and R Series and the components connected to them, even when all the units are not in line of sight. www.airfonix.com... -
Page 23: Troubleshooting Guide
If you’re having trouble using the R and T Series, look for a solution here. Some issues may be caused by a connected component. Refer also to the manuals for your other components. If you can’t resolve the issue at (888) 778-2446 or www.airfonix.com. yourself, contact Airfonix Customer Service IMPORTANT: During normal operation the LINK LED lights green, the POWER LED lights green and either the AUX LED or the SPDIF LED lights green. - Page 24 Make sure the remote is in line of sight of the IR sensor on the AUX or SPDIF LED is lit transmitter. If not, attach the IR extender and adjust it so it is in direct green: line of sight. See page 22. • Change the battery. www.airfonix.com...
-
Page 25: Regulation Information
• For the latest product documentation, as well as the Airfonix License Agreement and Limited Warranty. NOTE: this document contains information that is subject to change without notice. For the latest product documentation, as well as the Airfonix License Agreement and Limited Warranty go to www.airfonix.com. -
Page 26: R Series Specifications
R Series Specifications R Series model AFX-19AR050 Features Performance Dimensions 158mm, Height: 51mm, Depth: 131mm Weight 0.55 Kg, 1.21 lbs Outputs 5-way binding posts MONO Mode 50 watts RMS/mono at less than 1%THD rated at 35 to 20 Khz Stereo Mode... -
Page 27: T Series Specifications
50m minimum for one-room applications, up to 100m for line-of-sight applications Audio Quality Pulse-code Modulation Up to 24-bits resolution, PCM) bits compatible with 16-bits stereo Sampling rates 48 kHz RF Latency 10 ms Security 6 Bytes (48 bits) of IEEE 802.3-like MAC address Operating Temperature 0 to +70º C www.airfonix.com...
