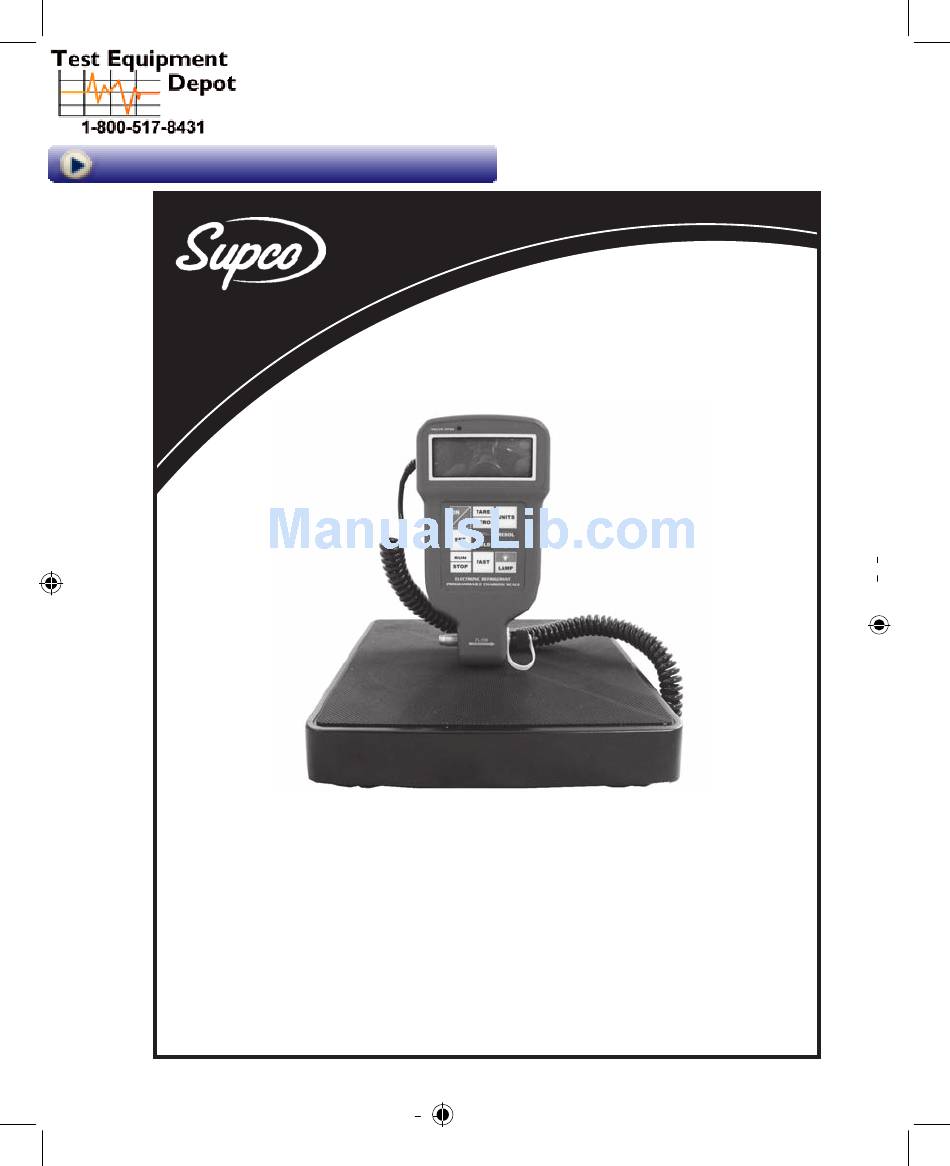

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com ® PCS220 igital harging Cale UiDe PCS220 Manual.indd 1 10/27/2011 10:08:04 AM...
-
Page 2: Specifications
Critical Charging of small refrigeration systems. With the PCS220 you can measure weight in both English and metric units. The PCS220 is programmable, and has a built-in alarm to indicate a programmed threshold has been exceeded. Features •... - Page 3 Item PCS220 Manual.indd 4 10/27/2011 10:08:09 AM...
-
Page 4: Lcd Display
“Floating” Negative Indicator Hold Mode Indicator (Indicates weight removed from platform) Valve Open / Close Display “TARE / ZERO” Set Resolution 2G (high) / 5G (low) Indicate Units For oz Indicate units For kg and g PCS220 Manual.indd 5 10/27/2011 10:08:10 AM... - Page 5 Use ‘5g’ setting when gram. Check if electromagnetic you need to increase / reduce valve operates normally. within 1 kg. Use ‘100g’ setting when you need to increase / LCD background lamp reduce beyond 1 kg. PCS220 Manual.indd 6 10/27/2011 10:08:10 AM...
-
Page 6: Basic Weighing Operation
To operate the PCS220 as a basic weight scale, perform the following steps: 1. Remove the PCS220 from the carry case. 2. When using the PCS220, ensure the coiled cord does not touch the top of the weighing platform, or inaccuracies may result. - Page 7 4. Connect one end of charging hose to “OUTLET” and the other end to either the manifold gauge or auto A/C system. 5. Turn on the PCS220 by pressing 6. Select the proper measurement units by repeated pressing. The units will cycle as follows: kilograms pounds.
- Page 8 9. When finished refrigerant charging, the Valve will auto shut off and alarm for 6 seconds. Note: eight 1. Press if you want to pause the charging work. 2. Press if you want to stop and cancel charging work. PCS220 Manual.indd 9 10/27/2011 10:08:11 AM...
-
Page 9: Battery Installation
TO PREVENT DAMAGE TO THE PCS220, CAREFULLY OBSERVE BATTERY POLARITY AS MARKED INSIDE THE BATTERY COMPARTMENT. DO NOT LEAVE DEAD BATTERIES INSIDE THE CONTROL BOX. REMOVE BATTERIES IF THE PCS220 IS NOT TO BE USED FOR AN EXTENDED PERIOD OF TIME.
