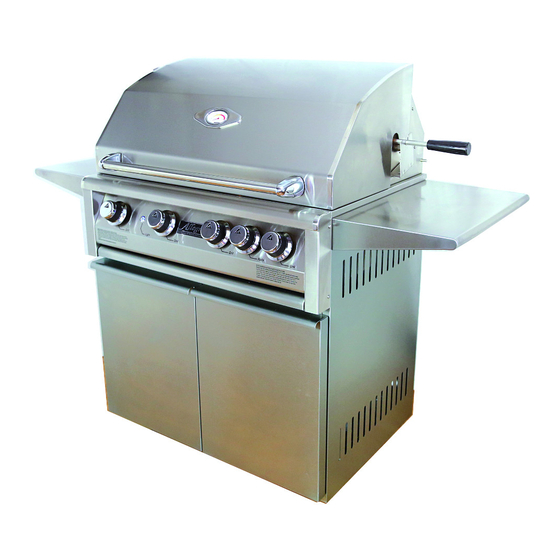

Summary of Contents for Allegra 32
- Page 1 OUTDOOR KITCHEN PRODUCTS 32, 32R, 38, 38R GAS GRILL INSTALLATION, MAINTENANCE, OPERATING INSTRUCTIONS AND OWNERS MANUAL CONGRATULATIONS ON YOUR NEW GAS GRILL PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. AMERICAN HEATING TECHNOLOGIES INC.
-
Page 2: Table Of Contents
TABLE OF CONTENTES SAFETY PRECAUTIONS..........3,4,5 LEAK TESTING.............. LOCATING THE GRILL........... GAS CONNECTIONS............ 7,8,9 IDENTIFICATION............BURNER ADJUSTMENTS..........BURNER MAINTENANCE & CLEANING......12,13,14 LIGHTING INSTRUCTIONS........... MATCH LIGHTING..............USING THE GRILL..............17,18 USING THE ROTISSERIE............USING THE LIGHTS .............. ELECTRICAL CONNECTION........... SERVICE INFORMATION............CONVERSIONS................. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING FOR YOUR SAFETY If you smell gas: Do not use this appliance in a space where gasoline or other liquids having flammable Step 1: Shut off gas to the appliance. Step 2: Extinguish any open flame. vapors are used or stored. Step 3: Open lid. - Page 4 SAFETY PRACTICES & PRECAUTIONS NEVER LEAVE THE GRILL UNATTENDED WHILE COOKING. WHEN IN USE, PORTIONS OF THE GRILL ARE HOT ENOUGH TO CAUSE SEVERE BURNS. All service on this grill should be performed by a qualified technician. Never use natural gas in a unit designed for liquid propane or vice versa. Children should not be unattended or alone in an area where a grill is located.
-
Page 5: Leak Testing
SAFETY PRACTICES & PRECAUTIONS If the grill is installed by a professional installer or technician, be sure that they show you where your gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible. -
Page 6: Locating The Grill
FOR BUILT -IN INSTALLATIONS: The ALLEGRA Built-In model is designed for installation in a masonry or a non combustible enclosure. The grill drops into the opening, and hangs from its counter top trim. There is no support required from the bottom. -
Page 7: Gas Connections
GAS CONNECTION The ALLEGRA gas grill is equipped to use (LP) propane Or (NG) natural gas. Your grill is designated a gas type and the rating plate must agree with that of the gas supply. Do not operate the grill on any gas other than what the grill is regulated and orificed for. - Page 8 When connecting the L.P. gas tank, make sure the hose does not come in contact with the grill or a hot surface. For the use with an L.P. tank / cylinder, the ALLEGRA grill is equipped with its own regulator. DO NOT REMOVE THIS REGULATOR.
-
Page 9: Gas Connections 7
60,000 BTUs. This hose should be used with 32" Grills. Larger models, or 32" models with side burners require the use of a 1/2" ID hose. If a 3/8" ID hose is used, the result will be a poor performance due to... -
Page 10: Identification
IDENTIFICATION Rotis Light Grill Grill Grill Grill Rotis Light Grill Grill Grill Grill Grill PAGE 10... -
Page 11: Burner Adjustments
BURNER ADJUSTMENTS As all of American Heating Technologies Inc. products, the grills have also been tested in the factory before shipping. However, due to different gas pressures and heating values of different gas suppliers, burner flame adjustments might be necessary, especially when converting a unit from one type of gas to another. -
Page 12: Burner Maintenance & Cleaning
BURNER MAINTENANCE & CLEANING Your ALLEGRA grill is made of stainless steel. After some initial usage, you will notice in some areas of the grill. It is a normal process caused by the high amount of heat produced by the burners. - Page 13 BURNER MAINTENANCE & CLEANING Burner Maintenance And Cleaning (continued) REASSEMBLE THE BURNERS: When replacing the burner, align the orifice with the center hole on the air shutter . Slide the air shutter onto the orifice and rest the rear of the burner on the support rack at the back of the the burner box.
- Page 14 BURNER MAINTENANCE & CLEANING Burner Maintenance And Cleaning (continued) INFRA RED BURNER GRILL BURNERS: Make sure grills are not hot. Begin by removing the cooking grills off the gas grill, Remove burner pin located in the back of the grill to release the burner. Hold the burner, pull it up and slightly to the back Grab the burner from the sides and gently lift the part resting on the burner bracket.
-
Page 15: Lighting Instructions
LIGHTING INSTRUCTIONS WARNING, before lighting: Prior to turning the gas "on," inspect the gas supply piping or hose. Any evidence of cuts wear, or abrasion must be replaced prior to use. The replacement pressure regulators and hose assembly must be the type specified by the manufacturer. -
Page 16: Match Lighting
MATCH LIGHTING Match Lighting: If burners do not light after several attempts, they can be match lit. If you have just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Grill Burners: Make sure all knobs are in the OFF position. Keep your face as far away from the grill as possible. -
Page 17: Using The Grill
USING THE GRILL Before Using The Grill: - Make sure that the grill has been tested for leaks and properly located - Remove all packaging material - Read and understand the instructions provided in this manual Using The Grill: Grilling requires high heat for searing and proper browning. Most food are cooked when dial is on "Hi"... -
Page 18: Using The Rotisserie
- Trimming excess fat from meat - Repositioning the location of meat during cooking USING THE ROTISSERIE The Rotisserie on Allegra Since the location of the rotis burner is more susceptible to strong winds, it is recommended to avoid using rotis during windy conditions. -
Page 19: Using The Lights
USING THE LIGHTS Lighting on Allegra A llegra units are equipped with double build in halogen lights for night time grilling. The lights are t urned ON and OFF by the light switch located on the left side of the unit. -
Page 20: Electrical Connection
- Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance. -The ALLEGRA gas grill is equipped with a three prong (grounding) electric plug for your protection against shock hazard and must be plugged directly into a properly grounded three prong outlet. -
Page 21: Service Information
Please provide the service representative with the Model #, Serial #, type of gas, date of installation, and a brief description of the problem. If you need assistance in locating an authorized service agency in your area, contact ALLEGRA / A.H.T. Customer Service and Parts at: American Heating Technologies Inc. -
Page 22: Conversions
L.P. 1. Remove the top panel in the back from the Grill to gain access to the regulator 2. Remove the existing regulator and install the appropriate regulator provided by ALLEGRA manufacturer, and corresponding with the gas type. 3. Remove the Grill's cooking grids and burners. Be cautious and do not move or damage the electrodes on the igniter. -
Page 23: Breakdown
BREAKDOWN # Description Knob Bezel Light Switch Housing Manifold Valve Cast Bar Burner Stainless Steel Tube Burner Ceramic Briquettes 10 Cooking Grills 11 Back Burner 12 Infra-red Burner 13 End Cap 14 Hood 15 Handle 16 Warming Rack 17 Hood Support 18 N.G. -
Page 24: Warranty
WARRANTY IN ORDER TO RECEIVE WARRANTY SERVICE FILL OUT AND MAIL IN YOUR WARRANTY CARD WITHIN 30 DAYS OF PURCHASE. This warranty is limited to the replacement of the defective parts. LIMITED WARRANTY American Heating Technologies must give authorization in writing, to the customer to return the defective parts. - Page 25 - A.H.T. Is not responsible for any labor pertaining installation, normal adjustment to burners, or gas regulators. - A.H.T. warranty applies only to the original purchaser of the ALLEGRA and may not be transferred. - A.H.T. warranty is in lieu of all other warranties, expressed or implied and all other obligations or liabilities related to the sale or use of its grill products.
