AddPac AP-WP100 Quick User Manual

Wi-fi phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AP-WP100 Wi-Fi Phone
Quick User Guide
AddPac Technology
page
1 / 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-WP100 and is the answer not in the manual?

Questions and answers

Summary of Contents for AddPac AP-WP100

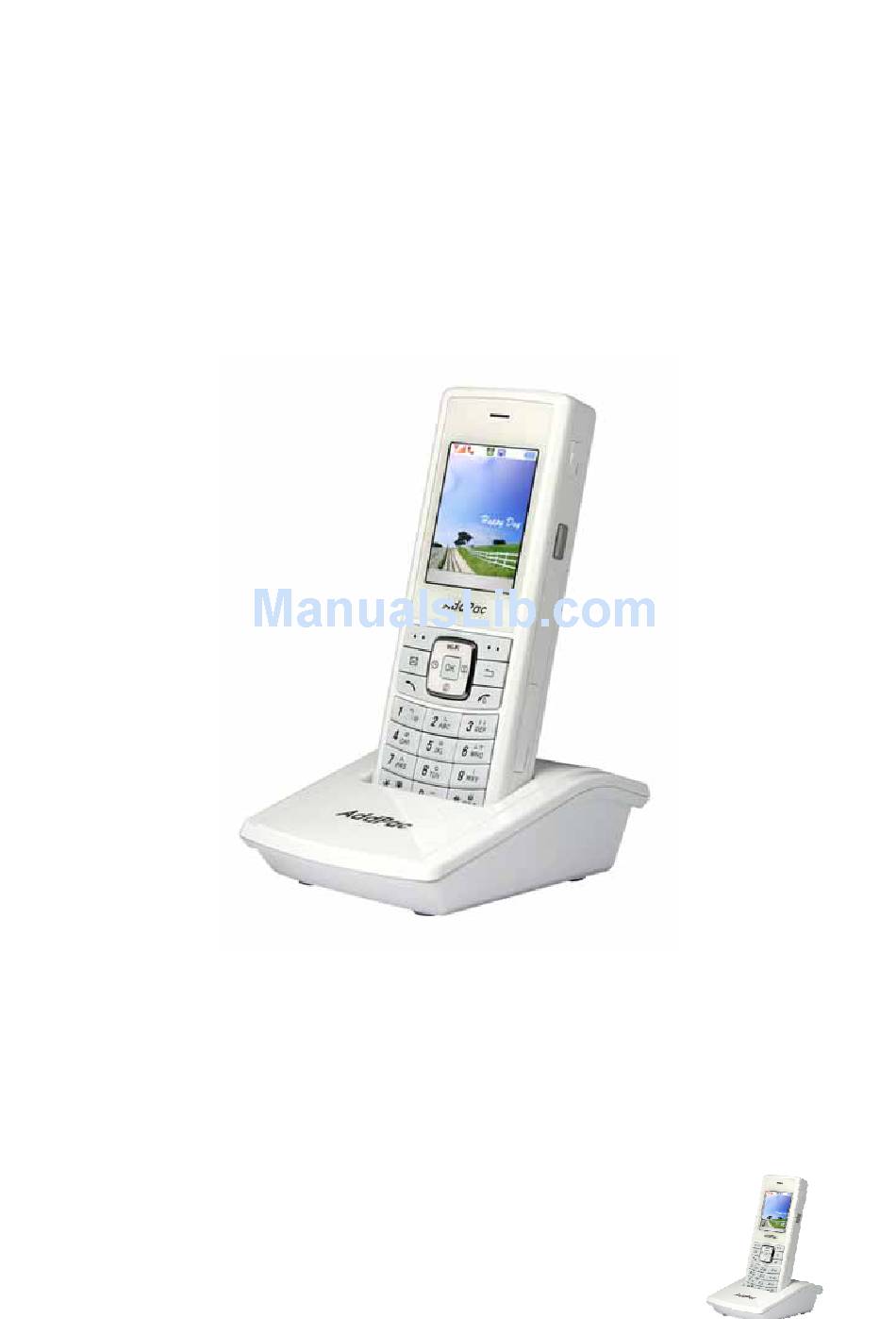

  • Page 1 AP-WP100 Wi-Fi Phone Quick User Guide AddPac Technology page 1 / 20...
  • Page 2 Caution: This wireless device may have radio interference and is not recommended to be used for the service related to the safety of life. page 2 / 20...

  • Page 3: Major Features

    Major Features Overall Speaker Phone A Variety of Key Features (ie. Push-to-Talk service) Voice Mail Interworking with the AddPac IP-PBX SIP-based VoIP Signaling Optimal Voice Quality by applying QoS to Cope with many different delays and Packet Errors in Internet Large Graphic LCD Size : 220 x 176 260K Color 2 inch TFT LCD Flash Memory 32MByte, mSDRAM 32MByte Audio Input/ Out Interface for Headset and external Speaker...

  • Page 4: Hardware Specification

    Hardware Specification Micro processor High Performance RISC CPU Architecture Memory Flash Memory 32Mbyte Main Memory 32Mbyte SDRAM WIreless IEEE 802.11 b/g Support Operating Frequency : 2412 MHz ~ 2472 MHz 802.11g : 54, 48, 36, 24,18, 12, 9, 6Mbps, Auto Rate 802.11b : 11, 5.5, 2, 1Mbps , Auto Rate Operating Channels : 13 channels Output power : under 10 mW...
  • Page 5 Enhanced QoS Management Features for Voice Traffics Miscellaneous Cisco Style CLI Standard & Extended IPv4/IPv6 Access List Multi-level User Account Management IP accounting STUN Client WPA (WIFI Protected Access) WIFI Security Support 802.11i Security standard through implementation of AES/CCMP and WEP with TKIP security mechanism Support 802.11e Quality of Service (QoS) Interoperability Complying with WECA WIFI...

  • Page 6: Using The Phone

    20. Volume 21. Speaker AP-WP100 turns off LCD power if the phone is not used for more than 10 second. After 20 seconds the phone enters the power-saving mode. * Press END to exit from the power-saving mode.
  • Page 7 Removing the Battery Push the battery cover downward while pressing the battery cover release button to open Lift up the lower part of the battery and slide down to remove Installing the Battery *To install the batter, reverse the procedure shown in the following pictures Turning-Off/On the Power If your press END and hold for more than 3 seconds the power is turned on and if you press and hold more than 3 seconds again the power is turned off.
  • Page 8 When the power is turned off normally, the following picture is displayed on the LCD screen * If the phone is not used for more than 10 seconds, it is changed to the power saving mode as the LCD and button LED lamps are turned off. If you want to use again, press and hold END once. page 8 / 20...
  • Page 9 Making and Receiving a Call Enter a number that you want to call and then press SEND. * As AP-WP100 is registered to the IP-PBX as an extension, you have to enter an external outgoing number first (Example for the external outgoing number: 9 or 8 + Phone number) Ending a Call To end a call, press END.
  • Page 10 Menu Using the Button Press MENU to display 8 main menus. To enter each main menu 1. Use navigation key to select the menu and then press OK 2. Press the speed dial number (1~8) of each main menu on the numeric keypad. PHONE MESSAGE ORGANIZER...
  • Page 11 Menu Table The menu Table of AP-WP100 is organized as to follow: Main Menu Sub-Menu Description of Features 1. PHONE BOOK 1. Search Search stored phone number number/name/speed dial number 2. Add Contact Register a new number to the phone book 3.
  • Page 12 5. MAC Address Check the MAC address of the phone <SYSTEM SETTING – Administrator Mode Acce Press #233722# and the menu button, then Admin Password window appears Admin password : 2337 page 12 / 20...
  • Page 13 Icon Description You can check the operational status from the following icons on the top of the LCD screen: Disconnected to WiFi * The wireless connection is in the abnormal status. Retry connection by using WiFI Search. The normal connection of WiFi status and Signal Strength. *The signal strength is indicated in 6 different bar types.
  • Page 14 Entering text To enter the phone number, write a message, set WiFi profile and enter text, refer to the following text entry method. * You can move to text entry mode by pressing the soft key F2 as it is shown in the picture above. Numbers English Capital English Small...
  • Page 15 Installing To configure the settings of AP-WP100, set the wireless LAN connection and SIP server registration. Registering the Wireless LAN Connection Search the wireless Access Point (AP) by pressing WiFi on AP-WP100 The connectable AP appears The icons of signal strength for authentication method is described below...
  • Page 16 If you choose to use encryption, the following 4 methods (WEP 64BIT WEP 128BIT WPAPSK WPAPSK2) are available for selection. After using encryption is set, specify the IP information to be used from the profile. For setting the Static IP method, enter the IP address, net mask, primary router information. page 16 / 20...
  • Page 17 SIP Server Registration To register the user name and password, you need the information in the following picture. *For SIP server authentication information, ask the administrator of SIP server (IPNext Call Manager) page 17 / 20...
  • Page 18 After the forwarded phone user responses the call, press END. Changing to the Speaker During the Phone Call If you want change to the speaker of AP-WP100 during the phoe , press Push to Talk button the right side of the main body.

  • Page 19: Troubleshooting

    Troubleshooting Checking Network Connection Check the AP and network connection status, by pressing the info button on AP-WP100. * The specified IP information and connected AP information are displayed by pressing Info as it is displayed in the picture below Checking SIP Server Registration .If SIP server is not connected, the icon bar on the top displays...
  • Page 20 AddPac Technology Co., Ltd. 2F & 3F, Jeong-Am Bldg., 769-12 Yeoksam-dong, Gangnam-gu, Seoul, 135-080, Korea Tel: +82 2 568 3848 Fax: +82 2 568 3847 Email: sales@addpac.com http:// www.addpac.com page 20 / 20...
