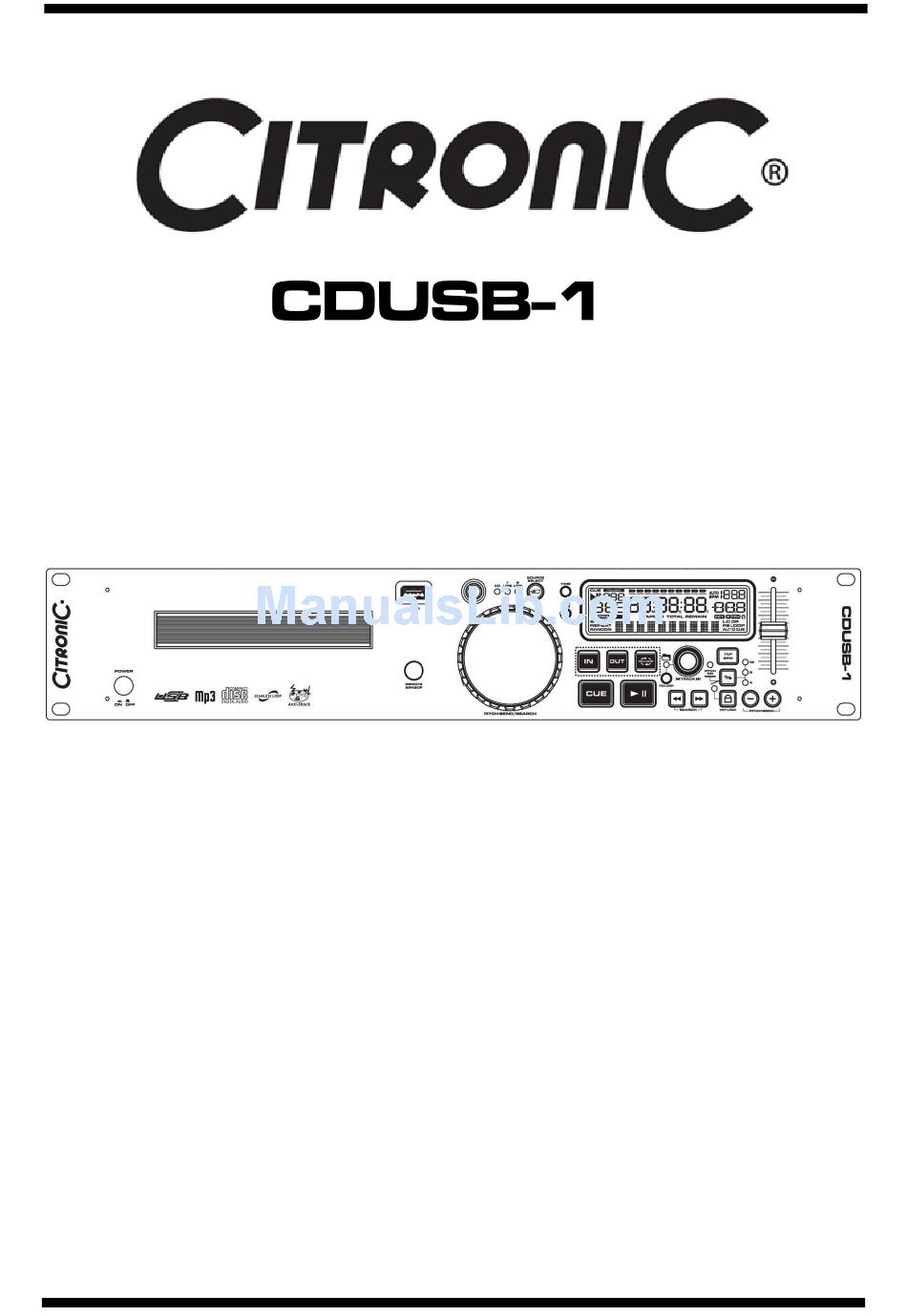

- Page 1 OWNERS MANUAL Version 1.0...
-
Page 2: Safety Information
Safety information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this item near moisture. Clean only with dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacture’s instructions. Do not install near any heat sources such as radiators, stoves or other items (including amplifiers) that produce heat. -
Page 3: Main Features
CITRONIC CDUSB-1 Main Features: 1 x USB front and 1 x USB rear inputs which can be read by both players simultaneously Single front load CD player with 20 seconds anti-shock protection MP3/WAV compatible from CD or USB (ID3 tags) - Page 4 General Checks and Advice Before switching off the power ensure there is no CD in the draw, the disc tray is fully closed and the LCD display reads “NO DISC”. Installation • Place the unit on a flat surface or mount in a secure rack case. •...
-
Page 5: General Functions And Controls

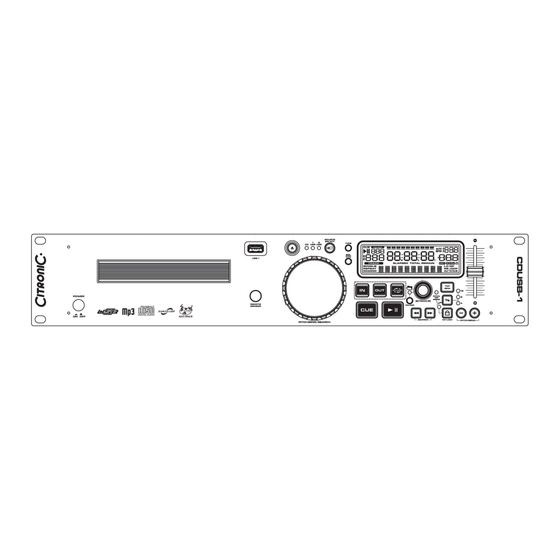

General Functions and Controls DISC TRAY – This tray is used to load and unload a compact disc into the drive mechanism. The tray is opened and closed by pressing the OPEN/CLOSE BUTTON. Never attempt to force the disc tray open or close when the power is turned off. USB PORT 1 (FRONT) –... - Page 6 TAP BUTTON - This button is used for manual BPM. When in manual BPM mode, tap this button to the beat of the current track. PITCH SLIDER - This slider is used to adjust the playback pitch percentage. Move the slider down to speed up the music and move the slider up to slow the music down.
-
Page 7: Lcd Display
JOG WHEEL – The JOG WHEEL can be used to pitch bend during playback and be used to frame search in pause mode. POWER SWITCH - This switch is used to control the unit's main power. POWER CONNECTOR - This is the main power connection. Only use the supplied power cord. - Page 8 AUTO CUE STATUS – Indicates if AUTO CUE is activated (“AUTO CUE”). Press and hold SGL/CTN at least 1 second to turn the AUTO CUE function on and off. TIME DISPLAY – Indicates the time of the chosen time mode in either minutes, seconds and frames.
-
Page 9: Remote Control
Remote Control: OPEN/CLOSE – Used to open and close the disc tray. CUE – Used to instantly return to the last set CUE POINT. SEARCH BUTTONS – Used to quickly scan backward & forward through a track. TRACK BUTTONS – Used to scan backwards & forward between tracks. FOLDER BUTTONS –... -
Page 10: Internal Menu
Internal Menu Hold TIME BUTTON for 3 seconds to enter the internal menu. Turn TRACK KNOB to scroll through the different menus and press the TRACK KNOB to enter the corresponding submenu. Turn TRACK KNOB to change the submenus and press TIME BUTTON to memorise your settings in any operating mode and exit the menu. -
Page 11: Data Management
Data Management DATABASE BUILDER: Database management software for the CDUSB-1 enables you to search for your files by Title, Artist, Album and Genre. Installation: Refer to the following figures for installing database management software on your computer. Download available at www.citronic.com... - Page 12 The database builder will scan the music on your USB device and create files which can be read by the CDUSB-1. You can then easily search for the songs you want alphabetically by; song title, album title, artist name, genre etc without having to rearrange your folders.
-
Page 13: Specification
Specification GENERAL SECTION PRODUCT CDUSB-1 POWER SOURCE AC100 - 240V, 50/60Hz POWER CONSUMPTION DIMENSIONS 482mm (W) X 270.5mm (D) X 88.8 mm (H) WEIGHT: Main Unit: 4.35 Kg AUDIO CHARACTERISTICS (CD TEST DISC: TCD-782 & TCD-781; USB TEST FORMAT: MP3, 128KBPS;... - Page 14 CD SEARCHING TIME: (TEST DISC: TCD-792) ITEM TYPICAL LIMIT CONDITION (1) SHORT ACCESS TIME 2Sec 4Sec PLAY NEXT TRACK (2) LONG ACCESS TIME 4Sec 6Sec TRACK 1 TO 20,20 TO 1 CD PLAYABILITY: ITEM TYPICAL LIMIT CONDITION (1) INTERRUPTION 0.7mm TCD-725 (2) BLACK DOT 0.6mm...
- Page 15 FOR MORE INFORMATION ON CITRONIC PRODUCTS VISIT WWW.CITRONIC.COM...
