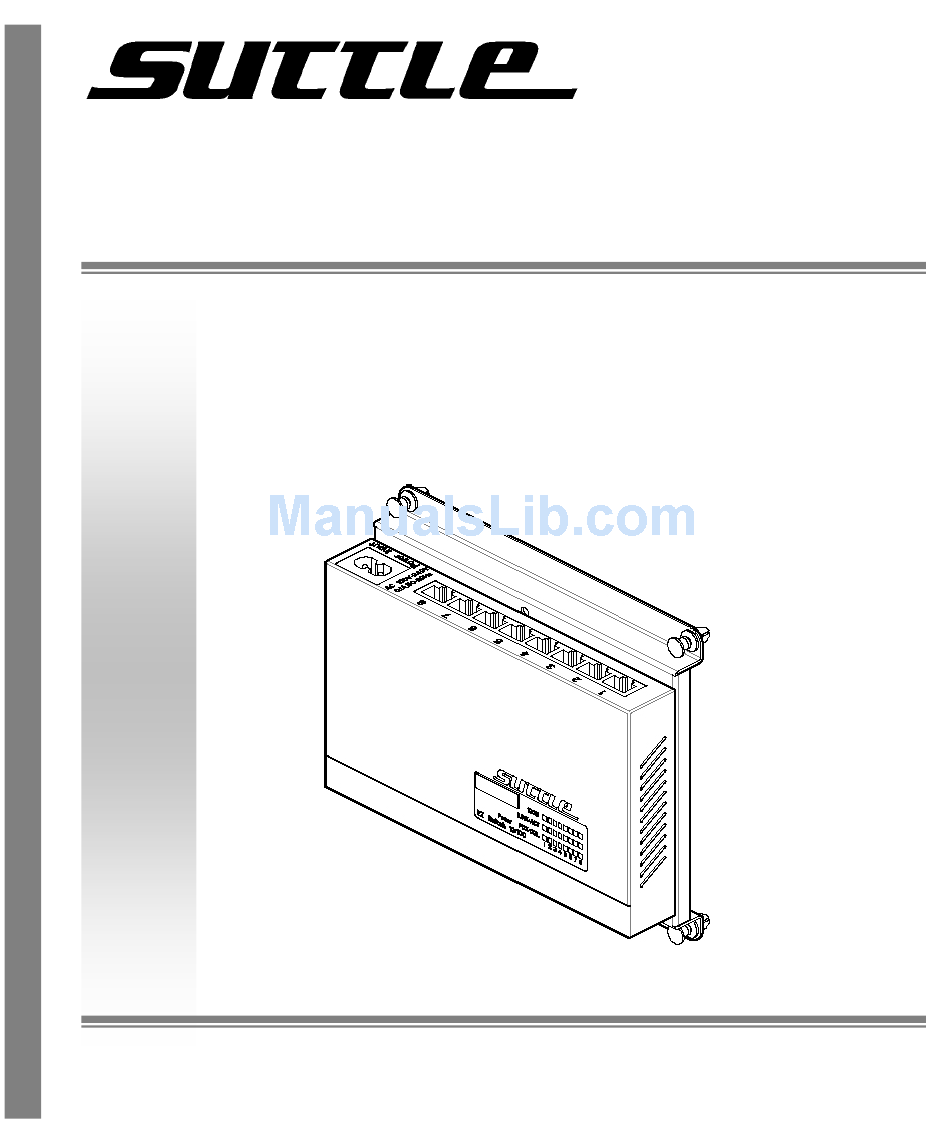

Page 1: User Guide
SAM-SW8U 8-port 10/100 Ethernet Switch User Guide 1001 East Hwy 212Hector, MNM 55342 Toll Free: 1-800-852-8662 www.suttleonline.com Local: 1-320-848-6711 Fax: 320-848-2361... - Page 2 1. Introduction Welcome to the world of mini-networking. In the modern business society, communication and sharing information is crucial. Computer networks have proven to be one of the fastest modes of communication. The 8-Port switches are compact and attractively designed for desktop use. They are an ideal solution for the home or small office network user.
-
Page 3: Package Contents
Package Contents • 8-Port Switch • 8 CAT5e RJ45 Patch Cords • User’s Guide • Power cord 8TP Auto MDI/MDI-X Switch 8 – CAT.5e Patch Cords, 12in. Power Cord User’s Guide Figure 1-2. Package Contents Compare the contents of your 8-Port switch with the standard checklist above. -
Page 4: Hardware Description
2. Hardware Description This section mainly describes the hardware of the 8-Port switch. The physical dimensions of the 8-Port switch are: 164mm(W) x 100m(D) x 26mm(H) Top View The LED indicators are located on the top-view of the switch. They provide a real-time indication of systematic operation status. -
Page 5: Rear View
Rear View The rear panel of the 8-Port switch consists of 8 – 10/100N-Way UTP switch ports, and one DC power connector. Figure 2-4. Rear panel of the 8-Port Switch • RJ-45 Ports: 8 – 10/100 N-Way auto-sensing for 10Base-T or 100Base- TX connection. -
Page 6: Network Application
3. Network Application This section provides you a few examples of network topology in which the 8-Port switch can be used. The switch is designed to be used as a desktop or segment switch. The switch automatically learns node addresses, which are subsequently used to filter and forward all traffic based on the destination address. - Page 7 Enlarge Your Network You can use the Uplink port of the 8-Port switch to connect with another hub or switch to interconnect each of your small-switched workgroups to form a large switched network. You can connect any one switch port to a hub or switch without a crossover cable by the use of the Auto MDI/MDI-X function.
- Page 8 Typical Use in the SOHO Access Enclosure The Suttle SOHO Access Enclosure is the central distribution device where incoming voice, data, and video are re-distributed throughout the home. The switch/hub/router is required to distribute the data to outlets through the home.
- Page 9 Typical Module Wiring Configuration...
-
Page 10: Troubleshooting
4. Trouble Shooting The switch can be easily monitored through panel indicators to assist in identifying problems. This section describes common problems you may encounter and where you can find possible solutions. • Diagnosing LED Indicators If the link indicator does not light up after making a connection check to see if the network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective. -
Page 11: Technical Specification
5. Technical Specification This section provides the specifications of the 8-Port Switch: Specification Standards Compliance IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE standard 802.3 N-Way auto-negotiation Protocol CSMA/CD Max Forwarding Rate and 14,880 pps Ethernet port, Max Filtering Rate 148,800 pps per Fast Ethernet port LED Indicators Per Port: Link/Activity, Full/Collision, 100M... -
Page 12: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to pro reasonable protection against harmful interference in a residential installation.
