Big Backyard BALMORAL A24655E Installation And Operating Instructions Manual

For use with selwood 1.2 metre fort – a23835e
Hide thumbs

Advertisement

Quick Links

Download this manual

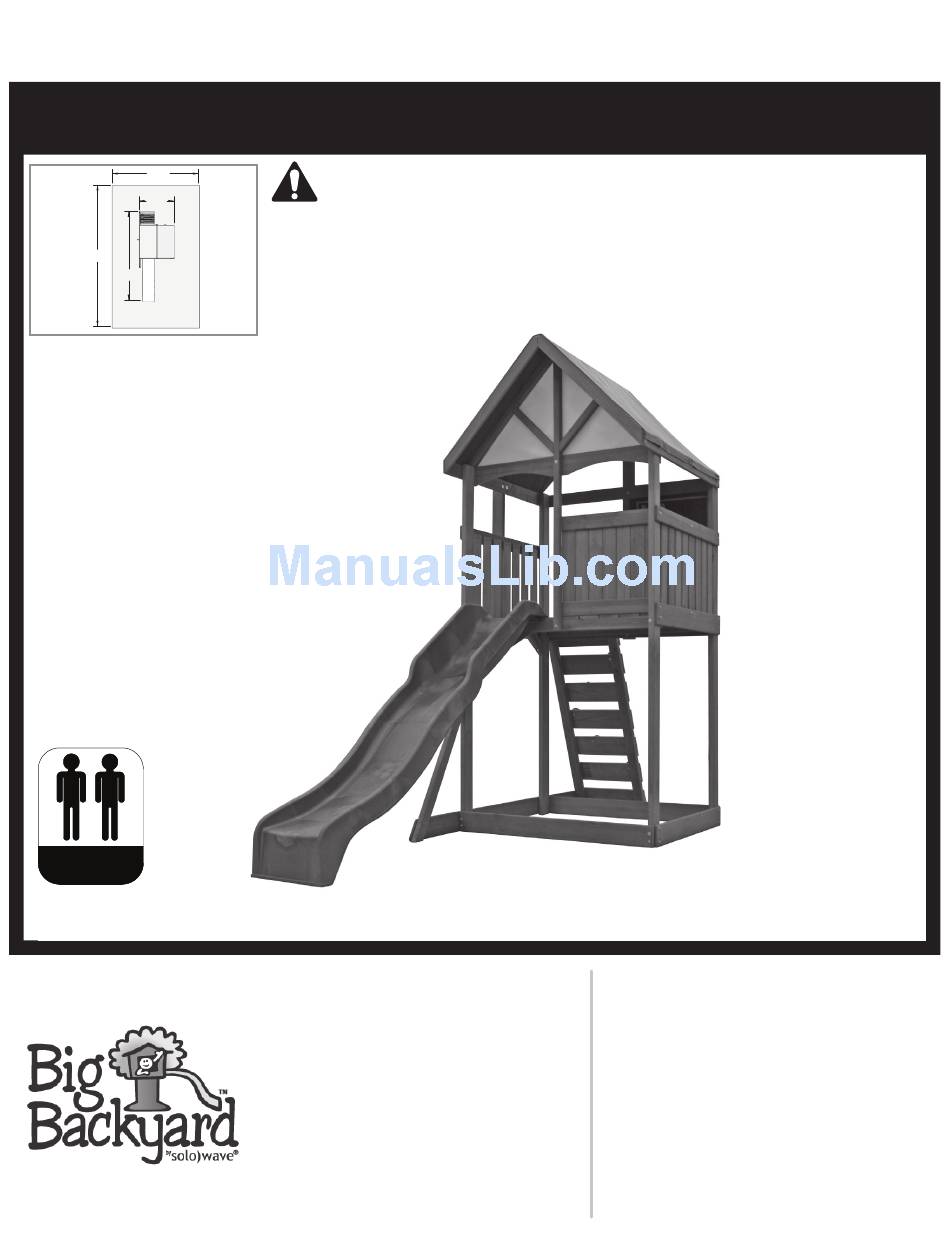

for use with SELWOOD 1.2 METRE FORT – A23835E
INSTALLATION AND OPERATING INSTRUCTIONS
5.22m
1.22m
7.15m
3.15m
5 - 7 Hrs
Two person
assembly
3404655E
BALMORAL – A24655E
WARNING
often and give them to any future owner of this play system . Manufacturer contact information provided below .
OBSTACLE FREE SAFETY ZONE - 5.22 x 7.15 m area requires Protective Surfacing . See page 3 .
MAXIMUM VERTICAL FALL HEIGHT - 1.8 m
CAPACITY - 4 Users Maximum, Ages 3 to 10; Weight Limit 110 lbs. (49.9 kg) per child .
RESIDENTIAL HOME USE ONLY . Not intended for public areas such as schools, churches, nurseries,
day cares or parks
For Outdoor Family Domestic Use Only
Solowave Design
375 Sligo Rd . West, PO Box 10
Mount Forest, ON Canada N0G 2L1
Toll Free: 1-877-966-3738
support@solowavedesign .com
United Kingdom
Toll Free: 0870 145 2145
Email: info@selwoodproducts .co .uk
Other Countries:
Please refer to label affixed to outside of carton .
The 1-877 number on the Owners Manual &
Safety Instructions is for North America only .
To reduce the risk of serious injury or death, you must read and
follow these instructions . Keep and refer to these instructions
Table of Contents
Warnings and Safe Play Instructions . . . . . . . . . . pg . 2
Protective Surfacing Guidelines . . . . . . . . . . . . . . pg . 3
Instructions for Proper Maintenance . . . . . . . . . . pg . 4
About Our Wood – Limited Warranty . . . . . . . . . . pg . 5
Keys to Assembly Success . . . . . . . . . . . . . . . . . . pg . 6
Part ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg . 7
Installation of I .D ./Warning Plaque . . . . . . . . Final Step
