PARTNER – PATRIOT

PARTNER 3 – 4 WHEELS

USER'S MANUAL

PARTNER + PATRIOT ELECTRIC MOBILITY SCOOTER

Table of Contents

Need help?

Do you have a question about the Partner and is the answer not in the manual?

Questions and answers

Summary of Contents for GNX Partner

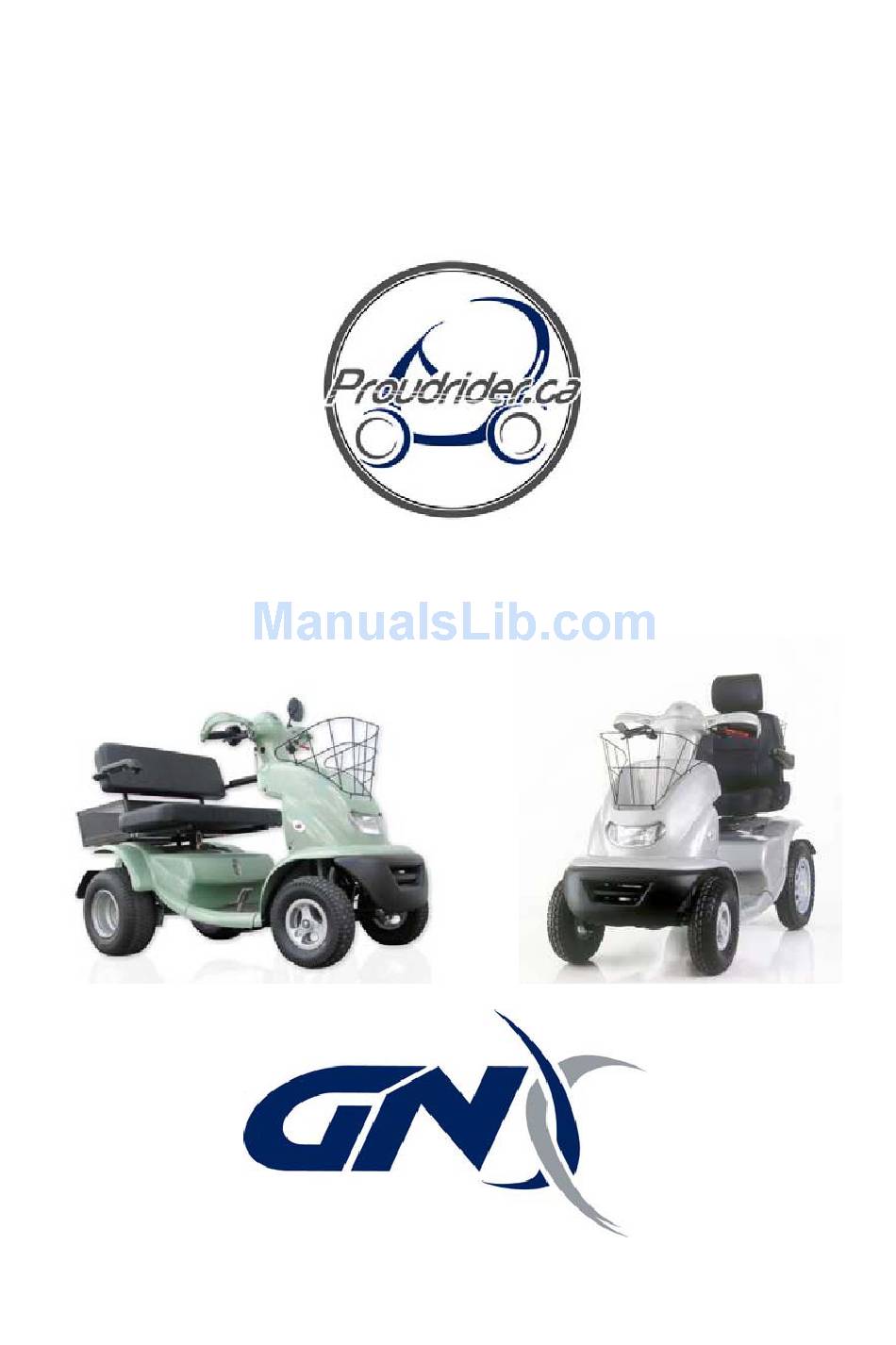

Page 1 PARTNER – PATRIOT PARTNER 3 – 4 WHEELS USER’S MANUAL PARTNER + PATRIOT ELECTRIC MOBILITY SCOOTER...
Page 2 Mud Guard cover on the metal Label of the Proudrider. WARRANTY DISTRIBUTIONS GNX INC. strives continuously to improve its products, their quality and reliability in an incessant effort to ensure its customers’ satisfaction as well as its place on the market.
Page 3: Table Of Contents
CONTENTS CHAPTER 1 – OVER VIEW OF THE PROUDRIDER – MAIN FEATURES 4 SAFETY INSTRUCTIONS 1.2 GENERAL DESCRIPTION OF THE PROUDRIDER 1.3 TECHNICAL SPECIFICATIONS CHAPTER 2 - ADJUSTMENT & OPERATING INSTRUCTIONS CHAPTER 3 - MAINTENANCE CHAPTER 4 – CHARGING CHAPTER 6 - EMI WARNING...
Page 4: Chapter 1 - Over View Of The Proudrider - Main Features
CHAPTER 1 – OVER VIEW OF THE PROUDRIDER – MAIN FEATURES Congratulations on choosing the Proudrider as your electrically powered Scooter. The Proudrider is a scooter for Elderly and Disabled persons, Fun and Sport. Scooter classification: Class C with according to EN12184. The Proudrider is designed to a Maximum occupant mass of 160 Kg (352lbs).
Page 5: Safety Instructions
Drive only where permitted according to all applicable local laws and ordinances. Partner III TOURING or PATRIOT with wide tires is 90 cm (36") width. Pay special attention not to hit persons or any objects around the vehicle. Never remove any of the Proudrider safety parts like Fenders, Plastic Covers or Emergency Brake lever.
Page 6 21. Never try to go an obstacle that is more than the maximum recommended slope angle and curb climbing in the specification sheet. 22. The seat weight is 15 Kg (33lbs). Each battery weight 20 Kg (44lbs) and more. Be careful when lifting the seat and the batteries. See instruction for lifting in Chapter 3: Maintenance and Chapter 5: Repair and troubleshooting.
Page 7: General Description Of The Proudrider
1.2 GENERAL DESCRIPTION OF PROUDRIDER Note: The numbers in parentheses refer to the parts illustrated on Figure 1+2+3. Figure 1: PARTNER IV Figure 2: PARTNER III...
Page 8 Handlebars (1) Your Proudrider is delivered to you with right- hand controls. (Left-hands controls can be setup by your dealer). Serial No. (1.2) Serial Number and Manufacturer’s data are fixed near the Charging Fuse (2.1C). Operating lever (1.3) Use to control the Proudrider speed. Standard is right hand (optional left hand).
Page 9 easy access. Seat Forward / Reverse Lever The Lever is used to change the seat position (3.1) Forward and Reverse , to fit the driver mostly. Seat Rotation Lever (3.2) The Lever is used to swivel the Seat 45 and 90 degrees in either direction, to ease the driver's access to the Seat.
Page 10: Technical Specifications
Length with turned handlebr. 140 cm Length with golf carrier open / 190/165 fold Width standard PARTNER 67 cm 26.4” 67 cm 26.4” Width Wide seat PARTNER 90 cm 36" 90 cm 36" Width wide PATRIOT 90 cm 36" 90 cm 36"...
Page 11 Remarks : All technical specifications are subject to change without prior notice. All dimensions are in round figures. • * Dimensions and weight do not include PROUDRIDER Canopy. • ** The maximum speed can be adjusted by the manufacturer to allow for lower or higher maximum speed (i.e., max.
Page 12: Chapter 2 - Adjustment & Operating Instructions
Charging Socket, the Breeze cannot be operated. Lift the Lever (3.2) upward, rotate the Seat and raise the Armrest (3.4) to give you easy access to the Seat. Adjust the seat Forward Reverse using the Lever (3.1) Figure 4: PARTNER IV figure 5: PARTNER III...
Page 13 (Numbers in the table refers to figure no.6) Key Switch The Proudrider has a Main Key Switch (1.17) - located on the backside of the Tiller Box (1). The Main Key Switch has two positions: “OFF” – The Proudrider cannot be driven and the Electromagnetic Brake is locked.
Page 14 Forward/Reverse The Forward/Reverse Selector (1.10) is located on the Selector handlebar. Select the desired direction (as marked). In reverse mode, a warning buzzer sounds automatically (in certain models only and subject to local ordinances). Warning: Do not change Selector position while the Proudrider is in motion.
Page 15 (Numbers in the table refers to figure no.7) Speed Range Selector The Speed Range Selector (1.11) is located on the handlebar. It has two positions: • Mark “1/2”: Low speed –up to 5 km/h(3.2 mph). • Mark “1”: High speed – 10 km/h (6.5 mph). Do not shift the selector while the Proudrider in motion.
Page 16 Horn/Buzzer (in certain Push one of the 2 Buttons (1.14) activates the models only) buzzer. The buzzer sounds automatically under the following conditions (subject to change where prohibited by law): 1. When reversing. 2. When operating the “Turn Signal Switch” (Right or Left).
Page 17 Figure Parking After stopping, turn the Main Key Switch to OFF and remove the key. The ON lights will turn OFF. The Electromagnetic Brake is engaged (locked). Note: The Electromagnetic Brake is automatically locked whenever the Operating Lever is released and after the Proudrider stops completely.
Page 18 go down together. Never try to go on an obstacle that is more than the maximum recommended slope angle and curb climbing is in the specification sheet. Always drive carefully , adjust the speed according the limitation of the road. Before making sharp turns , reduce the Proudrider speed to minimum to prevent side roll-over.
Page 19 Pre-use Now after learning through all the operating instructions, before starting to use the Proudrider, do a visual check through the all the parts of the vehicle, to make sure that no external damage has been occur to the vehicle while transportation.
Page 20 Safety Belt If a safety belt is needed. Assembling Secure a standard car Safety belt to the seat armrest (option) securing bolts (See 3.5 on Figure 6 ). Attaching the To transport the Proudrider in a motor vehicule , the Proudrider in Proudrider has to be secured while traveling .
Page 21: Chapter 3 - Maintenance
CHAPTER 3 - MAINTENANCE Note: 1. Maintenance Manual is available for trained technicians. 2. The numbers in parentheses refer to the parts illustrated in figure 9. Although the Proudrider requires minimal maintenance, do not neglect it. When servicing the Proudrider, make sure that it stands on a level surface and that the key is not inserted.
Page 22 Proudrider. Check air pressure every two weeks. Inflate to the proper air pressure : - Rear wheels / Partner III front wheels: ± 2 psi - Front wheels- Partner IV only : 20 ± 2psi - Rear wide wheels in Patriot and Touring: 20 ±...
Page 23: Chapter 4 - Charging
CHAPTER 4 – CHARGING Read Charger’s manual before using the charger.. Warning: If you use a different charger, ask your dealer for instructions. CHARGING BATTERIES (See figure10) 1. Insert first the Charging Plug (8) to the Charging Socket (9) located at the right side of the tiller box.
Page 24 • Front tire and tubes Partner III: 3-10” • Front tire and tubes Partner IV: 4.10/3.50–6" • Rear tires and tubes Partner 3W/4W: 3.50-10" • Rear tires wide tire for all Patriot and Touring : 16 x 7.5 - 8" • Headlight bulb: Two filaments 12V/18W/18W (for motorcycle headlights) •...
Page 25 TROUBLESHOOTING AND FAULT REPAIR Symptom Probable Causes Remedy Flat tire and unstable Low air Pump to normal driving. pressure. pressure. Puncture. Repair the punctured tire. The Display Flashes Controller Ask for technical and the vehicle does Coded Fault. Assistance. not move. The inhibit Led lit Proudrider is in Remove charging...
Page 26 TROUBLESHOOTING AND FAULT REPAIR (Cont.) Symptom Probable Causes Remedy Proudrider does not Main Key Turn the key to move when Switch is in OFF “ON” position. squeezing the position. Operating Lever . Charging Plug Disconnect the is installed in Charging Plug from the Proudrider.
Page 27 TROUBLESHOOTING AND FAULT REPAIR (Cont.) Symptom Probable Causes Remedy Headlight and/or Burnt out bulb. Replace Headlight rear light are not lit. or Rear bulb. If the WARNING The Proudrider You should stop led start flashes motor exceeded the Proudrider and let while driving too high the motor cool for a...
Page 28: Chapter 6 - Emi Warning
CHAPTER 6 - EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.
Page 29 powered vehicle’s control system while using these devices. This can affect powered vehicle movement and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the powered vehicle. WARNINGS Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones can affect powered vehicles.
