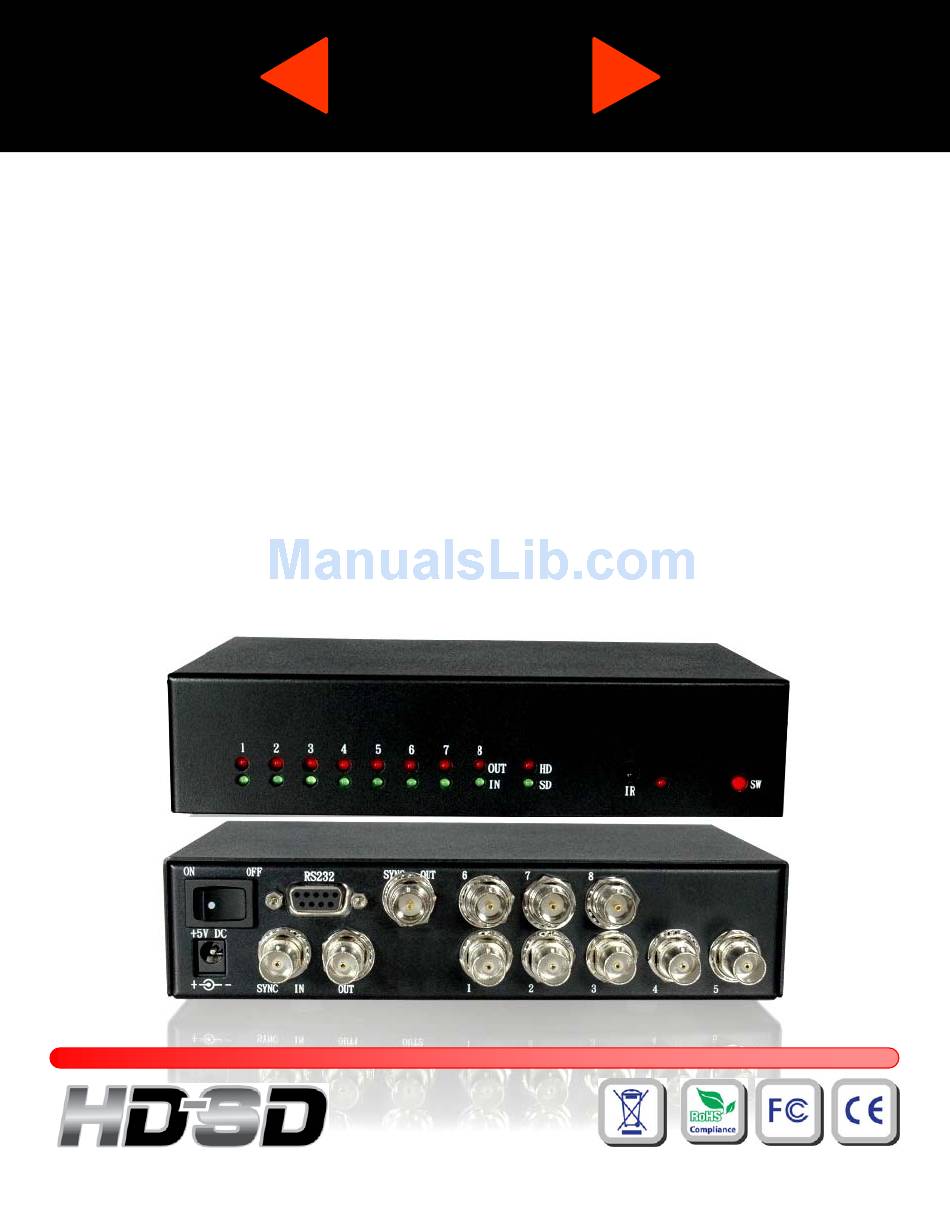

Page 1: User Manual
PONCA Technologies 8x1 HD/SD-SDI Switch PT-2081 User Manual ... - Page 2 The PT-2081 8x1 HD/SD-SDI Switch has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the PT-2081 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. PT-2081 offers the most convenient and cost effective means for swift switch and duplication of high quality SDI in the market.
- Page 4 Specifications & Package Contents Model Name PT-2051 PT-2052 PT-2081 PT-2082 Technical Role of usage 5x1 switch 5x2 matrix switch 8x1 switch 8x2 matrix switch SDI standards SD-SDI & HD-SDI Auto HD/SD-SDI detection Supported protocols SMPTE 259M / SMPTE 292M Video bandwidth Single-link [1.485Gpbs & 1.485/1.001Gbps]...
- Page 5 Panel Descriptions Front Panel 1. Chosen input channel LED 2. Input channel auto detection LED 3. Output HD/SD detection LED 4. IR remote receiver 5. Power indicator LED 6. Push button for input channel switch Rear Panel 7. Power switch 8.
- Page 6 Hardware Installation 1. Connect SDI enable equipments to the output of PT-2081. 2. Connect the SDI input sources to the inputs of PT-2081. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels.
- Page 7 Limited Warranty The SELLER warrants the PT-2081 8x1 HD/SD-SDI Switch to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good...
