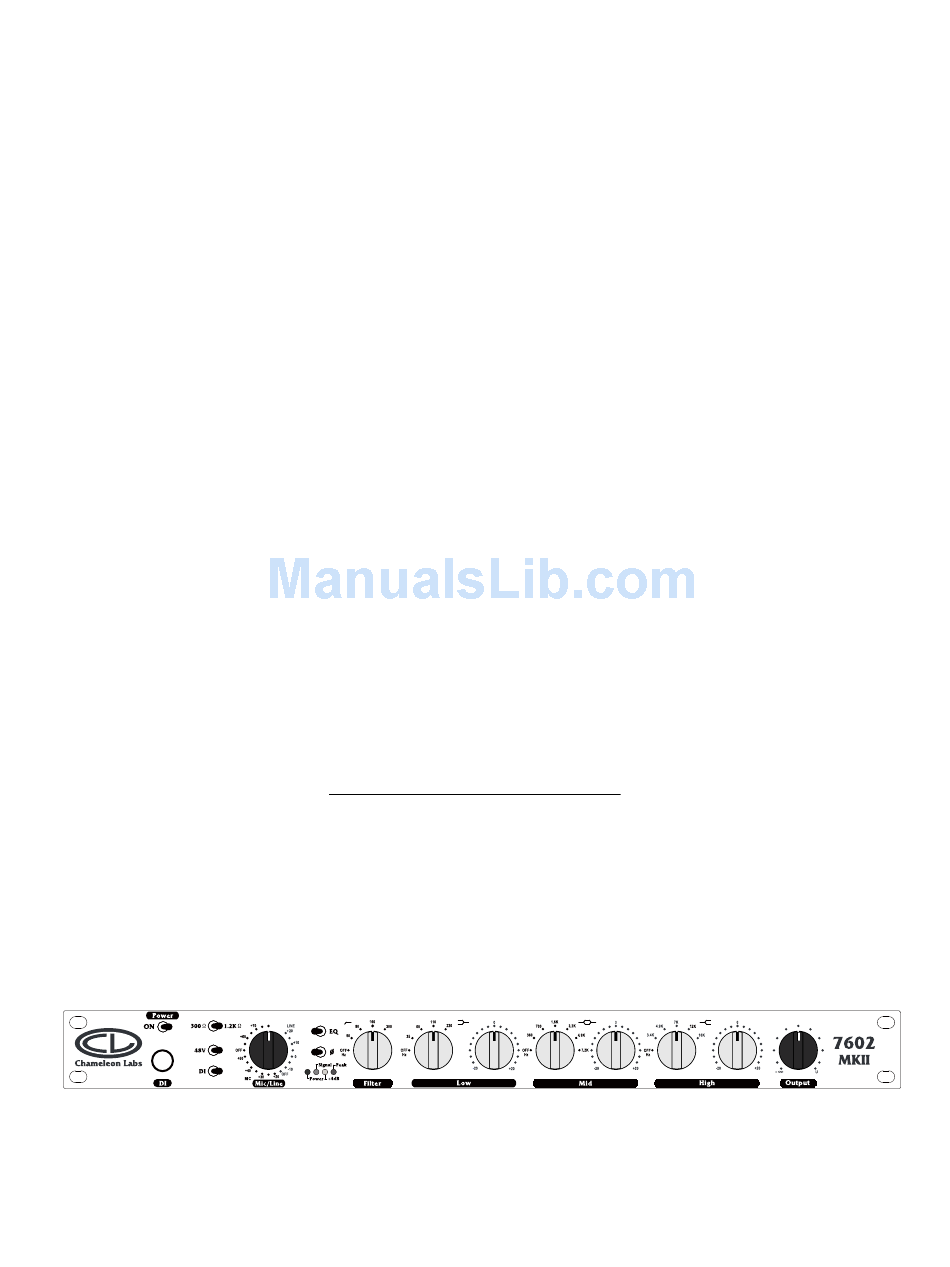

- Page 1 Chameleon Labs Model 7602 MKII Microphone Preamplifier and Equalizer Owner’s Manual 704 228 Avenue NE, # 826 Sammamish, WA 98074 206-264-7602 www.chameleonlabs.com Revision A June, 2008...
- Page 2 70’s. The Chameleon Labs Model 7602 MKII is based on high audio performance design techniques. By employing classic circuit design, polystyrene capacitors, a gold...
- Page 3 Features of the Model 7602 MKII: • Fully balanced transformer mic input and output; • Balanced XLR outputs; • Hi-Z direct inputs for instruments on the front panel; • 48VDC phantom power selector on the front panel; • 20 position gold contact rotary gain switch for both Mic and Line sections;...

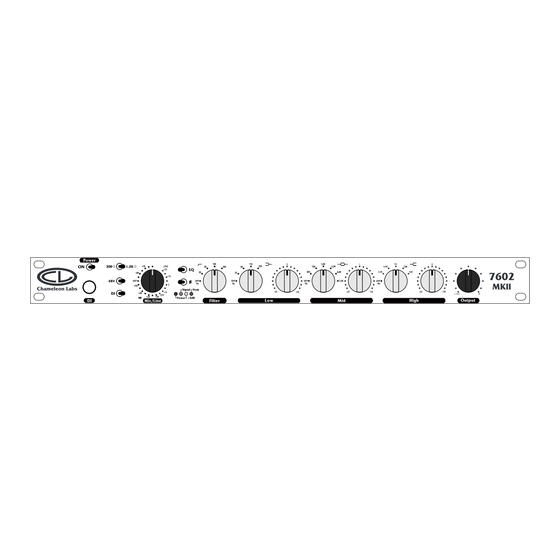

- Page 4 Front Panel Controls: (Left to Right) Switch general rule: When the switch is moved toward the function label, the feature is selected. Power- This switch applies power to the unit. (When the optional CPS- 1 is used this switch is inoperative and the power is controlled by the switch on the CPS-1) 300/1.2K Ohm- This switch selects the microphone input impedance to...
- Page 5 5dB steps, and the line section provides +10 to -20dB of adjustment. EQ Switch- This switch turns the equalizer section on. Ø Switch- This switch reverses the phase of the unit 180°. Four position LED array- The first LED indicates that the unit has power turned The second LED indicates the presence of signal.
- Page 6 Mid Equalization - This section has a peaking characteristic with six frequency selections: 360Hz, 700Hz, 1.6k, 3.2k, 4.8k, and 7.2k. The gain control provides 20dB of boost or cut. High Equalization- This section has a shelving characteristic with five frequency selections: 16k, 12k, 7k, 4.9k and 3.4k. This section adjusts the selected frequency and all others above it.
- Page 7 Connecting the Preamplifier / Equalizer Audio Connection Microphone input connections are made with the female XLR connector on the rear of the unit. This connector is wired with pin 2 HOT, pin 3 common and pin 1 is ground (shield). The 48VDC power is supplied on pins 2 and 3.
- Page 8 The unit is supplied with a country - correct AC adapter. All DC conversion, regulation and filtering is done within the 7602 MKII. The output of the AC adapter is 24VAC and connects to the rear of the unit. Optionally, you may use the CPS-1 Power Supply to power this unit.
- Page 9 possible that the plug is misaligned and should be rotated for a correct fit. DO NOT FORCE the power connector. The power pin is wired as follows: Pin 4 is Audio Ground (shield) Pin 3 is +48 Volts D.C. Pin 2 is +24 Volts D.C. Pin 1 is -24 Volts D.C.
- Page 10 First time users Set up of the Model 7602 MKII 1- Select 40 dB on the Microphone / Line sensitivity control. Turn the Output control fully counter clockwise. Make certain that the DI, 48V, EQ and Phase switches are all off.
- Page 11 4- Turn the Output control clockwise until you can see level on the input of your recorder. Increase until the desired level is achieved. (Vintage Hint: Adjusting the Microphone / Line sensitivity control along with the Output control can provide a variety a different sounds by overdriving the amplifier circuits while lowering the final output level in order to not overdrive the recorder.) 5- If you wish to connect the equalizer section to the...
- Page 12 9- When the optional CPS-1 is used the POWER switch is inoperative and the power is controlled by the switch on the CPS-1.
- Page 13 Warranty and Liability Your Chameleon Labs product is warranted to the original owner for a period of one year. Chameleon Labs guarantees this product to be free from electrical and mechanical defects and will repair or replace defective components, or replace the microphone at Chameleon Lab’s option.
-
Page 14: Specifications
MODEL NUMBER ___________________________ SERIAL NUMBER ____________________________ DATE OF PURCHASE __________________________ PURCHASED FROM ___________________________ Specifications Input impedance: Microphone – 300 or 1,200 ohms Line – 10,000 ohms D.I. – 100,000 ohms Sensitivity: Microphone – -80dBm to -20 dBm in 5dB steps for 0 dBm output. - Page 15 -46dBu with final output stage at unity EIN -126 dBu; -56dBu without final output stage EIN -136 dBu. Controls either “flat” or switched out. Output: Balanced and floating to feed a 600 ohm load. Maximum output +26 dBm into 600 ohms, or +20dBm into 150 ohms.
