Summary of Contents for Soarland & Hexin HXSP-2108E

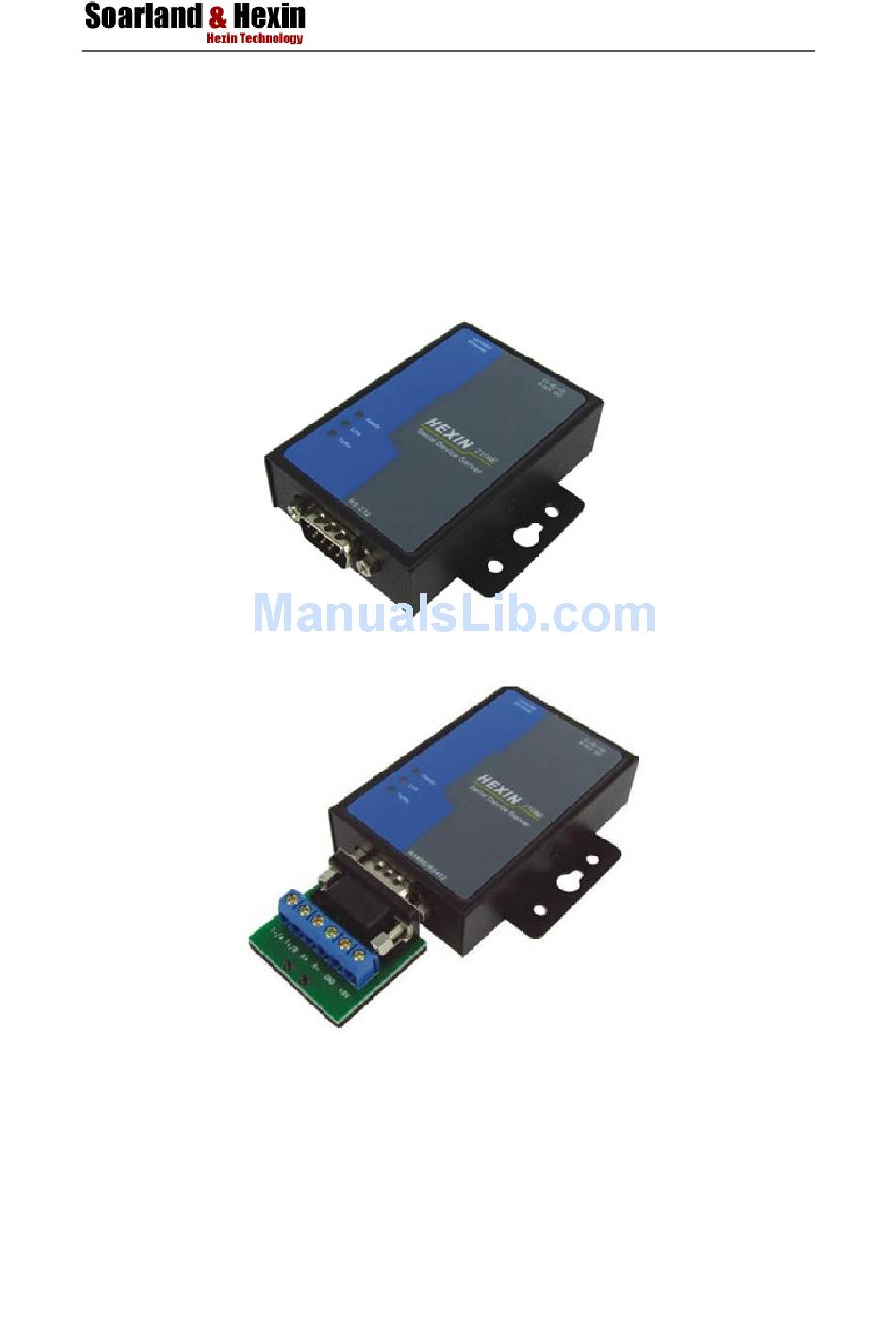

- Page 1 Http://www.hexin-technology.com/ HXSP-2108E Serial to TCP/IP Serial Device Server User Manual HXSP-2108E-A RS-232 to Ethernet TCP/IP Serial Device Server HXSP-2108E-B RS-485/RS-422 to Ethernet TCP/IP Serial Device Server...
- Page 2 Http://www.hexin-technology.com/ Product Introduction Product Description Technical Specification External Connector Installation Operating Guide HXSP-2108E Configuration Communication Test Stand-alone Test Running Test Application Example The Long Range Data Transmission System Centralized Control...
-
Page 3: Product Introduction
1. Product Introduction 1.1. Product Description The HXSP-2108E Serial to TCP/IP Serial Device Server is a bidirectional switching and transmission device from serial port to Ethernet TCP/IP protocol. It changes the traditional serial communication to Ethernet communication. It realized speed networking for serial device. - Page 4 Connect serial port of HXSP-2108E with serial port of embedded equipment or PC machine by RS-232 cable (for testing HXSP-2108E-A) HXSP-2108E would start to work after connecting power. PWR light is on and RUN light twinkles, which demonstrate HXSP-2108E work normally. LINK light is on, which demonstrates the correct physical connection.
- Page 5 2. Operating Guide 2.1. HXSP-2108E Disposition HXSP-2108E adopt the transparent transmission means to deal with data, namely any data the serial port receives is retransmitted to the network. The user may use any communication protocol to realize network communication without changing the original procedure.
- Page 6 Http://www.hexin-technology.com/ click [Search]. Physical address is shown in the physical address tabulation frame after the software found the converter as below: 2．Choose the physical address and the other parts would be efficient. Now read and set the converter parameter. Which can be reread to relative switch parameter is confirmed to be OK. 3.
- Page 7 The single plane test step is as follows: Correct install and connect HXSP-2108E (RF.1.4), moves e1Test procedure, set the remote IP address with the remote port to be HXSP-2108E and local port to be HXSP-2108E as remote port as follows:...
- Page 8 [Clear count] Clear the transmitting and the receiving count. 2) To connect the serial port of HXSP-2108E with the serial port of PC machine by RS232 cable; to open the super terminal, and to choose the port which connects HXSP-2108E to set relative baud rate (baud rate parameter disposed with ezConfig, automatically to be 19200), 8 data positions, 1 stop position, no verification and no class controls.
-
Page 9: Application Example
Below we can simulate the relative test under this circumstance: To dispose two HXSP-2108E converters, set their remote IP addresses to be the ones of the opposites. (Two HXSP-2108E should dispose in the same identical local area network), exchange their local port and remote port (opposite party’s remote port to be its local port and the opposite party’s local port to be its remote port, others set as required), and connect...
