Summary of Contents for Eurosport CROSSFIT 99

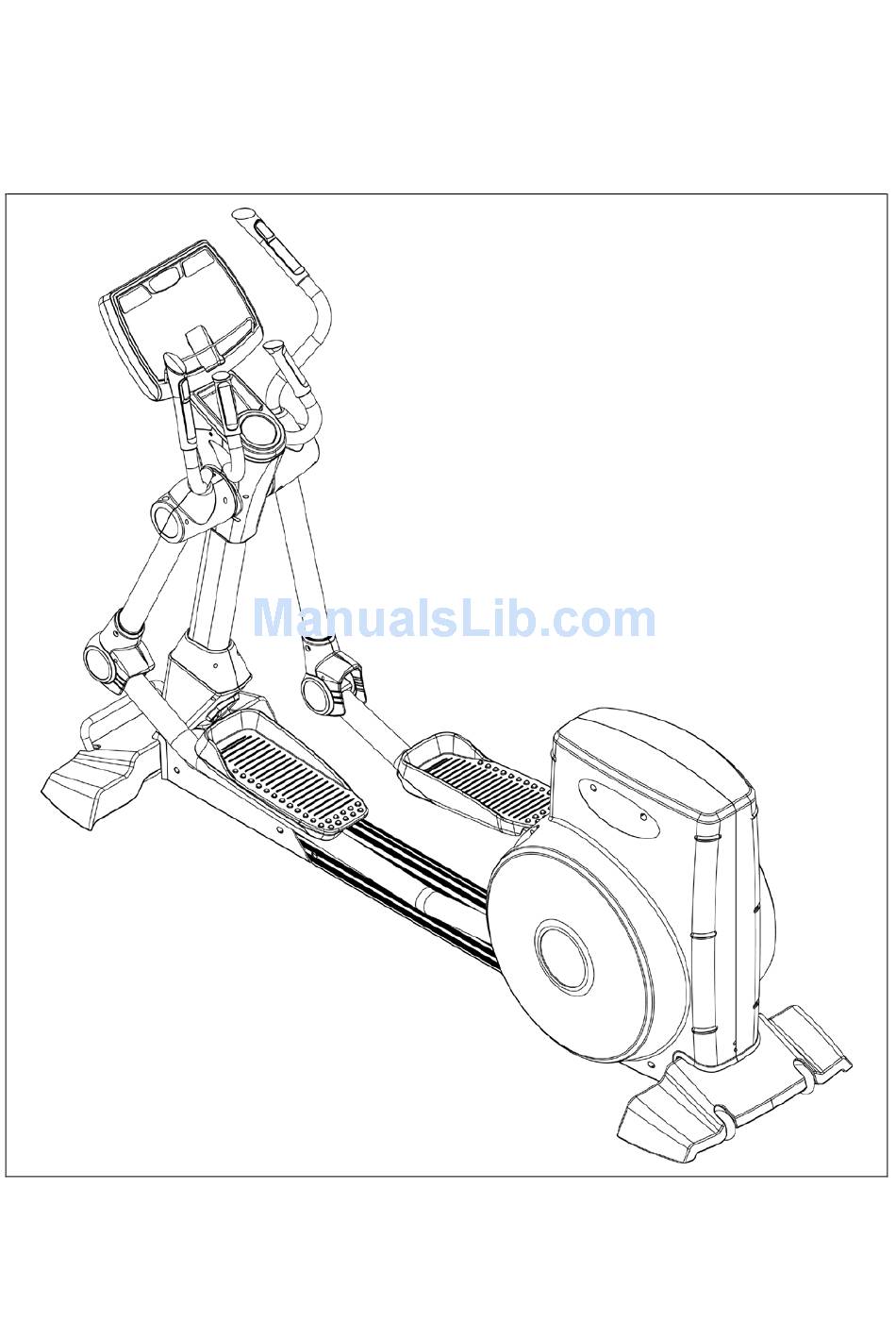

Page 1 CROSSFIT 99 OWNER’S MANUAL...
Page 2: Table Of Contents
Index  Pre Installation Tips………………... ……………………………………………………………02  Selecting Where Your Bike Goes………………………………………………………………. .02  Important Safety Instruction……………………………………………………………………...03  Specifications ……………….…….……………………………………………………………..05  Assembly Parts …………………………………………………………………………………..06  Parts Details ………………………………………………………………………..…………...07  Assembly Procedures ……………………………………………………………………………08  Operation Instructions …………………………………………………………………………...09 2012/3/8Ver1.4+Ver1.1...
Page 3: Pre Installation Tips
Pre Installation Tips The following are tips to aid you in the installation of the 900E Fitness Bike: 1. Prepare all relevant parts before starting, this will save you time! 2. About all screws of the unit, turn rightward is to fasten and turn leftward is to unscrew. 3.
Page 4: Important Safety Instruction
Important Safety Instructions When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill.
Page 5 Keep the cord away from hot surfaces or ground. 10. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc. 11. Never drop or insert any objects into any vent of the treadmill. 12.
Page 6: Specifications
Specifications Max. User Weight 400lbs/180kg Size of Machine 2225mm x 698mm x 1525mm Packing Weight of 141kg Machine Net Weight of 128kg Machine Power Supply 15V/2A DC (Charger) Note: Charge your battery once per week Watt 表 Level L10 120 138 L15 193 221 L20 328 382 2012/3/8Ver1.4+Ver1.1...
Page 7: Assembly Parts
Assembly Parts ITEM Description ITEM Description Frame End Rocker Post Cover A Handrail Set End Rocker Post Cover B Rocker Decoration Cover A Optional parts Chest belt pulse emitter Rocker Decoration Cover B POLAR T41 2012/3/8Ver1.4+Ver1.1...
Page 8: Parts Details
Parts Details Item Description Q’ty Item Description Q’ty Truss Philips Screw Flat Washer Ø10xØ20x2.0t M5XP0.8X15 Truss Philips Screw Nylon Nut M10XP1.5 M6XP1.0X15 CKS Hex Screw M10XP1.5X20 CKS Hex Screw M10XP1.5X15 Spring Washer M10 Lug Wrench SK-455 Philips Screwdriver Washer Ø10xØ20x1.5t 5mmX40mmX180mm L-shaped Wrench Allen Screw M10XP1.5X75...
Page 9: Assembly Procedures
Assembly Procedures Connect Frame (A) and tighten with (K03), (K04) and (K05) PS: Don’t press the wire. Fix Left and Right Handrail (B) to and tighten with (K04) and (K19). Then fasten Rocker Decoration Cover(C, D) with (K01). Tighten the pedal tube with (K04),(K06),(K07),(K08).
Page 10: Operation Instructions
Operation Instruction Console Specifications This LED console can indicate LEVEL, RPM, DISTANCE, WATT, SPEED (KMH/MLH), TIME, CALORIES, HEART RATE and heart rate bar. Program profile will be shown on Dot Matrix. 1. All the buttons are of touch ones and have passed ESD 15KV(contact/air) testing. 2.
Page 11 2-3. When there is more than 25 RPM or user press any key on console, the console will be lit and return to Start/Ready status. III. Key Functions 1. QUICK START：When you press QUICK START key, the Electronic Watch will run in MANNUL MODE and accumulate each functional value in positive number.
Page 12 『WAT』 for 1 second first, then will display the values for 10 seconds. After that it will display 『LEVEL』、『KMH』、『TIME』 and 『CAL』 for 1 second and then display the values for 10 seconds. 1-2-2. Imperial system『MLH』：It will display『LEVEL』、『RPM』、『DIST』 and 『WAT』...
Page 13 2-5. When program is in progress, you can change the workout LEVEL by touching LEVEL▲、LEVEL▼. There are totally 20 LEVEL. 2-6. When PROGRAM stops or during the PROGRAM, press STOP key, Dot Matrix will automatically display the previous Profile. Scrolling text will show each exercise value for 2 seconds, and then return to Start and Ready status.
Page 14 3-3. Weight settings: scrolling text will show『ENTER WEIGHT <30-199>KG』 (or display『ENTER WEIGHT <70- 440>LBS』). You can select the value of weight on the number keys 0~9. The Dot Matrix will flash preset value 30. Meanwhile the input values will flash also. You change the value by the number keys (Range: 30 ~ 199).
Page 15 4. TEST Mode：FITNESS TEST Mode 4-1. Under Start/Ready status, press TEST and the Dot Matrix will display『Male TEST』or『Girl TEST』, the scrolling text will display 『PRESS THE ARROWS TO SELECT GENDER』and『PRESS ENTER TO BEGIN PROFILE』. Setting of age: Press ENTER to set the age. The scrolling text will display『ENTER AGE<10-99>』...
Page 16 4-4. During Program, the scrolling text will display: 4-4-1. Metric system『KMH』： It will display 『LEVEL』、『RPM』、『DIST』 and 『WAT』 for 1 seconds first, then it will display the values for 10 seconds. After that, it will display 『LEVEL』...
Page 17 At this time the Dot Matrix will flash the preset value “30”, the scrolling text will display 『ENTER AGE<10-99>』 . You can set the value of your age by the number keys 0~9. When the value you set is less than 10, the Dot Matrix will display value of age 10. When the value you insert is more than 99, the Dot Matrix window will display the age as 99 blinking.
Page 18 The scrolling text『AVERAGE SPEED =』, then『MLH= 0.0』 The scrolling text『CALORIES BURNT =』, then『KCAL= 0.0』 The scrolling text『AVERAGE WATTS =』, then『WATTS= 0.0』 The scrolling text『AVERAGE METS =』, then『METS= 0.0』 5-9. Introduction of HR CONTROL mode: pre-set the heart rate control mode as 50W. When t signal of the heat rate is detected, console will judge the heat rate value once every 10 seconds.
Page 19 - 60 > MINUTOS』(Range:10 ~ 60). The Dot Matrix will display the preset value 『10』 and it will be blinking. When you press 0-9 to set values, you should set 2 digits (range: from 10 to 60). After setting values, press ENTER to confirm and start the program.
Page 20 display『RPM ↓』. 6-8.3. During exercise, when LEVEL has reached 20 and WATT cannot achieve the target value, Dot Matrix will display『RPM↑』. 6-8.4. After starting program, the console will judge the value of WATT once every 10 seconds. During the exercise, the program will compare the actual value of WATT with the target value of WATT.
Page 21 7-5-1. Time Goal: The Dot Matrix will display the preset value of time,10 min. The scrolling text will display 『ENTER TIME <10-60>MINUTES』(Range:10 ~ 60). You can insert the exercise time by the number keys 0~9. After setting, press ENTER to start the program. 7-5-2.
Page 22 The scrolling text『DISTANCE COVERED =』, then『ML= 0.0』 The scrolling text『AVERAGE SPEED =』, then『MLH= 0.0』 The scrolling text『CALORIES BURNT =』, then『KCAL= 0.0』 The scrolling text『AVERAGE WATTS =』, then『WATTS= 0.0』 The scrolling text『AVERAGE METS =』, then『METS= 0.0』 V. Engineering Setting 1. Under Start/Ready status, hold "CLEAR" and "0" for 3 seconds and the LED will display 『FACTORY SETTINGS』.
Page 23 You can press “ENTER” to enter the service mode. To test the signal of PRM: The LED of computer will display 『TESTING R PM 0』 . To 2-2. test the value of RPM to be detected by machine itself. 2-3. To test the signal of LEVEL: The LED of computer will display『TESTING LEVEL 0』.
Page 24 VI. PROFILE Pictures: 1. P 1 Picture: PROGRAM 1 PROFILE PROGRA M 2 PROFILE PROGRAM 3 PROFILE 2012/3/8Ver1.4+Ver1.1...
Page 25 2. P 2 Picture:  INTERVAL 1 PROGRAM：  INTERVAL 2 PROGRAM：  INTERVAL 3 PROGRAM： 2012/3/8Ver1.4+Ver1.1...
Page 26 TEST Picture:  FITNESS TEST： TEST-male TEST-female 4. HRC Picture:  HRC： 5. WATT Picture:  WATT CONTROL： 2012/3/8Ver1.4+Ver1.1...
