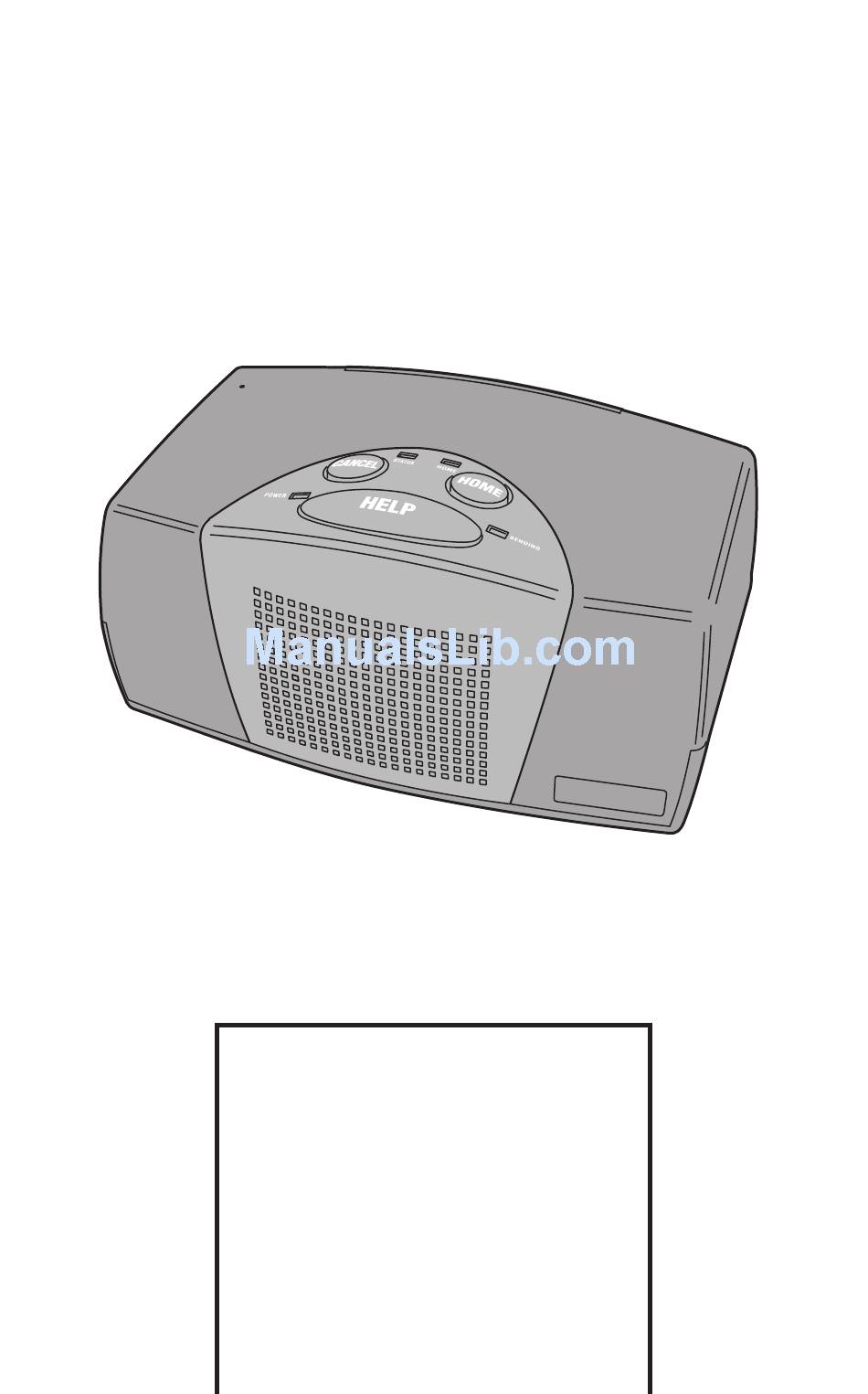

User's Manual
PERS-3600B
Personal Emergency Reporting System
Important! Please test your system once a month (See Page 4)
Table of Contents
System Components .......................2
Installation ..................................3
Testing .......................................4
In Case of Emergency .....................5
Pendant Replacement .....................6
Telephone Modes ..........................7
Reminder Messages ......................8
Activity Timer ...............................9
Testing Log ............................... 10
Important Information ................... 11
Service Information ..................... 12
Advertisement
Table of Contents
Summary of Contents for Linear Corporation PERS-3600B
-
Page 1: Table Of Contents
User’s Manual PERS-3600B Personal Emergency Reporting System Important! Please test your system once a month (See Page 4) Table of Contents System Components .......2 Installation ........3 Testing ........4 In Case of Emergency .....5 Pendant Replacement .....6 Telephone Modes ......7 Reminder Messages ......8 Activity Timer .......9... -
Page 2: System Components
System Components Your system may contain these or additional components EMERGENCY PENDANT (SHOWN WITH WRIST STRAP) TELEPHONE CORD EMERGENCY SENDING INDICATOR STATUS INDICATOR CONSOLE • NORMALLY OFF • NORMALLY OFF • FLASHES WHEN CONSOLE • ON OR BLINKING, IS PLACING A CALL CALL FOR SERVICE POWER INDICATOR HOME INDICATOR... -
Page 3: Installation
Installation Your system connects to the telephone line and power outlet TELEPHONE LINE CONNECTION PLACE THE CONSOLE IN A CENTRAL LOCATION IN YOUR HOME. BE SURE IT IS ON A FLAT, STABLE SURFACE, AWAY FROM OTHER ELECTRIC DEVICES (FANS, RADIOS, REAR OF FLUORESCENT LAMPS, ETC.). -
Page 4: Testing
Testing It’s important to test your system at least once a month BEFORE TESTING, CALL YOUR MONITORING COMPANY TO NOTIFY THEM THAT YOU WILL BE TESTING THE TEST CAN BE MADE FROM THE PENDANT OR CONSOLE TESTING FROM THE PENDANT PRESS THE PENDANT'S BUTTON UNTIL YOU HEAR "EMERGENCY CALL BEING PLACED"... -
Page 5: In Case Of Emergency
In Case of Emergency A call for help can be made with the Pendant or Console CALLING FOR HELP WITH THE PENDANT IF YOU NEED HELP, PRESS THE BUTTON ON THE PENDANT FOR AT LEAST TWO SECONDS (NOTE: THE PENDANT MUST BE WITHIN 150 FEET OF THE CONSOLE). -
Page 6: Pendant Replacement
Pendant Replacement Follow these steps to add a replacement Pendant to the Console ONE PENDANT CAN BE ADDED AT A TIME USING THESE STEPS CANCEL BUTTON ADDING A PENDANT PRESS THE CANCEL BUTTON ON THE CONSOLE FOR FIVE SECONDS THE CONSOLE WILL ANNOUNCE "READY TO LEARN SENSOR"... -
Page 7: Telephone Modes
Telephone Modes The Console can be used as a speakerphone (This is an optional feature and may not be available on your system) NOTE: SPEAKERPHONE MODE CAN ONLY BE USED ON INCOMING CALLS AND WILL NOT FUNCTION WHEN THE CONSOLE IS OPERATING FROM BACKUP BATTERY POWER. -
Page 8: Reminder Messages
Reminder Messages The Console can play voice messages at pre-set times (This is an optional feature and may not be available on your system) YOU CAN RECORD, PLAY, AND ERASE REMINDER MESSAGES. YOUR MONITORING COMPANY SETS THE TIME REMINDER MESSAGES WILL AUTOMATICALLY PLAY RECORDING REMINDER MESSAGES 1. -
Page 9: Activity Timer
Activity Timer The Console can check for lack of daily activity and automatically call (This is an optional feature and may not be available on your system) THE ACTIVITY TIMER DURATION IS SET BY YOUR MONITORING COMPANY WHEN THE ACTIVITY TIMER IS RUNNING THE HOME INDICATOR WILL LIGHT, SHOWING THAT THE ACTIVITY TIMER IS RUNNING... -
Page 10: Testing Log
Testing Log Use this log to document your monthly system testing dates DATES TESTED _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ _____________ ____________ ____________ WARNING! Battery Safety Batteries must be recycled. -
Page 11: Important Information
If trouble is experienced with this equipment, for repair and/or warranty or electrician, as appropriate. information contact Linear Corporation at 1-800-421-1587 for information The Load Number (LN) assigned to each terminal device denotes the or a return product authorization (RPA). If the trouble is causing harm to the... -
Page 12: Service Information
Service Information For service refer to the information below Your Monitoring Company: Installation Warnings • Be sure and test your system monthly. • Do not bring any electrical appliances or electrical noise generating devices (fl uorescent lamps, motors, etc.) near the Console.
