Summary of Contents for aii-do light KF-6188

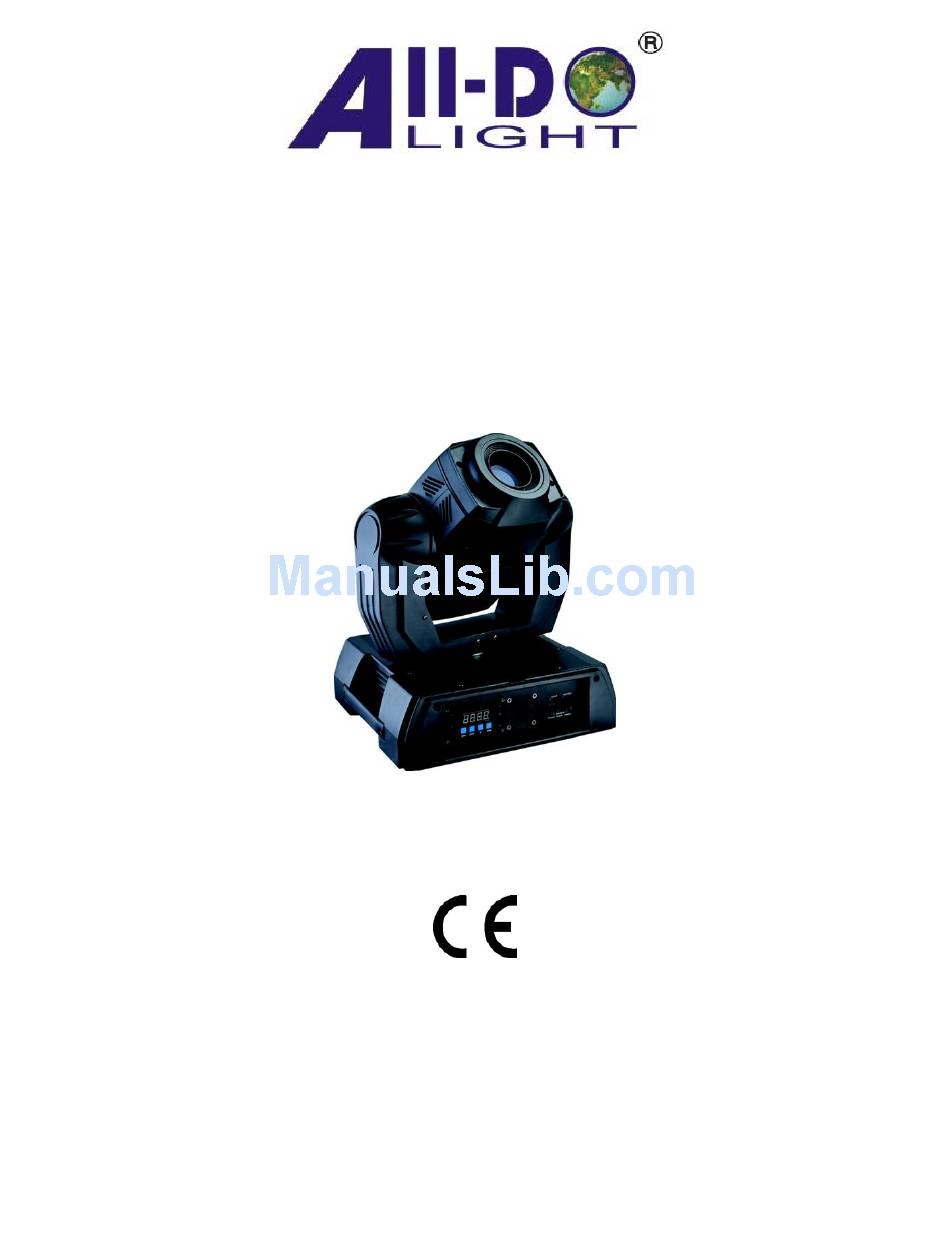

- Page 1 KF-6188 DMX MOVING HEAD USER MANUAL...
- Page 2 Congratulations on purchasing this KF- 6188 Thank you for extending your trust in our technology! For reasons of safety and approval (CE) the personal reconstruction and/or modification of this product is prohibited. Please observe that damage caused by modifications performed manually to this device is not covered by the warranty.
- Page 3 For commercial facilities the regulations on the prevention of accidents of the respective trade association must be observed. The operation of this equipment at schools, training facilities, and hobby or self-help workshops must be supervised responsibly by trained personnel. Check the product regularly for any damage to the mains cord! Should you discover any damage to the mains cord, do not operate or disconnect this product! Secure the product against accidental operation and contact your specialized dealer! Always separate the product from mains by holding the mains plug by the handling surface.
- Page 4 or other items in the housing is exempt from warranty. 4. Operating Environment ATTENTION: DANGER OF LIFE! RISK OF BURNS! RISK OF FIRE! RISK OF SHORT CIRCUIT! The product must be operated and stored in a dry environment only! Splash water, rain, humidity, fog may reduce the protective insulation which may lead to fatal electric shocks! The limit value for relative humidity is 50% at 45°C.
- Page 5 prior to the initial operation and following major modifications, prior to the renewed operation. It must be ensured that an expert inspects the mechanical and safety-relevant installation at least once a year. It must be ensured that an expert inspects the mechanical installation and the installation of relevance to safety within the framework of an acceptance test at least every four years.
-
Page 6: Color
10. Display: language(English Chinese or some other language according to your requirement ); Backlight time: open(always on ); 30 seconds. Back-brightness:1-5, from dark to bright; exit. 11. Motor adjust: 01:pan; 02:tilt;03:color wheel; 04:rotating gobo wheel; 05:gobo rotation; 06: focus;07:prism; 08:prism rotation;09:strobe;10:motor zero;11:save (can be set password afterwards to prevent unwanted modifying). -
Page 7: Table Of Contents
White 8-15 Color 1 16-23 Color 2 24-31 Color 3 32-39 Color 4 40-47 Color 5 Color wheel 48-55 Color 6 56-63 Color 7 64-191 !*7 color mixing 192-223 Color wheel CCW rotation from slow to fast, rainbow effect 224-255 Color wheel CW rotation from slow to fast, rainbow effect White... -
Page 8: 24-31 Color
224-255 Forwards gobo rotation with decreasing speed Focus 0-255 Focus adjustment from far to near No function Prism and gobo 8-63 Prism macros effect 64-255 Prism and gobo macros effect 0-159 Prism rotation with your pushing of fader 160-191 Prism shaking increasing Prism rotation... -
Page 9: 32-39 Color
ATTENTION: DANGER OF LIFE! Disconnect the product from the mains prior before changing a fuse. Only replace the fuse by a fuse of same type and rating! An incorrect fuse could damage or destruct the lighting effect. Replace a fuse by levering the fuse holder cover with an appropriate screwdriver. Remove the old fuse and place the fuse inside the holder.
