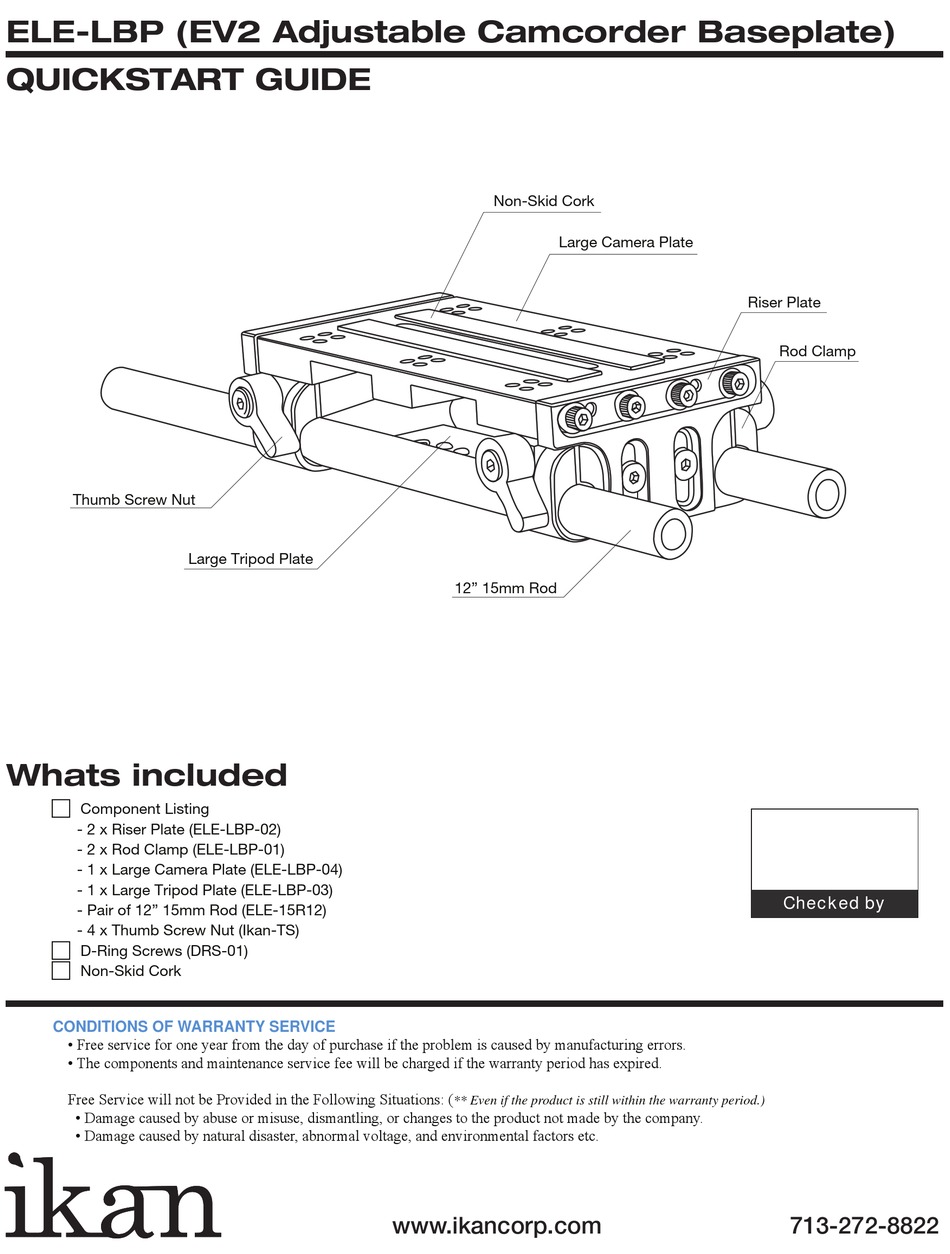

ELE-LBP (EV2 Adjustable Camcorder Baseplate)
QUICKSTART GUIDE
Thumb Screw Nut
Whats included
Component Listing
- 2 x Riser Plate (ELE-LBP-02)
- 2 x Rod Clamp (ELE-LBP-01)
- 1 x Large Camera Plate (ELE-LBP-04)
- 1 x Large Tripod Plate (ELE-LBP-03)
- Pair of 12" 15mm Rod (ELE-15R12)
- 4 x Thumb Screw Nut (Ikan-TS)
D-Ring Screws (DRS-01)
Non-Skid Cork
