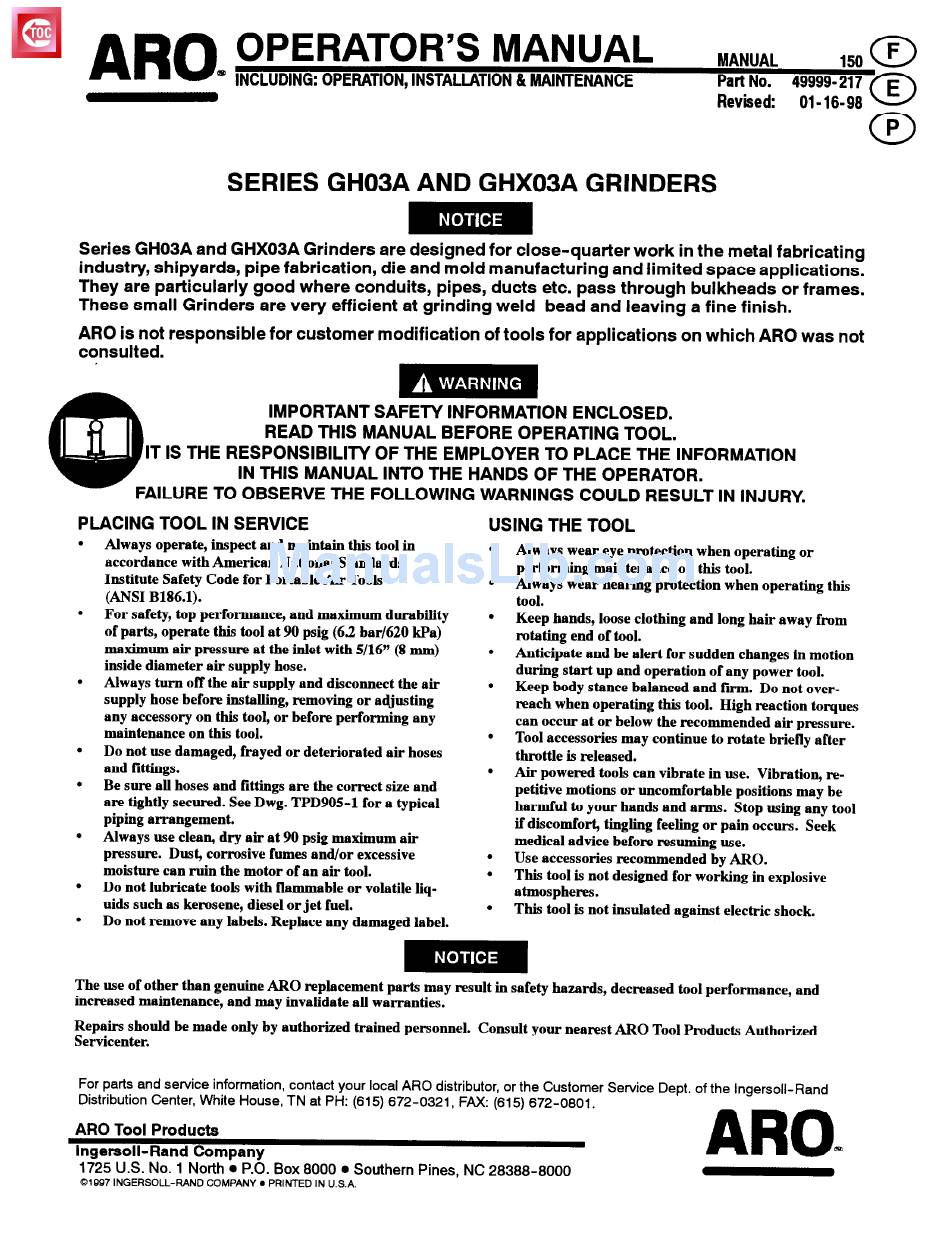

ARO GH03A Series Operator's Manual

ARO.
OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
MANUAL 150
F
Part No.
Revised:
49999-217 E
01-16-98
P
SERIES GH03A AND GHX03A GRINDERS
Series GH03A and GHX03A Grinders are designed for close-quarter work in the metal fabricating
industry, shipyards, pipe fabrication, die and mold manufacturing and limited space applications.
They are particularly good where conduits, pipes, ducts etc. pass through bulkheads or frames.
These small Grinders are very efficient at grinding weld bead and leaving a fine finish.
ARO is not responsible for customer modification of tools for applications on which ARO was not
consulted.
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING TOOL.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THE INFORMATION
IN THIS MANUAL INTO THE HANDS OF THE OPERATOR.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
PLACING TOOL IN SERVICE
.
Always operate, inspect and maintain this tool in
accordance with American National Standards
Institute Safety Code for Portable Air Tools
(ANSI B186.1).
.
For safety, top performance, and maximum durability
of parts, operate this tool at 90 psig (6.2 bar/620 kPa)
maximum air pressure at the inlet with 5/16" (8 mm)
inside diameter air supply hose.
.
Always turn off the air supply and disconnect the air
supply hose before installing, removing or adjusting
any accessory on this tool, or before performing any
maintenance on this tool.
.
Do not use damaged, frayed or deteriorated air hoses
and fittings.
.
Be sure all hoses and fittings are the correct size and
are tightly secured. See Dwg. TPD905-1 for a typical
piping arrangement.
l
Always use clean, dry air at 90 psig maximum air
pressure. Dust, corrosive fumes and/or excessive
moisture can ruin the motor of an air tool.
.
Do not lubricate tools with flammable or volatile liq-
uids such as kerosene, diesel or jet fuel.
.
Do not remove any labels. Replace any damaged label.
USING THE TOOL
.
.
.
.
.
.
.
.
.
.
Always wear eye protection when operating or
performing maintenance on this tool.
Always wear hearing protection when operating this
tool.
Keep hands, loose clothing and long hair away from
rotating end of tool.
Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.
Keep body stance balanced and firm. Do not over-
reach when operating this tool. High reaction torques
can occur at or below the recommended air pressure.
Tool accessories may continue to rotate briefly after
throttle is released.
Air powered tools can vibrate in use. Vibration, re-
petitive motions or uncomfortable positions may be
harmful to your hands and arms. Stop using any tool
if discomfort, tingling feeling or pain occurs. Seek
medical advice before resuming use.
Use accessories recommended by ARO.
This tool is not designed for working in explosive
atmospheres.
This tool is not insulated against electric shock.
The use of other than genuine ARO replacement parts may result in safety hazards, decreased tool performance, and
increased maintenance, and may invalidate all warranties.
Repairs should be made only by authorized trained personnel. Consult your nearest ARO Tool Products Authorized
Servicenter.
For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand
Distribution Center, White House, TN at PH: (615) 672-0321, FAX: (615) 672-0601.
ARO Tool Products
Ingersoll-Rand Company
ARO.
1725 U.S. No. 1 North
l
P.O. Box 8000
l
Southern Pines, NC 28388-8000
© 1997 INGERSOLL-RAND COMPANY • PRINTED IN U.S.A.
