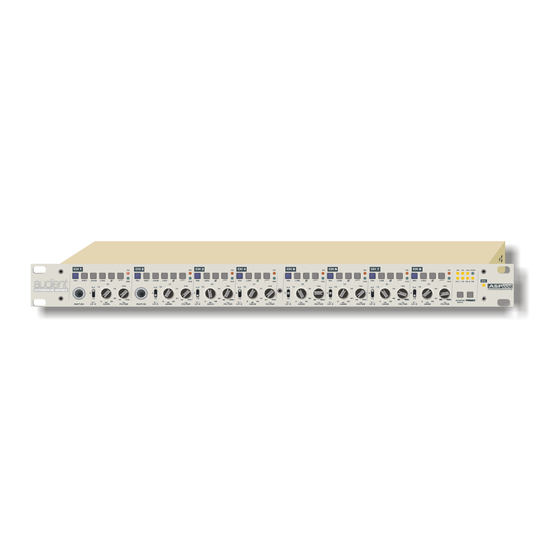

- Page 1 operation manual...
- Page 2 The information in this document is subject to change without notice. Audient plc makes no warranty of any kind with respect to the material in this document and shall not be liable for errors contained herein or for incidental or consequential damages related to the use of the material.
-
Page 3: Table Of Contents
I/P Z I/P Z I/P Z I/P Z I/P Z I/P Z I/P Z I/P Z Contents IMPORTANT SAFETY INSTRUCTIONS ............5 UNPACKING ....................6 MAINS POWER SUPPLY ................. 6 VOLTAGES ..................... 6 FUSES ......................6 MECHANICAL INSTALLATION ................ 6 ANALOGUE INTERFACES ................ - Page 4 Operation Manual Introduction Thank you for buying this Audient product. The ASP008 features eight ultra high quality microphone preamplifiers using an 8 transistor discrete Class A front end with extended bandwidth and a noise floor close to the theoretical Johnson limit. Carefully chosen close tolerance components are used to achieve high CMRR at all gain settings and distortion is minimised to less than 0.001% at 20dB gain and +10dBu output.
-
Page 5: Important Safety Instructions
REMOVE the mains power immediately. CABLES PROTECT the mains power cord from damage though impact or abrasion. HEAT ALWAYS site the ASP008 away from sources of heat including direct sunlight and ensure adequate ventilation around the unit. ©audient 05/2008... -
Page 6: Unpacking
To unbalance the outputs of the ASP008 the -ve Pin should be connected to its adjacent 0v pin at the output of the ASP008. Similarly, inputs from unbalanced sources should be connected via twin screened cables with the -ve Pin connection tied to the screen at the unbalanced source. ©audient 05/2008... -
Page 7: Analogue Interfaces
18 x 60mm. ©audient 05/2008... -
Page 8: Digital Interfaces
HiZ (unterminated). To do this, set jumper JP1 (near the external word clock is selected the output connectors on the digital card) to sample rate switch on the front panel will the HiZ position. no longer be operative. ©audient 05/2008... -
Page 9: Functions And Controls
(-20dB to Switches in the 12dB 40dB with PAD or per octave high-pass LINE selected). filter adjustable using the rotary control from With the PAD inserted 25Hz to 250Hz. the available gain is between -20dB and 40dB. ©audient 05/2008... -
Page 10: Sample Rate
The AES outputs LEDs and the green LOCK led. The chosen selection are always 24 bit. is retained in memory and restored after power down. The sample rate select switch is not operable if external word clock is in use. ©audient 05/2008... -
Page 11: Variable Impedance: What Is It And What Does It Do
The ASP008 provides a choice of three impedances, 200 Ohm, 1.2kOhm, and 5kOhm. Don't be afraid to experiment. This is a technique that can easily extend the use and application of your microphone collection. Remember, it's the sound that's important, not the theory! ©audient 05/2008... -
Page 12: Specifications
4.5Kg Power consumption 40 watts In keeping with our policy of continuous improvement Audient plc reserves the right to alter specifications without prior notice. E & OE Warranty Your ASP008 comes with a manufacturer’s warranty for one year from the date of despatch to the end user.
