Cooper Tools Cleco 136 Operation & Service Manual

Hide thumbs Also See for Cleco 136:

Advertisement

Quick Links

Download this manual
136 Bandsaw
NORTH AMERICA
CooperTools
P.O. Box 1410
Lexington, SC 29071
Series:
136
Tool Type:
B
Bandsaw
Speed:
V
Variable
Handle:
L
Inline
(Lock-Off Lever)
Operation & Service Manual
823090
136
B
V
L
EUROPE
Cooper Power Tools GmbH & Co.
Postfach 30
D-73461 Westhausen
2/01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cleco 136 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cooper Tools Cleco 136

Summary of Contents for Cooper Tools Cleco 136

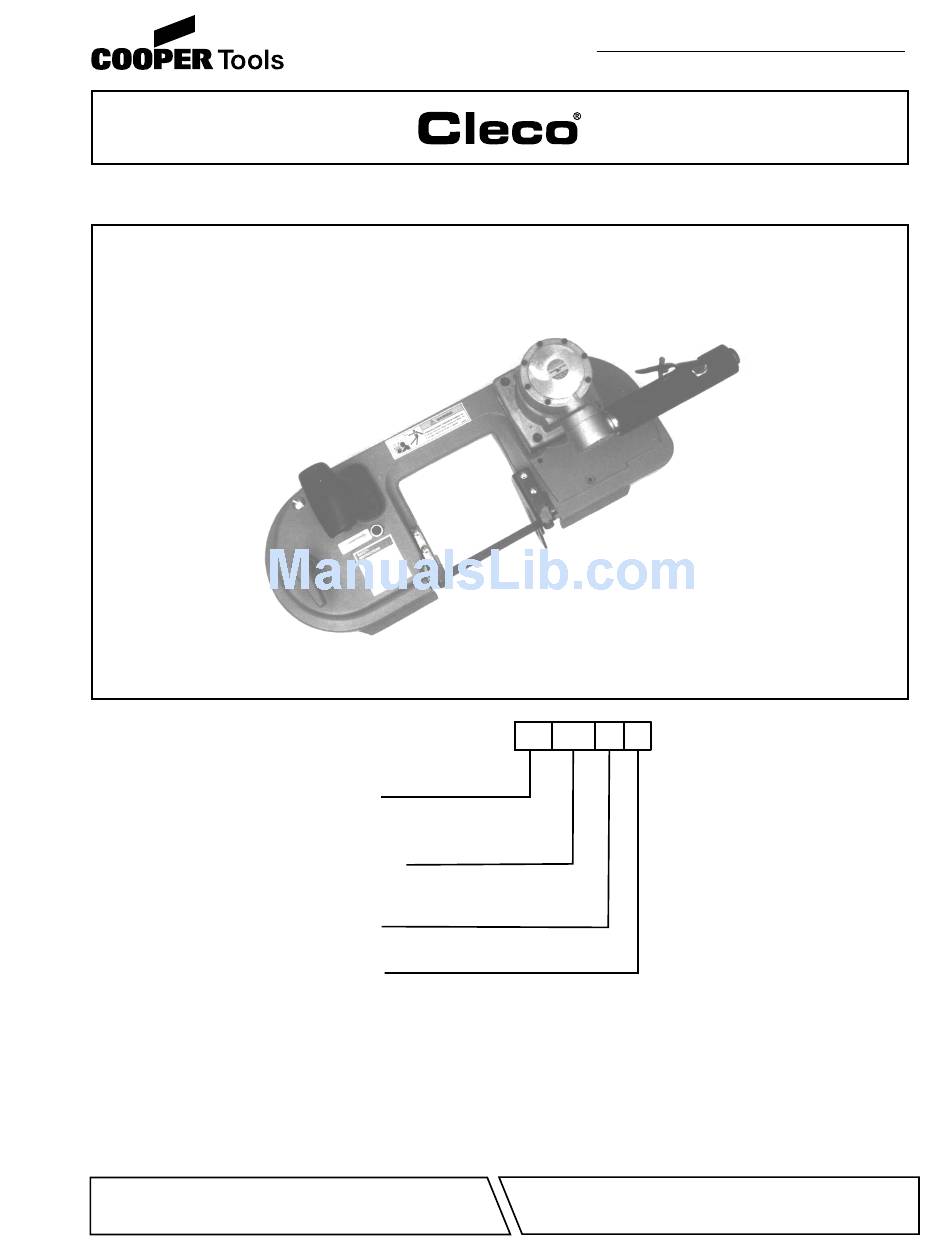

  • Page 1 Operation & Service Manual 823090 2/01 136 Bandsaw Series: Tool Type: Bandsaw Speed: Variable Handle: Inline (Lock-Off Lever) NORTH AMERICA EUROPE CooperTools Cooper Power Tools GmbH & Co. P.O. Box 1410 Postfach 30 Lexington, SC 29071 D-73461 Westhausen...

  • Page 2: Safety Recommendations

    Safety Recommendations For your safety and the safety of others, read and understand the is accidently engaged. Do not use tool to drain residual air from air safety recommendations before operating this saw. line. A self-relieving valve is recommended for this purpose. Always wear protective equipment.
  • Page 3 Safety Recommendations movements and postures dictated by the job design, it may be nec- • Tasks should be performed in such a manner essary for the employer to take steps to prevent further occurrences. that the wrists are maintained in a neutral posi These steps might include, but are not limited to, repositioning the tion, which is not flexed, hyperextended, or workpiece or redesigning the workstation, reassigning workers to...
  • Page 4 WHICH BLADE TO USE READ SAFETY RECOMMENDATIONS In general, select a blade which will allow at least two teeth BEFORE CONNECTING TOOL. to be engaged in the material thickness. The thinner or the harder the material, the finer the blade teeth. The thicker or OPERATING INSTRUCTIONS the softer the material, the coarser the blade teeth.
  • Page 5 Before installing a blade, clean chips and wax, which may 6. Repeat Steps 1 through 5 as necessary to achieve proper have accumulated on blade guides and pulley tires. tracking. TO INSTALL BLADE - install blade in blade guides and then position on pulleys.

  • Page 6: Maintenance

    MAINTENANCE LOWER HOUSING & INTERMEDIATE PLATE Periodically blow out all air passages with dry compressed To disassemble the lower housing 204211 from the interme- air. Remove wax and chip buildup from pulley tires and blade diate plate 201655, remove (4) four hex cap screws 845758 guides.
  • Page 8 GEAR AND PULLEY HOUSING PARTS LIST Ref. Part Name of Part Ref. Part Name of Part 203096 Muffler 204247 Screw 201652 Pulley Housing Assembly, T2, Incl. 74, 204248 Washer 75,76,83,84 204249 Tension Spring 201649 Knob Set 204250 Screw 204224 Screw 204251 Lock Washer 204229...
  • Page 9 BANDSAW BACKHEAD & LOCK-OFF LEVER HOUSING ASSEMBLIES LOCK-OFF LEVER BACKHEAD SUB-ASSEMBLY SUB-ASSEMBLY 201322-5 201656-6 202105 203133 869855 845409 204213 203519 204221 847808 204327 844306 204212 204219 844311 864271 204220 203523 203522 863598 844308 203524 203521 204218 624820 847272 842305 204206 844309 844312 204214...
  • Page 10 BANDSAW MOTOR 204223 869449 869445 847528 812165 204312 869448 204222 ROTOR COLLAR PART NO. SIZE 864489 .122" 847525 .124" 864493 .126" 865417 .128" PARTS LIST BANDSAW MOTOR * ONLY ONE ROTOR COLLAR Qty. Part No. Name of Part REQUIRED. 204222 REAR BEARING PLATE 204223 ROTOR...
  • Page 11 NOTES...
  • Page 12 CooperTools 670 Industrial Drive Lexington, SC 29072 Phone: (803) 359-1200 Fax: (803) 359-2013 www.cooperindustries.com...
