Summary of Contents for awieco Power supply

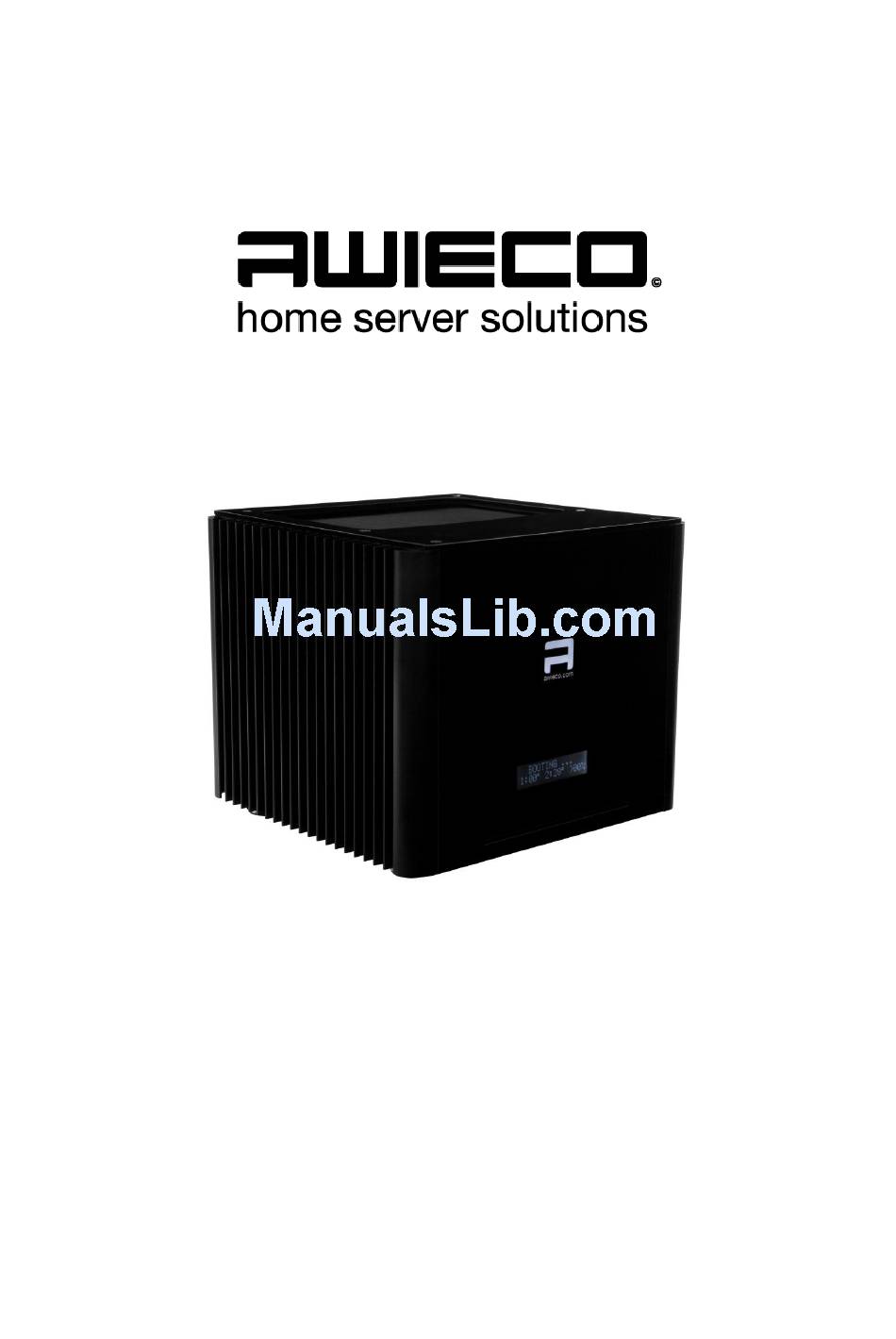

- Page 1 User manual V1.1...
-
Page 2: Delivery Content
RJ45 LAN cable AWIECO Server is marked with the above symbol to indicate at the end of the equipment’s life time, you must dispose of it separately at an appropriate collection point (local recycling center) and not place with normal domestic unsorted waste. -
Page 3: Technical Specifications
2. Technical specifications Dimensions Height: 200 mm Width: 240 mm Depth: 240 mm Weight 4,5 to 10 kg Specifications of different product variants Processor: Intel® Atom™ D525 1,8GHz, Intel® Pentium® G620T 2,2GHz, Intel® Core™ i3-2120T 2,6GHz, Intel® Core™ i5-2500T 2,3GHz RAM: 4 up to 16 GB DDR3 1333MHz 2,5”... -
Page 4: Warnings And Safety Information
Removing the cover of the case during the warranty period will immediately invalidate all warranty claims. Find a suitable location for your server. AWIECO Server is designed to operate fanless. To ensure that the system is working most of the time passively cooled, you should follow these instructions: ... - Page 5 After all cables are connected, start your AWIECO Server by pressing the power button in the lower, right corner. The lighted AWIECO Logo should illuminate on the front and the blue hard drive LED on access as well as the LEDs of the Ethernet adapter in the back of the server.
- Page 6 5. Components on Front and Back AWIECO Server: Front Number Component Venting holes (DO NOT COVER) Heatsinks (DO NOT COVER) Illuminated AWIECO Logo, power indicator LCD display Power button Slot-in slot *Slot-in eject button and blue HDD LED (*connected via USB, software eject)
- Page 7 AWIECO Server: Back Number Components S-ATA connectors Hard drive bays Hard drive fixing screws PCI-E extension slot Mainboard connectors Power supply User manual v1.1...
- Page 8 6. Insert hard drives Untie and remove the five HDD screws and the mesh on the back of your server. Remove the foil of the double faced sticky tape on the antivibe rubber and stick it on your hard drive. Please pay attention to choose the correct side.
- Page 9 Fix the screw and mesh. Fixing the screws push the hard drives up to the top hard drives heatsink. 7. Remove hard drives Loosen the screws and push the screws into the drive bay to bring the plate and its mechanism in correct and even position.
- Page 10 8. Service Support-Website www.awieco.com/support Support Forum www.awieco.com/forum Support E-Mail support@awieco.com Communities www.usingwindowshomeserver.com www.wegotserved.com www.home-server-blog.de www.mswhs.com www.homeserverland.com www.homeservershow.com User manual v1.1...
