Summary of Contents for inforce 4ch h.264 dvr

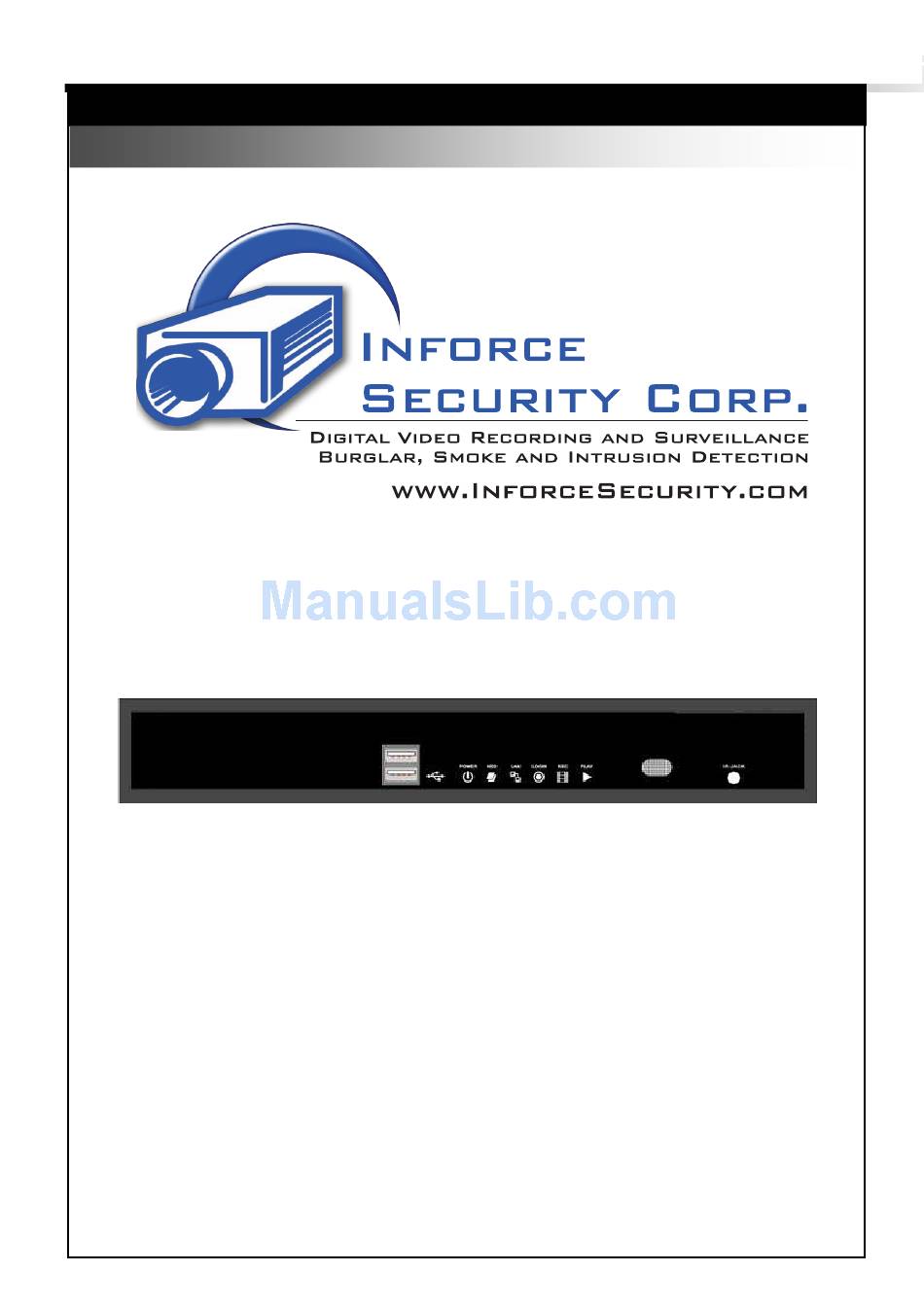

- Page 1 User Manual 4CH H.264 DVR v0.3(M02) 1-888-667-6115 ─ ─ ─ ─ 4CH DVR ─ ─ ─ ─ This document contains preliminary information and subject to change without notice.
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
5-2.2 TIME SEARCH_________________________________________ 39 5-3 AP Software Installation and Setup ___________________________ 40 5-4 How to do remote monitoring through IE _____________________ 42 5-4 AP Software Operation ______________________________________ 44 CHAPTER 6. SPECIFICAITONS ______________________________________ 45 4CH H.264 DVR User Manual V0.3(M02)- p3... - Page 4 8-6.7 File Playback__________________________________________ 70 8-6.8 Event Playback ________________________________________ 71 8-6.9 Snapshot Data ________________________________________ 71 8-6.10 Recording Data_______________________________________ 71 APPENDIX I I-DVR.NET REGISTRATION _____________________________ 73 APPENDIX II Remote Monitoring IE ActiveX Control Installation Instruction ___ 75 4CH H.264 DVR User Manual V0.3(M02)- p4...
-
Page 5: Chapter 1. Packing Detail And Installation
＊ ＊ ＊ ＊ Please press “DVR1” button before operation 5. CD 6. SATA Cord x1 7. Screws x4 8. Power Adaptor 9. Power Cord Note: Standard shipping products do not include HDD 4CH H.264 DVR User Manual V0.3(M02)- p5... -
Page 6: Hard Disk Installation
Step 1) Remove the 3 screws from DVR as cycled below. Step 2) Remove the front cover from DVR as indicated by the arrow. Step 3) Place the HDD on the HDD plate and connect the power and the SATA cables. 4CH H.264 DVR User Manual V0.3(M02)- p6... - Page 7 Step 4) Screw the bottom of the DVR as indicated as cycled. Step 5) Place the bottom of DVR and screw. 4CH H.264 DVR User Manual V0.3(M02)- p7...
-
Page 8: Chapter 2. Panel Location
Remote user logged in. LOGIN LED Display- DVR Recording. or Schedule Recording and recording are ○ LED Display - ○ DVR Playing back. LED Display - PLAY ○ Input sensor for the remote control. IR Sensor 4CH H.264 DVR User Manual V0.3(M02)- p8... -
Page 9: 4Ch Rear Panel Connectors
RCA input port for audio signal. ○ 5 AUDIO OUT RCA output for audio signal. ○ 6 NTSC／PAL Switch Switch between NTSC and PAL format. ○ 7 LAN Network port. ○ 8 VGA VGA port. 4CH H.264 DVR User Manual V0.3(M02)- p9... -
Page 10: Chapter 3. Live & Playback
Turn on picture-in-picture format. Click on the channel name can switch to PIP/Zoom + other channels. AUTO In AUTO mode, all available channels will be cycled through in full screen. DVR1,2,3,4 Switch DVR ID1~4 4CH H.264 DVR User Manual V0.3(M02)- p10... - Page 11 ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display. Quad display. Note： ： ： ： 4CH will show quad display; 8 CH will show quad display and 9-channel display. 4CH H.264 DVR User Manual V0.3(M02)- p11...
- Page 12 (99% mean used 99%, remain 1%) Lower right of each CH will show the current time Icon Description Image quality (High/Low) Full screen Record Snap shot Record and snap shot file saving path setup 4CH H.264 DVR User Manual V0.3(M02)- p12...
-
Page 13: Playback Mode
2x, 4X, 8X, 16x, 32X and 64X. Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X. Stop playback. 4CH H.264 DVR User Manual V0.3(M02)- p13... - Page 14 」 Fast rewind 「 」Fast forward Play/pause ／ 「▲ ▲ ▲ ▲ / SLOW」 ，Slow playback 「▼ ▼ ▼ ▼ / ■」Stop playback Pause Full screen display / Channel Jumping Quad display Zoom-in display 4CH H.264 DVR User Manual V0.3(M02)- p14...
-
Page 15: Chapter 4. Main Menu Setup
Press to cancel the setup, and re-choose the login account. Delete the last letter. Enter to identify the password. It will enter the set up menu, if the password is verified. Space key 4CH H.264 DVR User Manual V0.3(M02)- p15... -
Page 16: Record Setup
Back to Upper level of menu without saving ENTER Enter the menu, or display virtual keyboard PS. The initialization of new-installed HD is required before recording, please refer to “4-9 UTILITY SETUP” for detail. 4-1 RECORD SETUP 4CH H.264 DVR User Manual V0.3(M02)- p16... -
Page 17: 4-1.1 Quality & Frame Rate Setup
You can setup quality and FPS separately for record type. Check/uncheck the box enable/disable selected channel recording Quality Select quality: Lowest/ Low/ Normal/ High/ Highest Select recording frame rate. Auto Assign each channel with its maxima accessible fps 4CH H.264 DVR User Manual V0.3(M02)- p17... -
Page 18: Event Setup
4-2 EVENT SETUP Item Description Motion Setup Enter to set up motion detection Sensor Setup Enter to set up sensor detection 4-2.1 MOTION SETUP 4CH H.264 DVR User Manual V0.3(M02)- p18... -
Page 19: 4-2.1.1 Motion Area Setup
All Area Detection Select entire screen as detection area. Mask All Area Deselect entire detection area. Continue Continue setup Exit & Save Save setup and leave Exit & Discard Cancel setup and leave 4CH H.264 DVR User Manual V0.3(M02)- p19... -
Page 20: Schedule Setup
View Normal/ Motion / Sensor Setup Sensor Setup 4-3.1 Schedule Record Setup Click on the time on the left side. The setup menu will be displayed. You can have detail setup by dates, Time and event. 4CH H.264 DVR User Manual V0.3(M02)- p20... -
Page 21: 4-3.2 Holiday Setup
4-3.2 Holiday Setup Since holidays are different by different country and region, you can setup the holiday of your location accordingly. 4CH H.264 DVR User Manual V0.3(M02)- p21... -
Page 22: Camera Setup
255. The default value is 128. ( This function doesn’t support at PAL system) Name Set up name of each channel Audio volume for CH1 to CH 4 under LIVE mode and recording Volume mode can be adjusted. 4CH H.264 DVR User Manual V0.3(M02)- p22... -
Page 23: Account Setup
Letters can be mixed with capitals or lowercases. Permissions Set up Permissions for each user Change Admin Change administrator’s password Password Picture Change user’s picture 4CH H.264 DVR User Manual V0.3(M02)- p23... -
Page 24: 4-5.1 Permission Setup
4-5.2 User Picture Setup User can select picture wished to be changed to from hard drive. Note： ： ： ： 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. 4CH H.264 DVR User Manual V0.3(M02)- p24... -
Page 25: Networking Setup
Enter to set up mail 4-6.1 NETWORKING SETUP There are three ways to connect to the network as followed. 4-6.1.1 DHCP When DHCP is selected, IP address will be assigned by DHCP server automatically. 4CH H.264 DVR User Manual V0.3(M02)- p25... -
Page 26: 4-6.1.2 Lan
(Note: The correct DNS address must be entered for DDNS function). 4-6.1.3 ADSL Select ADSL for network connection, the following information is required. Item Description User Name Enter user name provided by ISP Password Enter password provided by ISP 4CH H.264 DVR User Manual V0.3(M02)- p26... -
Page 27: 4-6.2 Http Setup
Enter a valid port value from 1 up to 65000. The default value is 80. Auto Assign each channel with its maxima accessible fps Chanel number Quality Set up record quality. There are below basic, basic, normal, high, highest Set up record FPS 4-6.3 DDNS Setup 4CH H.264 DVR User Manual V0.3(M02)- p27... - Page 28 Enter to set up e-mail addresses for up to 10 receivers individually. Enter to select events to send out E-mail notifications when below Trigger Event circumstances happen: Motion, Sensor and Vloss (Video Loss). 4CH H.264 DVR User Manual V0.3(M02)- p28...
-
Page 29: System Setup
Enter to set up Buzzer & Relay Device Setup Enter to set up Spot Spot Setup ＊ Default ID is ID1. If remote control malfunctions, please press, “DVR1” button to renew corresponding DVR ID. 4-8.1 DISPLAY SETUP 4CH H.264 DVR User Manual V0.3(M02)- p29... -
Page 30: 4-8.2 Date/Time Setup
Choose the position of Time and Date display Change Date & Time Setup time and date of DVR Time Zone Setup Set up GMT and Daylight Saving Time. Internet Time Setup Setup automatic synchronization with internet server 4CH H.264 DVR User Manual V0.3(M02)- p30... -
Page 31: 4-8.2.1 Change Date & Time
Set up time zone and activate Daylight Saving Time function according to user’s DVR location. Item Description Select Time Zone Enter to modify GMT from GMT- 13 to GMT+ 13 Daylight Saving Time Turn on/ off Daylight Saving Time 4CH H.264 DVR User Manual V0.3(M02)- p31... -
Page 32: 4-8.2.3 Internet Time Setup
24 hours after booting. Effectively, Date and Time show on DVR will immediately Update Now correspond with those in internet server. 4-8.3 BUZZER & RELAY SETUP 4CH H.264 DVR User Manual V0.3(M02)- p32... -
Page 33: 4-8.4 Spot Setup
SPOT MODE SEQUENCE: Auto-sequence for all channels in order. EVENT: Display channels with event occurred. The duration time in seconds for the interval between channels under Interval (Seconds) SPOT mode. 4CH H.264 DVR User Manual V0.3(M02)- p33... -
Page 34: Utility Setup
System will reboot automatically when the upgrade is completed. Notice! DO NOT TURN OFF POWER OR UNPLUG USB DEVICE DURING THE UPGRADE as it may cause incomplete firmware upgrade and damage to the DVR. 4CH H.264 DVR User Manual V0.3(M02)- p34... -
Page 35: Diagnostic
USING means the HDD is being used for recording Status GOOD/BAD means the HDD has a known/unknown format for the DVR. (Note: Please initialize your newly-installed HDD before using it.) Format Time The latest format time of HDD 4CH H.264 DVR User Manual V0.3(M02)- p35... -
Page 36: Chapter 5. Backup & Search
Start Be sure to calculate the size of backup file BEFORE operating backup. Note! Do not unplug the USB device or turn off the DVR during the backup process to avoid unrecoverable error. 4CH H.264 DVR User Manual V0.3(M02)- p36... -
Page 37: Search Setup
However, the record can’t be viewed after selecting it. Item Description Criteria Setup conditions of event search Page Switch between pages of events Date/Time Date/time when event occurred. 4CH H.264 DVR User Manual V0.3(M02)- p37... -
Page 38: 5-2.1.1 Criteria Setup For Event Search
Only checked events and channels will be sorted in event search. Note： ： ： ： 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. 4CH H.264 DVR User Manual V0.3(M02)- p38... -
Page 39: 5-2.2 Time Search
(hour/minute/second) or click on a specific time of time bar by mouse then press “ok”. DVR will playback the selected recording data. AP software:「DVR Remote Desktop」can allow you to remotely access and control the DVR from PC. 4CH H.264 DVR User Manual V0.3(M02)- p39... -
Page 40: Ap Software Installation And Setup
Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456. Other related setup about user account and password, please check “4-5 Account Setup. “ Step Three: Click on the link to start downloading the AP software. 4CH H.264 DVR User Manual V0.3(M02)- p40... - Page 41 Recorded File” to open backup files in your PC. Step Six: You’ve logged into the DVR Note： ： ： ： 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. 4CH H.264 DVR User Manual V0.3(M02)- p41...
-
Page 42: How To Do Remote Monitoring Through Ie
IE view, please refer to next chapter for more information) p.s. There will be IE connection security issue when clicking this link for the first time. Please refer to index II for Remote Monitoring IE ActiveX Control Installation Instruction. 4CH H.264 DVR User Manual V0.3(M02)- p42... - Page 43 Step Four: DVR images appear. Note： ： ： ： 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. 4CH H.264 DVR User Manual V0.3(M02)- p43...
-
Page 44: Ap Software Operation
Mobility Radeon Xseries, Mobility Radeon HDseries, or FireGL Vseries etc. Or visit: http://en.wikipedia.org/wiki/Comparison_of_ATI_graphics_processing_units SiS: SiS 67Xseries, or SiS 77Xseries etc. Or visit: http://www.sis.com/support/support_compare.htm Intel: 91Xseries, 94Xseries, 96Xseries, G3Xseries, or G4Xseries, etc. Or visit: http://en.wikipedia.org/wiki/Intel_GMA 4CH H.264 DVR User Manual V0.3(M02)- p44... -
Page 45: Chapter 6. Specificaitons
Remote control, 1-to-8 remote control (optional) External I/O Ethernet 1 RJ45 connector, 10/100 Mbps 6. ELECTRICAL Power Source DC 12V / 5A (4CH) 7. ENVIRONMENTAL 5℃ ~ + 40℃ Operation Temperature Humidity Less than 90% 8. PHYSICAL 4CH H.264 DVR User Manual V0.3(M02)- p45... - Page 46 720 x 240 60 FPS Recording Speed 720 x 480 30 FPS (Independent setting for each 352 x 288 100 FPS channel) 720 x 288 50 FPS 720 x 576 25 FPS Compression Method H.264 4CH H.264 DVR User Manual V0.3(M02)- p46...
-
Page 47: Chapter 7. Mobile Application Installation And Usage
DVR through Bluetooth or USB cable. Step 2: Install the application software “DVRH264.jar” in your mobile device. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. 4CH H.264 DVR User Manual V0.3(M02)- p47... -
Page 48: 7-1.2 Mobile Application Operation
Live image will show up after a successful connection. PS. The Live can not be displayed in your mobil e when the recoding is off in local DVR. 4CH H.264 DVR User Manual V0.3(M02)- p48... -
Page 49: 7-1.2.3 Modify The Login Information Of Dvr
“Delete” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “Delete” 7-1.3 Live Monitoring Operation This paragraph describes some operation under the LIVE monitoring mode in your mobile device. 4CH H.264 DVR User Manual V0.3(M02)- p49... -
Page 50: 7-1.3.1 Scroll The Image
Select “Single” under the “Menu”, there will be all channels of your DVR in list for you to choose. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. 4CH H.264 DVR User Manual V0.3(M02)- p50... -
Page 51: 7-1.3.4 Size Of Image
Sensor Triggered and Vloss. Graphical icons below will be shown on the status: : Motion detected : Sensor triggered : Video loss Select the “Alarm” under the “Menu” to switch this function on or off. 4CH H.264 DVR User Manual V0.3(M02)- p51... -
Page 52: Mobile Application Installation And Operation For Windows Mobile System
Step 2: Install the application software “Jrviewer.CAB” and “H264Pocket.CAB” in your mobile device, two folders named ”Jrviewer” and “H264Pocket” will be created. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. 4CH H.264 DVR User Manual V0.3(M02)- p52... -
Page 53: 7-2.2 Mobile Application Operation
After successful logon the DVR, press “View” to bring up operation menu. You can choose the channel, resize the image, choose the quality, and turn on/off the status bar, alarm, full screen display….etc 4CH H.264 DVR User Manual V0.3(M02)- p53... -
Page 54: 7-2.3.1 Operation Uner The Live Monitoring For Jrviewer
Sensor Trigger V-Loss Alarm through your mobile device can be triggered if there is event to be detected. You Alarm Alarm can also uncheck the “Alarm” under the “View” to inactivate this function. 4CH H.264 DVR User Manual V0.3(M02)- p54... -
Page 55: 7-2.3.2 Operation Under The Live Monitoring For H264 Pocket
Alarm Alarm can also uncheck the “Alarm” under the “View” to inactivate this function. You can choose one channel to display in full Full Screen Full screen display screen by check this function. 4CH H.264 DVR User Manual V0.3(M02)- p55... -
Page 56: Chapter 8. Cms Installation And Usage Guide
4. Select “Next”, and then select “Browse” to change installation path if needed. To check available space on hard disk, please select “Disk Cost” then please select “Next” to the next step. 4CH H.264 DVR User Manual V0.3(M02)- p56... - Page 57 5.”Confirm Installation” window shows. Select ‘Next’ then the installation starts. 6. Select ‘Close’ to finish installation when the “Installation Complete” window shows. 4CH H.264 DVR User Manual V0.3(M02)- p57...
-
Page 58: Instruction For Log-In Failure To Cms After Upgrade
Step 1: Please enter file manager to enter folder, “Windows” and then folder “Systme32” (ex:C:\Windows\System32) Step 2: Locate file, “iCMS.dat” and delete it. Step 3: Restart CMS. Log-in successfully. 4CH H.264 DVR User Manual V0.3(M02)- p58... -
Page 59: Cms Login And Environment
Live image display area. See “9-5 Main Display” for detail. ④ Display Modes Several choices of display modes supported by CMS. A set of 10 operations are provided by CMS. See “ 9-6 Operation ⑤ Operation Bar Bar” for detail. 4CH H.264 DVR User Manual V0.3(M02)- p59... -
Page 60: Dvrs, Groups & Events
“9-6.3 Group Administration” for further information. Left-clicking on a connected DVR will expand/collapse status of its all channels as below: Icon Description Video Loss Motion Detected Sensor Triggered 4CH H.264 DVR User Manual V0.3(M02)- p60... -
Page 61: 8-3.2 View Event Logs
Take snapshot to save in local PC storage. To view all the snapshots you’ve taken, please go Snapshot to ” Snapshot” under the operation bar. See “9- 6.5 Snapshot data” for detail. 4CH H.264 DVR User Manual V0.3(M02)- p61... -
Page 62: Main Display
」Audio signal is On 「 」Audio signal is Off Turn on/off by clicking on the graphical icon, please note there can allow only one chan nel’s audio signal to be on at one time. 4CH H.264 DVR User Manual V0.3(M02)- p62... -
Page 63: 8-5.2 Emap Display
“No eMaps” will be shown. Please check “9-6.4 eMAP administration” for setup information. 4CH H.264 DVR User Manual V0.3(M02)- p63... -
Page 64: 8-5.3 Ptz Control
Activate the liner scan cruise. ＊ Customization function AUX 1~8 ( For AUTO+1 ~ AUTO+8 customization) ＊PTZ communication protocols from different brands aren’t compatible 100% sometimes. Therefore, some of these functions may be unavailable. 4CH H.264 DVR User Manual V0.3(M02)- p64... -
Page 65: Operation Bar
HDD Playback. Please see “8-6.6 HDD Playback” File Playback. Please see “8-6.7 File Playback” Event Playback. Please see “8-6.8 Event Playback” Snapshot Data. Please see “8-6.9 Snapshot Data” Recording Data. Please see “8-6.10 Recording Data” 4CH H.264 DVR User Manual V0.3(M02)- p65... -
Page 66: 8-6.1 User Administration
DVR connections can be added to or deleted from the CMS and their information can be edited. DVR’s channel names can be entered here or downloaded from the DVR by pressing ‘From DVR’. Select “OK” to save the information. 4CH H.264 DVR User Manual V0.3(M02)- p66... -
Page 67: 8-6.3 Group Administration
7. You can ‘Select’ again to add other channels, but the un-saved channel locations will be lost. 8. Click “OK” to save the setup. 4CH H.264 DVR User Manual V0.3(M02)- p67... -
Page 68: 8-6.4 Emap Administration
3. Drag channels in the left lower corner onto the picture to any position. 4. To delete a channel already on the picture, right click the channel and click ‘Remove’. 5. Click OK to save. 4CH H.264 DVR User Manual V0.3(M02)- p68... -
Page 69: 8-6.5 Remote Play
DVR and a display mode on top of the screen. After the recorded segments are listed below, double click on one to show its image on the right. Icon Description Start playing. Pause. Fast forward. Fast rewind. 4CH H.264 DVR User Manual V0.3(M02)- p69... -
Page 70: 8-6.6 Hdd Playback
You can play the recorded .irf files by “File Play” in CMS. It allows you to change the display mode, forward or rewind the file and drag the time bar. Icon Description Start Playback. Pause. Stop playback. Fast forward. Fast rewind. 4CH H.264 DVR User Manual V0.3(M02)- p70... -
Page 71: 8-6.8 Event Playback
It can display all the snapshots you’ve taken in line in “Snapshot Data”. You can review, delete or save as other files here. 8-6.10 Recording Data It can play all the recording files you’ve recorded in line in “Recording Data”. You can play or 4CH H.264 DVR User Manual V0.3(M02)- p71... - Page 72 1. Choose the recording time at upper left corner, it will be played on the main display. 2. You can choose the display mode. 3. Time bar will be shown at right lower corner, please drag the time bar to specify the recording time you’d like to play. 4CH H.264 DVR User Manual V0.3(M02)- p72...
-
Page 73: Appendix I I-Dvr.net Registration
If DVR IP has any changes, there are updates “rvddns.i-dvr.net” is what the main Here at the same time. Press, “F5: Refresh” server generates And then IP column will update automatically to it’s real IP Address. 4CH H.264 DVR User Manual V0.3(M02)- p73... - Page 74 Step 4. Enter DVR →Main Menu → Network Setup → DDNS. Activate DDNS functions and input related information. 4CH H.264 DVR User Manual V0.3(M02)- p74...
-
Page 75: Appendix Ii Remote Monitoring Ie Activex Control Installation Instruction
1. When remote monitoring on IE for the first time, an alert message occurs “Install ActiveX control” on the tool bar. 2. Click at this alert message and select “Install ActiveX Control” 3. “Do you want to install this software” alert pops up. Select “Install” 4CH H.264 DVR User Manual V0.3(M02)- p75... - Page 76 5. If message, “Your security Settings do not allow web sites to use ActiveX controls installed on your computer.” pops on when logging in, please follow the next instruction. 6. First select “Tools” on the tool bar and then select “Internet Options” 4CH H.264 DVR User Manual V0.3(M02)- p76...
- Page 77 7. Select Security →Trusted Sites → Sites 8. Enter DVR address (This address is only for demonstration. Please use the address depends on the setup of on-site DVR.) into the blanks shown in picture, and then press “add.” 4CH H.264 DVR User Manual V0.3(M02)- p77...
- Page 78 9. Newly added website will appear at the trusted web sites list. Press close. 10. Go back to IE window, press refresh button or F5. INFORCE www.inforcesecurity.com 1-888-667-6115 4CH H.264 DVR User Manual V0.3(M02)- p78 SECURITY CORP.
