Security Camera World SCW-7709 User Manual

9/16 channel stand-alone type network dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

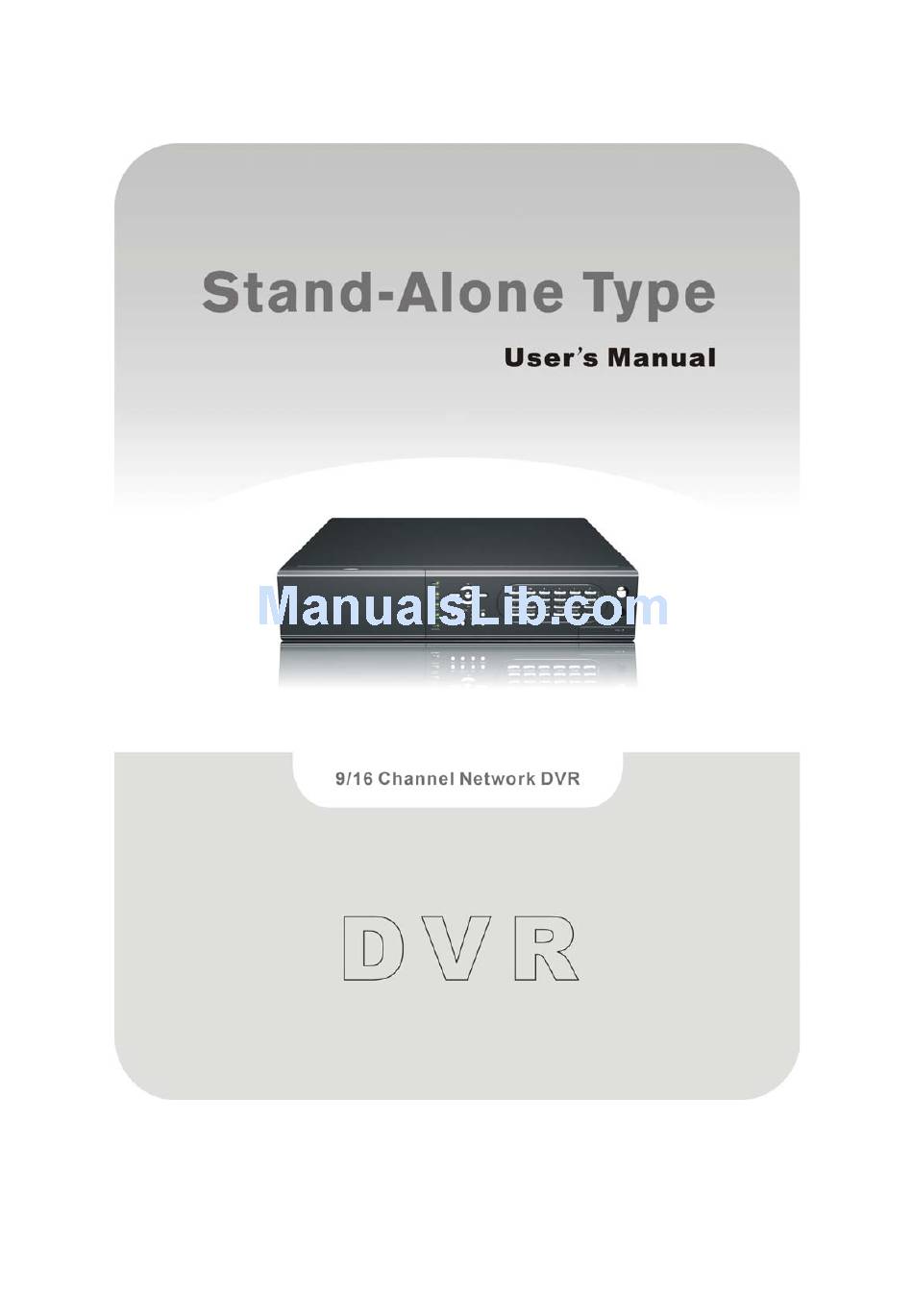

SCW-7709 & SCW-7716 Users Manual
- 1 -
SCW-7709 & SCW-7716 Users Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCW-7709 and is the answer not in the manual?

Questions and answers

Summary of Contents for Security Camera World SCW-7709

  • Page 1 SCW-7709 & SCW-7716 Users Manual - 1 - SCW-7709 & SCW-7716 Users Manual...
  • Page 2 SCW-7709 & SCW-7716 Users Manual CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3 SCW-7709 & SCW-7716 Users Manual LIMITATION OF LIABILITY THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTIBILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY’S RIGHT.
  • Page 4 SCW-7709 & SCW-7716 Users Manual PRECAUTIONS Please refer all work related to the installation of this product to qualified service personnel or system installers. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Use the appliance at temperature within 0...

  • Page 5: Table Of Contents

    SCW-7709 & SCW-7716 Users Manual Table of Contents 1. Product Overview………………….……………………….……... 1.1 Features…………………..…….…………..…………………... 2. Panels And Remote Controller…………...………………….……. 2.1 Front Panel………….……….…………………………….……. 2.2 Back Panel………………….…………………………….…….. 2.3 Remote Controller…………..…….……………………….…… 3. Installations…….…….……………………………………….…… 3.1 Basic Connections…………….………………………….…….. 3.2 Optional Connections…………..………………………….…… 4. Main Screen And Basic Operations………….……..……….…...
  • Page 6 SCW-7709 & SCW-7716 Users Manual 6.10.2 Advanced Network Setup……………..………………… 7. PTZ Control……………………….……………………………… 8. Search/Playback/Archive (Administrator/Supervisor) ………..8.1 Search By Time……………………………………….………… 8.2 Search By Event / Log Display………………………….……… 8.3 Search Archived Files………………………….……….……… 8.4 Playback/Archive For Search By Time………….….….……… 8.5 Playback/Archive For Search By Event…………………………...

  • Page 7: Product Overview

    SCW-7709 & SCW-7716 Users Manual 1. Product Overview The H.264 digital video/audio recorders are designed for use within a surveillance system and are a combination of a hard disk recorder, a video multiplexer, and a web server. To achieve the highest inter-connectivity and inter-operability, this series of digital video/audio recorders are all based on industry-leading front-end to back-end surveillance infrastructure.

  • Page 8: Panels And Remote Controller

    SCW-7709 & SCW-7716 Users Manual 2. Panels and Remote Controller 2.1 Front Panel 1. Front Door Conceal Hard Disk Tray (and internal DVD for DVD models), Reset Button, USB Connector, and DVR ID Switch. For internal DVD, please open the front door in order not to block the tray from ejecting, esp. while it’s in backup process.
  • Page 9 SCW-7709 & SCW-7716 Users Manual 8. SEARCH Button Press this button to display the search menu in main screen display. In some dialogs, this button is used as a miscellaneous function key. 9. CALL Button Press this button to switch to or return from full screen display of the focus camera in main screen display.
  • Page 10 SCW-7709 & SCW-7716 Users Manual 19. Up/BS Button (▲/BS) Press this button to move the cursor or focus window in most circumstances. In PTZ control, press this button to tilt up the camera. In text editing mode, this button is used as “backspace” key.

  • Page 11: Back Panel

    SCW-7709 & SCW-7716 Users Manual 2.2 Back Panel 1. Video Input Connectors (1-16/1-9) Connect system cameras to these BNC connectors. The corresponding 75Ω termination must be made unless the video output terminal is connected. 2. Video Output Connectors (1-16/1-9) Connect these BNC connectors for looping the corresponding camera video inputs.
  • Page 12 SCW-7709 & SCW-7716 Users Manual 9. CALL-AUX Connectors (CALL-AUX IN/OUT) Used to daisy-chain to TV monitor. CALL-AUX OUT has the same output as CALL OUT, but can be switched off through RS-485 keyboard control. 10. RS-232 Connector Connect this connector to PTZ camera(s), 11.

  • Page 13: Remote Controller

    SCW-7709 & SCW-7716 Users Manual 21. VGA Connector (optional) Connect VGA monitor to the VGA connector for main monitor display. 22. Remote sensor connector (optional) Beside the remote controller sensor on the front panel, the user may connect an extended remote controller sensor to this connector. Once this connector is used, the built-in remote controller sensor on the front panel will have no effect anymore to avoid signal interference.

  • Page 14: Installations

    SCW-7709 & SCW-7716 Users Manual 3. Installations The installations described below should be made by qualified service personnel or system installers. 3.1 Basic Connections Please refer to the following diagram for the connections. Please make sure to set the NTSC/PAL Selector Switch on the back panel according to the local TV system for the digital video/audio recorder to work correctly.

  • Page 15: Optional Connections

    SCW-7709 & SCW-7716 Users Manual Note 2: Each of the HDDs must be formatted before it can be used to record video/audio. Please refer to Section 6.6.1 HDD Format/Clear to format the HDDs. Note 3: Please refer to the following diagrams if IDE-to-SATA converter board is used.
  • Page 16 SCW-7709 & SCW-7716 Users Manual USB 2.0 disk drives, DVD+RW, card reader, etc. If the user wants to use USB2.0 peripheral device to retrieve important recorded images and/or audio, please connect it to the USB port connectors (one on the front panel, the other on the back panel).
  • Page 17 SCW-7709 & SCW-7716 Users Manual Set this unit to 3-line or 2-line according to the connected devices. For 4-line devices (such as keyboard) Devices TxD- TxD- TxD+ TxD+ RxD- RxD- RxD+ RxD+ For PTZ cameras Devices TxD- RS485- TxD+ RS485+...
  • Page 18 SCW-7709 & SCW-7716 Users Manual CALL-AUX monitor Please refer to the diagram below to connect the CALL-AUX monitor output connector to a surveillance TV monitor or the CALL-AUX monitor input connector of another digital video/audio recorder. The CALL-AUX monitor, if enabled, has the same output display as the call monitor, and is typically used with RS-485 keyboard controller for distant monitoring and control (e.g.

  • Page 19: Main Screen And Basic Operations

    SCW-7709 & SCW-7716 Users Manual 4. Main Screen And Basic Operations The split-window screen, as shown above, is the main screen after system startup. There are several types of split-window screens, including 1-Window, 4-Window, 7-Window, 9-Window, 10-Window, 13-Window, and 16-Window. The system will remember the last one before normal shutdown (as described in Section 5.7) of the...

  • Page 20: Text Input

    SCW-7709 & SCW-7716 Users Manual 4.1 Text Input There are certain circumstances that the system requires the user to enter text, such as system login, camera title setup, and so on. Please follow the steps below to enter text: (1) Press ENTER to edit the highlighted option. The flashing cursor will be shown to indicate the editing point.

  • Page 21: Basic Operations

    SCW-7709 & SCW-7716 Users Manual The Operator can operate live video display, the Supervisor live video display, image playback and archive, and the Administrator everything. To login/logout the system, press MENU in split-window display to call up Menu display, and then press ENTER when...
  • Page 22 SCW-7709 & SCW-7716 Users Manual Press this button to switch to or return from SEQ display mode. In SEQ display mode, each page in the sequence will be shown for the preset page dwelling time sequentially, and SEQ icon will be shown on the lower-right corner of the screen.

  • Page 23: Digital Zoom

    SCW-7709 & SCW-7716 Users Manual 4.4 Digital Zoom The system supports X2/X4 Digital Zoom function. To use this function, press X2 button in full screen display to enter Digital Zoom mode. There will be a zoom window shown in the video window as shown. The zoom window (a) will always be shown at zoom factor X1, (b) can be shown or hidden at zoom factor X2, and (c) will never be shown at zoom factor X4.

  • Page 24: Menu Display

    SCW-7709 & SCW-7716 Users Manual 5. Menu Display In split-window display, press MENU to call up Menu display as shown. There are a variety of displays under Menu display. In Menu display and all the subsequent displays, the items enabled are shown in black-colored text, and those disabled in white-colored text.

  • Page 25: Status Display

    SCW-7709 & SCW-7716 Users Manual 5.1 Status Display In Menu display, press ▲▼ to change the highlighted option to Status, and then press ENTER to call up Status display as shown. Status display includes Alarm Recording Status, Normal Recording Status, Camera Status, Alarm Input Status, Product Serial Number, and Product Version Number.

  • Page 26: Video Adjustment

    SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Mute – to mute the selected audio channel. Press ENTER or +/- to check/uncheck this item. The default setting is “-” - unchecked.

  • Page 27: Vga Display

    SCW-7709 & SCW-7716 Users Manual Press this button to reset the settings for this camera to factory default values. CALL Press this button to reset the settings for all cameras to factory default values. MODE Press this button to restore the values.

  • Page 28: Backup Device

    SCW-7709 & SCW-7716 Users Manual Press this button to escape from this screen, and return to Menu display. If the contents have been modified, a Save dialog will be shown to ask the user to save the changes, press ENTER to exit and save, ESC to exit without saving.
  • Page 29 SCW-7709 & SCW-7716 Users Manual Connect/Disconnect – If the specific backup device is disconnected (as shown in Current Status), please plug the USB device in one of the USB ports of the system and/or insert a DVD for DVD device, and then press ENTER to command the system to connect with the device.

  • Page 30: Software Upgrade (Administrator)

    SCW-7709 & SCW-7716 Users Manual DVD Writer – Asus DRW-1608P Series, Pioneer DVR-A11 Series. LITEON LightScribe DVD Writer Model SHM-165H6S Series. Sony DVD/CD Rewritable Drive Model DRX-810UL Series. NEC DVD/CD Rewritable Drive Model ND-4550A Series. HP dvd9404e External 18X Super Multi DVD Writer Series.

  • Page 31: System Shutdown (Administrator)

    SCW-7709 & SCW-7716 Users Manual Disk Storage – to select the disk storage to upgrade. Press +/- buttons to select the available storage. Upgrade File – press ENTER to start the upgrade process when the highlighted file is a correct upgrade file. A confirmation dialog will be shown on the screen, press ENTER to confirm to upgrade the system software.

  • Page 32: Setup (Administrator)

    SCW-7709 & SCW-7716 Users Manual 6. Setup (Administrator) In Menu display, press ▲▼ to change the highlighted option to Setup, and then press ENTER to call up Setup Menu display as shown. (To enter Setup Menu display of the system, please login as Administrator first.)

  • Page 33: Pre-Camera Setup

    SCW-7709 & SCW-7716 Users Manual 6.1 Pre-Camera Setup In Setup Menu display, press ▲▼ to change the highlighted option to Pre-Camera, and then press ENTER to call up Pre-Camera Setup display as shown. There are up to 16, 9, or 4 cameras which can be connected to the system. The Pre-Camera Setup allows the administrator to define some fundamental attributes, which may relate one camera to the others, for all the installed cameras.
  • Page 34 SCW-7709 & SCW-7716 Users Manual Installed – whether this camera is installed or not. If installed, the following items will be settable. Press ENTER or +/- to check/uncheck this item. The default setting is “ˇ” - checked. PTZ ID – the PTZ ID of this camera if it’s a PTZ camera. The PTZ ID has to be consistent with the setting of this camera.

  • Page 35: Camera Setup

    SCW-7709 & SCW-7716 Users Manual 6.2 Camera Setup In Setup Menu display, press ▲▼ to change the highlighted option to Camera, and then press ENTER to call up Camera Setup display as shown. The Camera Setup allows the administrator to define the attributes for each camera.
  • Page 36 SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Title – The title (Max. 8 characters) of this camera. Please follow the Text Input method described in Section 4.1 to modify this item.

  • Page 37: Video Loss Setup

    SCW-7709 & SCW-7716 Users Manual Pre-record IPS – the pre-record IPS for this camera if certain event (Video Loss, Motion, Alarm) occurs for this camera. This camera is recorded at this rate for Pre-record time before the event occurs. (Please refer to the following sections for Pre-record time.) Press +/- buttons to select the value (0 –...

  • Page 38: Motion Setup

    SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Duration – response duration to define at most how long (in seconds) the Alarm Out relay and the Buzzer will keep being triggered after video loss is detected for this camera.
  • Page 39 SCW-7709 & SCW-7716 Users Manual The general operations are as below: ▲▼◄► Press these buttons to select the items. Numeric (ENTER) Press these buttons to select the camera. COPY ( Press this button to copy the Motion settings, including Detection settings, of the focus camera to all the following cameras.
  • Page 40 SCW-7709 & SCW-7716 Users Manual Pre-record – to define how long before motion is detected this camera shall be intensively recorded at Pre-record IPS. Press +/- buttons to adjust the value (0-60 seconds, discrete). Please note that the actual pre-record time may be shorter than the value set if the total size of the pre-record pictures exceeds the pre-record buffer size of the system.
  • Page 41 SCW-7709 & SCW-7716 Users Manual Following is a brief description for the operations: Numeric Press these buttons to select the camera. ▲▼◄► Press these buttons to move the Mask window. Press these buttons to resize the Mask window. ENTER Press this button to set/reset the area under the Mask window.

  • Page 42: Alarm Setup

    SCW-7709 & SCW-7716 Users Manual Press this button to escape from Motion Detection Setup, and return to Motion Setup. 6.3 Alarm Setup In Setup Menu display, press ▲▼ to change the highlighted option to Alarm, and then press ENTER to call up Alarm Setup display as shown. The Alarm Setup allows the administrator to define the attributes for each alarm input, and the actions if it’s triggered.
  • Page 43 SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Normal State – press +/- buttons to select N/A, Close or Open. Please check the signal type, normally close or normally open, connected to the alarm input terminal on the rear panel of the system.

  • Page 44: Seq Display Setup

    SCW-7709 & SCW-7716 Users Manual 6.4 SEQ Display Setup In Setup Menu display, press ▲▼ to change the highlighted option to SEQ Display, and then press ENTER to call up SEQ Display Setup as shown. The SEQ Display Setup allows the administrator to define the display pages in SEQ Display for main monitor and call monitor.
  • Page 45 SCW-7709 & SCW-7716 Users Manual In Display Page Setup, the split window display for the current page is shown. And the title of the camera for the focus window . Following is a is highlighted brief description for the operations: ▲▼◄►...

  • Page 46: Scheduled Record Setup

    SCW-7709 & SCW-7716 Users Manual 6.5 Scheduled Record Setup In Setup Menu display, press ▲▼ to change the highlighted option to Scheduled Record, and then press ENTER to call up Scheduled Record Setup as shown. The Scheduled Record Setup allows the administrator to define when and how to record for the system.

  • Page 47: Hdd Setup

    SCW-7709 & SCW-7716 Users Manual Example: If the user sets the start time of T1/MON as 9:00, T2/MON as 18:00, T3-T16/MON as N/A (Not Available), then T1/MON is 9:00-18:00, T2/MON is 0:00-9:00, and 18:00-24:00. Alarm – record mode (No, Video, or Audio/Video) when certain alarm input is triggered.
  • Page 48 SCW-7709 & SCW-7716 Users Manual The general operations are as below: ▲▼◄► Press these buttons to select the items. MODE => Format/Clear Press this button to format/clear the HDDs as described in Section 6.6.1. Press this button to escape from this screen, and return to Setup Menu display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving.

  • Page 49: Hdd Format/Clear

    SCW-7709 & SCW-7716 Users Manual E-mail – to send the event e-mail to remote station or not. The e-mail will be sent to the predefined receivers when the event is triggered. Press ENTER or +/- to check/uncheck this item. The default setting is “–” - unchecked.
  • Page 50 SCW-7709 & SCW-7716 Users Manual SEQ => Clear Press this button to clear the selected HDD. A confirmation dialog will be shown on the screen, press ENTER to confirm, or ESC to cancel. Note: If the HDD has not been formatted yet, it will be formatted and partitioned with default record size, 30% for Alarm record and 70% for Normal record.

  • Page 51: Password Setup

    SCW-7709 & SCW-7716 Users Manual 6.7 Password Setup In Setup Menu display, press ▲▼ to change the highlighted option to Password, and then press ENTER to call up Password Setup as shown. The Password Setup allows the administrator to add new users, delete existing ones, and/or modify the user’s name, password, and/or level.

  • Page 52: System Setup

    SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Login Name – please follow the Text Input method described in Section 4.1 to modify this item. Password – this item accepts numbers only.
  • Page 53 SCW-7709 & SCW-7716 Users Manual Press this button to escape from this screen, and return to Setup Menu display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Please note that if the selected language is changed, the user will be asked to reboot the system for the newly selected language to take effect.
  • Page 54 SCW-7709 & SCW-7716 Users Manual 6.9 RS-232/422/485 Setup In Setup Menu display, press ▲▼ to change the highlighted option to RS-232/422/485, and then press ENTER to call up RS-232/422/485 Setup as shown. The RS-232/422/485 Setup allows the administrator to setup RS-232 control port, and RS422 or RS-485 control port.

  • Page 55: Network Setup

    SCW-7709 & SCW-7716 Users Manual 6.10 Network Setup In Setup Menu display, press ▲▼ to change the highlighted option to Network, and then press ENTER to call up Network Setup as shown. The Network Setup allows the administrator to setup all Ethernet network related parameters.
  • Page 56 SCW-7709 & SCW-7716 Users Manual Gateway – Gateway IP address for the system. Please follow the Text Input method described in Section 4.1 to modify these items. DNS – DNS (Domain Name Server) IP address for the system. Please follow the Text Input method described in Section 4.1 to modify these items.

  • Page 57: E-Mail Setup

    SCW-7709 & SCW-7716 Users Manual 6.10.1 E-mail Setup In Network Setup, press ENTER to call up E-mail Setup as shown when the highlighted option is E-mail. The E-mail Setup allows the administrator to set e-mail related parameters. When an event occurs and E-mail is enabled for the corresponding action, an e-mail will be sent based on the parameters set here.

  • Page 58: Advanced Network Setup

    SCW-7709 & SCW-7716 Users Manual Password – password if the SMTP mail server requires authentication. Please follow the Text Input method described in Section 4.1 to modify this item. Mail From – the e-mail address of this DVR unit, i.e. the sender of the e-mails originated from the triggered events.

  • Page 59: Ptz Control

    SCW-7709 & SCW-7716 Users Manual HTTP Port – the HTTP (web page) port for remote access. The default value is 80. Please follow the Text Input method described in Section 4.1 to modify this item. Note: If the Control Port or Data Port is not available or accessible during remote access, the system will reset the ports to their default values, i.e.
  • Page 60 SCW-7709 & SCW-7716 Users Manual NEXT Press this button for the next miscellaneous function. The miscellaneous functions include Focus, Iris, Auto PAN, SEQ, Preset, and Pan Speed. And the active one will be shown on the lower right corner of the screen.

  • Page 61: Search/Playback/Archive (Administrator/Supervisor)

    SCW-7709 & SCW-7716 Users Manual 8. Search/Playback/Archive (Administrator, Supervisor) There are five ways to search the recorded video/audio for playback: (a) Search by time, (b) Search by event, (c) Search archived files In split-window display, press SEARCH button to call up Search Menu display as shown.
  • Page 62 SCW-7709 & SCW-7716 Users Manual The general operations are as below: ▲▼ Press these buttons to select the items. Press this button to escape from this screen, and return to split-window display. SEARCH / MODE Press this button to start searching the recorded video/audio with the selected search time and video/audio type for playback.

  • Page 63: Search By Event / Log Display

    SCW-7709 & SCW-7716 Users Manual 8.2 Search By Event / Log Display The screen for Search By Event - Log display, is shown below: There are four different types of event logs, including Alarm, Motion, Video Loss, and System. And up to 3000 most recent event logs can be stored in the system.

  • Page 64: Search Archived Files

    SCW-7709 & SCW-7716 Users Manual Following is a brief description for each item and its specific operations: Event Type – the type of the events (Record, Alarm, Motion, Video Loss, System) to be shown in the log list. The Event Type “System” includes all system related events, such as power on/off, and will not trigger recording.

  • Page 65: Playback/Archive For Search By Time

    SCW-7709 & SCW-7716 Users Manual The operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen, and return to split-window display. Following is a brief description for each item and its specific operations: USB Device –...
  • Page 66 SCW-7709 & SCW-7716 Users Manual Stop Button ( Press this button to stop playing the recorded video/audio. If the user press button later, the playback will start from the beginning. Fast Forward Button ( Press this button for fast forward playback. Each time this button is pressed, the forward playback speed will become faster, from 2X, 4X, 8X, up to 16X, and then back to 2X.
  • Page 67 SCW-7709 & SCW-7716 Users Manual Note: For internal DVD, please open the front door in order not to block the tray from ejecting, esp. while it’s in backup process. Blocking the tray from ejecting may damage the DVD writer. Stop ( Press this button to stop copying and return to the previous display.

  • Page 68: Playback/Archive For Search By Event

    SCW-7709 & SCW-7716 Users Manual 8.5 Playback/Archive For Search By Event In Log display, press ENTER to enter Event Playback display of the selected event log, or press Play Buttons ( ) to playback it directly. This display is the same as full screen display of the main display, and the playback buttons are effective.

  • Page 69: Playback For Archived Files

    SCW-7709 & SCW-7716 Users Manual 8.7 Playback For Archived Files In Search Archived Files display, press ENTER to enter Archived File Playback display of the selected file, or press Play Buttons ( ) to playback it directly. This display is the same as full screen display of the main display, and the playback buttons are effective.
  • Page 70 SCW-7709 & SCW-7716 Users Manual 4. The domain name or IP address of the digital video/audio recorder has been set as trusted web site in your PC, and the (https:) server verification for trusted web site is unchecked. If not, please go to Tools->Options->Security in your I.E. to do the settings.
  • Page 71 SCW-7709 & SCW-7716 Users Manual The video images can be displayed in several types of split-window screens, including 1/4/9/16-Window for single DVR and 25/36/49/64 for multiple DVRs. And the focus window is surrounded by a frame border. In addition to the video windows, there are different icons on the lower corner and the right corner of the screen for status display and control.
  • Page 72 SCW-7709 & SCW-7716 Users Manual Click on this icon to switch to or return from SEQ display mode. Click on this icon to toggle between live mode and playback mode for all the video windows. Click on this icon to freeze/unfreeze the video images for all the video windows.
  • Page 73 SCW-7709 & SCW-7716 Users Manual Click on these icons to switch to the selected DVR, button down for selected. The 1/4/9/16 split-window video display, the camera status, and the alarm input/output will all switch to correspond to the selected DVR.
  • Page 74 SCW-7709 & SCW-7716 Users Manual Alarm Out Alarm outputs 1-4 (GREEN for normal state, RED for triggered state) for the selected DVR. For Administrator, click on any of these icons to control the corresponding alarm output from normal to triggered, or from triggered back to normal.
  • Page 75 SCW-7709 & SCW-7716 Users Manual Device Name – any meaningful name for the (DVR) device. Address – IP address or URL domain name for the (DVR) device. It should be the same as the IP address (for Static IP) or URL (for PPPoE) in Network Setup for the (DVR) device.
  • Page 76 SCW-7709 & SCW-7716 Users Manual System Requirements of Remote PC It is recommended to access the digital video/audio recorder using a PC that meets the following system requirements. If you use a PC that does not meet the following system requirements, it may cause problems such as slow imaging or the browser unable to operate.

  • Page 77: Appendix A - Specifications

    SCW-7709 & SCW-7716 Users Manual Appendix A – Specifications System O.S. Embedded Linux 2.6 Multiplex Sixfold operation - simultaneous record, live, playback, backup, control, & remote access Certification FCC, CE, LVDS, etc. Video Format NTSC/EIA or PAL/CCIR Input 16/9/4-CH, BNC, 1Vp-p/75ohm...
  • Page 78 SCW-7709 & SCW-7716 Users Manual Internal DVD models: DVD+RW, DVD+R, DVD-R Alarm Input 16 contact or TTL/CMOS signal, polarity selectable Output 2 Normally Open, 2 Normally Closed relay output Buzzer Triggered by Sensor input, Video loss, & Motion Event log...

  • Page 79: Appendix B - Structures Of Menu Displays

    SCW-7709 & SCW-7716 Users Manual Appendix B – Structures Of Menu Displays - 79 - SCW-7709 & SCW-7716 Users Manual...

  • Page 80: Appendix C - Time Zone Table

    SCW-7709 & SCW-7716 Users Manual Appendix C – Time Zone Table Time Zone Offset Start Samoa GMT – 11:00 Hawaii GMT – 10:00 Alaska GMT – 09:00 Mar, 2nd Sun, 2:00 Nov, 1st Sun, 2:00 ˇ Pacific Time (US & Canada) GMT –...
  • Page 81 SCW-7709 & SCW-7716 Users Manual Time Zone Offset Start Kabul GMT + 04:30 Ekaterinburg GMT + 05:00 Mar, last Sun, 2:00 Oct, last Sun, 3:00 ˇ Islamabad, Karachi, Tashkent GMT + 05:00 Chennai, Mumbai, New Delhi GMT + 05:30 Kathmandu...

  • Page 82: Appendix D - Keyboard Control Protocol

    SCW-7709 & SCW-7716 Users Manual Appendix D – Keyboard Control Protocol Data Format 5 Bytes – Byte 1 : Synchronization Byte (0xFF) Byte 2 : Address, i.e. Device ID (0 – 0xFF) Byte 3 : Code (see below) Byte 4 : Reserved (0x00) Byte 5 : Checksum (sum of Bytes 2 –...
  • Page 83 SCW-7709 & SCW-7716 Users Manual CALL-AUX ON 0x5b (ASCII character ‘[’) CALL-AUX OFF 0x5d (ASCII character ‘]’) UP-LEFT 0x7b (ASCII character ‘{’) DOWN-LEFT 0x7c (ASCII character ‘|’) UP-RIGHT 0x7d (ASCII character ‘}’) DOWN-RIGHT 0x7e (ASCII character ‘~’) - 83 -...

  • Page 84: Appendix E – Recording Table

    SCW-7709 & SCW-7716 Users Manual Appendix E – Recording Table NTSC Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 240 120 60 720x480 27.7 (Full D1) 24.5 21.0...
  • Page 85 SCW-7709 & SCW-7716 Users Manual PAL Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 200 100 50 12.5 720x576 36.0 (Full D1) 32.0 27.3 21.3 18.3 14.7 10.0...

  • Page 86: Appendix F - Ms-Windows Hem Utilities

    SCW-7709 & SCW-7716 Users Manual Appendix F – MS-Windows HEM Utilities There are several MS-Windows utility programs in the bundled CD, including DP-9010, HEM Player, Keyboard Control Simulator, and M4V/H.264 to AVI Conversion Utility. Please insert the CD in the CD-ROM or DVD-ROM drive in your PC, and then double click on DP-9010/Setup.exe in the CD to install DP-9010, and...
  • Page 87 SCW-7709 & SCW-7716 Users Manual type if it’s on those enabled function icons. The operations and their descriptions are the same as in Chapter 9. Remote Access. To select an archived file for playback, please click on File menu, and then select Open.
  • Page 88 SCW-7709 & SCW-7716 Users Manual Keyboard Control Simulator To run the Keyboard Control Simulator under MS-Windows, please select Start->Programs->Hyper Electronics Mappers->KCtrlSimulator, and the screen will be shown as below. Please note that most of the buttons correspond to the keypads on the front panel. If you connect the PC through RS-232 and use an RS-232/RS-485 converter to connect to multiple DVRs, you would be able to control multiple DVRs via the simulation software.
  • Page 89 SCW-7709 & SCW-7716 Users Manual M4V/H.264 to AVI Conversion Utility To run the M4V/H.264 to AVI Conversion Utility under MS-Windows, please select Start->Programs->Hyper Electronics Mappers->M4V2AVI or double-click on the file AVI_Converter.EXE, and the screen will be shown as below. Please select the source files – .M4V/.H264 files archived from DVR, remote I.E., HEM, and select the target directory to save the converted files, and then click on OK to do the conversion.
