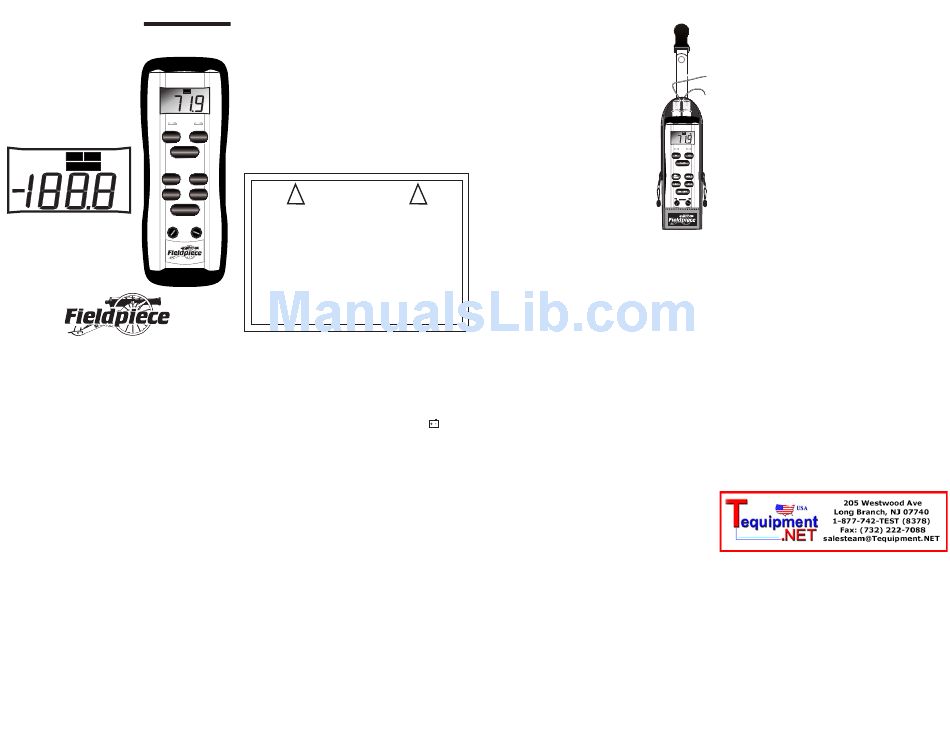

Fieldpiece ST4 Operator's Manual

Fieldpiece
Dual Temperature
Digital Thermometer
Model: ST4
T1
T1
MIN MAX ºC T1-T2
T1 T2
ºF
HOLD
T1-T2
Min
/Max
1 /0.1
º º
ON OFF
T1
OFFSET
ST4
OPERATOR'S MANUAL
Specifications
Measurement range: -58ºF to 2000ºF (-50ºC to
1300ºC)
Resolution: 0.1º
Temperature coefficient: 0.1 x (specified accura-
cy) per °C (0°C to 18°C, 28°C to 50°C)
System accuracy after field calibration:
±1ºF @ 30ºF to 120ºF with field calibration
±0.5ºC @ 0ºC to 50ºC with field calibration
Meter accuracy: Accuracies for any of the given
ranges below are specified for operating tem-
peratures between 64ºF to 82ºF (18ºC to 28ºC),
for 1 year, not including thermocouple error.
±4ºF @ -58ºF to 32ºF
±(0.3% rdg + 2ºF) @ 32ºF to 1100ºF
±(0.5% rdg + 2ºF) @ 1100ºF to 2000ºF
±2ºC @ -50ºC to 0ºC
±(0.3% rdg + 1ºF) @ -50ºC to 600ºC
±(0.5% rdg + 1ºF) @ 600ºC to 1300ºC
Description

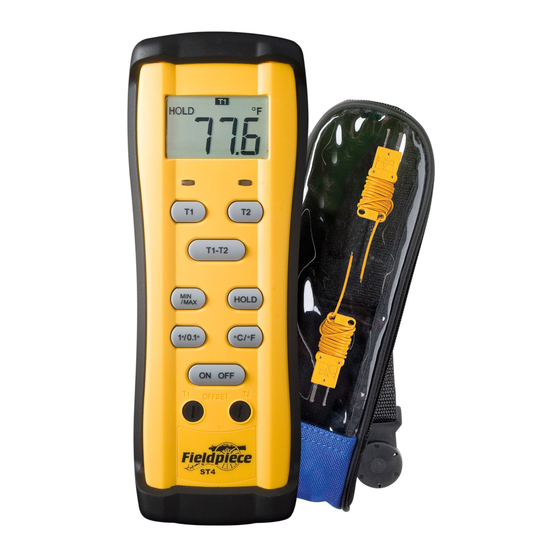

The ST4 is a portable standalone dual tempera-
ture thermometer. Plug in one or two of the supplied
k-type thermocouples and find T1, T2, or T1-T2.
The supplied rubber boot and case give the ST4
Dual Temperature Digital Thermometer plenty of
protection and durability to last in the field.
ºF
The ST4 has been designed to be used while
inside the carrying case. Use the magnet to hang it.
The front is clear so you can press the buttons and
read the display. The zippers allow the thermocou-
T2
T2
ples to exit from the top of the case.
HOLD
T2
!
WARNINGS
C/ F
º T2 º
To avoid electrical shock, do not use this instru-
ment when voltages at the measurement surface
T2
exceed 24VAC or 60VDC.
To avoid electrical shock, disconnect thermocou-
ples from the ST4 before opening case or battery
cover.
To avoid damage or burns, do not take tempera-
ture measurements in microwave ovens.
When testing hot temperatures, the thermocouple
and velcro may become hot. Do not handle the ther-
mocouple or the velcro when hot.
Measurement rate: 2.5 readings/second
Battery: Single standard 9-volt battery, NEDA
1604, JIS 006P, IEC 6F22.
Battery life: 100 hours- carbon zinc battery. 200
hours- alkaline battery. Replace when "
displayed.
Operating environment: 32ºF to 122ºF <70% RH
Storage environment: -8ºF to 140ºF <80% RH
with battery removed from meter.
Display: 3.5 digits LCD, 2000 count
Overrange: "OL" or "-OL" is displayed.
Accessories: 9V battery (installed), 2 k-type ther-
mocouples, 2 Velcro straps, rubber boot, case,
and operator's manual.
Safety: Designed to meet IEC-1010-1, CE-EMC
Operation
1. Turn on the ST4.
2. Select ºC or ºF.
3. Plug in one or both of the k-type ther-
mocouples to the top of the ST4. The
red LED will light up when a necessary
thermocouple isn't engaged.
4. Press "T1" for the left thermocouple.
Press "T2" for the right thermocouple.
Press "T1-T2" to get the real-time
difference between the two thermo-
couple readings.
5. Select temperature resolution by
pressing the "1º/0.1º" button.
6. "HOLD" keeps current reading on
screen until "HOLD" is pressed
!
again.
7. Press once to record MIN and MAX.
Press once to toggle between MIN
and MAX. Hold down for 1 second to
exit the MIN/MAX function.
8. Operate the ST4 in it's case to take advantage
of the hanger. You can operate the ST4 while
still in the carrying case because of the clear
front window.
Note: When in HOLD or MIN/MAX, you cannot
change ºC/ºF or resolution (1º/0.1º).
Warranty
The product is warranted to the original purchas-
er against defects in material or workmanship for a
period of one (1) year from the date of purchase.
During the warranty period, Fieldpiece Instruments
" is
will, at its option, replace or repair the defective unit.
This warranty does not apply to defects resulting
from abuse, neglect, accident, unauthorized repair,
alteration, or unreasonable use of the instrument.
Any implied warranty arising out of the sale of
Fieldpiece's products including but not limited to
implied warranties of merchantibility, and fitness for
purpose, are limited to the above. Fieldpiece shall
not be liable for incidental or consequential dam-
ages.
Field Calibration
To calibrate the ST4, adjust the two "OFFSET"
pots on the front of the meter labeled "T1" and "T2".
The best way to calibrate is to match to a known
temperature. Ice water is very close to 32ºF and is
readily available. Accuracies of one degree or bet-
ter are easily obtained.
1. Stabilize a large cup of ice water. Pure, distilled
water will be the most accurate.
2. Immerse one probe in ice water and let it stabi-
lize.
3. Select "T1" and adjust the "T1" calibration pot
on the face of the meter to display 32.0.
4. Remove T1 from the water and repeat the previ-
ous steps 3 and 4 for "T2".
Service
Any defective ST4 should be returned to
Fieldpiece Instruments for warranty service along
with proof of purchase. Call Fieldpiece for a return
material authorization (RMA). For out of warrantee
service, send the ST4 along with a check or money
order for $40.00 to Fieldpiece. Your ST4 will be
repaired or replaced at Fieldpiece's option.
Fieldpiece Instruments, Inc.
580 West Central Ave. Suite A
Brea, CA 92821
Phone: (714) 257-9060 Fax: (714) 257-9069
