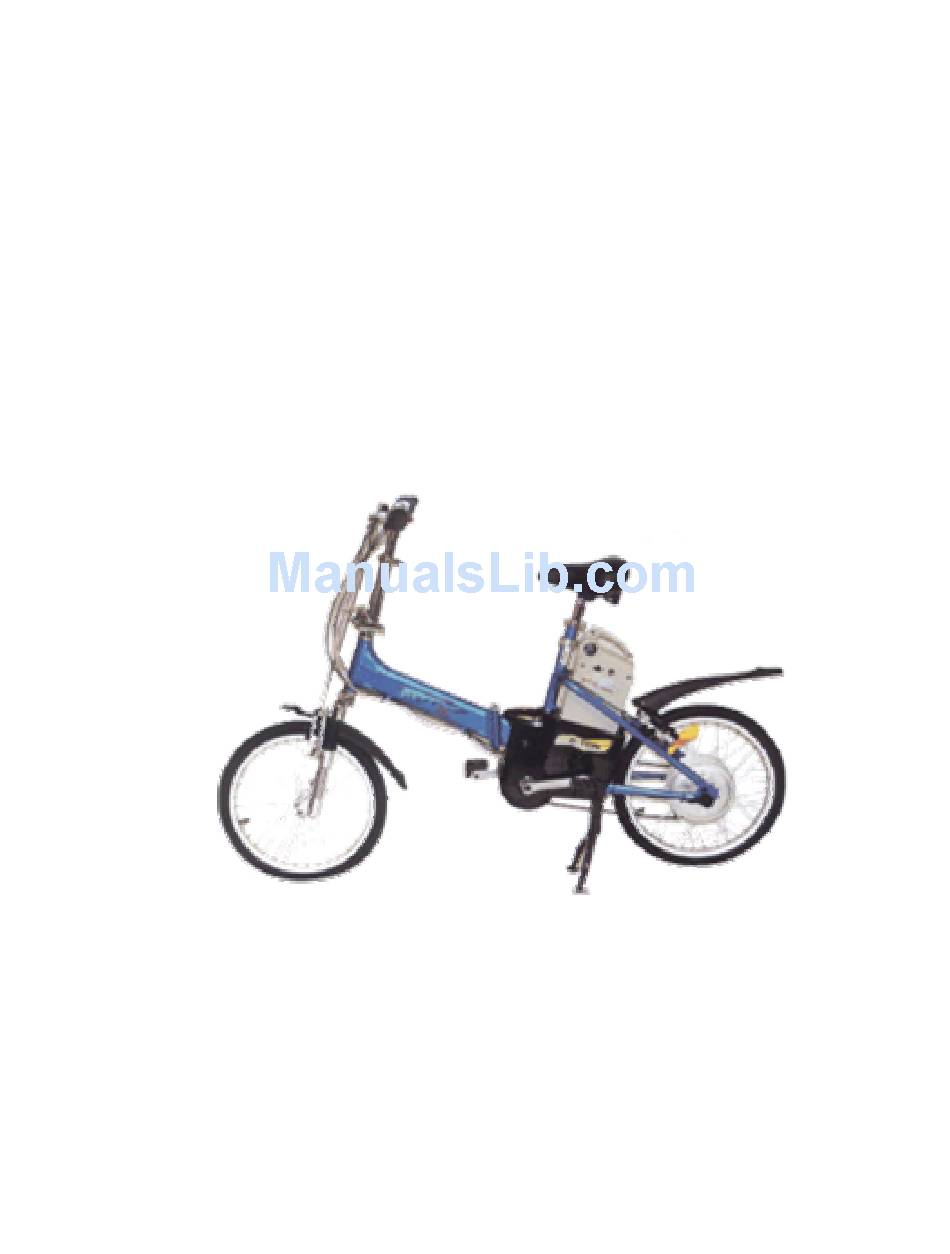

E-TON

ECO Electric Bycyle

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the ECO Electric Bycyle and is the answer not in the manual?

Questions and answers

Summary of Contents for E-TON ECO Electric Bycyle

Page 2: Table Of Contents
WELCOME Thank you for purchasing an E-TON electrical bike. E-TON takes pride in a worldwide reputation for quality research, design , production and service .We wish you have many years of enjoyable and safe riding. E-TON electrical bike are designed for safety and comfortable. The Users Manual contains maintenance schedule, maintain procedures you can easily precede and basic information of daily uses.
Page 3 SAFETY PRECAUTION ★ Read this manual and all labels carefully and follow the operating procedures described. 1. Don’t exceed line of minimum insertion as adjusting the seat post. 2. Always inspect all quick-release each time you use it to make sure the electric bike is in safe operating condition.
Page 4: Warning Stickers Locations
DESCRIPTION WARNING STICKER LOCATIONS (1) Handlebar quick-release warning sticker (2) Stem quick-release warning sticker (3) Frame quick-release warning sticker (4) Seat post quick-release warning sticker (5) Battery pack pull out sticker (6)Power Indicator sticker Page 4 of 16 Copyright ©2008-2009 ETON America, all rights reserved.
Page 5: Parts Location
PARTS LOCATION (1) Handle bar (2) Rear brake lever (3) Front brake lever (4) Throttle grip (5) Speed grip (6) Safety switch (7) Handlebars (8) Handlebars quick- release (9) Stem quick- release (10)Front wheel quick- release (11)Frame quick-release (12)Seat quick-release (13)Battery lock ring (14)Power Indicator (15)Folding pedals...
Page 6: Parts Function
PARTS FUNCTION POWER SWITCH ECO is driven by electric motor and the power switch is on the right hand side. Turn the switch to position means power is energized. Turn the switch to , power will be disconnected. ！ WARNING The switch can also be used as an emergency switch for safety.
Page 7 SPEED GRIP Speed grip is on the left handlebar and controls 6-speed freewheel by hand turn. When numeral a“6”, the chain engages at the smallest gear of freewheel. If you want to change speed, just turn speed grip toward rider’s side. If the chain is engaged on small gear, you have to pedal heavily and gain higher speed.
Page 8: Inspection
KEY SWITCH 1. The key switch has 3 settings, “ON”, “LOCK”, “OPEN” “ON” represents power is energized. “LOCK” represents power is disconnected and battery pack is locked for security. “OPEN” represents power is disconnected and battery pack is free to take away from bicycle. INSPECTION Before riding, please check following items.
Page 9: Operation
OPERATION TO TURN ON THE POWER 1. Position ECO on flat road and stand on left hand side of the bicycle. 2. Turn the key switch to “ON” position. RIDING 1. Push bicycle forward slightly and let kickstand bounce by spring. 2.
Page 10: Charging
HOW AND WHEN TO CHANGE SPEED ECO has a 6-speed (derailleur) system. Rider changes speed only by turning speed rig on the left hand side of handlebar. Road condition Proper speed Flat 5 or 6 Gentle slope 3 or 4 Steep or hilly slope 1 or 2 ！...
Page 11 ！ CAUTION 1. The charging process is preceded inadequately if the red light illuminates while charging. Check connector/wire if red light still illuminates and please contact the dealer closest to you. 2. Keep the battery pack away from direct sunshine, rain or heavy moisture while charging. 3.
Page 12: Folding And Assembling Procedure
FOLDING AND ASSEMBLING PROCEDURES Folding 1. Slightly pull the pedals inwards, then fold. 2. Loose the seat quick release and lower the height of the seat. CAUTION ！ 3. Release the quick -release of the handlebar and lower it. As folding any part, please watch out your hands for the safety reason.
Page 13: Assembling
4. Release stem quick-release and bend. 5. Release the frame quick-release and press fixing pillar. 6. Folding the frame. 7. Firm the frame with fixed ribbon. ASSEMBLING 1. Loosen the ribbon. 2. Straight the frame. 3. Secure the frame and fix quick-release CAUTION ！...
Page 14 4. Straight and secure the stem quick release 5. Adjust the handlebar to a suitable height. 6. Adjust handlebar angle then fix the quick release CAUTION There is “Minimum Insertion” line marked on the post of seat and handlebar and don’t pull to exceed 7.
Page 15: Maintenance
MAINTENANCE 1. Wipe bicycle by dry cloth and use neuter cleaning agent to clean if necessary. 2. Wiping with thin lubrication oil on metal parts if ever cleaned by water. 3. Wipe plastic, painted parts by dry cloth. Increasing maintenance frequency if riding in heavy moisture or rainy area. Apply greases on the function and rotating components.
Page 16: Warranty
WARRANTY OBLIGATION Under this limited warranty, E-TON will repair or replace, at our option, any part proven to be defective in material or factory workmanship under normal use for the applicable period stated below. Parts will be repaired or replaced without cost only during the warranty period.
Page 18 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description E0100‐3JB0‐1700 FRAME ASSY.,(SILVER) E0100‐3JB0‐2200 FRAME ASSY.,(RED) E0100‐3JB0‐3400 FRAME ASSY.,(BLUE) E012A‐3JB0‐0000 FRAME FOLDING QUICK RELEASE G7240‐3JB0‐1000 SADDLE STEM G720A‐3JB0‐0000 SEAT ASSY. G741A‐3JB0‐0000 STEM POST QUICK RELEASE E0121‐3JB0‐0000 HOLDER BATTERY BAND H7144 3JB0 0000 H7144‐3JB0‐0000 SADDLE STEM WARNING SADDLE STEM WARNING H7143‐3JB0‐0000 FRAME FOLDING WARNING H7145‐3JB0‐0000 STICKER,E‐CO (L) H7146‐3JB0‐0000 STICKER,E‐CO (R) Page 1 of 12 Page 1 of 12...
Page 19 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. Description E030A‐3JB0‐0000 HEAD PARTS E3200‐3JB0‐0000 SUSPENSION FRONT ASSY., D3620‐3JB0‐0000 V‐BRAKE ASSY.,(HJ‐806AD) Page 2 of 12 Page 2 of 12...
Page 20 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. Description E317A‐3JB0‐0000 LEFT SHIFTER ASSY. E316A‐3JB0‐0000 RIGHT ACCELERATOR ASSY. E3166‐3JB0‐0000 L/R GRIP HANDLE E3180‐3JB0‐0000 BRAKE LEVEL ASSY. (R) E3170‐3JB0‐0000 BRAKE LEVEL ASSY .(L) E3100‐3JB0‐0000 HANDLE BAR COMP H7141‐3JB0‐0000 HANDLE BAR WARNING STICKER H7153‐3JB0‐0000 POWER INDICATOR STICKER C1803 3JB0 0000 C1803‐3JB0‐0000 CHARGER BAG CHARGER BAG Page 3 of 12 Page 3 of 12...
Page 21 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. Description E3172‐3JB0‐0000 SPEED CABLE‐OUTER CASING(F) E3173‐3JB0‐0000 SPEED CABLE‐OUTER CASING(R) E3173 3JB0 0000 SPEED CABLE OUTER CASING(R) E545A‐3JB0‐0000 BRAKE‐CABLE ASSY(F) E345A‐3JB0‐0000 BRAKE‐CABLE ASSY(REAR) D3620‐3JB0‐0000 V‐BRAKE ASSY.,(HJ‐806AD) H3938‐3JB0‐0000 SPIRAL WRAPPING BAND(10A×850) I2140‐60001 WASHER Page 4 of 12 Page 4 of 12...
Page 22 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. Description E3300‐3JB0‐0000 FOLDING STEM Page 5 of 12 Page 5 of 12...
Page 23 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description D471A‐3JB0‐0000 FRONT WHEEL ASSY. D4303‐3JB0‐0000 FRONT WHEEL QUICK RELEASE D4303 3JB0 0000 FRONT WHEEL QUICK RELEASE C3743‐3JB0‐0300 REFLECTOR (WHITE) Page 6 of 12 Page 6 of 12...
Page 24 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description D471B‐3JB0‐0000 REAR WHEEL ASSY. 1‐1 Motor Motor D4120‐3JB0‐0000 FREEWHEEL SPROCKET D4121‐3JB0‐1000 REAR DERAILLEUR C1324‐3JB0‐0000 REAR AXLE RUBBER CAP C1323‐3JB0‐0000 WIRE COLLAR C1322‐3JB0‐0000 WATERPROOF RUBBER CAP I9905‐14200 WASHER I5601‐14010 NUT,HEXAGON HEAD C3743‐3JB0‐0100 REFLECTOR (YELLOW) Page 7 of 12 Page 7 of 12...
Page 25 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description D600A‐3JB0‐0000 CHAIN WHEELS&CRANKS(S105P) D610A‐3JB0‐0000 BOTTOM BRACKET SET D6104‐3JB0‐0000 COTTERLESS AXLE D6110‐3JB0‐0000 FOLDING PEDAL(L) D6111‐3JB0‐0000 FOLDING PEDAL(R) D0100‐3JB0‐0000 DRIVE CHAIN(Z50×116) Page 8 of 12 Page 8 of 12...
Page 26 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description E050A‐3JB0‐0000 KICKSTANDS ASSY. Page 9 of 12 Page 9 of 12...
Page 27 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description 10 1 F4300‐3JB0‐0800 SIDE COVER LEFT(BLACK) 10 2 F4400‐3JB0‐0800 SIDE COVER RIGHT(BLACK) 10 3 F0701‐3JB0‐0000 BATTERY SEAT 10 4 F2101‐3JB0‐0000 POWER METER UPPER 10 5 H7149‐3JB0‐0000 STICKER, SIDE COVER LEFT 10 6 H7150‐3JB0‐0000 STICKER, SIDE COVER RIGHT 10 7 I8320‐3JB0‐0000 PUSH RIVET 10 8 I8556‐05015 SCREW,CROSS RECESS HEAD WITH WASHE 10 9 10 9 I2804 04013 5C...
Page 28 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description 11 1 E211A‐3JB0‐0000 REAR FENDER ASSY 11 1‐1 11 1 1 E2110‐3JB0‐0000 E2110 3JB0 0000 REAR FENDER REAR FENDER 11 1‐2 E2112‐3JB0‐0000 HOLDER 11 1‐3 E211B‐3JB0‐0000 REAR FENDER PARTS 11 2 E111A‐3JB0‐0000 FRONT FENDER ASSY 11 2‐1 E111B‐3JB0‐0000 FRONT FENDER PARTS 11 2‐2 E1110‐3JB0‐0000 ...
Page 29 E‐TON ECO Electrical Bicyle Required Page Ref# Part No. OEM Description 12 1 C150A‐3JB0‐0000 BATTERY ASSY. 12 1‐1‐1 12 1 1 1 C1511‐3JB0‐0000 C1511 3JB0 0000 FUSE(30A) FUSE(30A) 12 1‐6 I7707‐04016 SCREW, TAPPING 12 2‐1 C1505‐3JB0‐0000 BATTERY SOCKET OUT 12 2‐3 C1507‐3JB0‐0000 BATTERY SOCKET COVER 12 4 C1802‐3JB0‐0000 BATTERY CHARGER SOCKET 12 5 I3903‐42520 ...
