Summary of Contents for Hi-Tech Trading HB-ZA310V

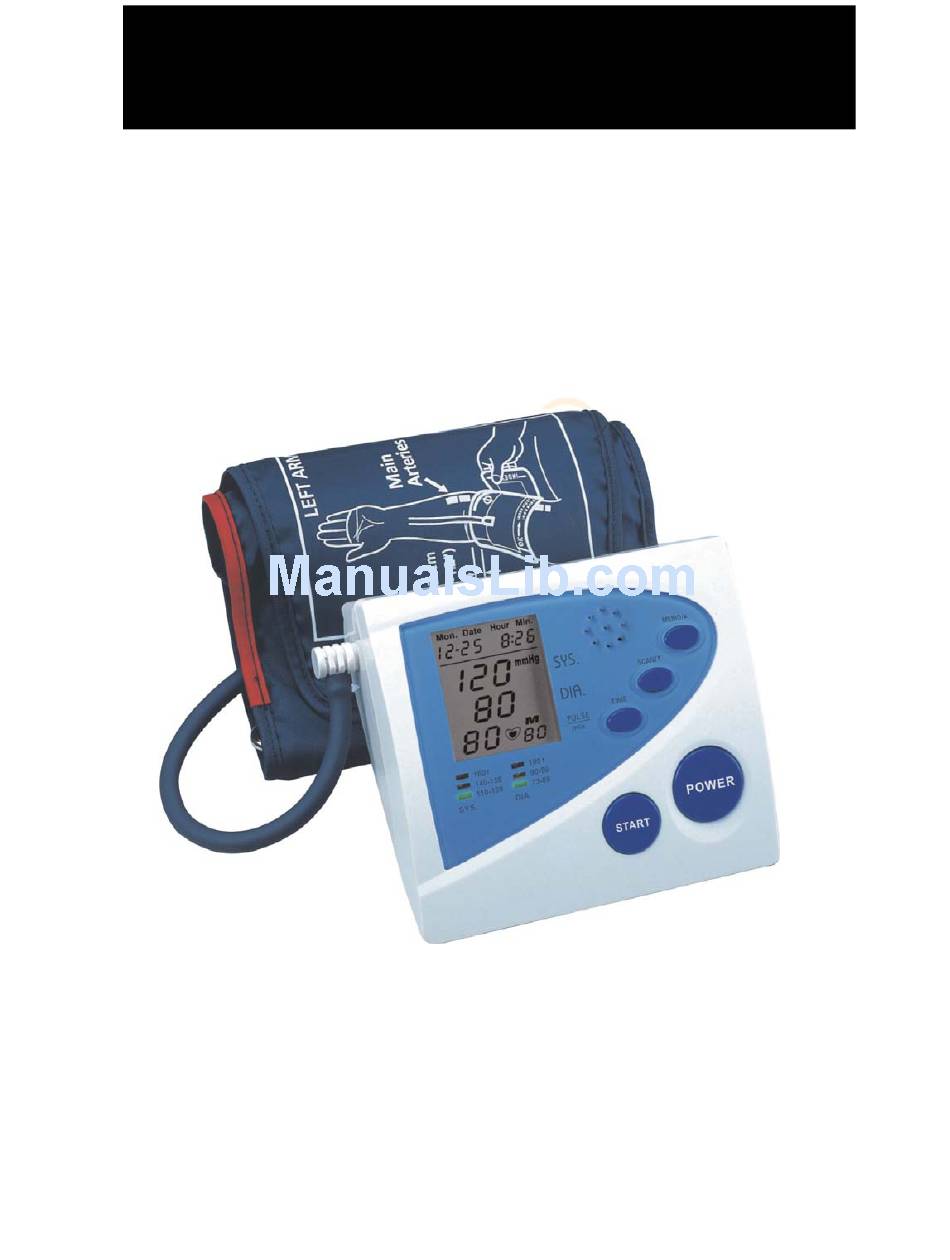

- Page 1 Instruction Manual Automatic Blood Pressure Monitor for Arm - Voice Prompt Function Announces Measured Values HB-ZA310V...
-
Page 2: Table Of Contents
Contents Introduction..…………………………………………….… 3 Warning Signs/Safety Statements ……………………… 3 Health and Blood Pressure Values …………………….. 4 What is Blood Pressure …………………………………. 4 Important Information ……………………………………. 6 Precautions ………………………………………………. 6 Contraindications ………………………………….. 7 Warning …………………………………………………… 8 Suggestions before Measuring Blood Pressure ……… 8 Device Description ………………………………………... -
Page 3: Introduction
Introduction Thank you for purchasing the ZOpid HB-ZA310V Automatic Blood Pressure Monitor. For your safety, please be sure to read this Instruction Manual thoroughly before using the Blood Pressure Monitor. For other specific information about your own blood pressure, CONTACT YOUR PHYSICIAN. -
Page 4: Health And Blood Pressure Values
Health and Blood Pressure Values Blood pressure of the human body inclines to increase naturally from middle age. This symptom is due to the continuous aging of the blood vessel. Further causes from obesity, lack of exercise, cholesterol (LDL) adhered to the blood vessels will cause the same symptom and let the vessel lose their elasticity. - Page 5 Variations in Blood Pressure: The variations in blood pressure over a whole day with measurement taken every five minutes as shown below. Classification of Blood Pressure by the WHO: The World Health Organization (WHO) and the Inter-national Society of Hypertension (ISH) developed the Blood Pressure Classification shown as below.
-
Page 6: Important Information
Important Information Blood pressure values measured at home tend to be lower than those measured in the hospital. This is caused by the fact that you are nervous when you have your blood pressure measured in the hospital, but you feel relaxed at home. -
Page 7: Contraindications
hardening of the arteries. If such conditions continue, there is an increased danger of apoplexy and coronary infarction, arterial stenosis and disorder in peripheral blood circulation. In such cases, there will be a large difference between blood pressure values taken at the wrist and upper arm. -
Page 8: Warning
Warning If the inflation continues and doesn’t stop, please untie the cuff immediately or turn off the unit by pressing the POWER button. Do not measure repeatedly for a long period of time. This device is not supposed to be used if your wrist has any wound or injury. -
Page 9: Device Description
6. Avoid urination or bowel movement before taking a measurement. 7. Wait at least 3 minutes before you take another blood pressure measurement. 8. Keep the records for your physician as reference. Reminded that one measurement can’t conclude the health of your blood pressure, only recording long-term measuring results will reveal the long-term trend of your blood pressure. -
Page 10: Description Of Control Buttons
Description of Control Buttons POWER: To turn on or turn off the unit START: Start inflating to measure blood pressure and pulse. To set the language of voice prompt or voice on/off. TIME: To set the Date/Time. ... -
Page 11: Replacing Batteries
Installing/Replacing Batteries Be sure the unit turned off before installing/replacing batteries, or the memories & Date/Time setting will be erased. If the batteries are removed for more than 30 seconds, the memories and the Date/Time setting will be erased. Then, you must reset the Date/Time. 1. - Page 12 Warning: a. Be sure to follow the instruction above when plugging the adapter and installing or replacing the batteries. b. We recommend you to use the ALKALINE batteries for the best performance and the longest device life. c. Use only brand new batteries of the required size and DO NOT mix using old and new or different type of batteries together.
-
Page 13: Voice Prompt Function
Voice Prompt Function When first plugging the adapter or installing the battery, the initial mode is voice prompt mode. While starting the unit and operating each time, there is a voice prompt to remind you. It’s especially useful to the elder or sightless man. You can turn off this function if you don’t want to hear any reminder. -
Page 14: Program Date And Time
Note: When using Voice Prompt Function, it increase the power consumption, it also reduce the life of the battery. Program Date and Time 1. Press and hold TIME button for 2 seconds until “2007” shown on the screen and starts to flash. 2. -
Page 15: How To Apply The Arm Cuff
5. In the same manner, set the Month, Date, Hour and Minute. Note: After replacing batteries, always check the Date/Time is properly set or not first, then use the blood pressure monitor. If the batteries are removed for more than 30 seconds, you must reset the Date/Time. -
Page 16: Correct Measurement Position
5. Pull the cuff so that the top and bottom edges are tightened evenly around your arm. 6. When the cuff is positioned correctly, press the sewn hook material firmly against the pile side of the cuff. 7. The cuff should be wrapped so that it fits snugly and stays in place. -
Page 17: How To Take A Measurement
Measurement while sitting down 1. Sit in a chair with your feet flat on the floor and rest your arm on a table so that the cuff is at the same level as your heart. 2. Relax your arm and turn your palm upward. 3. - Page 18 * If during deflation the blood pressure monitor senses that higher pressure is required to measure the user’s blood pressure, the device will stop deflation and pump again to reach the workable pressure (up to the max. 280 mmHg). If the inflation continues and doesn’t stop, please untie the cuff immediately or turn off the unit by pressing the POWER.
-
Page 19: How To Use The Memory Features
How to Use the Memory Features The blood pressure and pulse measured and displayed are automatically stored in the memory. The blood pressure monitor can store up to 80 measurements. If more than 80 measurements have been taken, the earliest measurement will be erased and replaced by the most recent measurement. -
Page 20: How To Delete Single Or All Memories
3. The 3 colors LED warning lights: It will indicate the status of each blood pressure measurement is Normal (green), Higher (yellow) or Abnormal High (reddish). How to delete Single or All Memories 1. Delete single measurement: You can delete the single memory just after taking the measurement. -
Page 21: Maintenance
Maintenance Storage 1. Always put the device in the storage box attached when not in use or during transporting. 2. If you won’t use the device for an extended period like over 3 months, remove the batteries. 3. Do not store the device under direct sunlight, high temperature, humid, dusty, or corrosive environment. -
Page 22: Error Message And Troubleshooting
Error Message & Troubleshooting The unit is manufactured through the complete quality assurance system. If the measurement is not made correctly, the following error will be displayed. Measure your blood pressure again correctly. ERROR MESSAGE Error Indicators Cause How to correct Incorrect posture in Cuff is not fastened measurement or the... - Page 23 Error Indicators Cause How to correct No pulse or blood Cuff is not fastened pressure sensed. correctly or not tight Incorrect posture enough; please during fasten the cuff by measurement. following the Cuff is not wrapped instructions. properly. Wait at least 3 minutes before taking another measurement.
-
Page 24: Troubleshooting
TROUBLESHOOTING Condition Cause Correction After the batteries are Batteries are not Check and correct installed, no installed properly. the battery indication or symbol Batteries run out polarities. displayed on the the electricity. Remove the old LCD. The wrong batteries and wait indication when for one minute, then power is turned on. - Page 25 Condition Cause Correction The blood pressure ----- Re-fasten the cuff. cannot be taken, and Relax yourself. the LCD shows error Keep the cuff and message or wrong heart at the same result. level during the measurement. Keep silent and still in measurement.
-
Page 26: Specifications
Specifications Model No. HB-ZA310V Display LCD Digital Display Measurement Oscillometric method Method Measurement Pressure: 20~280mmHg Range Pulse: 40~190 / minute Accuracy/ Pressure: 3mmHg or 2% of reading Calibration Pulse: 5% of reading Memory capacity 80 sets memories Inflation Automatic inflation by air pump... -
Page 27: Personal Blood Pressure's Record
PERSONAL BLOOD PRESSURE’S RECORD Name _________ Age ________ Weight _________ Date Time SYS./DIA./PULSE Remark... - Page 28 Conformity Standards: Medical device electrical safety: EN 60601-1 Electromagnetic Compatibility: EN 60601-1-2 EN 1060-1, EN 1060-3 Performance Standard: ANSA/AAMI SP10 (FDA 510K)
-
Page 29: Warranty Information
Limited 1-year Warranty Coverage: Hi-Tech Trading USA, Inc. (“HiTT”) warrants this product (“product”) against defects in materials and workmanship under normal consumer use for 1-year from the date of purchase. HiTT, at its option, will at no charge repair, replace or refund the purchase price of this product should it not conform to this warranty. - Page 30 Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2011 Hi-Tech Trading (USA), Inc. The information contained in this User Manual is believed to be correct at the time of printing. HiTT reserves the right to change or modify any information or specifications without notice.
