BQ-H210 series EXT High Speed Dome System
---------------------------------------------------------------------
User Manual
Before installing and using the High Speed Dome，Please read
these instructions thoroughly and retain them for later reference
1/17
Advertisement
Table of Contents
Summary of Contents for B-Qtech BQ-H210 series
-
Page 1: User Manual

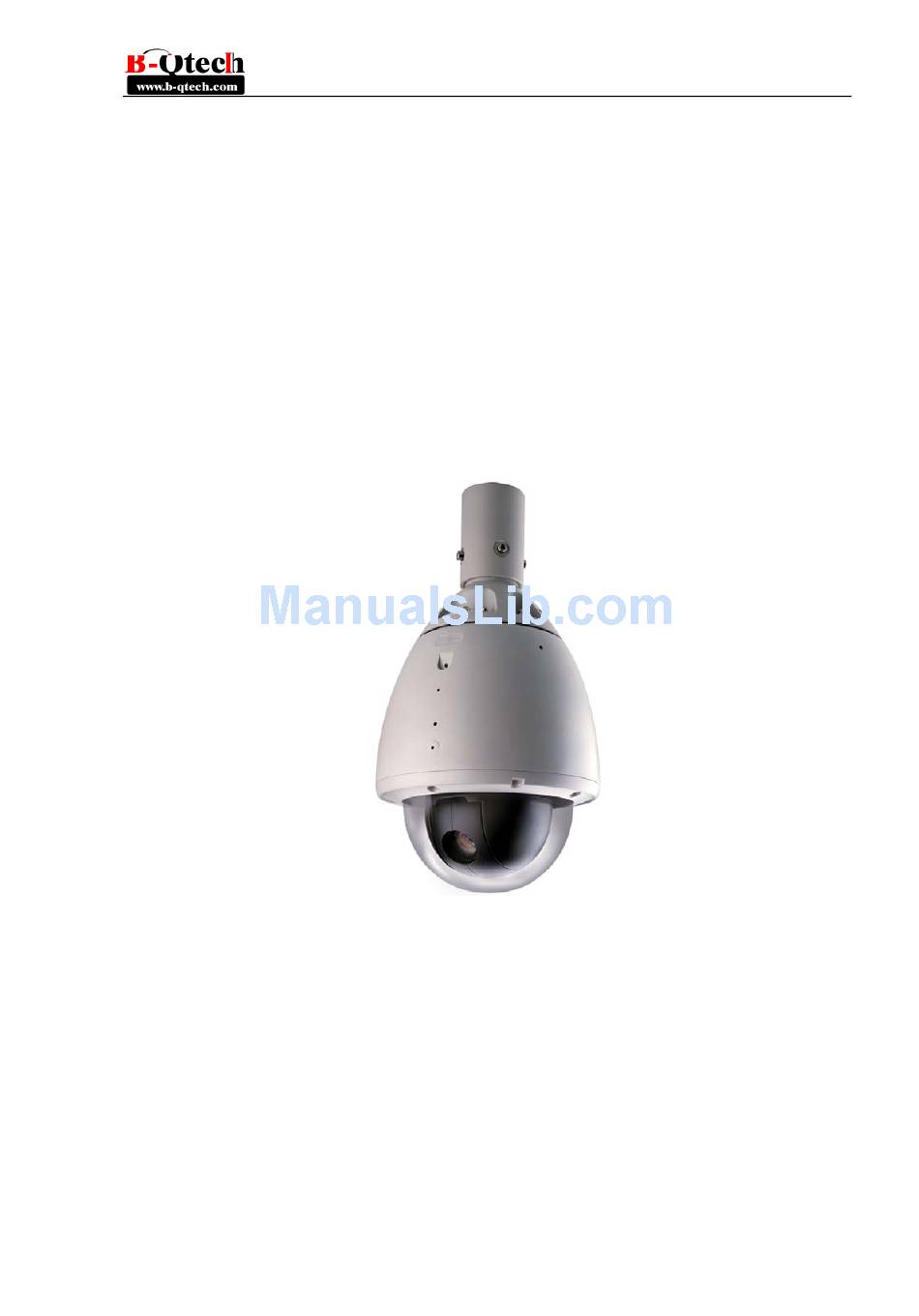

--------------------------------------------------------------------- BQ-H210 series EXT High Speed Dome System --------------------------------------------------------------------- User Manual Before installing and using the High Speed Dome，Please read these instructions thoroughly and retain them for later reference 1/17... -
Page 2: Before Installing
Before Installing Installation should be carried out only by qualified personnel and in accordance with any wiring regulations in force at the time. Please read this instruction and warnings before installing. Do not attempt to service or repair the speed domes as opening or removing covers may expose dangerous voltages or other hazards. - Page 3 Environmental requisition: Operation Temperature: -40-+60 Humidity: <90% Air pressure: 86-106Kpa Power supply: AC24V/2.5A,50/60Hz The system setting Camera and switch SW1 address switch Alarm connector 8P Short connector RS485 communication 2P AC24V power supply AUX 4P 1、 Power supply communication cable:： AC24V AC24V RS485...
- Page 4 1, Dome setting Instruction The switch setting SW1 ON=1 OFF=0 Protocol setting Baud rate setting Alarm Alarm mode DIP Switch SW1234= SW5,6= 1=Alarm 1=Always short 0000=PELCO-D/PELCO-P Auto 00=2400 enable circuit.(Alarm identify 01=4800 0=Alarm while open) 10=9600 disable 0=Always open circuit.(Alarm while short) ：...
- Page 5 ∶ ∶ ∶ ∶ ∶ ∶ Alarm 7 alarm input. The dome will alarm when alarm input port connect the GND. The AUX will be closed when has alarm, and open when on alarm in. The capacitance of the relay is AC24V/1A. The relay output: 2 relay switch AUX1, AUX2, the biggest capability is AC24V/1A.
-
Page 6: Osd Operation
High Speed Dome Ver：1 00 PELCO D P 2400 ID：001 Tilereference OK The operation way by keyboard controller Pan reference OK SONY FCB-EX480CP Function Control Level/Vertical Joystick left, right/ up and down OSD Confirm OPEN Cancel and Back CLOSE OSD Display Call 95 preset Zero Position Call 34 preset... -
Page 7: Camera Osd
2 Menu function instructions Call the number 95 preset to enter the OSD, and you also could setting the shortcut key to display the OSD. Main Menu Camera ► Pan ► Shortcut Key Self act Nothing Leisure Time Camera OSD Camera ►... - Page 8 White Balance The dome DV860 has the function of Manual White Balance and Auto White Balance. White Balance ► press OPEN key, enter the White Exposure ► Balance submenu, then change the parameter, White Balance ► Privacy ► WB Mode Auto 白平衡模式...
-
Page 9: Others Of The Camera Menu
Exposure ► operate the joystick to let the cursor come to Privacy press OPEN to enter the submenu, then set the parameter. There are 4 Privacy masks, they have the same operation. 1, Set privacy mask Privacy1 Privacy2 At the submenu of the Privacy, press OPEN key to enter Privacy3 the adjust image, adjust the privacy zone by Privacy4... - Page 10 The three items under Camera Mode Exec is opposite the three modes above. Move the cursor to the mode you want to call and press OPEN to confirm and back. The saved mode could be called by the shortcut preset: Night Mode1—call 101 preset, Night 2---- call 102 preset. Zoom Speed At the submenu of Exposal, move the cursor to Zoom Speed, press OPEN, the cursor will change to , then the parameter can be changed.
-
Page 11: Sony Camera Menu
presets 9-16, the preset scan line 3 will cruise from presets 17-24, and the preset scan line 4 will cruise from 25-32. Every line will back the first preset when it met the point never be set, and it will quit cruise if the first preset is not be set. - Page 12 Digital Zoom On(On/ Off) Auto ICR Off(On/ Off) Other Off(On/ Off) Display Off(On/ Off) Camera Model Save： Day Mode Night Mode 1 Night Mode 2 Camera Model Camera Model Exec Day Mode Night Mode 1 Night Mode 2 Zoom Speed 005(001~007) Focus Speed 001(001~007)
- Page 13 Confirm NEAR Cancel and Back Joystick Control the cursor up and down or setting the parameters ► Which have submenu, and press FAR key to enter. Currently menu. HITACHI CAMERA MENU Menu Submenu Third Menu Parameter Exposure Exp Mode Auto(Auto/AE DSS) Back light Off(On/Off) BLC Level...
-
Page 14: Cnb Camera Menu
Preset scan 3 Preset scan 4 Auto Scan Nothing (Nothing , Home ,A Scan,P Scan1,P Scan2,P Self act Scan3, P Scan 4, Pattern1,Pattern2,Pattern 3) Leisure 030(001~014) CNB CAMERA Camera switch set up: Note: Please check the camera switch which on the PCB, it must be switched as below: CAMERA switch switch... - Page 15 SHARTNESS 25(0～48) FOCUS PUSH(PUSH/AUTO) INIT SET OFF(ON/OFF) Home place OFF(001-032,OFF) AS speed 060(000-080) PS1 Speed 120(100-120) PS1 time 005(005-120) PS2 Speed 120(100-120) PS2 time 005(005-120) PS3 Speed 120(100-120) PS3 time 005(005-120) PS4 Speed 120(100-120) PS4 time 005(005-120) Auto Flip On(On/Off) Open Menu Auto Flip Reference...
- Page 16 NOT USE Can’t be use Have submenu and back OSD Format OSD show position FUNCTION OSD Format Description Remarks Non display Auto Mode Focus Mode Manual/ Push Auto mode Non display Back Light OFF Back Light BLC ON/ Auto BLC Mode “BL’’display Non display Normal Shutter：NTSC：1/60...
- Page 17 Gain 001(0~15) Bright 015(0~18) Back Light OFF(ON/OFF) Slow Shutter OFF(ON/OFF) WB Mode Auto( Auto，Manual；ATW，OPW，Outdoor，Indoor) White Balance R Gain 210(0~255) B Gain 175(0~255) Privacy1 Privacy2 Privacy Privacy3 Privacy4 Digital Zoom On(On/ Off) Auto ICR Off(On/ Off) Other Off(On/ Off) Display Off(On/ Off) Camera Model Save：...
