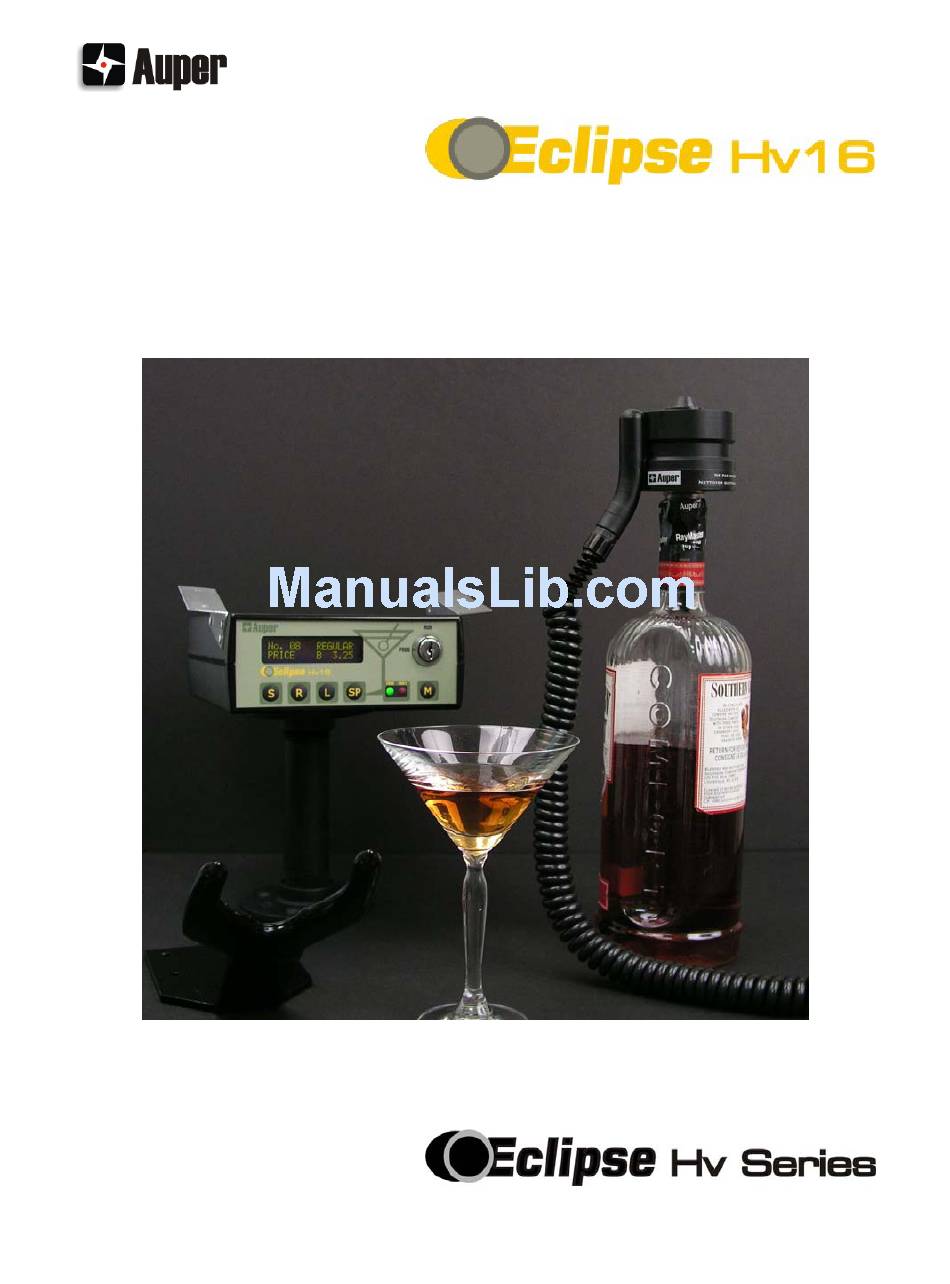

- Page 1 Category liquor dispenser User Guide...
-
Page 2: Table Of Contents
Hardware Warranty .......................19 Part List..........................20 Annexe: PROGRAMMING AND OPERATING FLOW CHART ........21 Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 3: General Information
1.1. Pour sizes When setting up the Eclipse HV16, you can program up to 4 portions per pourer number. The portions are selected and calibrated according to the cocktail recipes. Some brands will require all four pour sizes while others may require only one. -
Page 4: System Maintenance
SRP-270 serial printer (part # 70-400). The printer is connected directly to the liquor system using the 10ft cable (part # 70-410) supplied (by Auper) with the printer. This printer is pre-configured at the factory and is ready to print when you receive it. -
Page 5: Installation
The battery back up of the UPS will stabilize the 120 Volts power to the Eclipse. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 6: Installing The Barcode Labels
Allow 24 hours for the glue to stick well before soaking the pourer in water. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... - Page 7 Eclipse Hv 16 Installation guide I80H016E Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com...
-
Page 8: Installing The Pourers
The air inlet on Auper pourers is located between the base of the pourer and the cork as shown on the picture. The air enters the bottle through this hole and finds its way inside though the breather tube. -
Page 9: Programming The Pour Sizes And Price
00B is the barcode number and B identifies the pour size button, R. (A=S, B=R, C=L, D=SP). Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 10: Testing The Pour Sizes
This is the pour mode, to select a portion press S, R, L or SP. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 11: Operation Of The Hv 16
Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 12: Pour Spout Operation
Always terminate the pour sizes and allow the last drops to pour in the glass. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 13: Installing The Printer
5. Installing the printer If you are using a printer supplied by Auper Electronic Controls Inc, the printer settings have been set at the factory and the cable is already installed. -
Page 14: Automatic Sales Transaction
LDS. At the end of the shift, the POS prints a report listing drinks poured and not posted and vice-versa. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 15: Flow Of Data
ACK signal (06) is sent to the Eclipse to pour the drink. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 16: Hv 16 Plu Table
1301 1302 1303 1400 1401 1402 1403 1500 1501 1502 1503 Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 17: Trouble Shooting The Interface
F. Invert the ring to pour. If the drink pours normally, repeat these steps for other spouts you had problems with. G. If the drink does not pour as expected, call your Auper distributor for service. If you have established that the Eclipse is pouring normally without the interface it means: 1. -
Page 18: Dispensing Liqueurs
Hold the pourer side ways with the air admission hole facing up. Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 19: Testing Pourers
NEVER hit the activator ring or use it to break ice. (This would temporarily fragment the tilt switch rendering the system unusable for a while) Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 20: Hardware Warranty
Auper Electronic Controls Inc. warrants that this product is in good working condition, according to its specifications at the time of the shipment, for a period of one (1) year from the date of purchase. Should the product, in Auper Electronic Controls Inc opinion, malfunction within the warranty period, Auper Electronic Controls Inc. -
Page 21: Part List
Eclipse maintenance video on CD 80-855-CD I80Hv016E (I80Hv016F) Eclipse Hv100 User guide English (French) Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 22: Annexe: Programming And Operating Flow Chart
Eclipse Hv 16 Installation guide I80H016E Annex: PROGRAMMING AND OPERATING FLOW CHART Toll free : 1-800-861-1620 Phone : (450)663-1993 Fax : (450)663-0636 Web site : www.bar-controls.com Auper Electronic Controls Inc 901 Michelin, Laval, Quebec , Canada H7L 5B6 Email : auper@bar-controls.com... -
Page 23: Program Mode
PRICE 12C 00.00 or down. To select the digit to edit. PRICE SETTING: PRICE 02D 00.00 To change the selected digit going PRICE SETTING: PRICE 02D 04.00 March 2007 More information about Auper products at www.bar-controls.com Page 1 of 3... - Page 24 Enter pour size desired as default pour size. REGULAR Program mode is complete. Pressing M will loop back at Pour size timer. Turn key to RUN mode. March 2007 More information about Auper products at www.bar-controls.com Page 2 of 3...
