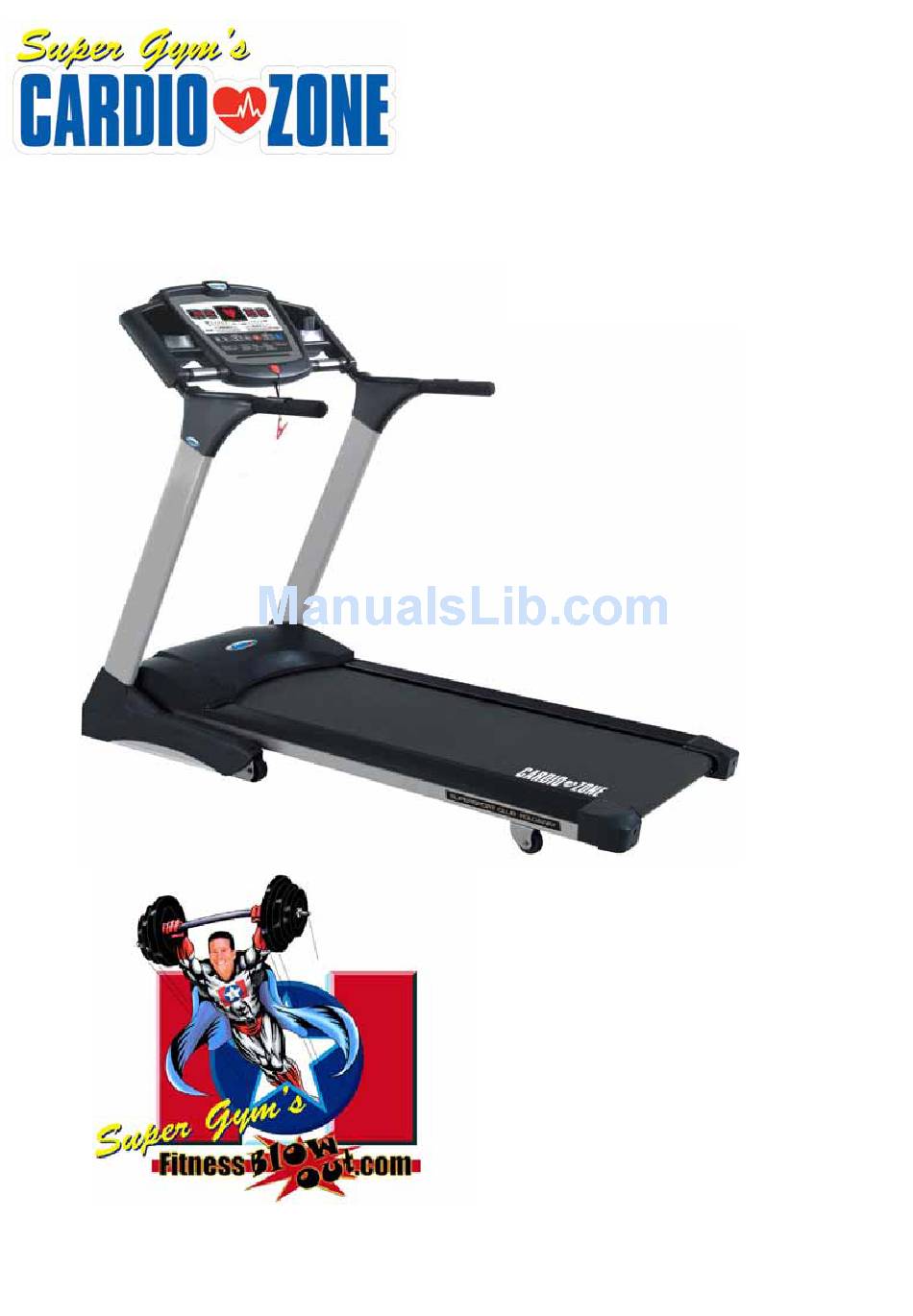

- Page 1 SuperSport™ Club Fold-Away™ OWNER’S MANUAL Super Gym’s FitnessBlowout.com 2210 S. Sepulveda Blvd. Los Angeles, CA 90064 Phone: 800-FIT-4-LESS or 800-348-4537 Fax: 310-235-2008...
- Page 2 ongratulations for selecting Super Gym’s CardioZone as your primary source of fitness. CardioZone treadmills offer many exercise programs that benefit users of all levels and ages. The treadmill is designed to make your workouts more effective and enjoyable. Please read this manual carefully before using your CardioZone SuperSport™ Club. This will allow you to get a full understanding of all the features that CardioZone treadmills provide.
- Page 4 SECTION PAGE 1. OVERVIEW DRAWING..................4 2. IMPORTANT SAFETY INSTRUCTIONS .............. 5 3. GROUNDING INSTRUCTIONS ................6 4. MOTORIZED TREADMILL PRE-ASSEMBLY............. 7 5. ASSEMBLY STEPS ....................8 6. CAUTIONS ......................11 7. MAINTENANCE ..................... 12 8. COMPUTER INSTRUCTION ................. 13 9.
- Page 6 When using an electrical appliance, basic precautions should always be followed, including the followings: Read all instructions before using the treadmill. DANGER – To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
- Page 7 SAVE THESE INSTRUCTIONS This product must be grounded. If malfunction or breakdown occurs, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 8: Handrail Control Button And Heart Rate Strap Are Optional Items In The Package
Handrail control button and heart rate strap are optional items in the package 1.Heart rate can be measured in this treadmill. Attach strap to chest during exercise, the heart rate value will display on the PULSE window. 2. Except using the control button on the console, the control button on the handrail can also be used to adjust speed and elevation. - Page 9 Two people are requested for all assembly steps (Please note: please follow each step of the assembly instruction.) 1. First tighten the bottom control wire to the plastic wire protection sleeve by pulling the guide wire inside the right upright tube (D). And position it to the side round hole in the right upright tube, then insert the upright tubes (C, D) into the two locations (as the direction arrows shown in the...
- Page 10 3.Computer assembly: Please connect the control wires between handrails (L&R) and computer. Then, put handrail (G and H) according to arrow's direction into the computer (A) (Ps1. When assembly, make sure that the holes of left, right handrails are in alignment.) (Ps2.
- Page 11 5. Then, press left screw cover and right screw cover (I and J) into place and secure them with 2 (d) screws. 6. Finally secure water holder (K) on computer console, then the assembly is completed.
- Page 12 Note: The cylinder contains high pressure; please avoid contact with any objects. Note: If the cylinder were damaged, the frame would not be stable and may cause serious danger during folding up process. This treadmill have the foldable mechanism for storage, when storage must stop all movement (include treadmill belt stop, take off the power cord), then pull out the Pop-Pin according to arrow’s direction, then lift up the...
- Page 13 1. If the Walking Belt tracks off center to the right or left of the deck, first turn the power off. Then use a 6mm wrench (f) to tighten the rear roller bolt on the side of the treadmill toward which the belt is moving. example, if the belt moves to the left and the deck becomes exposed on the right, tighten the bolt on the left side of the frame.
-
Page 14: General Operation
I. General operation Turn on the On-off switch. Put the safety key into the recess of the console. The beeper will make an alerting sound, meanwhile the dot matrix LED light will be blinking, program light will blink to lead user; this means the treadmill is ready to start. - Page 15 STOP, to pause motions of the treadmill and values on the computer console and will remain paused for 60 seconds, after 60 seconds all values will return to zero including the inclination which means its back to the ready-start stage. If press twice, and hold for 3 second for the second attempt, the computer will automatically RESET...
- Page 16 degree for time setting is 1 minute. When time is up, the speed and inclination value will be changed directly. (When operating, press can control the speed increase/decrease and the inclination angle bigger or smaller directly as your wish ) 3.5.
- Page 17 P4 FAT BURN P3 CARDIO P5 HILL INTERVALS...
- Page 18 4. HRP function (This function must be operated with heart rate strap.) 4.1 The purpose of this program is self-training based on heart rate. During the training, when heart rate of runner achieves the preset heart rate, the speed and elevation are kept within a certain range for best training effort.
- Page 19 III Body Fat Measurement 1. Press to start the function. 2. Please enter your Age , Sex , Height and Weight Press to change the value. After entering each value, press to confirm, and continue next value setting. 3. While selecting the function, the program requires you to enter the below values: *Age Preset 30 Range 13~80 Step = 1...
- Page 21 – ™ Item Qty Item Computer Console Sensor (Round) Water Holder Tray Bolt Bolt K-299 Wire Button Handler Upper Cover (L) P-1102L Bolt Handler Upper Cover (R) P-1102R Bolt Handler plate NO.2405 Belly Pan Bolt Bolt M8xP1.25x50(25m Handler Bottom Cover (L) P-1099L Cushion Handler Bottom Cover (R)
-
Page 22: Error Message
ERROR MESSAGE PROBABLE CAUSES SOLUTION - Loss of Feedback Speed Sensor disconnected Check Speed Sensor Connection - Running Deck Running Deck not lubricated Check R-Deck oil Speed Sensor misaligned Check Sensor position Speed Sensor Faulty Replace S-Sensor Loose Display Cable Check Display Cable connection Faulty MCB... - Page 23 ERROR MESSAGE PROBABLE CAUSES SOLUTION - Safety Key Off Safety Key Faulty Check Safety Key or Switch - Elevation Motor Elevation Motor not moving Check Elevation Motor connection - Stalled Elevation Elevation Motor screw binding Clean screw and lubricate Elevation Motor out of Range Check Zero Position of E-Motor E-Motor Potentiometer...
-
Page 24: Usa Warranty
USA Warranty Warranties may vary in other countries. Please register your warranty at http://www.fitnessblowout.com/warranty SUPER GYM’S FITNESSBLOWOUT.COM extends the following exclusive, limited warranty of CARDIOZONE, which shall apply only to the use of the device in the home, for residential, non-commercial purposes only unless otherwise stated in writing. -
Page 25: Exclusions And Limitations
EXCLUSIONS AND LIMITATIONS This warranty applies only to the original owner and is not transferable. This warranty is expressly limited to the repair or replacement of a defective Frame, Electronic component, or defective part and is the sole remedy of the warranty. The warranty does not cover normal wear Super Gym’s FitnessBlowout.com expressly disclaims all other warranties, express or implied, including but not limited to all warranties of fitness for a particular purpose or of merchantability.
