This is a Surge Protection device for HD SDI Cameras, video switches, segmentation and
monitoring equipment.
Features
According wih the standards of GB18802.1, GB/T 18802.21
Transmission Rate: 270M~1.485G
Resisting Surge above 6KV
Discharging Current can achieve 10KA
Reaction Speed is 1 uS
Outstanding HD-SDI Video Output Signal Quality
Less than 0.05UI Superposition Jitter
Excellent Eye Pattern performance
Transmission rate: 270M~1.485G
Ta≤1us, Up≤10KV, Isn≤5KA
Copyright © 2012 by AAS Technology
www.AAS.com.tw

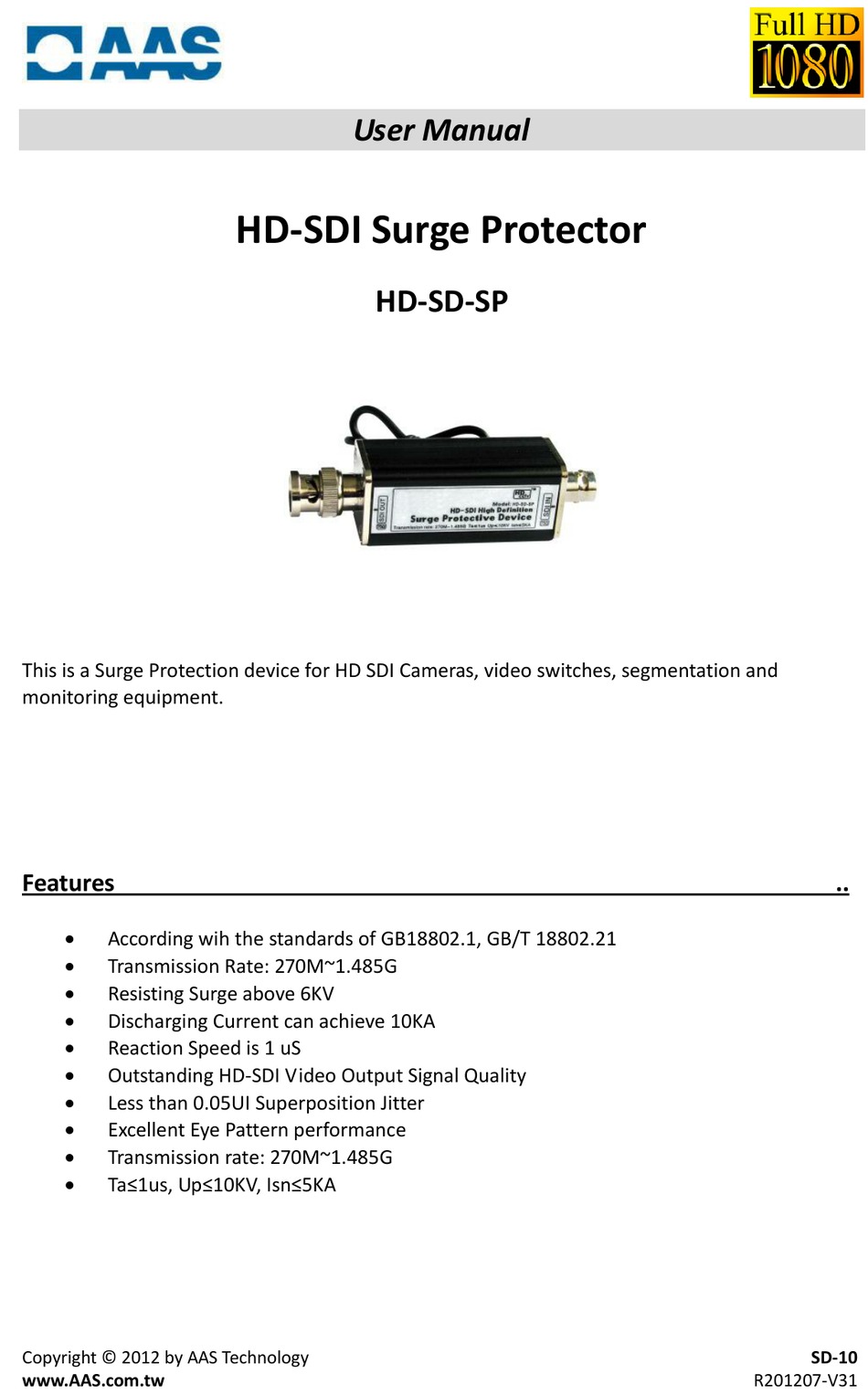

User Manual
HD-SDI Surge Protector
HD-SD-SP
..
SD-10
R201207-V31
Advertisement
Table of Contents
Summary of Contents for AAS HD-SD-SP
- Page 1 Reaction Speed is 1 uS Outstanding HD-SDI Video Output Signal Quality Less than 0.05UI Superposition Jitter Excellent Eye Pattern performance Transmission rate: 270M~1.485G Ta≤1us, Up≤10KV, Isn≤5KA Copyright © 2012 by AAS Technology SD-10 www.AAS.com.tw R201207-V31...
- Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Package Contents
Left Side View: Right Side View: SDI IN SDI OUT Application Diagram Note: If you only use one (1) HD-SD-SP, please place it closer to the DVR See page 4 for Important Notes about Cable and Connector for SDI HD Camera... -
Page 4: Technical Specifications
Technical Specifications Model HD-SD-SP Connectors SDI Impedance 75 Ohms Connector/Coax Return Loss Return Data Throughput 270Mbps, 1.485Gbps Resisting Surge < 6KV Discharging Current 10KA Reaction Speed Operating Temperature 0°C ~ 50°C / 32°F ~ 122°F Storage Temperature -20°C ~ 60°C / -4°F ~140°F... -
Page 5: Limited Warranty
Limited Warranty LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Manufacturer is free of defects in materials and workmanship under normal and proper use for one (1) year from the purchase date. - Page 6 SD/HD/3G-SDI to HDMI Converter HD-SD-HDMI This Standard Series device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signal. It integrates SDI Cable equalizer and reclocker to enhance video performance and stability. Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output to analog audio DACs.
- Page 7 SD/HD/3G-SDI 5.7” LCD Monitor Tester with HDMI Output HD-LCD57-HDMI This device offers the highest compatibility among SDI, including SD/HD/3G formats. For 3G-SDI can display up to 8 channel audio bars to indicate the embedded digital audio channel in SDI stream. Mini SD/HD/3G Pattern Generator Tester with Serial Control HD-PG-RS232 This device is an advance SDI pattern generator with multi-format...
- Page 8 MADE IN CHINA Copyright © 2012 by AAS Technology SD-10 www.AAS.com.tw R201207-V31...
