USER'S MANUAL

CHALLENGER SPORT

RECREATIONAL ELECTRIC SCOOTER

MODEL: J55

Please read this manual completely before riding your scooter

www.challengermobility.com

Table of Contents

Need help?

Do you have a question about the J55 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHALLENGER SPORT J55

Page 1 USER’S MANUAL CHALLENGER SPORT RECREATIONAL ELECTRIC SCOOTER MODEL: J55 Please read this manual completely before riding your scooter www.challengermobility.com...
Page 2: Table Of Contents
Table of Contents Introduction Safety Notices III. Scooter Components Overview Handlebar Display Operation 8-14 Batteries & Charger 15-16 VII. Care & Maintenance 17-18 VIII. Basic Troubleshooting Technical Specifications 20-21 Limited Warranty 22-23 Product Registration...
Page 3: Introduction
These include: lights, turn signals, and alarm system, horn, and easily accessible charging port and much more. In order to get the most of your Challenger Sport, please read and follow all instructions, warnings, and notes in this owner’s manual and all other accompanying literature before using it for the first time.
Page 4: Safety Notices
Safety Notices Read the Owner’s Manual Do not operate your Challenger Sport Scooter for the first time without completely reading and understanding this owner’s manual. The user should be familiar with the operation of this scooter, and keep the safety notices in mind.
Page 5 Do not use your scooter under any of these circumstances:  The road is muddy or has loose gravel  The road is bumpy, narrow, or snow covered  The road is beside a canal or waterway without fencing or hedges ...
Page 6: Emi Warning
EMI Warning This scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions.
Page 7: Scooter Components Overview

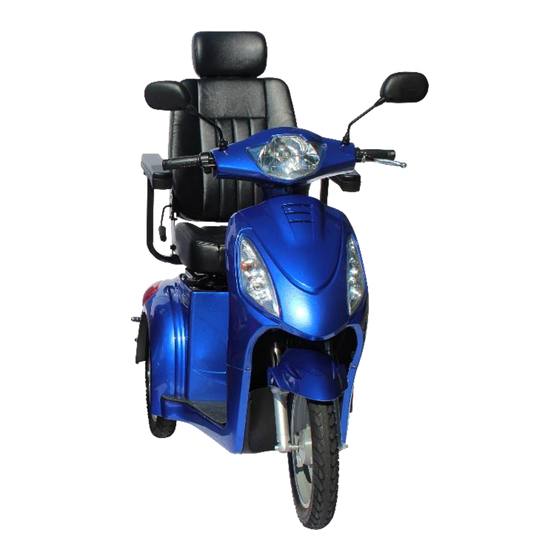

Scooter Components Overview Figure 1 1. Black Vinyl High Back Seat 2. Seat Headrest 3. Rear Basket 4. Headlights 5. Rear View Mirrors 6. Sliding Seat Handle 7. Flip-Up Adjustable Armrests 8. Front Tire 9. Rear Tires 10. Rear Bumper 11.
Page 8: Handlebar Display
Handlebar Display Figure 2 1. Power Mode (Low/High) Switch 2. Speed Control Knob (Turtle/Rabbit) 3. Forward Gear Switch 4. Reverse Gear Switch 5. Turn “off” the Lights 6. Turn “on” the Speed Meter Light and Rear Lights 7. Turn “on” the Headlight, Speed Meter Light and Rear Lights 8.
Page 9: Operation
Operation HOW TO OPERATE YOUR SCOOTER When you receive the scooter, please try to turn on the power switch first POWER SWITCH Turn the key switch to power ON or OFF. Figure 3 Scooter power switch: 1. turn “on” the power 2.
Page 10: Riding Your Scooter
MOVING AND STOPPING The driving speed of the scooter is set via the speed control knob located on the control panel. When the knob is turned to a position, the scooter will drive only at the speed indicated by the knob. The scooter will travel faster the farther the knob is turned clockwise.
Page 11 WARNINGS:  Do not turn the power switch to OFF while driving, as this will lead to a sudden, potentially dangerous stop  Do not set to the highest speed while driving indoors.  Do not adjust the speed dial while driving, the sudden change in speed may endanger you and cause your scooter to malfunction.
Page 12 SLIDING CAPTAIN SEAT The scooter seat will slide forward or backward with a gentle push, by pulling the handle under the front right hand side of the seat. It will lock in place once you push the handle back. Be sure the seat is locked before driving. The seat back is reclining to different positions.
Page 13 BATTERY GAUGE When the power switch is turned on, the battery gauge indicator needle will move up from “L” to “H” to indicate the power remaining in the batteries. The “H” green area indicates a full charge from the batteries. The “L” orange and red area indicates it is time to recharge.
Page 14 ACCESSING THE REAR COMPARTMENT In order to access the rear compartment area, move first the scooter seat forward. Then using the ignition key open the rear compartment lock and flip the seat up. You can turn there the circuit breaker “on” or “off”, or you can replace the batteries. Figure 8 1.
Page 15 FREEWHEEL MODE The drive freewheel lever (yellow lever) is located at the rear section of the scooter; and can be reached through the right rear tire. This lever allows you to disengage the drive mechanism (neutral) and push the scooter while in freewheel mode. To disengage the drive mechanism (neutral), push the lever up (Figure 10).
Page 16 ALARM SYSTEM The Challenger Sport is equipped with a sensor that can detect any slight vibration and movement, and it automatically produces a 110 decibel warning sound that is sure to catch the attention of anyone nearby. Figure 12 1. “LOCK” button 2.
Page 17: Batteries And Charger
Batteries and Charger CHARGING THE BATTERIES Be sure to follow the procedures below accordingly. 1. Turn the scooter key switch to “OFF”. 2. Open the charging socket cap on the scooter’s cover then connect the charger’s plug to the charging socket. 3.
Page 18 WARNINGS Please follow the rules below to avoid accidents while charging. 1. Please use the Challenger Sport scooter’s charger only and charge the batteries completely every time. The batteries might be damaged if you use a charger which is not compatible.
Page 19: Care & Maintenance
Care & Maintenance DAILY CHECKING Check the following items before driving. If you find anything abnormal, go to or call your scooter dealer for further inspection before using it. Speed Dial Can it be adjusted freely and function well? Throttle Lever Does the scooter move when the lever is engaged? Does the scooter stop when the lever is...
Page 20 MAINTENANCE 1. You must maintain the scooter frequently if you drive on grass, sand, or gravel roads. 2. Do not use water, oil or other chemical solutions to clean your scooter. Be sure NOT to spray the scooter with water to prevent damaging the electronic components and printed circuit board.
Page 21: Basic Troubleshooting
Basic Troubleshooting CIRCUIT BREAKER Your scooter is fitted with the latest in electronic controls that are programmed to protect the electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker, should there be a situation that your scooter stops for no apparent reason please check that the circuit breaker has not popped out.
Page 22: Technical Specifications
Technical Specifications Model Name Challenger Sport Model Number Maximum Weight Capacity 330 LBS. Maximum Speed * 15 MPH Maximum Range/Charge * 30 Miles Turning Radius 58” Max Recommended Climbing Angle 10º Ground Clearance of Mid Frame 4.5” Overall Length 60”...
Page 23 1.28 Horsepower Drive System Rear Wheel Drive Brakes Electromagnetic with emergency drum brake Reverse Freewheel Mode Suspension Front & Rear Lights Hi/Low Beam Headlight, Brake lights, Independent Right & Left turn signals Total weight (with batteries) 243 lbs. Gross Shipping Weight 278 lbs.
Page 24: Limited Warranty
Limited Warranty THREE-YEAR LIMITED WARRANTY Three (3) years from the date of purchase on all structural frame components; including platform, seat post, and frame. ONE-YEAR LIMITED WARRANTY One (1) year from the date of purchase, if any part or electronic component of the Scooter is found upon examination to be defective in material and or workmanship, it will be repaired or replaced, at Challenger Mobility option, without charge.
Page 25 WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter. This Warranty excludes:  Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, throttle, brakes, motor brushes, fuses, plastic shrouds and footrest covers, etc.) ...
Page 26: Product Registration
Product Registration CHALLENGER SPORT RECREATIONAL ELECTRIC SCOOTER MODEL Scooter Serial Number Date Purchased Owner’s Name Address Street: City: State: ZIP: Phone: E-mail Address: Dealer’s Name Dealer’s Phone Comments Mailing address 8135 State Road 52 - Hudson, FL 34667 Fax Number (727) 597-8454 Toll Free Number 1-888-364-3813 www.challengermobility.com...
