INSTALLATION & OPERATING
INSTRUCTIONS
DAKOTA
OUTDOOR GAS APPLIANCE
WARNING!
!
WARNING
12/03
4036-905 Rev A
1

Advertisement

Table of Contents
loading

Summary of Contents for Heat & Glo LifeStyle Dakota

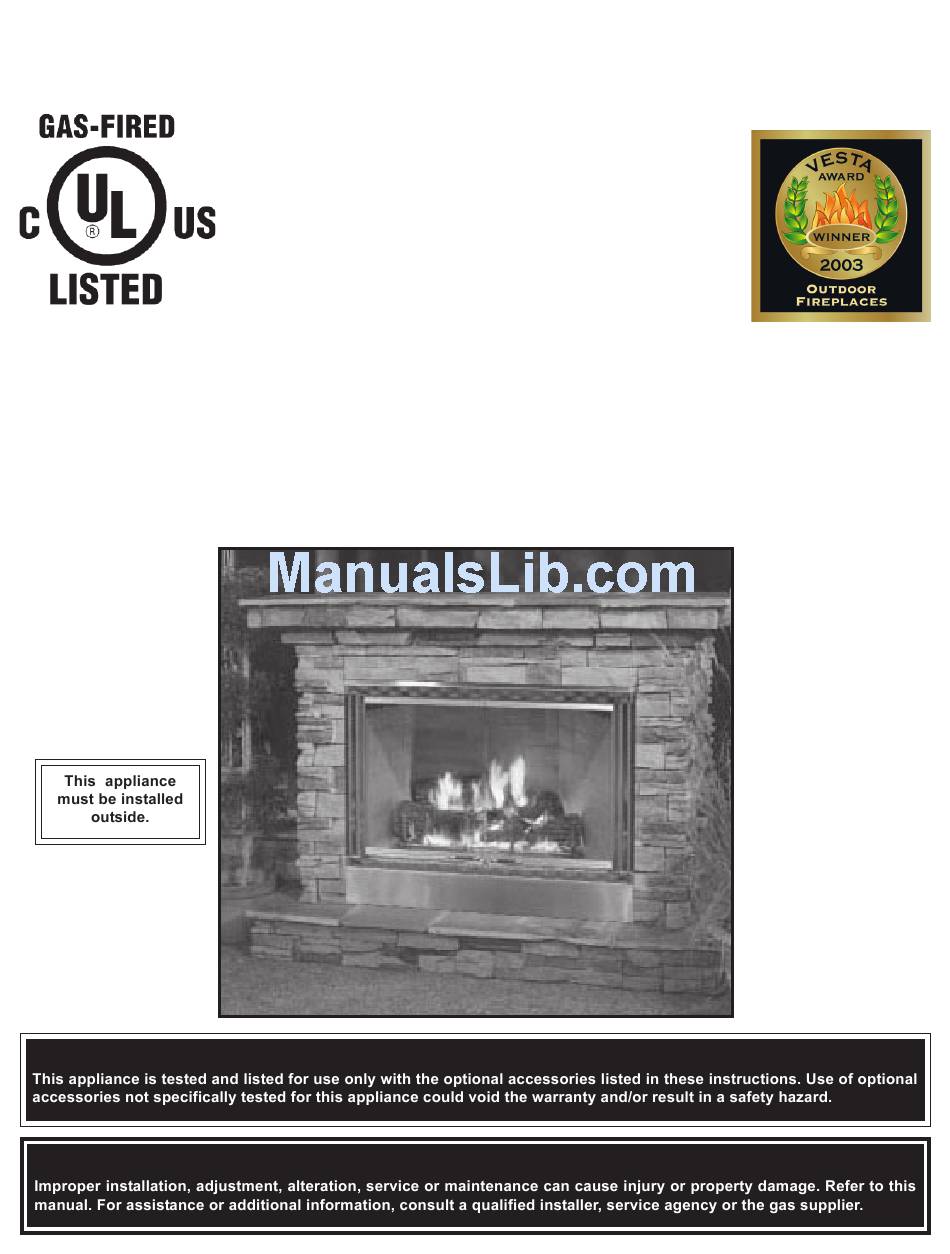

  • Page 1 INSTALLATION & OPERATING INSTRUCTIONS DAKOTA OUTDOOR GAS APPLIANCE WARNING! WARNING 12/03 4036-905 Rev A...
  • Page 2: Table Of Contents

    DAKOTA INSTALLATION INSTRUCTIONS Table of Contents A. Listings and Code Approvals ................................2 B. Description of the Appliance ................................3 C. Replacement Parts/Exploded View ..............................4 D. Locations and Clearances ................................8 E. Appliance preparation ..................................11 Utilities ......................................12 G.
  • Page 3: Description Of The Appliance

    DAKOTA INSTALLATION INSTRUCTIONS B. DESCRIPTION OF THE APPLIANCE 1. THE DAKOTA GAS APPLIANCE SYSTEM CONSISTS OF THE FOLLOWING: Dakota Gas Appliance/Grate Refractory Glass Doors Logs & Burner Assembly Valve Assembly 2. OPTIONAL COMPONENTS INCLUDE: FPS-DAK - Fireplace Surround FPS-DAK-C - Corner Fireplace Surround...
  • Page 4: Replacement Parts/Exploded View

    DAKOTA INSTALLATION INSTRUCTIONS C. REPLACEMENT PARTS/EXPLODED VIEW 4036-905 Rev A 12/03...
  • Page 5 DAKOTA INSTALLATION INSTRUCTIONS 9r†p…vƒ‡v‚Ã‚sÃQh…‡ Æ 96FPU6 R‡’ 9‚‚…Ã6††r€iy’Grs‡ #"%% 9‚‚…Ã6††r€iy’Svtu‡ #"%$(( " 7‚‡‡‚€ÃD‡hxr #"%!## 9‚‚…ÃB…vyyrÃ7h…†Grs‡ #"% ! 9‚‚…ÃB…vyyrÃ7h…†Svtu‡ #"% " U‚ƒÃ@‘uhˆ†‡ #"% ## & Bh†ÃC‚‚q #"% &# 9‚‚…ÃT‡‚ƒÃÃ7‚‡‡‚€ #"% ( TvqrÃSrs…hp‡‚…’Ã8‚‰r…† #"% "" B…h‡rÃSr‡hvr…Ã8yvƒ !&(&' Sr‡hvr…Ã7hpxÃSrs…hp‡‚…’ #"% ! Crh…‡uÃSrs…hp‡‚…’ÃU…hqv‡v‚hyÃ7…vpx #"%&# "...
  • Page 6 DAKOTA INSTALLATION INSTRUCTIONS 4036-905 Rev A 12/03...
  • Page 7 DAKOTA INSTALLATION INSTRUCTIONS Æ 9r†p…vƒ‡v‚Ã‚sÃQh…‡ 96FPU6 R‡’ "% #!  " %ÅÃAyr‘ÃGvrÃ6††r€iy’ÃXÃÃWhy‰rÃhqÃ8‚ˆƒyr… "& %ÅÃAyr‘ÃyvrÃ$'Ãqvh #!  "" "' PIPAAÃWhy‰r #!  $ "( 8‚ˆƒyr…ÃÃ"'ÃHhyrÃIQUÃÃ&'ÃT6@ÃAyh…r #!  # Why‰rÃ7…hpxr‡ #"% "' Why‰rÃIB $("$ Why‰rÃGQ $("$ 8‚‡…‚yÃH‚qˆyr $("$(! #" Xv…rÃCh…r†† #!  % 7h‡‡r…’ÃQhpx...
  • Page 8: Locations And Clearances

    DAKOTA INSTALLATION INSTRUCTIONS D. LOCATIONS AND CLEARANCES 1. APPLIANCE LOCATIONS AND SPACE REQUIREMENTS This appliance is intended for installation on an outdoor patio or in your yard. It must be installed inside of the warm air envelope of your structure. Figures 2 and 3 show typical installations.
  • Page 9 DAKOTA INSTALLATION INSTRUCTIONS 12/03 4036-905 Rev A...
  • Page 10 Assemble the prefab enclosure as described in the installation instructions included with the enclosure. 3. BUILDING AN OUTDOOR ENCLOSURE The Dakota gas appliance will fit a framed opening of 49” wide x 43 ” tall. The finished cavity depth must be no less than ”.
  • Page 11: Appliance Preparation

    DAKOTA INSTALLATION INSTRUCTIONS E. APPLIANCE PREPARATION Installation should be done by a qualified technician! WARNING! 1. REMOVE THE LOGS AND EMBER BED Open the doors by sliding the handles toward the outside edges of the doors. Remove the ember bed from in front of the grate.
  • Page 12: Utilities

    DAKOTA INSTALLATION INSTRUCTIONS F. UTILITIES 1. HIGH ALTITUDE INSTALLATION For U.S. Installation, appliances are tested and approved for elevations from 0-2000 feet. When installing this appliance at an elevation above 2000 feet, National Fuel Gas Codes require a decrease of the input rating by changing the existing burner orifice to a smaller size.
  • Page 13 DAKOTA INSTALLATION INSTRUCTIONS WARNING! Note: This appliance and its manual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa). The appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
  • Page 14 DAKOTA INSTALLATION INSTRUCTIONS This appliance is equipped with an intermittent pilot control valve which operates on a 3 volt system. See wiring diagram, Figure 10. The appliance is supplied with a battery pack switch and a 5 ft. lead on a wiring harness. The battery pack requires two D cell batteries (not included).
  • Page 15: Install The Appliance

    DAKOTA INSTALLATION INSTRUCTIONS G. INSTALL THE APPLIANCE 1. POSITION THE APPLIANCE CLEARANCES! This appliance may be placed on either a combustible or noncombustible continuous flat surface. Follow the instructions for framing in “Building an Outdoor Enclosure” if the FPS prefab enclosure is not used.
  • Page 16: Pre-Startup Preparation

    DAKOTA INSTALLATION INSTRUCTIONS 4. COMPLETION OF THE ENCLOSURE AND FINISHING MATERIAL Minimum clearances must be maintained between the appliance sides and the enclosure as well as the appliance back and the enclosure. See “Building an Outdoor Enclosure” for framing details.
  • Page 17 DAKOTA INSTALLATION INSTRUCTIONS 3. LOG PLACEMENT Place the left center log on the grate behind the front left log. See Figure 16. The rear log is placed on the grate against the back wall of the appliance. See Figure 13.
  • Page 18: Lighting Instructions

    DAKOTA INSTALLATION INSTRUCTIONS I. LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE OPERATING WARNING! This appliance is equipped with an ignition device which automatically lights the pilot. try to light the pilot by hand. smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.
  • Page 19: Seasonal Check List

    DAKOTA INSTALLATION INSTRUCTIONS J. SEASONAL CHECK LIST WARNING! CAUTION: 1. INTERMITTENT PILOT IGNITION OPERATION Note: Installation and repair should be done by a quali- Turn the fied service person. The appliance should be inspected wall switch to “ON”. before use and at least annually by a qualified service Turn the wall switch to person.
  • Page 20: Troubleshooting

    DAKOTA INSTALLATION INSTRUCTIONS K. TROUBLESHOOTING f i r f i l . y t l l i t i l y l l " t . " f i r " . " f i l f i l &...
  • Page 21: Maintenance Instructions

    DAKOTA INSTALLATION INSTRUCTIONS L. MAINTENANCE INSTRUCTIONS 1. CLEANING THE BURNER AND CONTROL 4. CLEANING THE GLASS COMPARTMENT Never operate this appliance without the glass properly secured in place or if the glass is broken. Keep the burner and control compartment clean by brushing and vacuuming at least once a year.
  • Page 22 DAKOTA INSTALLATION INSTRUCTIONS HOMEOWNER’S NOTES 4036-905 Rev A 12/03...
  • Page 23: Index

    DAKOTA INSTALLATION INSTRUCTIONS Index Air Clearance 16 Installation Air Shutter 21 Fireplace 11 Appliance Locations 8 Installation Along a Wall 8 Insulation 8 Intermittent Pilot Ignition BTUs 13 Wiring 14 Building Codes 2 Burner 21 Lava Rock 17 Leveling 15...
  • Page 24: Warranty

    WARRANTY FOR HEAT-N-GLO FIREPLACES The limited warranty will not become effective until you have mailed the completed warranty card to: Hearth & Home Technologies Inc., A DIVISION OF HON Industries 20802 Kensington Blvd., Lakeville, MN 55044. This card must be mailed within 60 days of the fireplace installation. Subject to the conditions set forth herein, HEARTH &...
