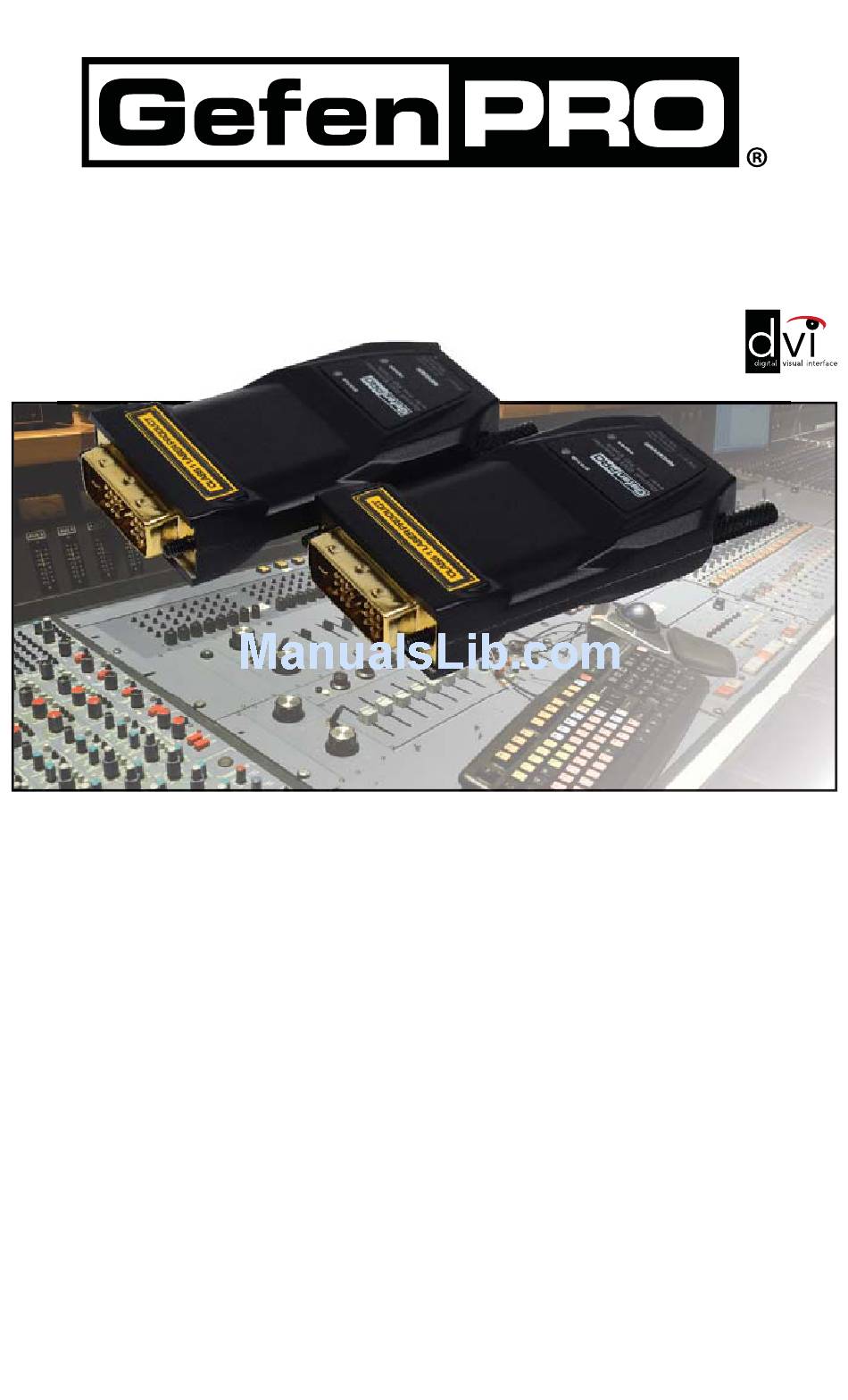

- Page 1 DVI FM1500 Optical Extender with Recordable EDID GEF-DVI FM1500 User Manual www.gefenpro.com...
- Page 3 ASKING FOR ASSISTANCE Technical Support: Telephone (818) 772-9100 (800) 545-6900 (818) 772-9120 Technical Support Hours: 8:00 AM to 5:00 PM Monday through Friday, Pacifi c Time For 24 / 7 support, see the back of the product for the support number Write To: Gefen LLC c/o Customer Service...
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender unit Layout Sender unit Descriptions Receiver unit Layout Receiver unit Descriptions Connecting the DVI FM1500 Optical Extender with Recordable EDID Wiring Diagram EDID Programming 10 Specifi cations 11 Warranty... -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of the DVI FM1500 Optical Extender with Recordable EDID. Your complete satisfaction is very important to us. GefenPRO In the realm of video distribution, certain features are invaluable in a commercial or broadcast environment. Accommodations such as a build-in power supply and fl... -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI FM1500 OPTICAL EXTENDER WITH RECORDABLE EDID • The DVI FM1500 Optical Extender with Recordable EDID can use both single-mode and multi-mode SC-terminated optical fi ber cables. • When using multi-mode fi ber optic cables, DVI can be extended to 1640 feet (500 meters). -
Page 7: Features
FEATURES Features • Extends DVI up to 3280 feet (1000 meters) using single-mode fi ber optic cable • Extends DVI up to 1640 feet (500 meters) using multi-mode fi ber optic cable • Supports resolutions up to 1920 x 1200 (WUXGA) •... -
Page 8: Sender Unit Layout
SENDER UNIT LAYOUT Sender unit Front Back... -
Page 9: Sender Unit Descriptions
SENDER UNIT DESCRIPTIONS Status This LED indicator will slowly blink bright green, indicating that there is a valid connection between the Sender unit and Receiver unit. Power This LED indicator will glow bright green, when power is applied to the Sender unit. -
Page 10: Receiver Unit Layout
RECEIVER UNIT LAYOUT Receiver unit Front Back... -
Page 11: Receiver Unit Descriptions
RECEIVER UNIT DESCRIPTIONS Status This LED indicator will slowly blink bright green, indicating that there is a valid connection between the Sender unit and Receiver unit. Power This LED indicator will glow bright green, when power is applied to the Receiver unit. -
Page 12: Connecting The Dvi Fm1500 Optical Extender With Recordable Edid
CONNECTING THE DVI FM1500 OPTICAL EXTENDER WITH RECORDABLE EDID How to Connect the DVI FM1500 Optical Extender with Recordable EDID STOP: Before continuing, connect the included 5V DC power supply to the Receiver unit. If EDID programming is required, then skip to the EDID Programming Procedure on the next page. -
Page 13: Edid Programming
EDID PROGRAMMING Virtual EDID Programming Procedure If an EDID is not required by the DVI source, then EDID programming will not be necessary. EDID programming is required if the maximum resolution of the display does not support 1920 x 1200 (WUXGA). IMPORTANT: The DVI FM1500 Sender unit has a default built-in EDID of 1920 x 1200. -
Page 14: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock................165 MHz Input Video Signal................1.2 volts p-p Input DDC Signal................5 volts p-p (TTL) DVI Connector (Sender / Receiver)..........DVI-D, 19-pin, male Fiber Optic Connector (Sender / Receiver)..........SC type Power Supply (Sender / Receiver)..............5V DC Power Consumption............2.5 Watts (max.) per unit Operating Temperature................0 ~ 50 °C Dimensions (Sender / Receiver)........1.54”... -
Page 15: Warranty
WARRANTY Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 16 Rev A5 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenpro.com support@gefenpro.com This product uses UL listed power supplies.
