Summary of Contents for Dukane iHear WMIC2

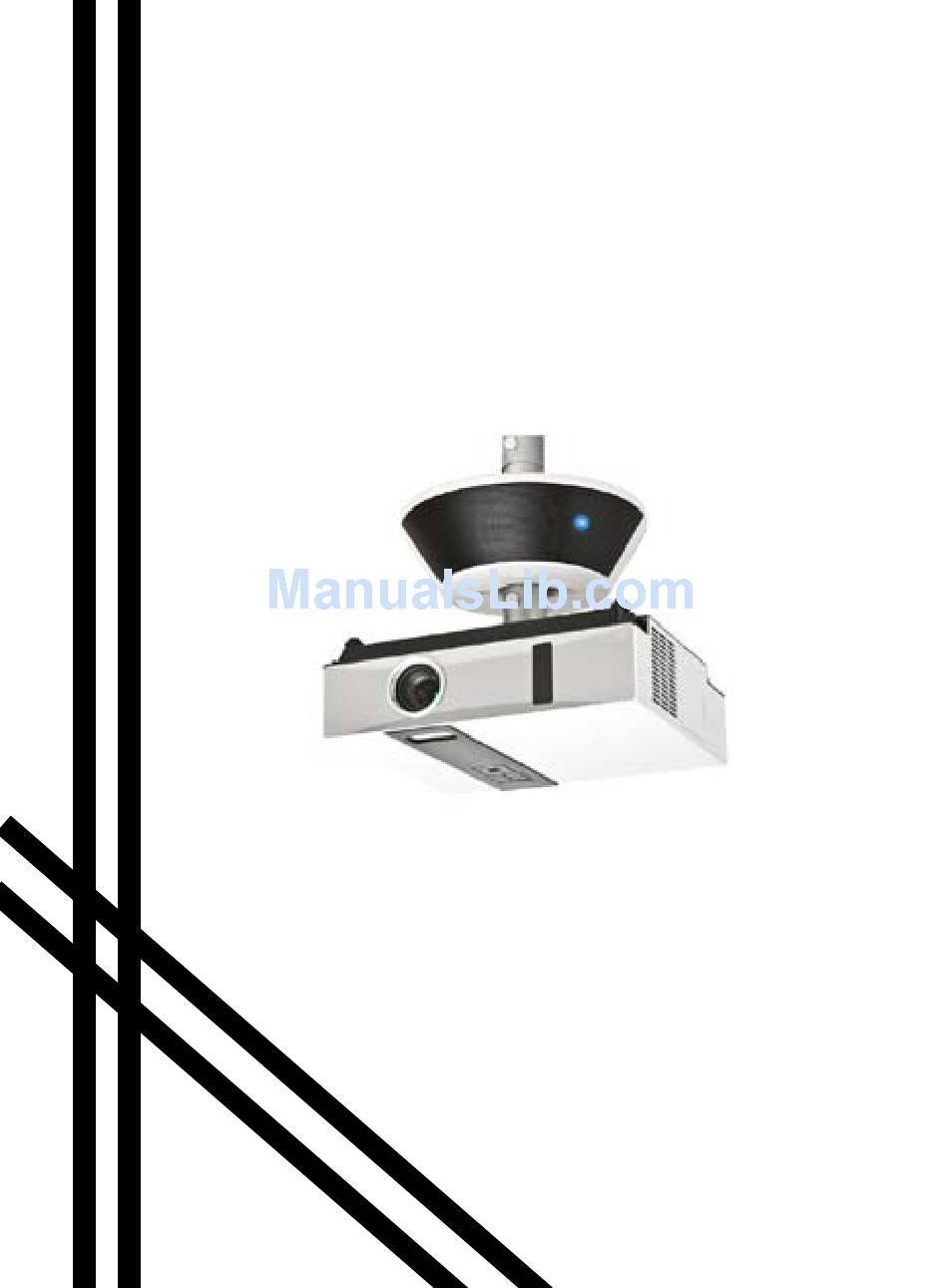

- Page 1 Model WMIC2 Wireless Sound System User’s Guide DUKANE iHear...
- Page 3 • Receiver Amp: Electronic equipment specification: – Input: DC12V Rating: 110V - 240V • MIC Tx: Electronic equipment specification: Input: USB DC 5V to charge the transmitter. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 Fax 630-584-5156 avservice@dukane.com...
- Page 4 Danger 3. Don’t modify this product in any way. Such action could cause a fire, electric shock, serious personal injuries or product damage. Only a distributor or service center can provide maintenance and repair. 4. Please keep away from flammable or explosive gases when using this product.
- Page 5 Warning 1. For safety reasons, please keep the product and accessories out of reach of small children or animals to avoid accidents such as: – swallowing the product or accessories. If this happens please see a doctor immediately. – Some small parts of product could cause personal injuries. 2.
- Page 6 Speaker – Receiver Guide Foam Lanyard Collar Clip Mic Transmitter...
- Page 7 Instruction (to other module) Signal lights Mic Transmitter...
- Page 8 Special note: The center button on the mic transmitter switches the audio between the AUDIO IN port and the MIC IN port. This could be the reason that the Mic is not heard.
-
Page 10: Installation
Installation Put the foam pads on the inner side of speaker. Connect main module and auxiliary module by metal hooks and locate on the pole. -
Page 11: Audio Source Connection
Audio Source Connection Connect main engine and Connect main module and auxiliary engine by audio cable. auxiliary module audio cables. Audio Cable Connect main module and projector by audio cable. Connec main engine and projector by audio cable. -
Page 12: Power Connection
Power Connection adapter power cord power cord adapter power cord Y-Cable... - Page 13 Connecting Components Small Power Adapter Collar Mic Clip the collar mic to the necktie or collar and point the mic toward the throat.
- Page 14 (seeking) Matching Procedure 1. Turn on the mic, frequency matching procedure needs 3 seconds. 2. After the mic Red/Blue LED’s are alternately flashing a “Beep - Beep” sound will be heard. This means the mic and speaker–receiver are paired (matched). 3.
-
Page 15: Troubleshooting
Troubleshooting 1. Q: The mic transmitter is ON but no sound is heard. A: 1. Please make sure the mic transmitter is within 10 feet of the speaker unit.. 2. Please make sure the mic transmitter has power. The LED signal lights flash. - Page 16 DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 Fax 630-584-5156 avservice@dukane.com www.dukane.com/av/service 12-00015-00...
