Installation & User Guide
Models: R115-23 / R115-24 / R115-25 / R115-26 / R115-27 /
R115-2J / R115-2X / R115-2Y / R175-23 / R175-24 / R175-25 /
R175-26 / R175-27 / R175-2J / R175-2X / R175-2Y
R
ADIANCE
T3/E3
I
NTERFACE
T3
E3
PWR
PWR
T
X
LK
R
X
LBK
R
X
LK
T
X
LBK
MM
MM
L
INE
E3
PWR
T
X
LK
LK
R
X
LBK
LBK
R
X
LK
LK
T
X
LBK
LBK
SM
C
ARDS
T3
PWR
T
T
X
X
LK
R
R
X
X
LBK
LK
LBK
BWDM
BWDM
E3
PWR
LK
LBK
LK
LBK
Advertisement
Table of Contents
Related Manuals for METRObility Optical Systems R115-23
Summary of Contents for METRObility Optical Systems R115-23

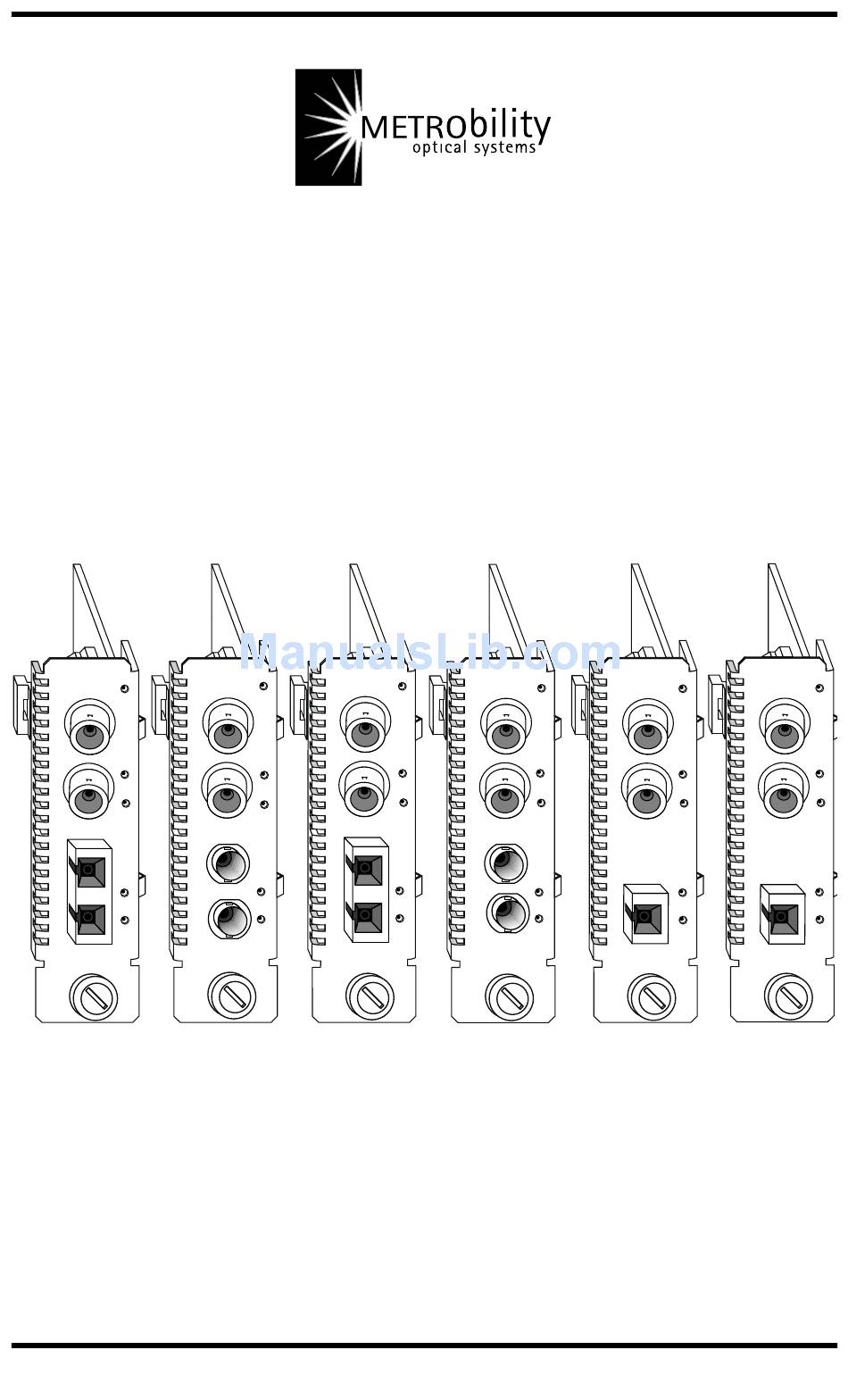

- Page 1 NTERFACE ARDS BWDM BWDM Installation & User Guide Models: R115-23 / R115-24 / R115-25 / R115-26 / R115-27 / R115-2J / R115-2X / R115-2Y / R175-23 / R175-24 / R175-25 / R175-26 / R175-27 / R175-2J / R175-2X / R175-2Y...
- Page 2 Radiance T3/E3 Single Interface Line Cards T3 Copper to T3 Fiber: R115-23 _____ T3 BNC to T3 multimode SC R115-24 _____ T3 BNC to T3 singlemode SC R115-25 _____ T3 BNC to T3 multimode ST R115-26 _____ T3 BNC to T3 singlemode ST...
-
Page 3: Table Of Contents
Metrobility Optical Systems, the Metrobility Optical Systems logo, NetBeacon, and WebBeacon are trademarks of Metrobility Optical Systems, Inc. All others are trademarks of their respective owners. The information contained in this document is assumed to be correct and current. The manufacturer is not responsible for errors or omissions and reserves the right to change specifications at any time without notice. -
Page 4: Overview
Overview Thank you for choosing the Radiance T3/E3 single interface line card. The Metrobility Radiance T3/E3 line card provides high-speed integration and conversion of T3 (44.736Mpbs) or E3 (34.368Mbps) coaxial telco communica- tion lines to fiber transport environments. The copper data stream is converted to optical signals for greater noise immunity and longer transmission. -
Page 5: Installation Guide
Installation Guide Follow the simple steps outlined in this section to install and start using your Radiance T3/E3 single interface line card. NOTE: Electrostatic discharge precautions should be taken when handling any line card. Proper grounding is recommended (i.e., wear a wrist strap). Unpack the Line Card Your order has been provided with the safest possible packaging, but shipping damage does occasionally occur. -
Page 6: Step 3: Install The Line Card
LBO Switch (functional only on T3 cards) Set the Line Build Out (LBO) switch up to support a long haul connec- tion if the length of your coaxial cable is between 255 and 1200 feet. Set LBO down to support a short haul connection if the length of your coaxial cable is between 0 and 255 feet. -
Page 7: Step 4: Connect To The Network
Slot for Management Card Card Guide 10/100 10/100 OC-12 1000BASE OC-12 10/100 10/100 10/100 10/100 10/100 10/100 100 BASE OC-12 OC-12 OC-12 MGT-10 IMPORTANT! Thumb Screw Tighten thumb screw Card Guide to secure each card firmly to chassis before making Blank Panel network connections. - Page 8 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 100 BASE 10/100 MGT-10 BWDM Coaxial Interface The coaxial interface provides two BNC connectors. The transmit (TX) port is located above the receive (RX) port. Each connector supports a maximum segment length of 1200 feet. Use only RG-59 cables. Fiber Optic Interface The line card’s fiber optic receive (RX) port is located above its transmit (TX) port.
-
Page 9: User Guide
User Guide This section contains more detailed information regarding the operating features of the Radiance T3/E3 single interface line card. LED Indicators The Radiance T3/E3 single interface line card provides several LEDs for the visible verification of unit status and proper functionality. These LEDs can aid in troubleshooting and overall network diagnosis and management. -
Page 10: Theory Of Operation
Theory of Operation Data Transparency The Radiance T3/E3 single interface line card offers full data transparency. Any codes or commands contained within the data stream are passed through to the remote device. The only commands executed by the T3/E3 card are those set through the hardware (i.e., DIP switches) or software, which communicates with the card via the management bus on the chassis backplane. - Page 11 Timing Paths The transmit (TX) and receive (RX) paths are clocked independently and during normal operation, the Radiance T3/E3 line cards are never timing masters of the network system. In the coaxial to fiber path, timing is recovered by the card’s LIU and transmitted over the fiber line to the remote T3/E3 line card.
-
Page 12: Factory Settings
Factory Settings Default Hardware Settings Copper Loopback ..................Disabled Fiber Loopback ..................Disabled Line Build Out (T3 models only) ......... Short Line (0-255 ft) The hardware DIP switches can be overridden through software. Resetting the line card via software will force the settings back to their default states and return control to the hardware. - Page 13 Remote Local T3/E3 Remote T3/E3 Local Device Device Card with Fiber Fiber Port Detects Receives Port Disabled Receives All 1s No Link All 1s Coax All Ones All Ones Coax Fiber unlit LED green LED Once a port is disabled, the only way to enable it again is through software. Through SNMP management, NetBeacon or WebBeacon , you can view the following information for the Radiance T3/E3 line card.
-
Page 14: Link Loss Indications
Link Loss Indications The following examples show the status of the LK LED under various link conditions and describe when unframed all ones (AIS for E3 only) are gener- ated. (Loopback is disabled in these examples.) Normal The diagram below shows a typical configuration with good link status. Local T3/E3 Remote T3/E3 Remote... - Page 15 Remote Output Coaxial Link Loss Loss of link to the remote device produces a red alarm condition at the remote site and should force the device to revert to its internal clock. If the remote device is configured to send back a yellow alarm (AIS) under this condition, the two Radiance T3/E3 line cards will carry the alarm forward to the local device, as shown below.
-
Page 16: Loopback Modes
Loopback Modes The Radiance T3/E3 line card features two loopback modes to help verify correct installation and to diagnose system problems. Normal During normal operation, without loopback, data from a local device (CSU, PBX, etc.) enters the local T3/E3 line card’s coaxial receiver, passes through the fiber line between the two cards, then exits the remote card’s coaxial transmitter to enter the remote equipment, and vice versa. - Page 17 Remote Remote T3/E3 Local T3/E3 Card Local Device Card with Copper Loopback Device Coax Coax Fiber Fiber Loopback In this mode, the incoming data and clock on the fiber line are looped back. The loop occurs in the FPGA. The data is still sent out the coaxial transmit- ter.
-
Page 18: Topology Solutions
Topology Solutions The Radiance T3/E3 single interface line card is a point-to-point media converter designed to extend the reach of copper T3/E3 links and to provide protection from power surges and electromagnetic interference. Each T3/E3 line card supports a single remote T3/E3 card. Data Service Unit (DSU) Channel Service Unit (CSU) Radiance... -
Page 19: Technical Specifications
Technical Specifications Network Connections Coaxial Interface Connector __________________________________________ BNC receptacle Impedance ________________________________________________ 75 ohms Signal Structure ____________________________ ANSI T1.404, T1404a (T3) _____________________________________ ITU G.703 (E3) Supported Link Length ___________________________________ up to 1200 ft Cable Type ______________________________________ RG-59 coaxial cable Multimode Fiber Optic Interface Connector ________________________________________________ ST or SC Wavelength _______________________________________________ 1310 nm RX Input Sensitivity ___________________________ -31 dBm peak minimum... - Page 20 Singlemode Fiber Optic Interface — extended long haul distance support Connector _____________________________________________________ SC Wavelength _______________________________________________ 1550 nm RX Input Sensitivity ________________________________ -37 dBm minimum Output Power ___________________________ -3.0 dBm to 0 dBm (9/125 µm) Supported Link Length __________________________ up to 100km full duplex Cable Type ______________________ 8.3/125, 8.7/125, 9/125, 10/125 µm F/O Singlemode BWDM Fiber Optic Interface Connector _____________________________________________________ SC...
-
Page 21: Acronyms And Abbreviations
Acronyms and Abbreviations This list defines the acronyms and abbreviations used in this guide. AIS Alarm Indication Signal B3ZS Bipolar Three Zeroes Substitution T3 line coding BNC Bayonet-Neill-Concelman connector BWDM Bidirectional Wavelength Division Multiplexed CLP Copper Loopback CSU Channel Service Unit DSU Data Service Unit E3 34.368 Mbps communications standard F/O Fiber Optic... -
Page 22: Product Safety, Emc And Compliance Statements
Product Safety, EMC and Compliance Statements This equipment complies with the following requirements: • UL • ITU-G.703 • CSA • G.704 • EN60950 (safety) • G.706 • FCC Part 15, Class A • ANSI T1.403-1999 • EN55022 Class A (emissions) •... -
Page 23: Warranty And Servicing
Warranty and Servicing Three-Year Warranty for Radiance T3/E3 Single Interface Line Card Metrobility Optical Systems, Inc. warrants that every Radiance T3/E3 single interface line card will be free from defects in material and workmanship for a period of THREE YEARS from the date of Metrobility shipment. This warranty covers the original user only and is not transferable. - Page 24 Product Manuals The most recent version of this manual is available online at http://www.metrobility.com/support/manuals.htm To obtain additional copies of this manual, contact your reseller, or call 1.877.526.2278 or 1.603.880.1833 Product Registration To register your product, go to http://www.metrobility.com/support/registration.cfm 25 Manchester Street, Merrimack, NH 03054 USA tel: 1.603.880-1833 •...
