Summary of Contents for Blue Seal Evolution G55T

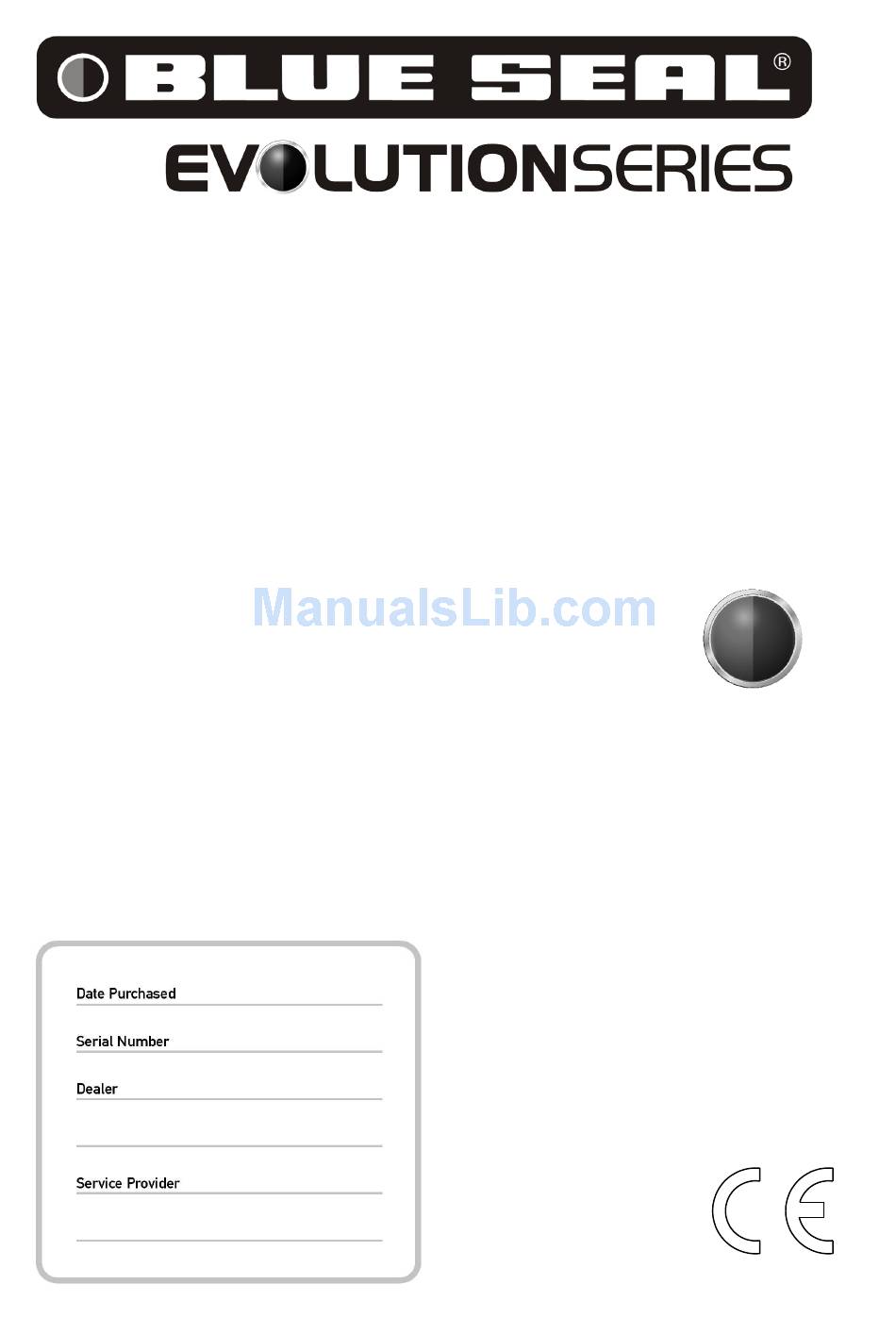

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS GRIDDLE TOASTER G55T For use in GB & IE...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents
Contents Blue Seal Gas Griddle Toaster G55T Introduction ....................2 Specifications ....................3 Model Numbers Covered in this Specification General Optional Accessories Gas Supply Requirements Gas Connection Dimensions ....................4 Weight (Nett) Installation ....................5 Installation Requirements Unpacking Location Clearances... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL GAS GRIDDLE TOASTER and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal Gas Griddle Toaster, there are two important things you can do. -
Page 5: Specifications
Specifications Model Numbers covered in this Specification G55T Gas Griddle Toaster General A commercial heavy-duty gas fired griddle toaster, having two tubular burners heating a griddle plate from underneath and providing toasting heat for the toasting rack below. Burners are operated by individual control valves and are provided with a piezo ignition permanent pilot incorporating a thermocouple flame failure control. -
Page 6: Dimensions
Dimensions G55T Gas Griddle Toaster FRONT SIDE Gas Connection Point. Weight (Nett) G55T 120kg... -
Page 7: Installation
Blue Seal Griddle Toasters are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 8: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. Blue Seal Gas Griddle Toasters do not require an electrical connection, as they function totally on the gas supply only. It is essential that gas supply is correct for appliance being installed and that adequate supply pressure and volume are available. -
Page 9: Location
Installation Fit gas regulator supplied, into gas supply line as close to appliance as possible. NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and LPG as shown in ‘Gas Conversion Section’ in this manual. Ensure regulator is converted to correct gas type that appliance will operate on. Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it is NOT to be adjusted. -
Page 10: Operation
/ operator. Blue Seal Gas Griddle Toasters have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 11: Lighting Pilot Burners
Operation Lighting Pilot Burners Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position. With control knob depressed, press piezo ignition button on front control panel until pilot burner ignites. Pilot ignition can be viewed through openings in control panel. Hold in gas control knob for approximately 10 seconds, then release. -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn ‘Off’ gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean griddle toaster regularly. A clean appliance looks better, will last longer and will perform better. -
Page 13: Daily Cleaning
Cleaning and Maintenance Daily Cleaning Crumb tray / grease drawer should be checked and emptied frequently to prevent overflow and spillage. Remove grease drawer while still warm so that grease is in a liquid state. Empty any grease from drawer and wash thoroughly in same manner as any cooking utensil. Remove crumb tray and empty out contents. -
Page 14: Periodic Maintenance
Cleaning and Maintenance Periodic Maintenance NOTE: All maintenance operations should only be carried out by a qualified service person. To achieve the best results cleaning must be regular and thorough and all controls and mechanical parts should be checked and adjusted periodically by a qualified service person. If any small faults occur, have them attended to promptly. -
Page 15: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 16: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure Appliance is isolated from gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... - Page 17 Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet pressure is fixed ex-factory and NOTE, Pin rotated for LPG is NOT to be adjusted. Gas Type Identification Label On completion of gas conversion, replace gas type identification label located at:- - Rear of appliance, above gas connection.
-
Page 18: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Only: Natural Gas LP GAS (Propane) Main Burner Injector 2.10 mm 1.30 mm Pilot Burner Injector 0.35 mm 0.23 mm 1 turn out (c.c.w.) ½ turn out (c.c.w.) Low Fire Adjustment 1.0 kPa (*) 2.5 kPa (*) Operating Pressure... -
Page 19: Replacement Parts List
Plinth Kit - 600mm. 228566 Griddle Scraper Tool. 228567 Smooth Plate Scraper Blades (Pack of 5 blades). Gas Conversion Kits Gas Type to Convert to Model Australia / New Zealand Only UK Only Nat. Gas Nat. Gas G55T 231980 231979 231980 231979...
