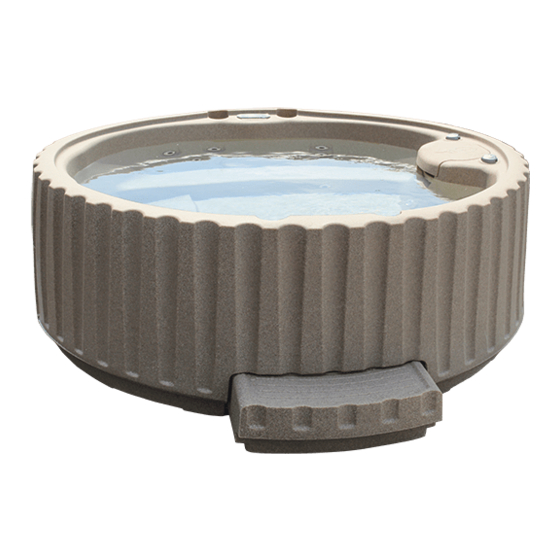

Lumi-O spa-O Owner's Manual

Lumi-o spa system
Hide thumbs
Table of Contents

Advertisement

Quick Links

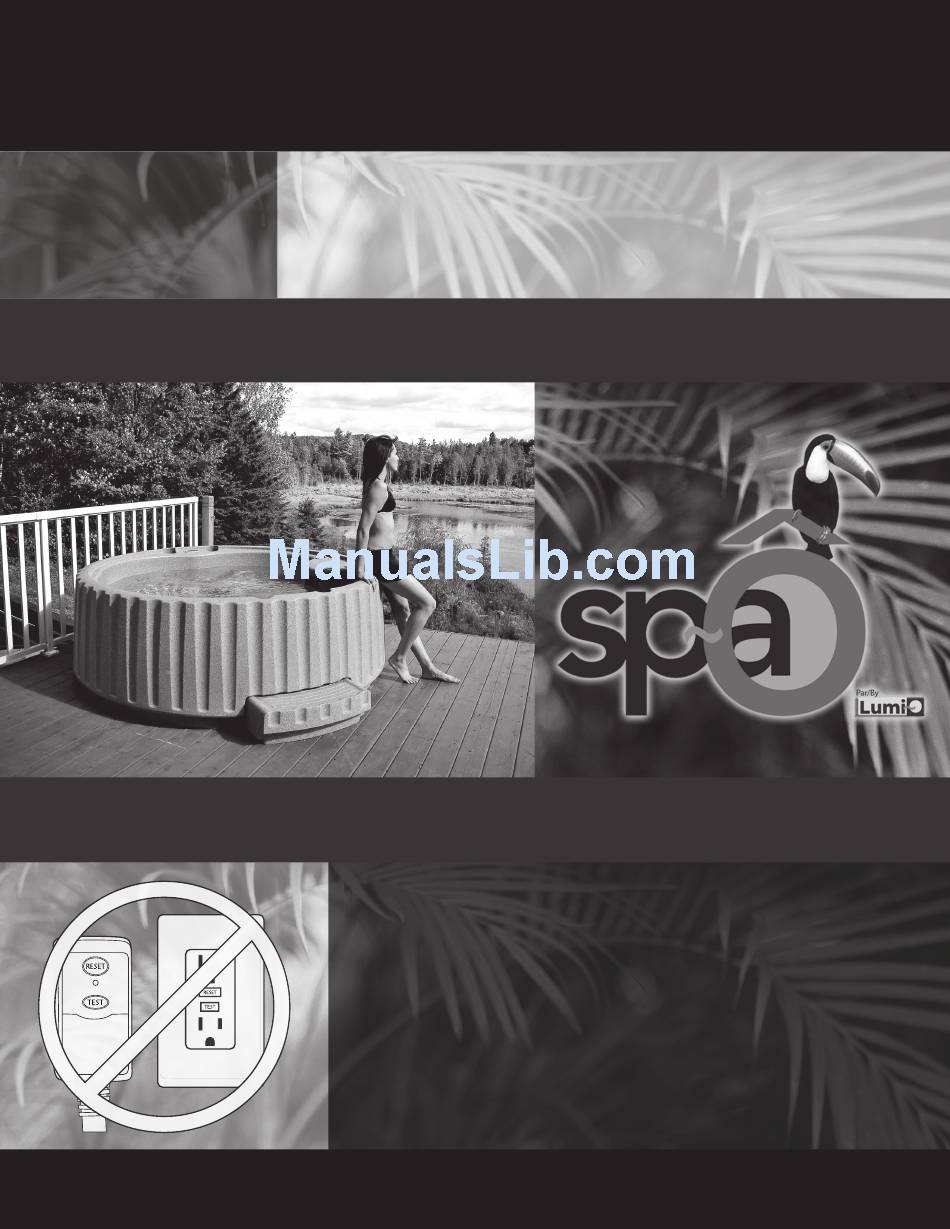

OWNER'S MANUAL
Online warranty registration
www.lumi-o.com
or call our spa-Ô customer service
at 1-866-99LUMI-O
Please read this owner's manual carefully, as it is designed to provide you with instructions for the
safe use of your new spa-Ô.
IMPORTANT
UNSCREW AND REMOVE THE SHIPPING BLOCS FROM THE UNDERSIDE
OF THE SPA BEFORE INSTALLATION.
Use of more than one GFCI on the same electrical circuit
will render your spa-Ô inoperable. The spa-Ô requires
a dedicated outlet, see page 8 for more information on
electrical requirements.
Spa-Ô manufactured by Lumi-O International Inc.
www.lumi-o.com
•
1-866-99LUMI-O

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the spa-O and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumi-O spa-O

  • Page 1 Use of more than one GFCI on the same electrical circuit will render your spa-Ô inoperable. The spa-Ô requires a dedicated outlet, see page 8 for more information on electrical requirements. Spa-Ô manufactured by Lumi-O International Inc. www.lumi-o.com • 1-866-99LUMI-O...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents Specifications 4 to 6 Important Safety Instructions Selecting a Safe Location Electrical Requirements 9 to 11 Filling and Start-Up Instructions Control Reference Guide 12-13 Diagnostic Messages Water chemistry and care Care (continue) Winterizing Frequently Asked Questions 19-20 Troubleshooting Tips Limited Warranty...

  • Page 3: Specifications

    SPECIFICATIONS Thank you for choosing spa-Ô • 5 seats: 4 ergonomic moulded seats ;1 deep rest seat • 12 jets including 8 adjustable, directional hydrotherapy jets - 10 back-massage jets - 2 foot-massage jets that also facilitate water circulation and filtration •...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This owner’s manual contains IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY “ KEEP THESE INSTRUCTIONS ” Most cities, counties, states/provinces, and countries require permits for exterior construction and electrical circuits. In addition, some communities have safety codes requiring the property to be equipped with residential barriers such as fencing and/or self-closing gates to prevent unsupervised access by children to pools or hot tubs.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed to prevent any risk of personal injury or death. Never allow the spa to be used with less than two (2) people present. Someone should be present in case the bather requires assistance due to injury, cramping, drowning, etc.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS 9. The water in your spa should NOT be warmer than 38°C-40°C (100°F-104°F). The National Spa and Pool Institute considers a temperature of 100°F (38°C) safe and comfortable for a healthy adult. Most healthy adults can enjoy this water temperature for as long as desired, although it may raise the body temperature to the water temperature and eventually become uncomfortable (like a fever).

  • Page 7: Selecting A Safe Location

    SELECTING A SAFE LOCATION Your new spa will provide you and yours with hour upon hour of healthy, relaxing pleasure. The following suggestions and recommendations will help you select a safe and compatible site for your spa, maximizing your enjoyment. 1.

  • Page 8: Electrical Requirements

    ELECTRICAL REQUIREMENTS - DANGER – RISK OF ELECTRIC SHOCK Installations that do not comply with the following procedures and requirements may expose users to electric shock. Non-compliant installations will result in warranty nullification. This hot tub’s electrical wiring must comply with all applicable requirements of the federal, provincial/state and local building codes.

  • Page 9: Filling And Start-Up Instructions

    FILLING AND START-UP INSTRUCTIONS WARNING: DO NOT SUPPLY POWER TO AN EMPTY SPA! IMPORTANT UNSCREW AND REMOVE SHIPPING BLOCS BEFORE INSTALLATION The following procedures should be followed on initial start-up and whenever the hot tub is drained and refilled during routine maintenance.
  • Page 10 FILLING AND START-UP INSTRUCTIONS (continue) STEP 2: START UP Please review the following procedures and power-up procedures before supplying power: I – Connection 1. Check the voltage at the main power panel to be sure you have the correct voltage for the POWER SYSTEM being used. Also, be sure the voltage is within + or –...
  • Page 11 FILLING AND START-UP INSTRUCTIONS (continue) ADJUSTING HYDROTHERAPY JETS The Hydrotherapy Jets are recessed and located in the wall of the hot tub. These jets may be adjusted for both flow rate and direction: • To adjust each jet’s direction simply rotate the eyeball fitting in the direction desired. •...

  • Page 12: Control Reference Guide

    CONTROLS REFERENCE GUIDE TEMPERATURE ADJUSTMENT Temperature control can only be set between 26°C and 40°C (80°F - 104°F). The last measured temperature is constantly displayed on the LCD. Note: The last measured spa temperature displayed is current only when the pump has been running for at least 2 minutes. On control panel, display the temperature setting by pressing Warm or Cool button once.

  • Page 13: Control Reference Guide

    CONTROLS REFERENCE GUIDE (continue) PRESET FILTER CYCLES The first filter cycle begins 6 minutes after the spa is powered on. The second filter cycle begins 12 hours later. Filter dura- tion is programmable for 1 to 8 hours out of 12. The default filter time is 2 hours. To program, press Warm or Cool button, then Jets.

  • Page 14: Diagnostic Messages

    DIAGNOSTIC MESSAGES Message Meaning Action Required No message on display. The control panel will be disabled until power returns. Spa Power has been cut off to the spa. settings will be preserved until next power up. Temperature unknown After the pump has been running for 2 minutes the temperature will be displayed.
  • Page 15 WATER CHEMISTRY It may be necessary to replace the hot tub’s water every 3 to 6 months. The frequency depends on a number of variables including the frequency of use, number of users, attention paid to water quality maintenance, etc. You will know it is time for a change when you cannot control studding and/or you can no longer get the water to feel or sparkle as it usually does, even though the key water balance measurements are all within the proper parameters.

  • Page 16: Care (Continue)

    CARE (continue) 4. Since the water capacity of your spa is far less than that of a swimming pool, the chemical reaction caused by the presence of one or more persons in the spa is more rapid and pronounced. For these reasons, it is important to frequently check the bromine level, the pH level and total alkalinity of water.

  • Page 17: Winterizing

    Drain to specified sanitary sewer only. INSTRUCTIONS Lumi-O highly recommends using a professional to close your spa to prevent any damage due to improper winterizing. TURN OFF (UNPLUG) POWER AT THE GFCI CIRCUIT BREAKER BEFORE DRAINING.

  • Page 18: Frequently Asked Questions

    Finally, cover your Spa-Ô completely with a winter cover. Lumi-O offers a custom winter cover for the spa-Ô. Contact your dealer or Lumi-O at 1-866-99LUMI-O (1-866-995-8646). N.B.: For the spring opening, outside temperatures must remain above freezing for at least three days in a row. Make sure the spa is on a level surface.

  • Page 19: Troubleshooting Tips

    1. Is power being supplied to the hot tub? 2. Is the household circuit breaker tripping? 3. If the answers to 1 & 2 are yes, call Lumi-O or your authorized dealer for service. PUMP DOES NOT OPERATE, BUT THE LIGHT DOES Press the JETS button: The pump operates but no water flows to jets.

  • Page 20: Troubleshooting Tips

    TROUBLESHOOTING TIPS (continue) WATER IS TOO HOT 1. Check preset temperature on topside control. 2. Check for a Diagnostic Message (see Control System manual for details) a. OH - Overheat (spa is deactivated) DO NOT ENTER THE WATER. i. If the spa water has reached overheated status, remove the cover to help lower water temperature. Overheating may occur if the filter cycle is set too long.

  • Page 21: Limited Warranty

    Disclaimers Lumi-O or any of its authorized agents shall not be held liable for injury or loss of use of your spa or other cost, expense or damage, whether incidental or consequential, arising out of any defect covered by this Limited Warranty, including, without limitation, loss of use of the spa and cost of removal of defective product, even if Lumi-O has been advised of the possibility of such damage.

  • Page 22: Spa Cover Installation And Limited Warranty

    SPA COVER INSTALLATION AND LIMITED WARRANTY KEEP THESE INSTRUCTIONS INSTALLATION INSTRUCTIONS 1. Correctly position spa cover on top of spa. 2. Extend tie-down straps and squeeze sides of each locking buckle to expose mounting holes. 3. Locking buckles may be locked and unlocked with enclosed key. CAUTION: ALWAYS RELEASE ALL LOCKING BUCKLES BEFORE REMOVING COVER.
