Summary of Contents for Edge Electric Powerhead

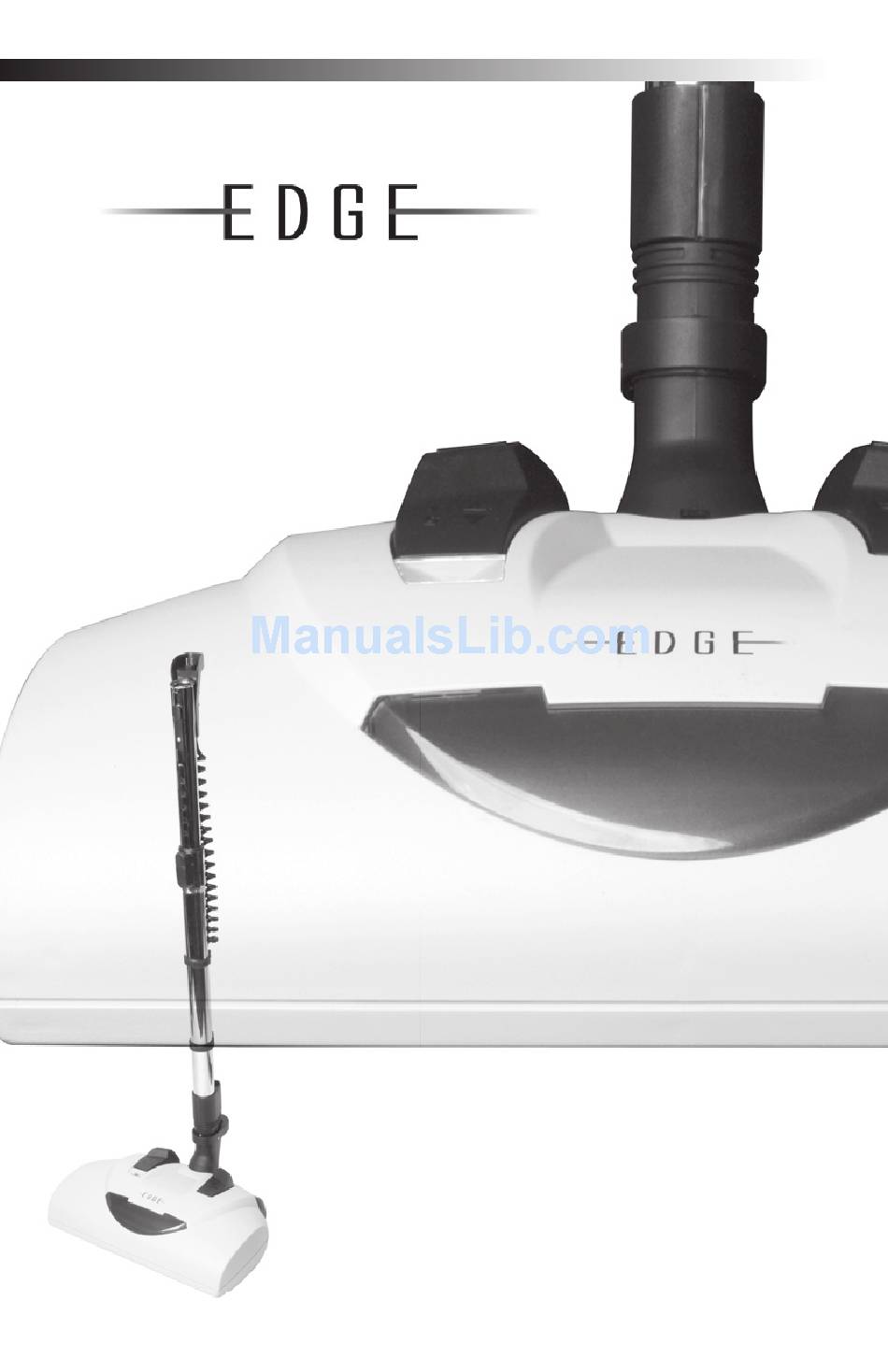

- Page 1 ELECTRIC POWERHEAD OWNER’S MANUAL Review this manual before operating your EDGE Electric Powerhead...
-
Page 2: Table Of Contents
©Copyright 2009 H-P Products, Inc. TABLE OF CONTENTS Subject Page Safety Instructions ..................3 Assembling your Edge Powerhead ............4 General Operation ...................5 Edge Attachments Handle Attachments ................5 Wand Assembly Attachments ..............5 Performance Features Edge Cleaner ..................6 Overload Protector ...................6 Suction Control ..................6 Maintenance and Care Brush Cleaning ..................7... -
Page 3: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this vacuum system. When using an electrical appliance, basic precautions should always be followed, including the following: WARNING To reduce the risk of fire, electrical shock or injury: • Unplug and disconnect power •... -
Page 4: Assembling Your Edge Powerhead
ASSEMBLING YOUR EDGE POWERHEAD Before assembling your Edge Electric Powerhead for the first use, be sure you have all parts. Cord Management Wand Connection WARNING: Do not plug into electrical supply until assembly is complete. Failure to do so could Thumb Saver result in electrical shock or injury. -
Page 5: General Operation
EDGE ATTACHMENTS Hose Handle Attachments - using the hose with other attachments If the Edge is attached to the wand, turn cleaner OFF before removing hose handle from the wand. To disconnect the hose from the wand: 1. -
Page 6: Performance Features
Channels Overload Protector The Edge has built-in protection against motor and belt damage should an obstruction cause the roller brush to suddenly stop. The overload protector will activate when the powerhead consumes more power than planned or an obstruction makes the brush hard to turn. -
Page 7: Maintenance And Care
WARNING: Always unplug electrical cord and vacuum hose before servicing and maintaining the Edge Electric Powerhead. Failure to do so could result in electrical shock or personal injury from cleaner suddenly starting. Always follow all safety precautions specified when caring for your Edge. -
Page 8: Brush Replacement
• Lift Roller Assembly while guiding end cap past belt. 4. Remove Belt • Guide belt past drive gear on motor. 5. Replace Belt • Only use Edge Belt # 90-01. • Guide new belt over gear on motor. • Guide new belt over end cap of brush roll. 6. Replace Brush Roller •... -
Page 9: Cover
MAINTENANCE AND CARE • Turn Edge right side up and lift cover making sure pedals stay secure in cover housing. 2. Remove secondary cover • Remove clear plastic neck release lever and return spring-set aside. • Remove #10 Torx screws and set Remove 3 Torx Screws aside. -
Page 10: Replacement Parts
EDGE REPLACEMENT PARTS Neck - 919 Cover - 9191 Motor Wire Coupler - 9198 Cover-909 Noise Reducer - 9199 Circuit Protector - 900 Height Adjustment LED Light Bar - 901 Assembly - 919 Brush Roll - 919 Motor 919 Long Screw-911... -
Page 11: Limited Warranty
(1) year from the date of the initial consumer purchase. H-P Products, Inc. warrants that the Edge Electric Powerhead, when used in a commercial application, pursuant to Seller’s instructions will be free from defects in materials and workmanship for a period of ninety (90) days from the date of initial sale by H-P Products, Inc. - Page 12 H-P Products, Inc. 512 W. Gorgas Street Louisville, Ohio 44641-0912 www.CentralVacService.com PN 9207 09/09...
Need help?
Do you have a question about the Electric Powerhead and is the answer not in the manual?
Questions and answers
I have a vacuum, and the powerhead is an Edge. I push forward to vacuum my rug and the power head roller turns fine. I [pull back and the powerhead stops running until I turn it or push forward again.
The Edge Electric Powerhead may stop running when pulling back while vacuuming due to the circuit breaker activating. This could be caused by an overload, such as too much resistance or debris in the brush roll. A cool-down period of 0–180 seconds may be required for the circuit breaker to automatically reset.
This answer is automatically generated
How do you get and attach an extension tube and various parts
To attach an extension tube and parts to the Edge Electric Powerhead:
1. Lock the wand in the straight-up position.
2. Press the easy release pedal (located on the left side) with your foot.
3. Pull the wand straight up to remove it from the powerhead.
4. Slide the desired attachments firmly onto the wand.
If attaching to the hose handle:
1. Turn the cleaner OFF.
2. Press the gray "thumb-saver" lock button and pull the handle to disconnect it from the wand.
3. Slide the desired attachments firmly onto the handle.
