Page 1: Instruction Manual

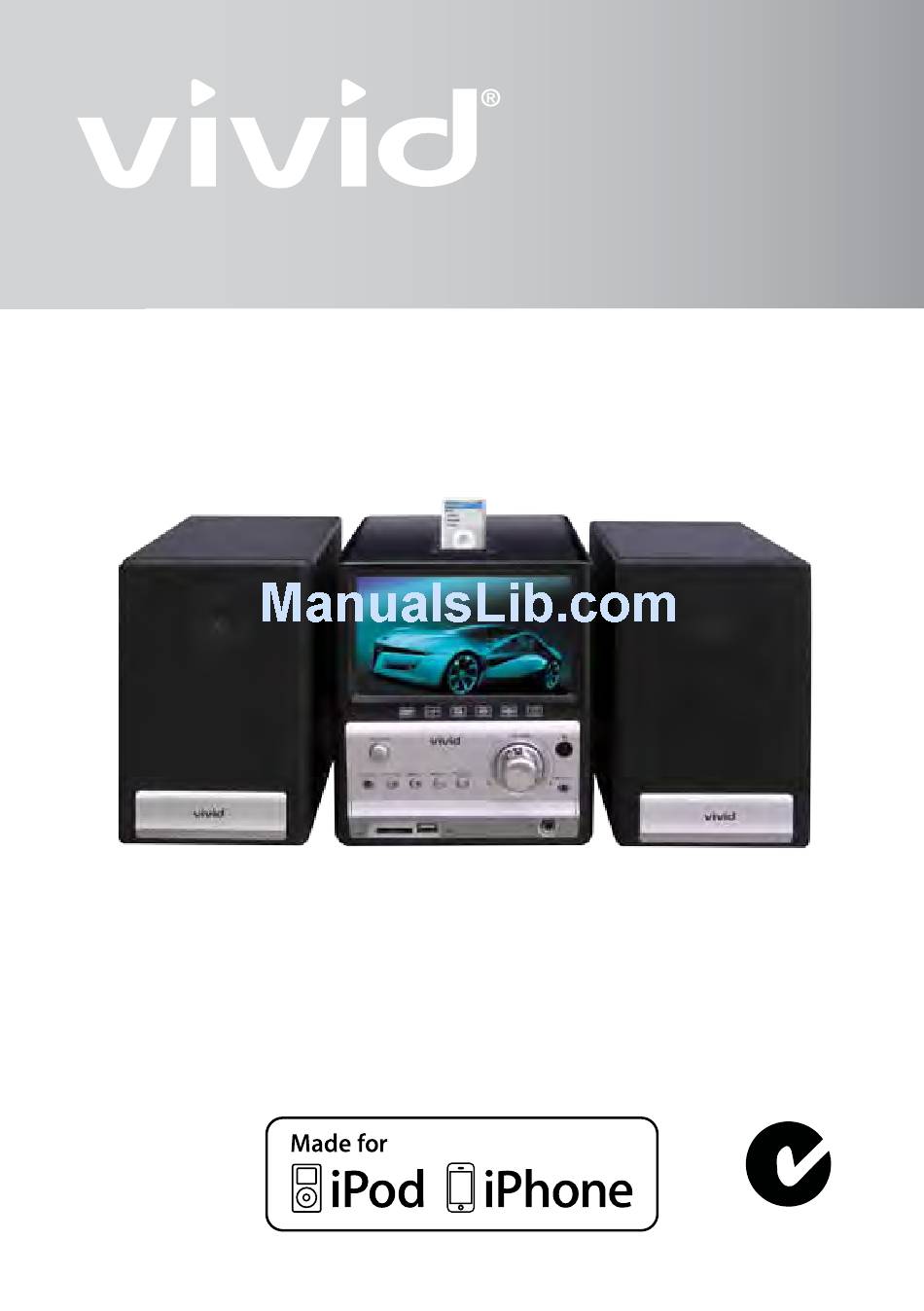

7" LCD DVB-T Micro Hi-Fi with TV/DVD player and dock for iPhone/iPod Instruction Manual Model Number: MD-8600 After Sales Support TEL: 1300 886 649 N13275... -
Page 2: What Your 1 Year Warranty Means
7" LCD DVB-T Micro Hi-Fi with dock for iPod/iPhone What your year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. However, should it fail within the first year after purchase, even though it has been used as intended, contact us immediately and we will remedy the problem as soon as possible. -
Page 3: Table Of Contents
Contents What your 1 year warranty means Welcome Important safety instructions Remote control Front panel and rear panel System connection System set-up Language set-up Audio set-up Video set-up Speaker set-up Digital set-up Basic operation DVB-T operation iPod/AUX IN & LCD operation FAQs After Sales Support TEL: 1300 886 649... -
Page 4: Welcome
Welcome Congratulations on choosing to buy a VIVID® product. All products brought to you by VIVID® are manufactured to the highest standards of performance and safety and as part of our philosophy of customer service and satisfaction, this item is backed by our comprehensive Year Warranty. -
Page 5: Important Safety Instructions
Important safety instructions To reduce the risk of fire or electric shock, do not expose this product to water or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside this product. Use of controls, adjustments or performance of procedures other than those specified in this manual may result in dangerous radiation exposure. -
Page 6: Remote Control
Remote control 1. Standby button 2. Number buttons 3. A-B/TV/Radio button 4. Repeat button 5. Prog/EPG button 6. LCD Setup button 7. Setup button 8. Navigation buttons 9. Enter button 10. Stop/Rec button 11. Vol - button Rewind button Fast forward button 14. - Page 7 Remote control Batteries • Do not use different types of battery together, or mix old and new batteries. • Do not leave dead or exhausted batteries in the remote control. • If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.
-
Page 8: Front Panel And Rear Panel
Front panel and rear panel 1. Stop/Rec button 2. Source button 3. Prev/Ch - button 4. Power on/off 5. Next/ Ch + button 6. LCD OSD 7. Play/Pause button 8. Remote window 9. Volume 10. Eject button 11. DVD/CD loader 12. -
Page 9: System Connection
System connection Y,PB/CB, PR/CR (component out) NOTE: This system is compatible with DVD/DIVX/VCD/SVCD/CD/ MP3/CR-R/Kodak Picture. Before you connect your audio equipment, make sure the power is turned off and all equipment is unplugged from the wall. Then follow the diagram above. Connecting your system 1. -
Page 10: System Set-Up
System set-up 1. TV system Press the "SETUP" key on the remote control to get to the setup menu screen. Press to switch to the desired setup page. Press the keys to select the item, then press to go into the sub-menu. Change the setting and press the "ENTER"... -
Page 11: Language Set-Up
6. Password The password allows you to edit out and control scenes not suitable for children. If you are using this feature for the first time, enter the password option menu and the default 4-digit password ("0000") to change the password, first input, then the new password. -
Page 12: Audio Set-Up
Audio set-up Setting structure as follows: 1. Audio out You can choose between SPDIF/OFF, SPDIF/RAW and SPDIF/PCM (see Fig. 12). Fig. 10 2. Mic setup Choose ON or OFF. 3. Key This function is used for a voice sign, not the transmitter sign. -
Page 13: Speaker Set-Up
Speaker set-up 1. Speaker set-up DOWN MIX - Choose from three modes of speaker sound: LT/RT, Stereo and VSS (see Fig. 16). Fig. 16 2. Front Choose between large and small. Digital set-up 1. OP MODE Choose this setting to adjust the line out and RF Fig. -
Page 14: Basic Operation
Basic operation 1. Preparation Connect the power cord to a 240V~50Hz AC socket and check the cord is firmly connected to the unit. Press the "POWER" button on the front panel to turn the unit on. 2. Playing back a disc Press the "EJECT"... - Page 15 9. Fast forward "Frequency" Press the " / FREQ+" button to fast forward a disc at various speeds. Press the " " button to resume normal playback. NOTE: Under the Radio mode press this button to search the radio frequency. 10.
- Page 16 17. Program Under stop mode, press "PROGRAM" button to select and display the program number. For example, if you want to see chapter 5 first, then the chapter 3 after that, you can press number "5, 3". Then select "PLAY" to playback. 18.
- Page 17 20. JPEG Picture disc playback Press the "EJECT" button on the front panel of the unit or on the remote control to open the disc tray. Put the MP3 disc in and the unit will start loading the file. The screen will display the files, see image on the right.
-
Page 18: Dvb-T Operation
DVB-T Operation NOTE DVB-T operation is digital TV (DTV). To go to DTV press the "source" button on the machine and use the " /CH-" or " /CH+" to select DTV. The system will show the option "the first time using - installation", which lets you enter the initial setting for the first time. - Page 19 1. Channel guide 1.1 TV channels Entering this menu lets you look at the program listing. The number and name of TV programs on the right are the compressed video programs. Press the " " buttons to look at the TV programs. Pressing the "OSD" button will enter the program compositor and drop the little menu on the right, which has five types;...
-
Page 20: System Configuration
2. System configuration 2.1 TV setting Once in this menu you can choose from TV SYSTEM, VIDEO, TV TYPE and HD OUTPUT. Use the " " buttons to go through items and to choose different settings, then press "ENTER" to confirm your selection. •... - Page 21 3. Installation 3.1 Auto scan When in AUTO SCAN menu use the " " buttons to choose the country or the area you are in, then select the AUTO item of the interface AUTO SCAN and press "ENTER". The system will start searching for the channels. 3.2 Manual scan If choosing MANUAL SCAN, the scan items are: A.
-
Page 22: Ipod/Aux In & Lcd Operation
iPod/AUX IN & LCD Operation iPod/AUX IN operation iPod operation Press the "FUNCTION" key on the remote control and place your iPod into the dock on top of the machine. "IPOD" will show up in the top left corner of the screen while charging the iPod. Use the remote control or the front panel to adjust the volume and select songs. - Page 23 LCD operation Pressing the "LCD" button on the remote control will show the LCD setting menu on the screen; pressing repeatedly lets you navigate between the different setting options. Use the " " buttons to change the BRIGHTNESS, SHADE and other LCD setting options. Volume/tone operation The front panel knob and "VOL +"...
-
Page 24: Faqs
FAQs Problem Solution No power • Check that the power plug is connected properly. • Ensure the power and machine are turned on. The remote control • Check that nothing is obstructing the remote control doesn't work properly sensor on the appliance. •...
