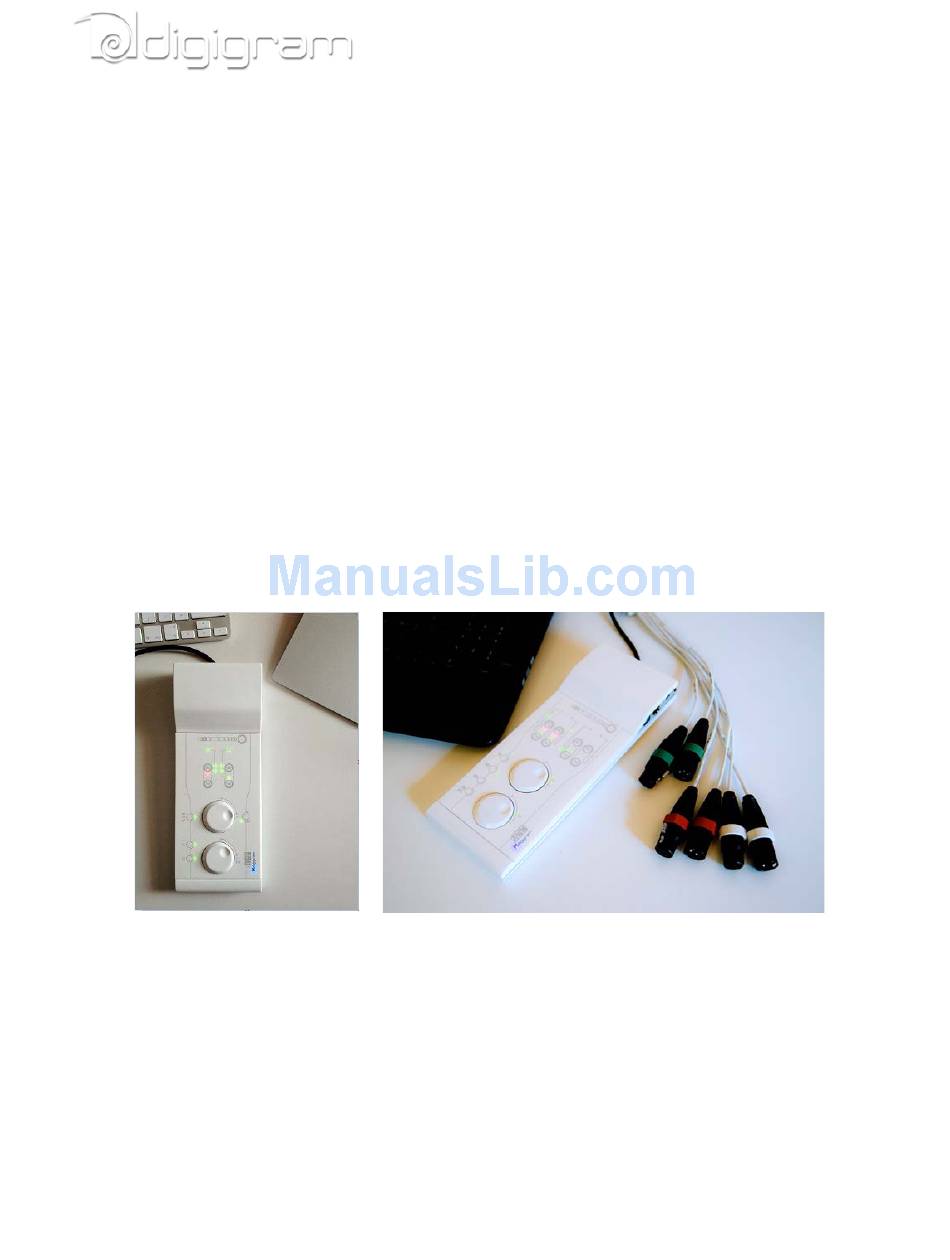

- Page 1 CANCUN 222-Mic CANCUN 442-Mic Professional USB Audio Interface Version v1.00 User manual...
- Page 2 Digigram S.A. Parc de Pré Milliet, 38330 Montbonnot - FRANCE Tel: +33 (0)4 76 52 55 01• Fax: +33 (0) 4 76 52 53 07• E-mail: info@digigram.com Digigram Asia Pte Ltd. 60 Albert Street - #19-11OG Albert Complex Singapore 189969, Singapore...
- Page 3 INFORMATION FOR THE USER IMPORTANT NOTICE FEATURES Cancun 222-Mic and CANCUN 442-Mic main hardware features CANCUN 222-Mic CANCUN 442-Mic Software features HARDWARE REQUIREMENTS SUPPORTED OPERATING SYSTEMS HARDWARE INSTALLATION SOFTWARE INSTALLATION OF CANCUN UNDER WINDOWS FIRMWARE UPDATE SETTING AND MONITORING CANCUN PARAMETERS FROM THE CONTROL PANEL...
-
Page 4: Information For The User
For best compliance with these standards, Digigram recommends to use audio shielded cables shorter than three meters. FEATURES CANCUN 222-Mic and CANCUN 442-Mic are professional audio interface for USB ports (compatible with USB 2.0 and USB 3.0 hosts). They are powered via USB. - Page 5 CANCUN devices are delivered with a ‘Y’ USB cable allowing powering the device from two USB ports. It is recommended to connect the two USB plugs so as to correctly power the CANCUN unit. Cancun 222-Mic and CANCUN 442-Mic main hardware features ●...
-
Page 6: Software Features
● 1 stereo headphone output on female 6.35mm jack Software features ● CANCUN 222-Mic and CANCUN 442-Mic comply with the USB Audio 2.0 specification ● Simultaneous record and playback on all the audio I/Os ● Supported formats: PCM 8, 16, 24 bits ●... - Page 7 Audio 2.0 is not supported yet by Windows operating systems Connect your Cancun device to a free USB port of your computer. Execute the driver installation package you have downloaded from Digigram WEB site, and proceed as follows. Click on Next.
- Page 8 Accept the License Agreement, and click on Next. By default, driver files are installed in folder C:\Program Files\Digigram CANCUN. Select another folder if you want, and click on Install. Wait during the installation of the driver.
- Page 9 When the message “Preinstallation was successful. Click Next to continue” is displayed, click on Next. Click on Finish to finish the installation procedure. The Cancun DirectSound devices are now listed in the Windows “Sound” control panel, in “Playback” and “Record” tabs. The ASIO devices can be selected from any ASIO application.
-
Page 10: Firmware Update
FIRMWARE UPDATE Your Cancun is delivered with a firmware version applied in factory. A more recent firmware version may have been released by Digigram since you purchased your CANCUN (a new firmware may include improvements and new features). Please connect to the Support page of Digigram WEB site: www.digigram.com/drivers/index.php. - Page 11 A confirmation window is displayed. Click on button “Yes” to confirm the firmware update. The displayed green bar indicates the firmware update progress. When the green progress bar has reached 100% and the message “The Firmware was successfully updated” is displayed, click on button “Exit” to quit the firmware updater application.
-
Page 12: Starting The Control Panel
Cancun parameters can be set from its control panel. To open Cancun control panel, go in Start menu, Programs, Digigram CANCUN, and select Cancun Control Panel. Note that the Control Panel is automatically opened when connecting the CANCUN to the PC (provided that the driver has been installed under Windows). - Page 13 Click on to set the global parameters of CANCUN. Cards: allows select the CANCUN device to set its parameters. Clocks: allows selecting the sampling clock: · Internal: sampling clock is generated internally · AES1: sampling clock is extracted from digital input AES1. Without digital signal connected to the input “AES 1”, AES1 clock selection is displayed as “not valid”.
- Page 14 Click on to set the parameters of audio inputs. Each slider allows adjusting the analog gain for an analog input from 0dB to + 55 dB, by 1 dB steps. It is possible to adjust the level of several inputs at the same time, by moving only one slider.
- Page 15 48 V phantom power on the input the mic is connected to. To activate the 48V phantom power on an input, click on the OFF button on the right of 48V for the concerned input: . When 48V is enabled on an input, the button is displayed as follows: Note that any modification of the Pad from the software Control Panel is reflected on the touch pad of Cancun, and vice versa.
- Page 16 Adjusting the gains on the analog outputs and displaying vu-meters Click on the icon to set the parameters for audio outputs. For each output, the volume slider allows adjusting the analog attenuation, 0dB to - 72 dB, by 1 dB steps. It is possible to adjust the volume of several outputs at the same time, by moving only one slider.
- Page 17 Configuration of headphone output parameters Click on the icon to adjust the settings of the headphones output. The central fader allows adjusting the signal level on the headphones output. The horizontal cursor, in top of the main fader, allows adjusting the balance between left and right channels. The heaphones output receives a mix composed of: - all the inputs (analog and AES/EBU) - all the audio played on CANCUN output devices...
- Page 18 Click on the icon on the bottom left of the central headphones window to access the DIGITAL OUTPUT section, for adjusting the levels of the signals played on the AES/EBU outputs from a software application.
- Page 19 SETTING CANCUN PARAMETERS FROM THE CANCUN TOUCH PANEL Input gains setting Press the Pad touch button to enable/disable the fixed attenuation on the desired. When PAD is ON, a green led appears. An attenuation of -30.0 dB is applied to the analog input signal. When PAD is OFF, the LED is turned off.
- Page 20 Output gains settings The analog output gain is adjustable with the upper rotary button when: · the IN/OUT touch button on the right of the rotary button is in position OUT (green led in front of OUT) · and the touch button on the left of the rotary wheel is active (green led).
-
Page 22: Audio Specifications
3.8 mS Analog-to-MAC or MAC-to-Analog (Mac OS X 10.6.8) ADAT / S/PDIF 24-bit/192kHz ADAT * * Not available yet. Will be available by software upgrade Inputs CANCUN 222-Mic CANCUN 442-Mic Analog line inputs (mono) 2 balanced 4 balanced Line: +25 dBu / >3.5 kOhms Line: +25 dBu / >3.5 kOhms... - Page 23 AES11 synchronization Other inputs ADAT / S/PDIF* ADAT / S/PDIF* * Not implemented yet. This will be available by software upgrade. Outputs CANCUN 222-Mic CANCUN 442-Mic Analog line outputs (mono) 2 balanced 4 balanced +10 dBu / 2x33 Ohms +10 dBu / 2x33 Ohms...
-
Page 24: External Connectors
· 3.4 mS Analog-to-PC or PC-to-Analog (Windows 7 / 64 bits) · 3.8 mS Analog-to-MAC or MAC-to-Analog (Mac OS X 10.6.8) External Connectors CANCUN 222-Mic CANCUN 442-Mic Analog and digital I/ 25 pin Sub-D 44 pin Sub-D HD (compatible with DB25 YAMAHA DIGITAL) - Page 25 Windows XP: DirectSound, ASIO, Digigram np SDK through Virtual PCX Management Windows Seven; DirectSound, ASIO, Core Audio, WASAPI, Digigram np SDK via Virtual PCX Mac OS X: CoreAudio Linux: Alsa* * Functionality not implemented yet. This will be available by software upgrade.
- Page 26 CANCUN 222-Mic schematic diagram...
- Page 27 CANCUN 442-Mic schematic diagram...
- Page 28 CANCUN 222-Mic CABLE CANCUN 222-Mic cable schematic CANCUN 222-Mic Wiring diagram CANCUN 222-Mic cable pinout...
- Page 29 Pin# Signal Pin# Signal ANALOG IN1 Left + ANALOG IN1 Left - ANALOG IN2 Right + ANALOG IN2 Right - Not connected Not connected AES IN1 + (AES SYNCHRO) AES IN1 - (AES SYNCHRO) ANALOG OUT1 Left + ANALOG OUT1 Left - ANALOG OUT2 Right + ANALOG OUT2 Right - Not connected...
- Page 30 CANCUN 442-Mic CABLE CANCUN 442-Mic cable schematic...
- Page 31 CANCUN 442-Mic Wiring diagram...
- Page 32 CACUN 442-Mic cable pinout Pin# Signal Pin# Signal ANALOG IN4 Right + ANALOG IN4 Right - ANALOG IN3 Left + Not connected ANALOG IN3 Left - ANALOG OUT1 Left + ANALOG OUT1 Right + ANALOG OUT3 Left + ANALOG OUT3 Left - AES/EBU IN2 + Not connected ANALOG IN1 Left +...
